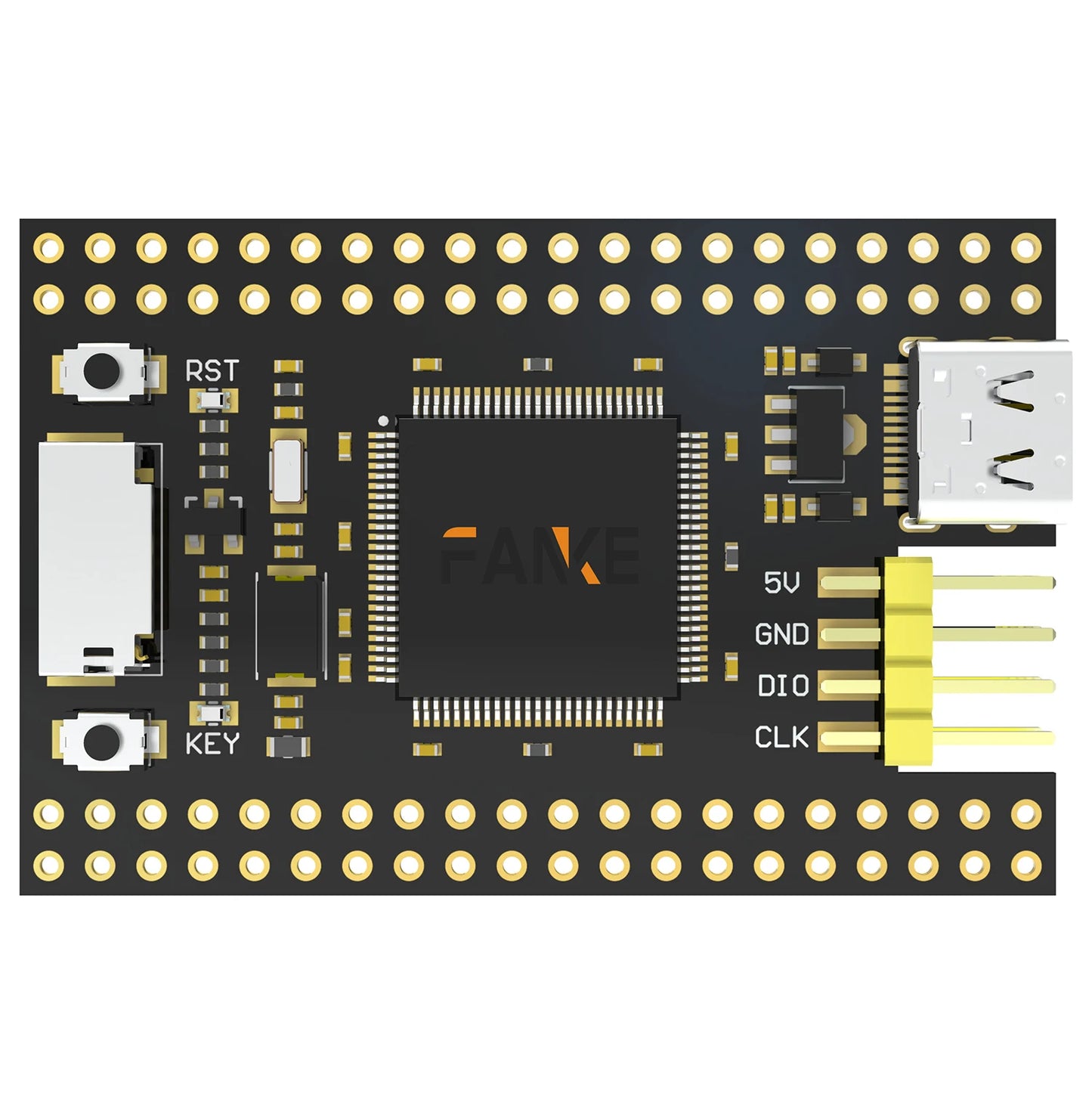

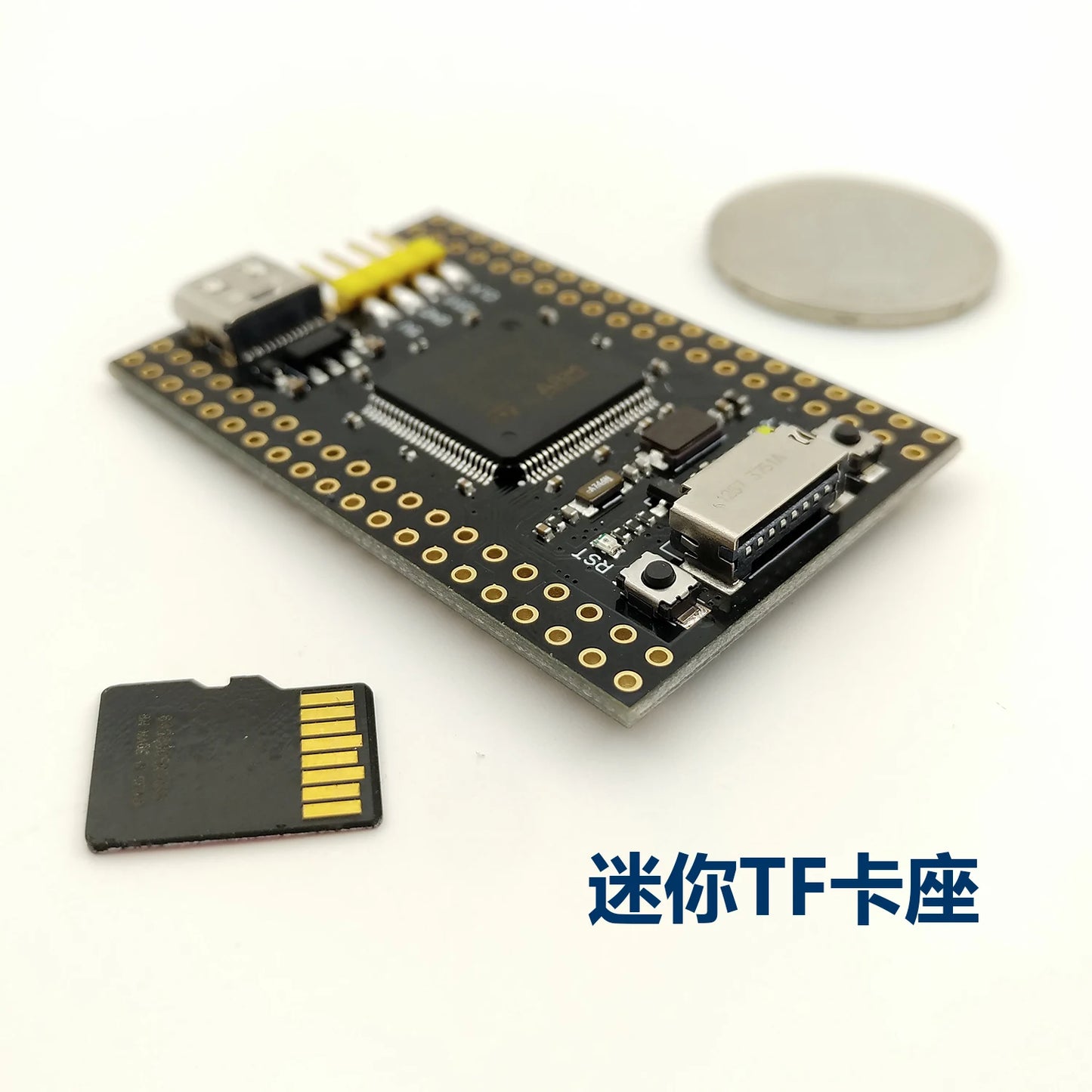

Custom STM32F407VET6 minimum system core board STM32 development board to replace VCT6 Manufacturer

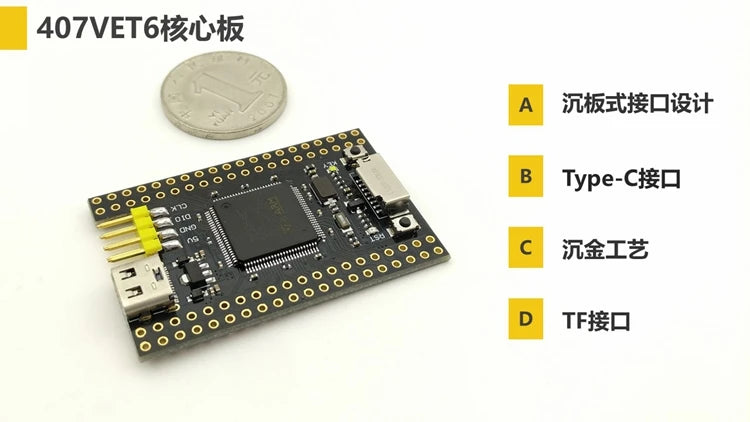

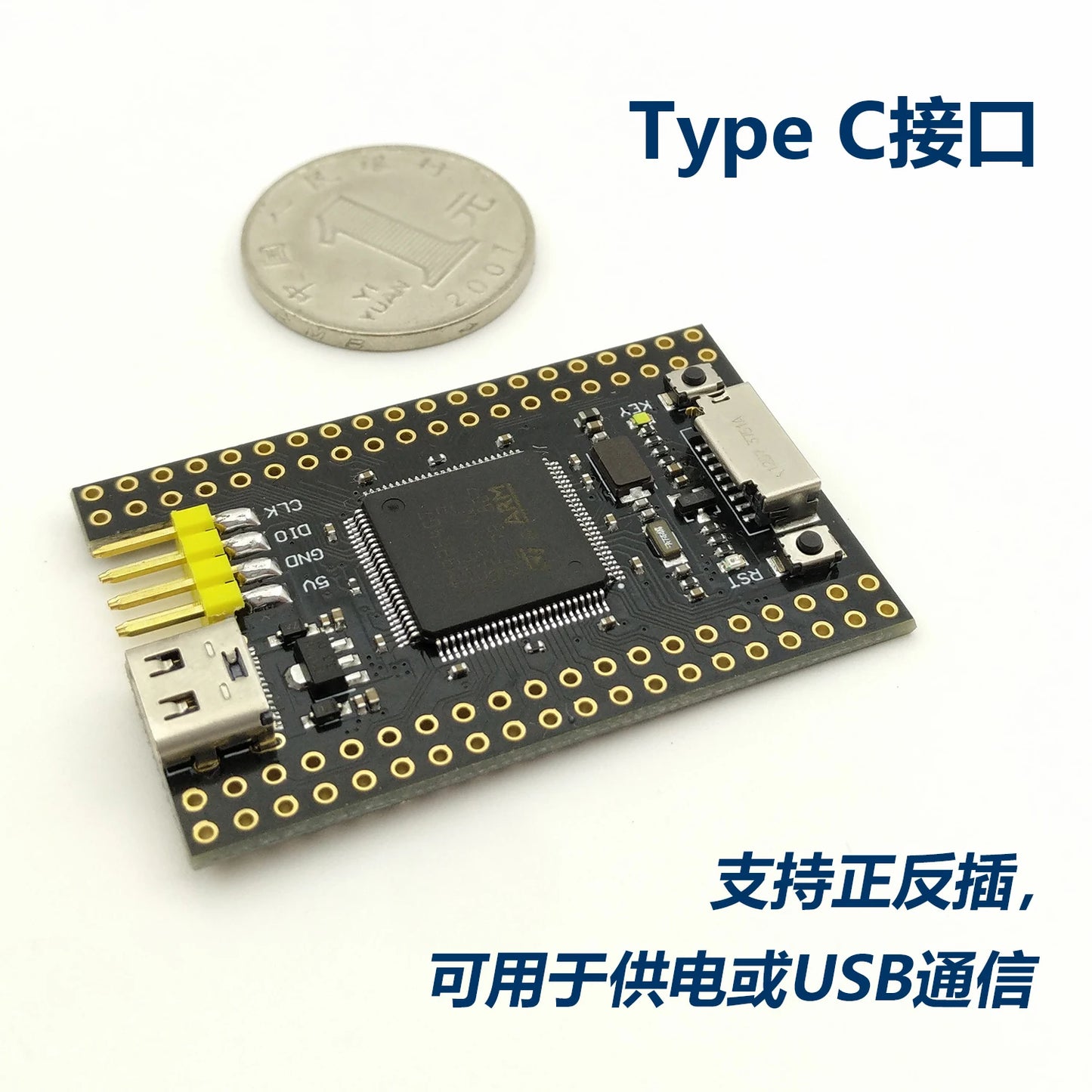

1. The TypeC port of the core board cannot be used to download programs to the microcontroller, but is only connected to the USB port of the STM32. For details, please refer to our schematic diagram

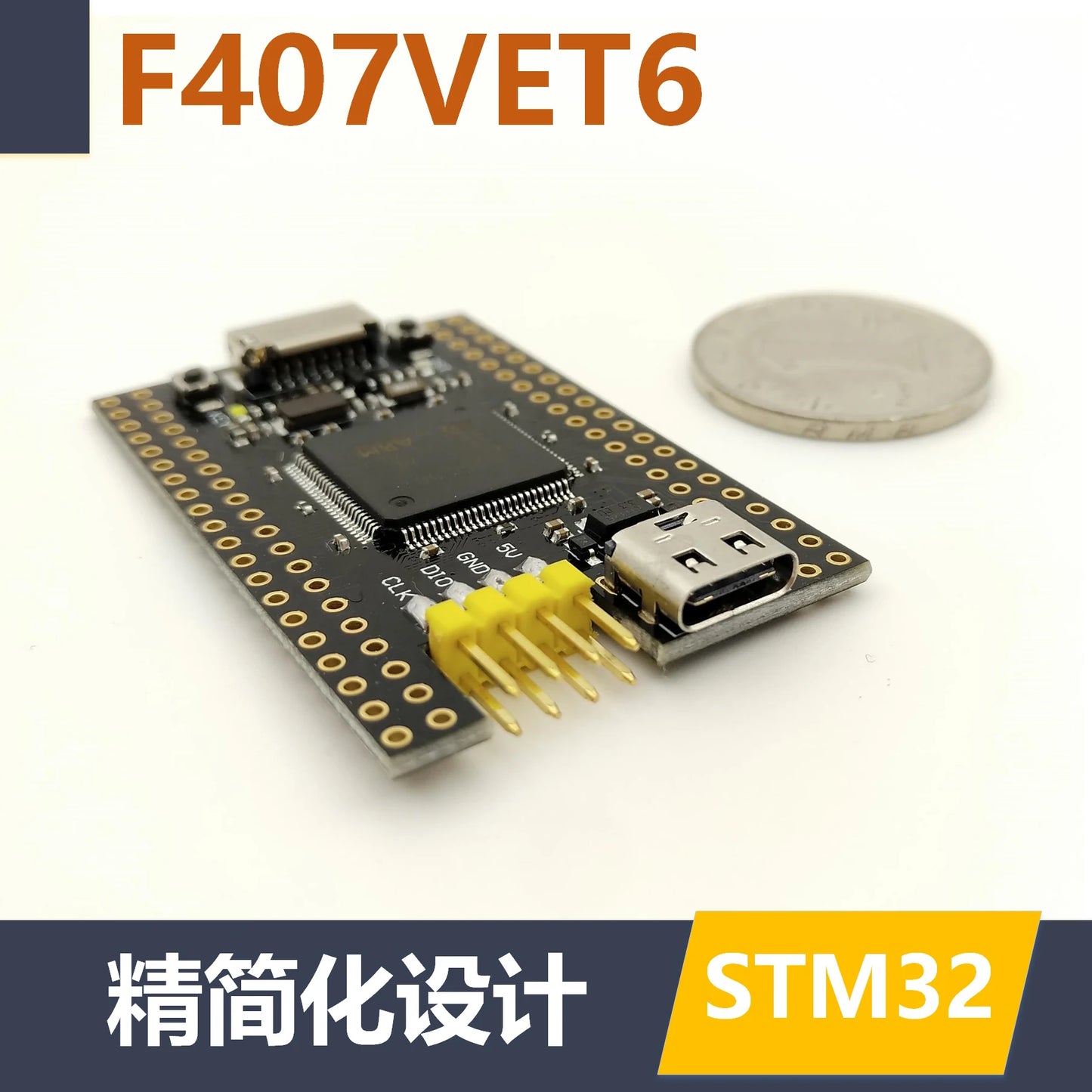

2. The core board leads to the SWD interface, you can use Jlink, STlink, DAP and other downloaders that support the SWD interface

3. There are no tutorials in the attached materials, only schematics, package libraries and one or two simple routines

4. The core board only comes with matching headers (default is not soldered), without battery holders and batteries, the back part is only reserved for the pads of the battery holder, the model is CR1220

5. The BOOT of the core board uses solder joint settings, which can be modified with a soldering iron. It is not suitable for some occasions where BOOT needs to be modified, such as serial download

---------------------------------------------------------
