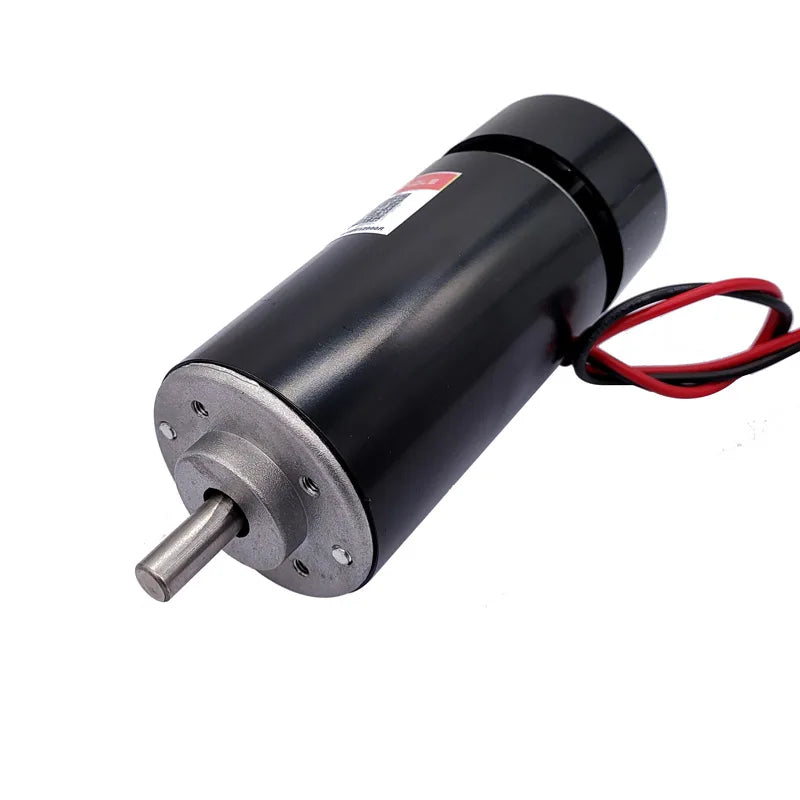

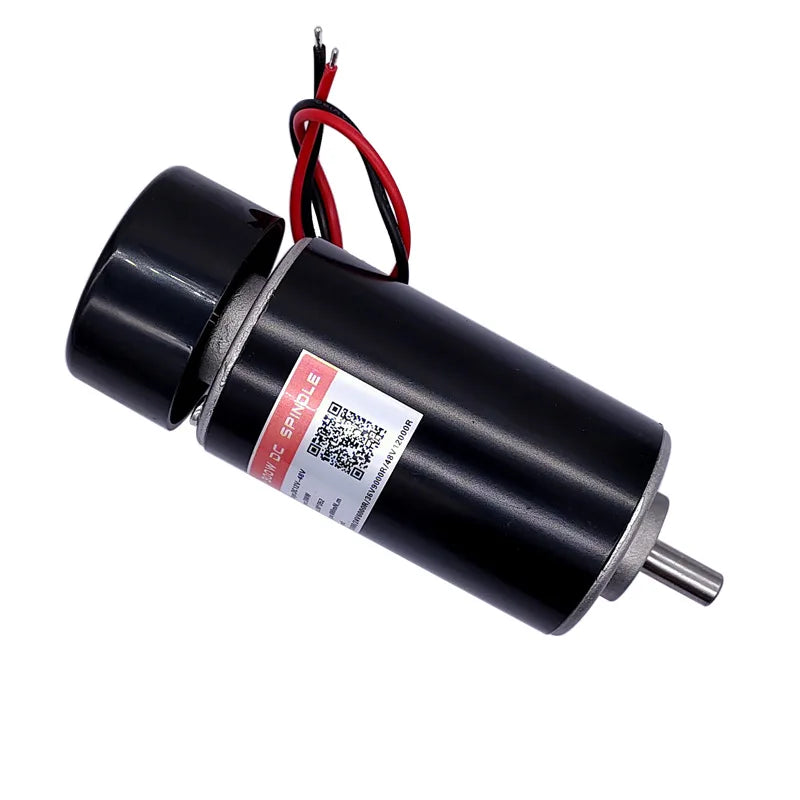

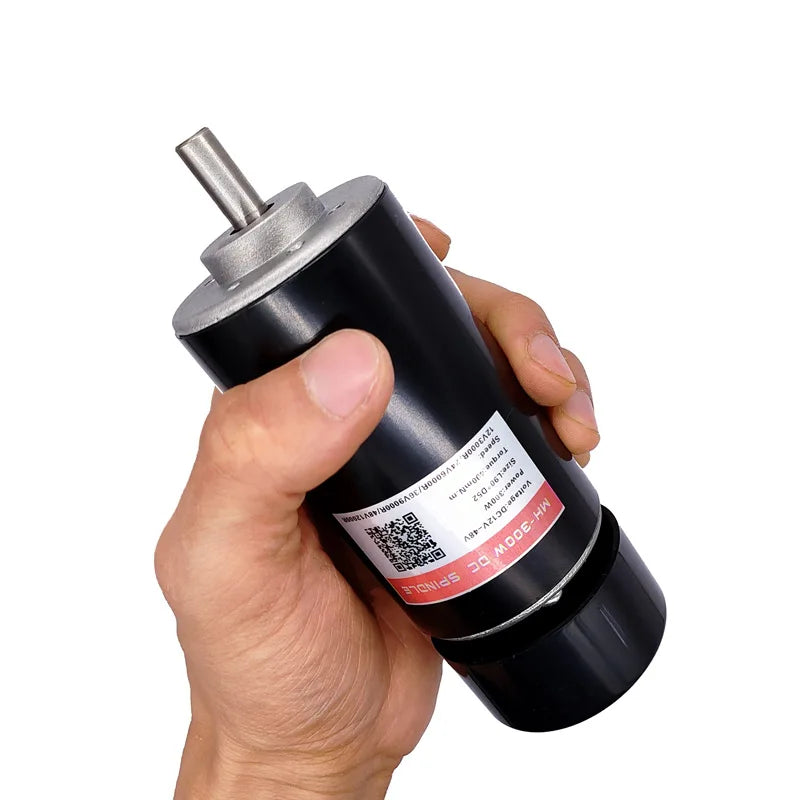

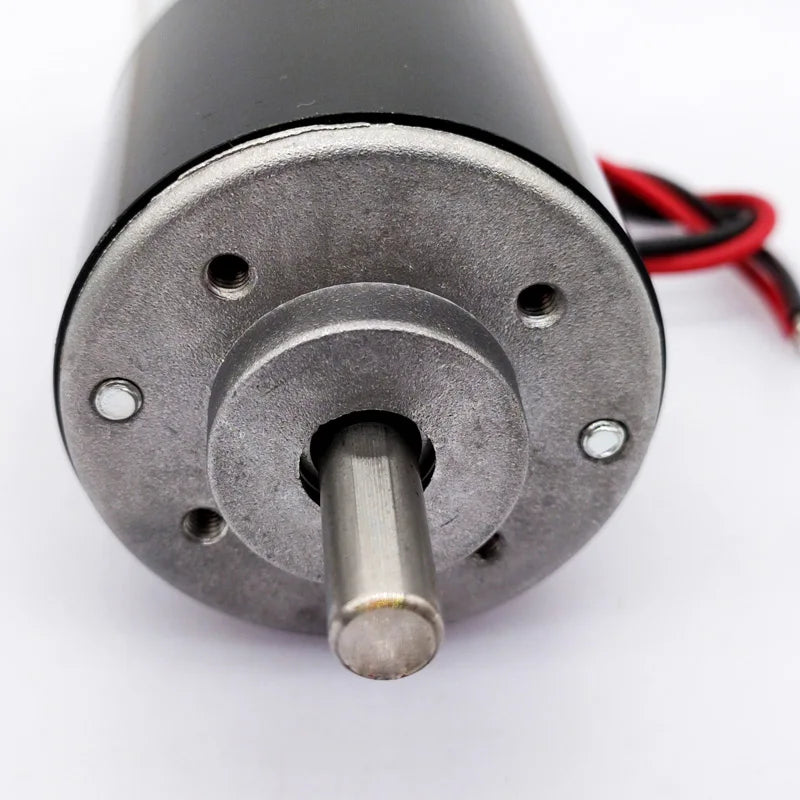

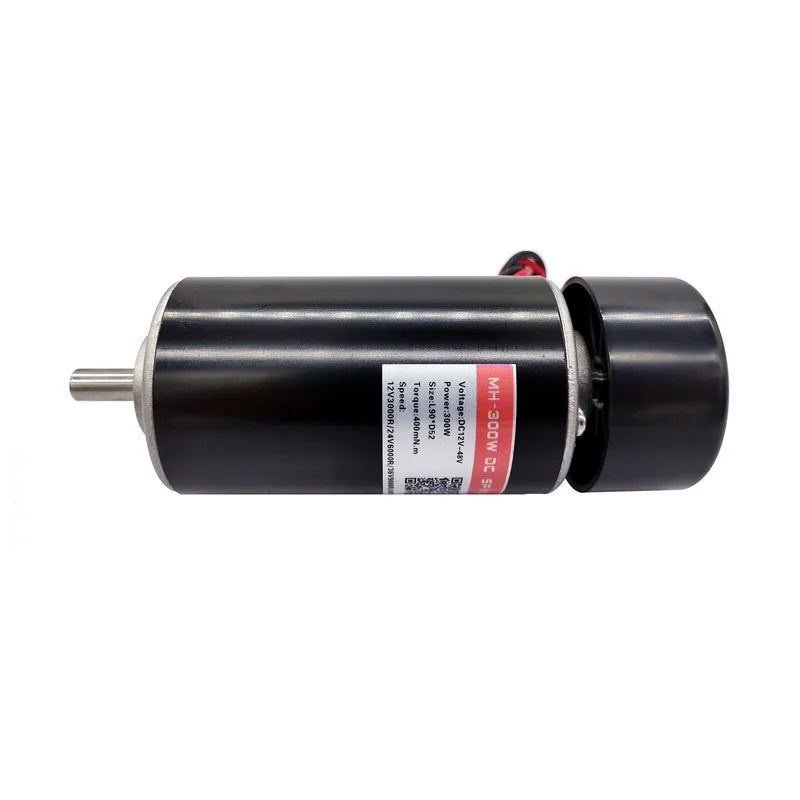

Custom Spindle motor High speed CNC Starter 12-48V ER11 12000rpm 300 W Engraving milling grind Diy spindle motor Manufacturer
Custom Spindle motor High speed CNC Starter 12-48V ER11 12000rpm 300 W Engraving milling grind Diy spindle motor Manufacturer
Regular price
$10.20 USD
Regular price
$10.20 USD
Sale price
$10.20 USD
Unit price
per
Couldn't load pickup availability
Product parameters
Spindle motor: Electrophoresis black DC brush motor
Working voltage: 12-48vdc
Power: 300W
Starting current: 8A
Locked rotor current: 25A
Speed: 3000-12000r / min (12v-3000rpm, 24v-6000rpm, 36v-9000rpm, 48v-12000rpm)
Torque: 400MN. M
Insulation resistance: > 2 megohm
Dielectric strength of insulation: 400V
Diameter: 52mm
Motor body length: 90mm
Note: Pure copper wire is used in the motor
Welcome Customize Order!
