Introduction
This is an agile tracked chassis, low noise and easy to control, could be a good partner for your tank-liked robots.
1,High strength robot tank base:This is an agile tracked chassis, low noise and easy to control, which is a good partner for you to learning robotics.The robot chassis uses high strength aluminum alloy which makes it extremely solid and durable.
2,Nice damping effect:The track is made of engineering plastic that basically assured the good elasticity, excellent damping effect and large road grip of the product. What' s more, The high speed motors and premium tracks also allows it to move swiftly everywhere.

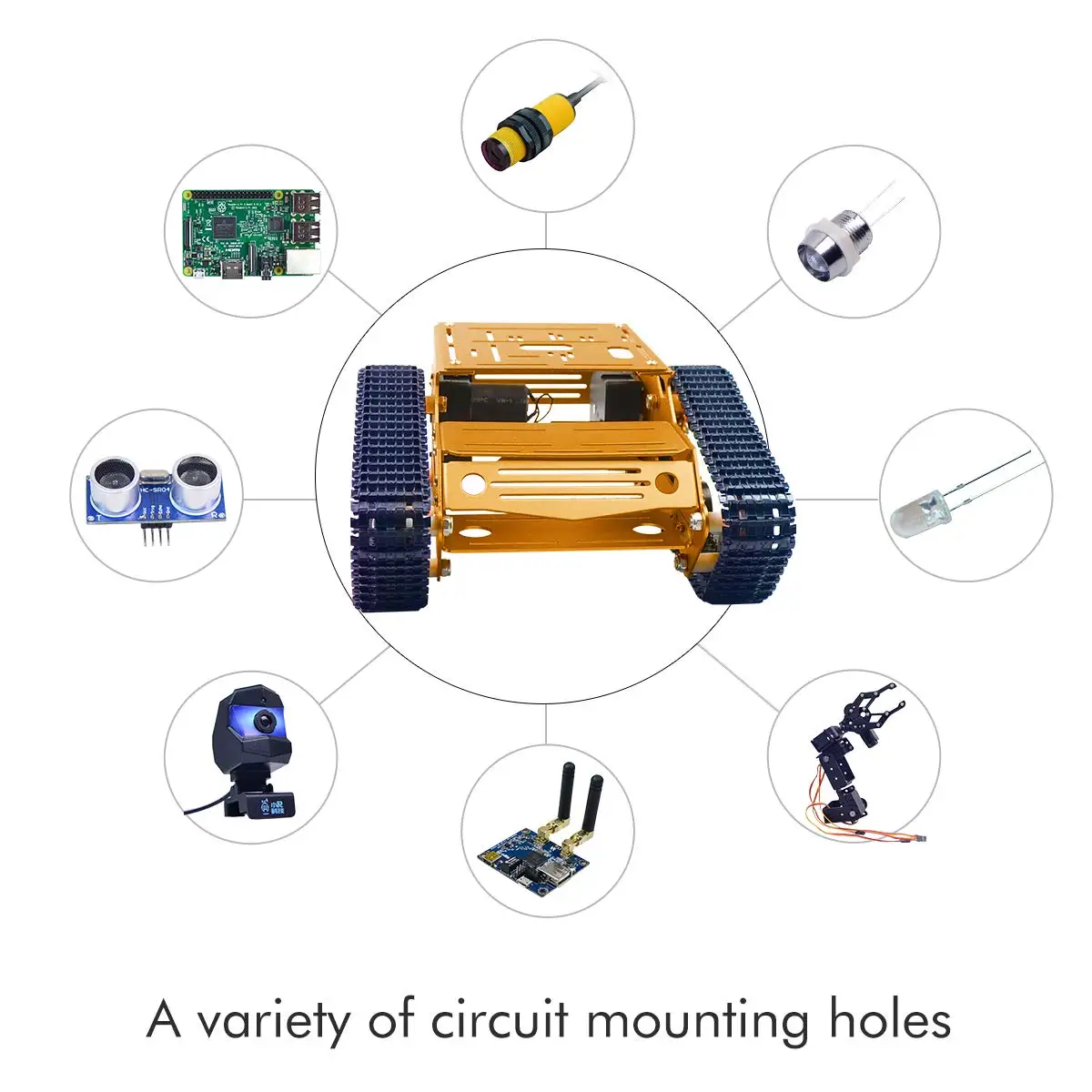

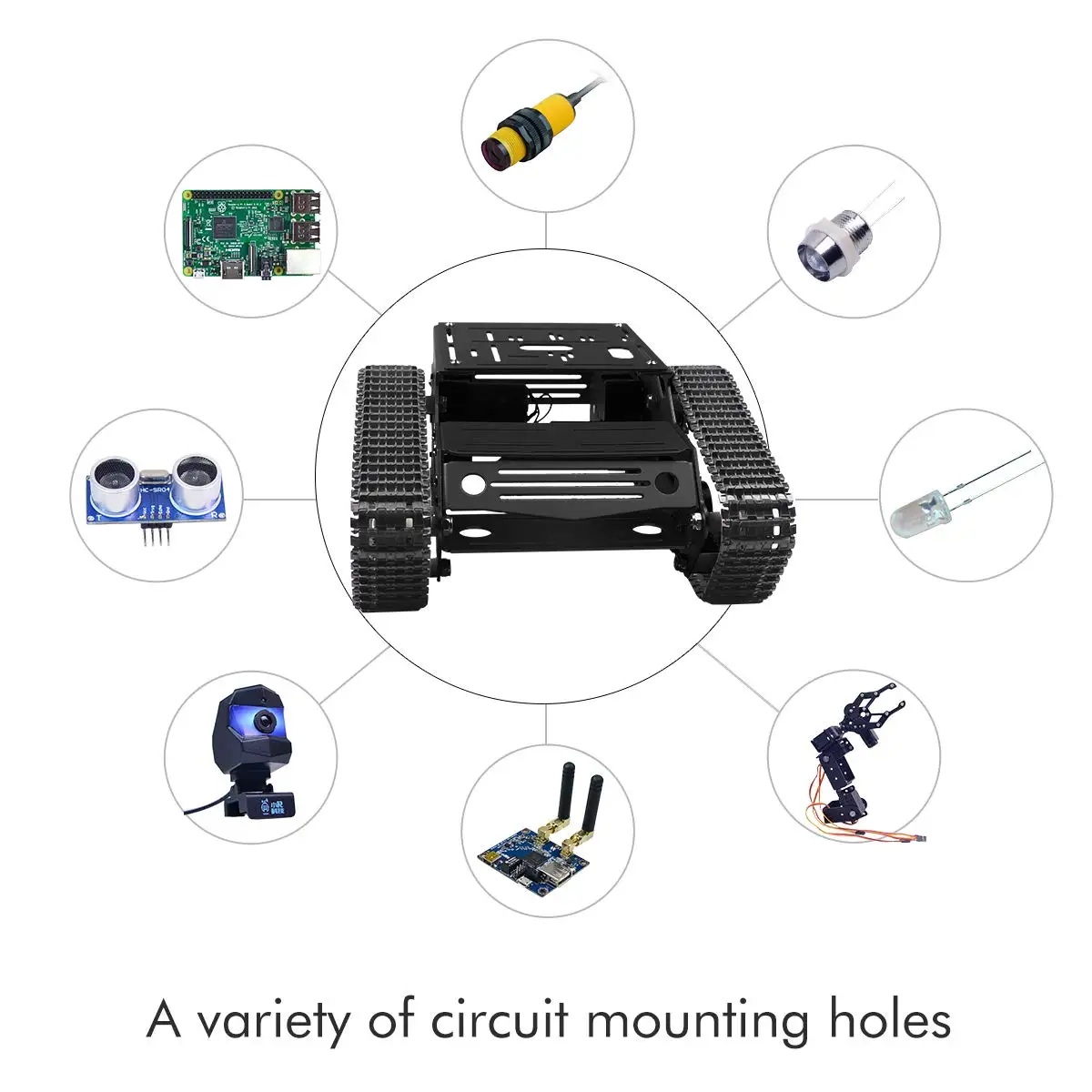

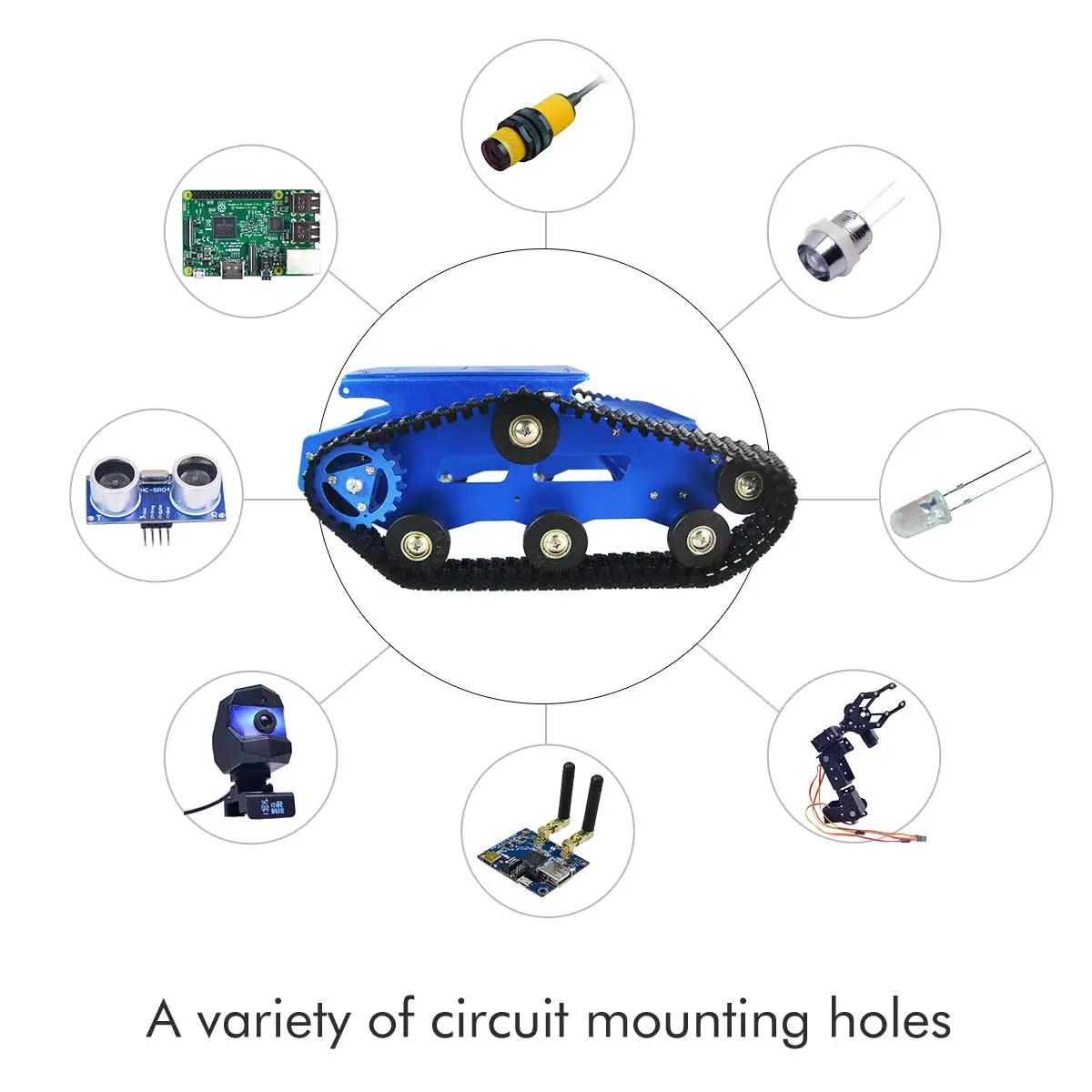

3,More interesting functions: XiaoR GEEK Tank Mobile Platform is fully compatible with most popular controllers in the market such as Arduino, Raspberry Pi and so on. Users are able to add various sensors, servos, turntables and controllers with multiple mounting holes on the robot platform.
4,Develop DIY ability:The tracked chassis is unassembled, you need to get it done by yourself and enjoy the fun of DIY. What's more, we have step by step instructions for you.
5,Technical issues support:It is perfect for hobbyists, educational, competitions and research projects. Any technical issues you could contact with our tech-support team: service@xiaorgeek.com

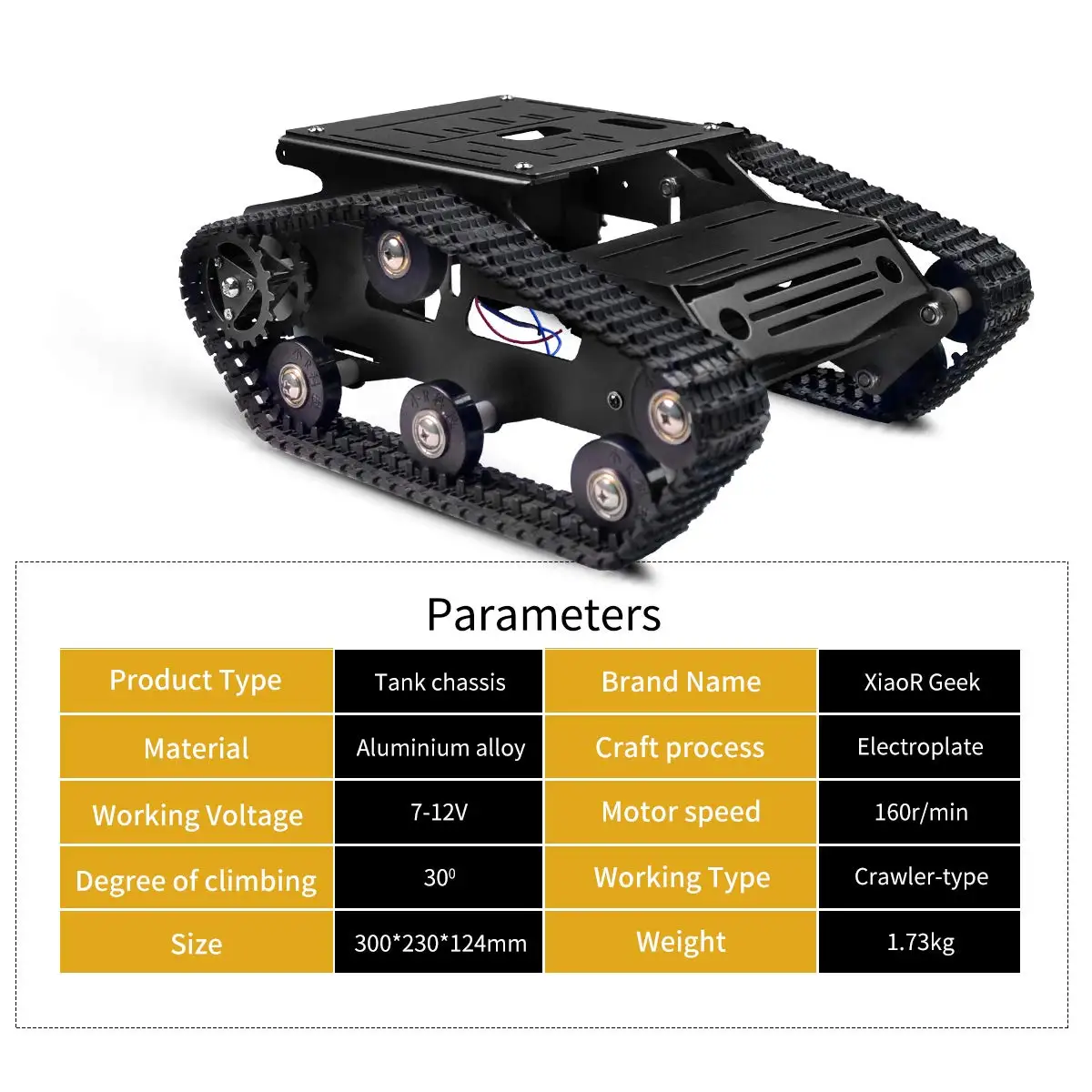

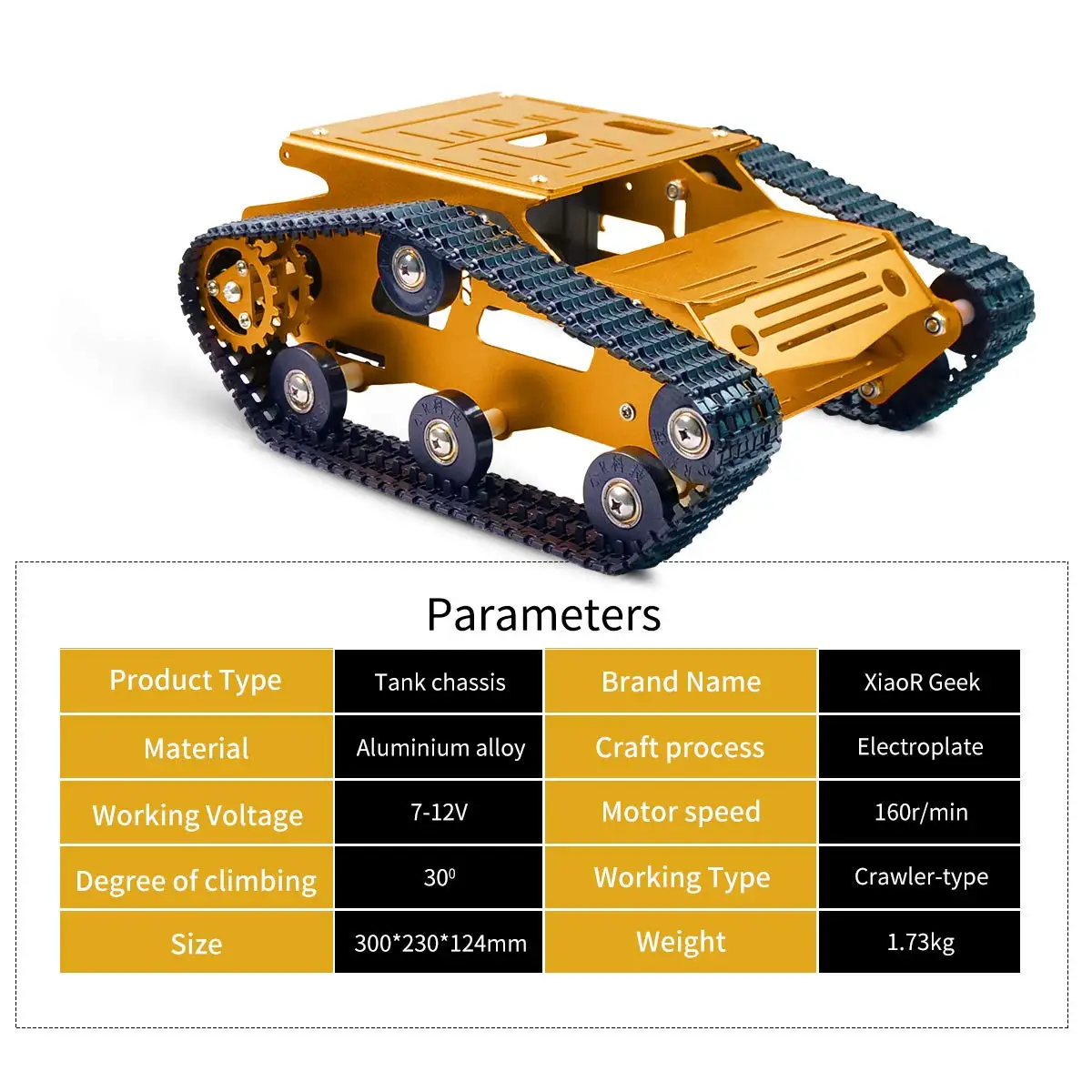

Specification
Base Material: aluminium alloy
Processing Method: electroplating
Track: engineering plastic
Wheel: engineering plastic
Net Weight: 1.2kg
Climbing degree: 30 degrees

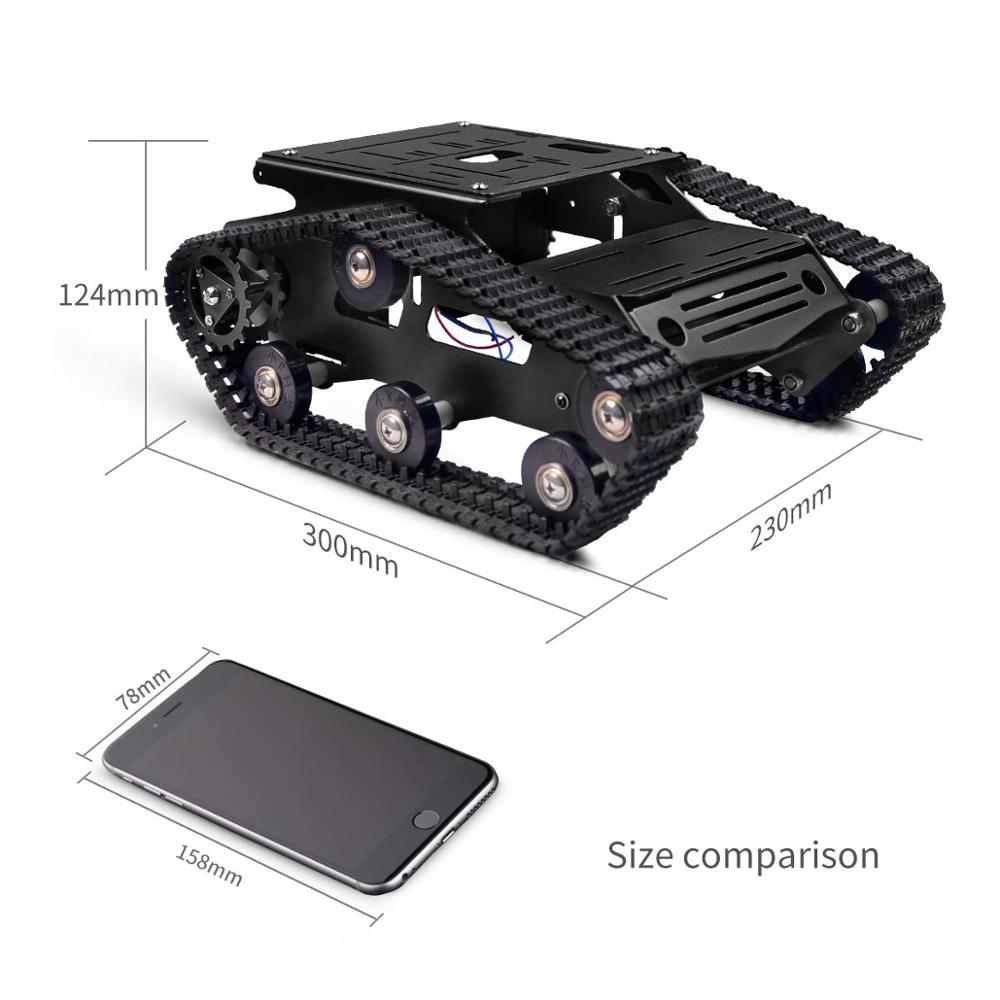

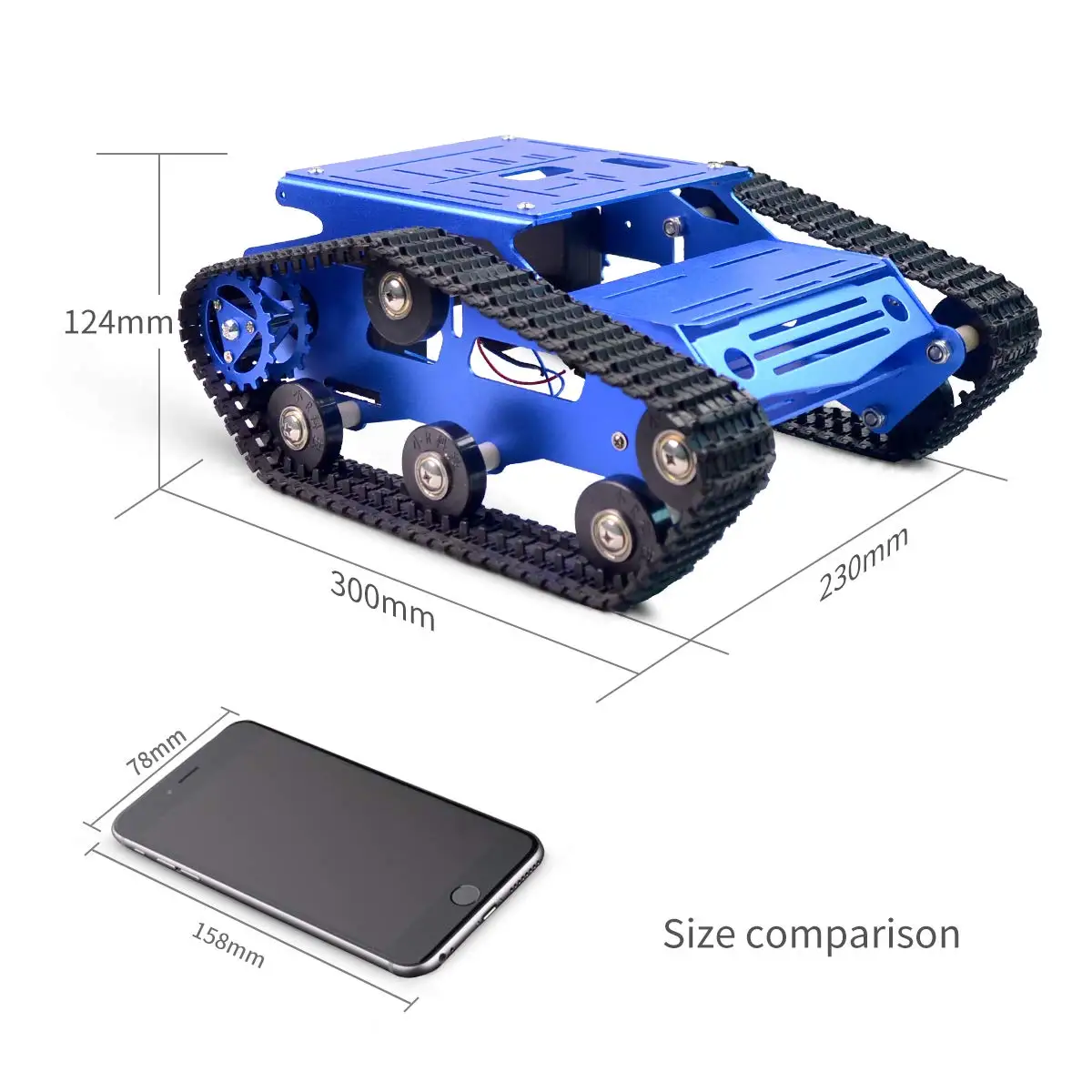

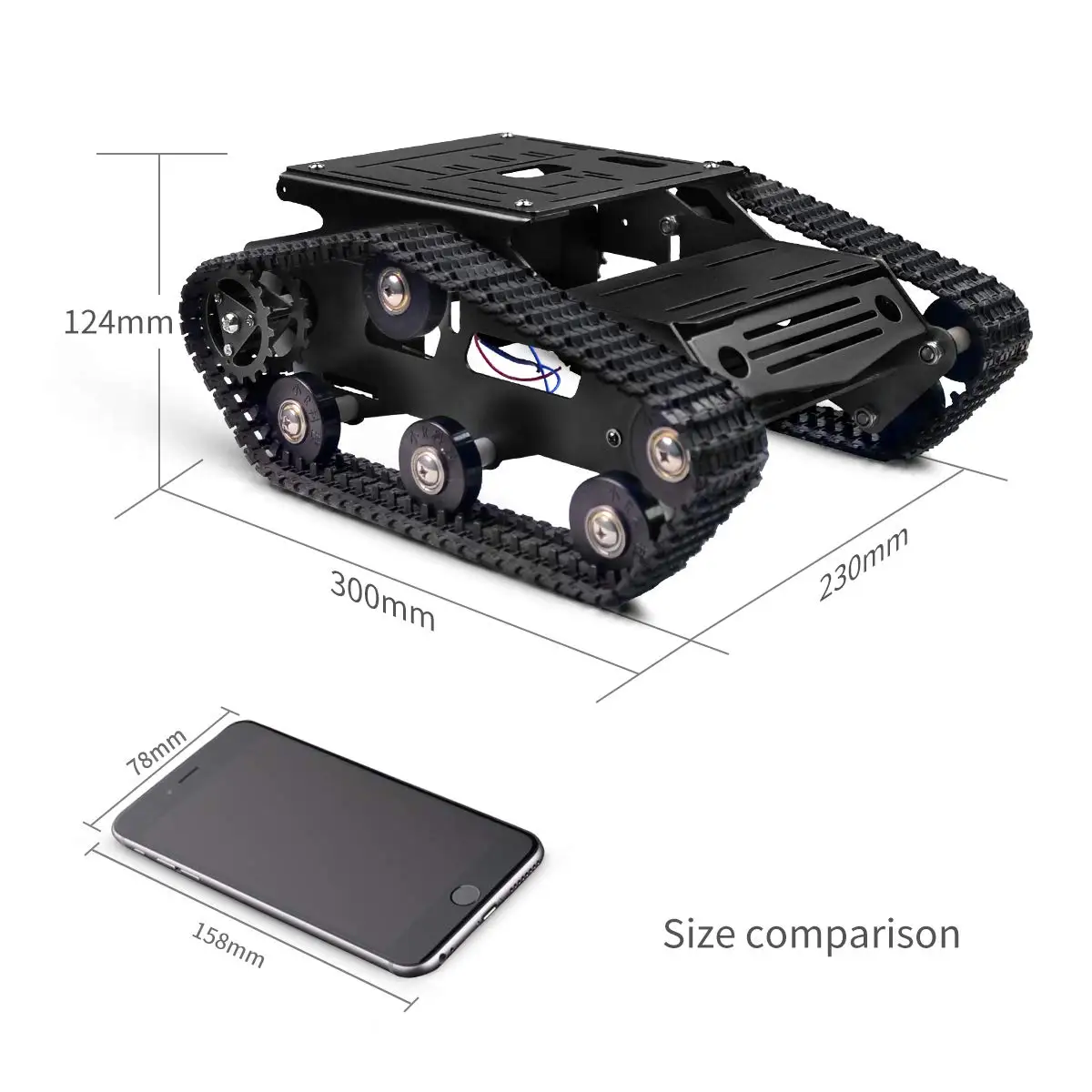

Product Size: 300 *230 *124 mm(L*W*H) /11.81*9.06*4.89"
Type: GM25-370
Output rate: 150 + 10% for RPM
Load current: 200 mA (Max)
Locked-rotor current: 4500 mA (Max)
KgNaN locked-rotor torque: 9.5kgNaN
Load speed: 100 + 10%rpm
The load torque: 3000 gNaN
Load current: 1200 ma (Max)
Load noise: 56 dB
Working voltage: 9V
Axis stretch size: 14.5 mm
Axial clearance: 0.05-0.50 mm
Screw size: M3.0
Outer Diameter: 25mm
Shaft diameter : 4mm, D type(thick:3.5mm)
Shaft length: 12mm, (D type:8 mm)

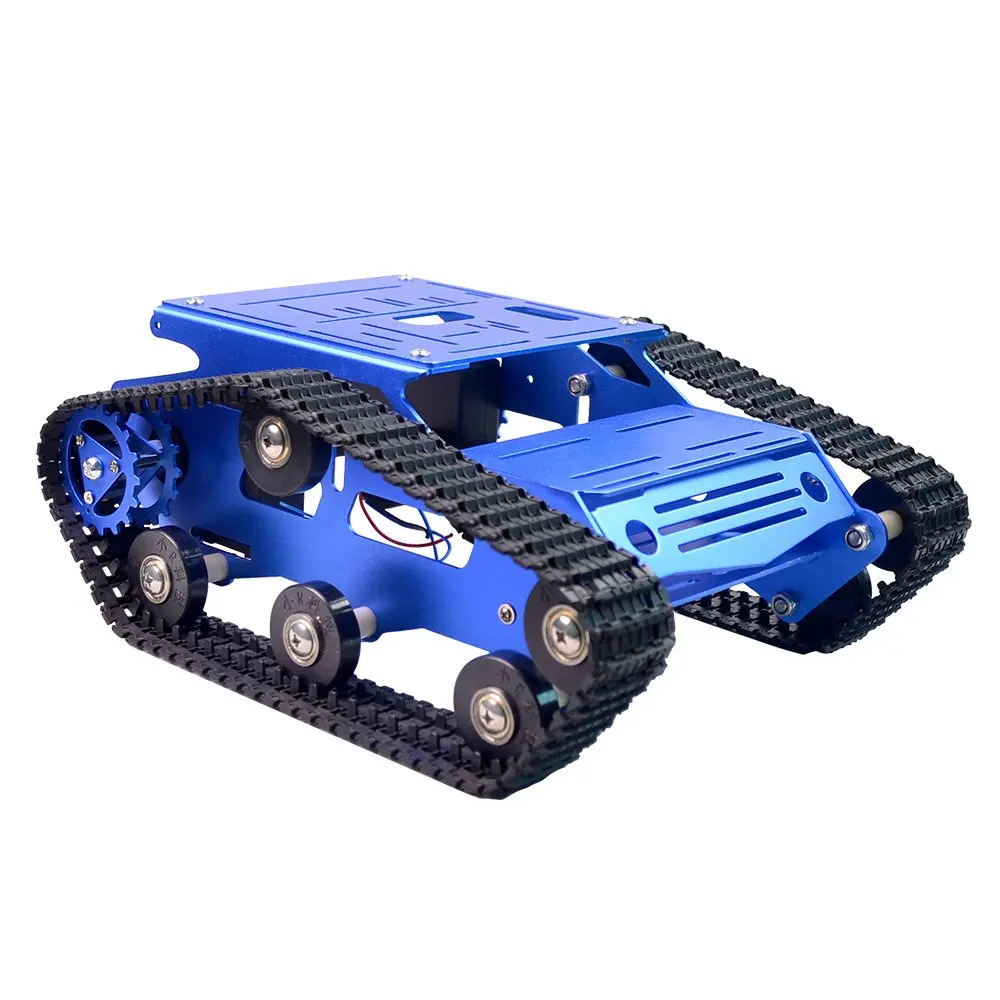

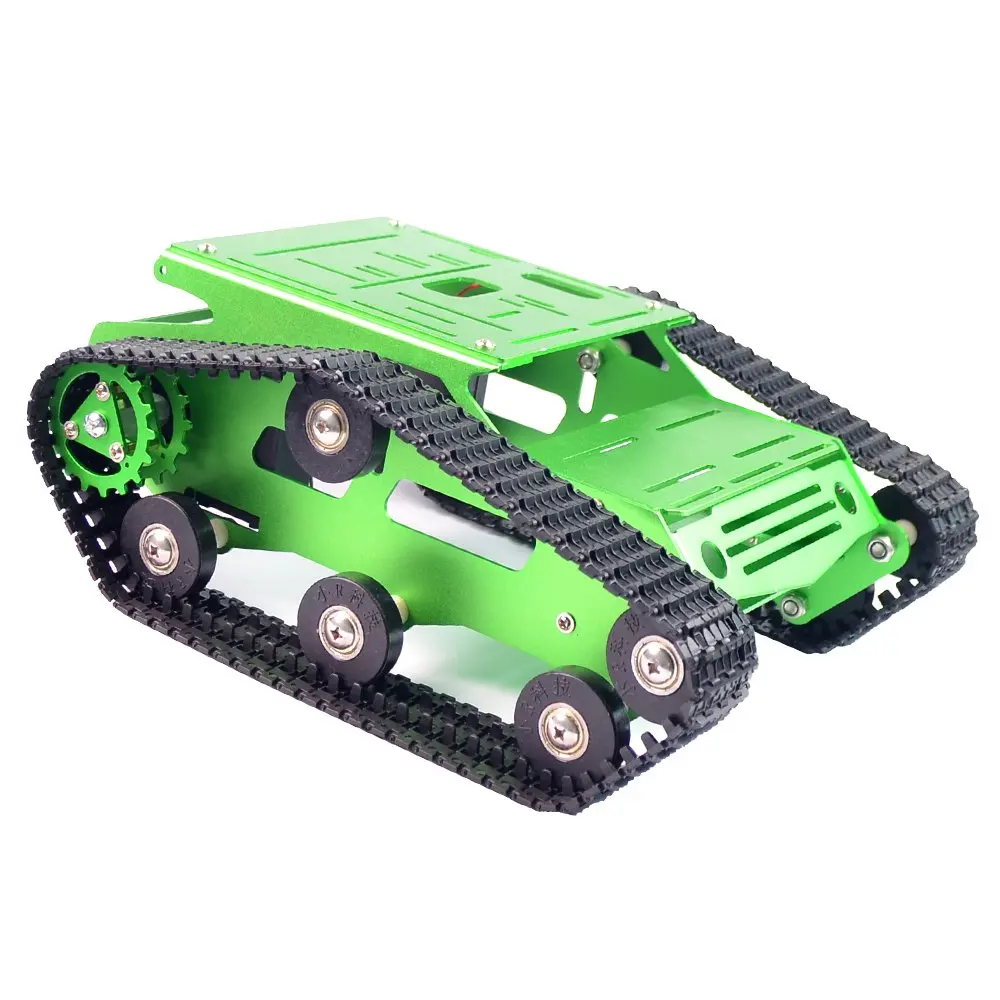

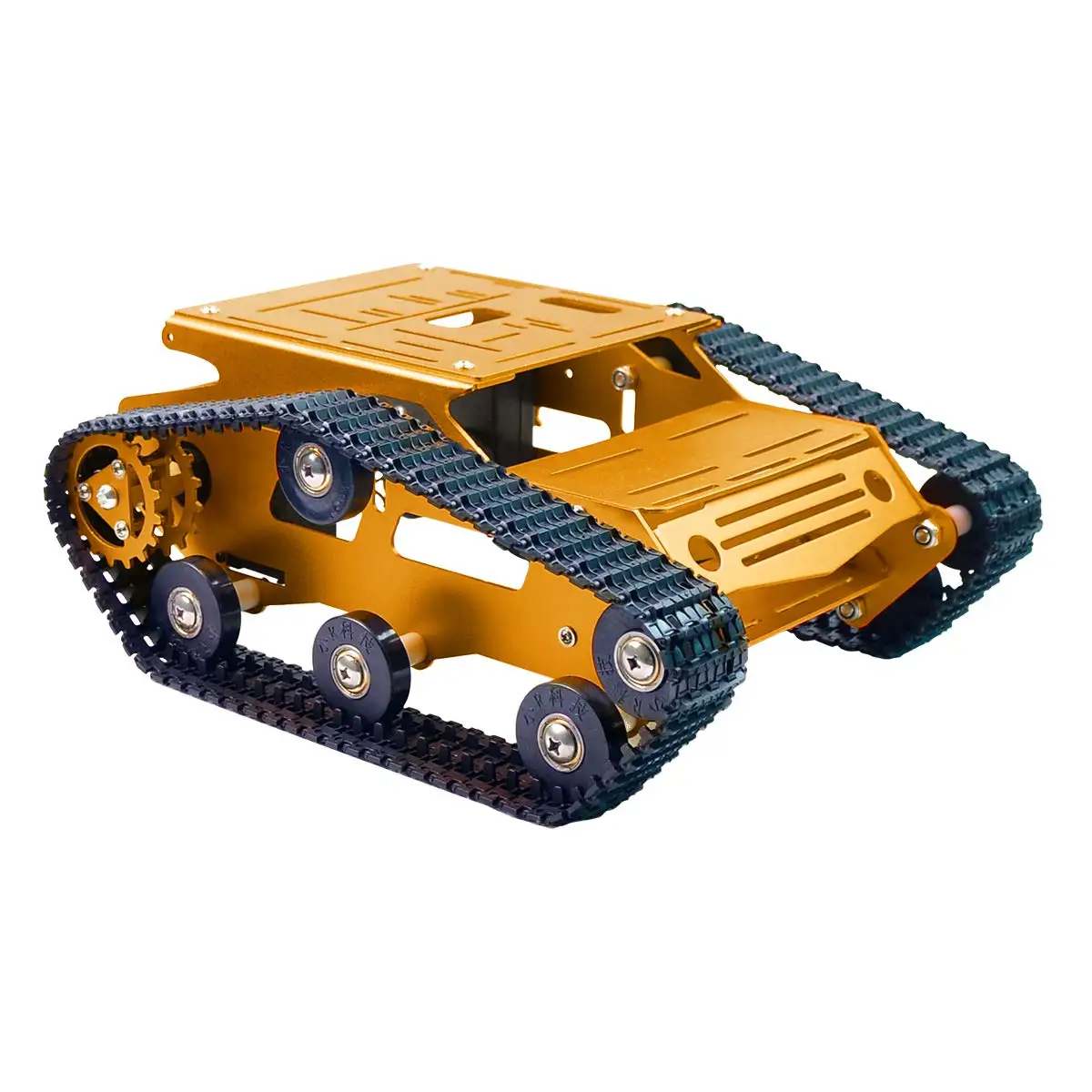

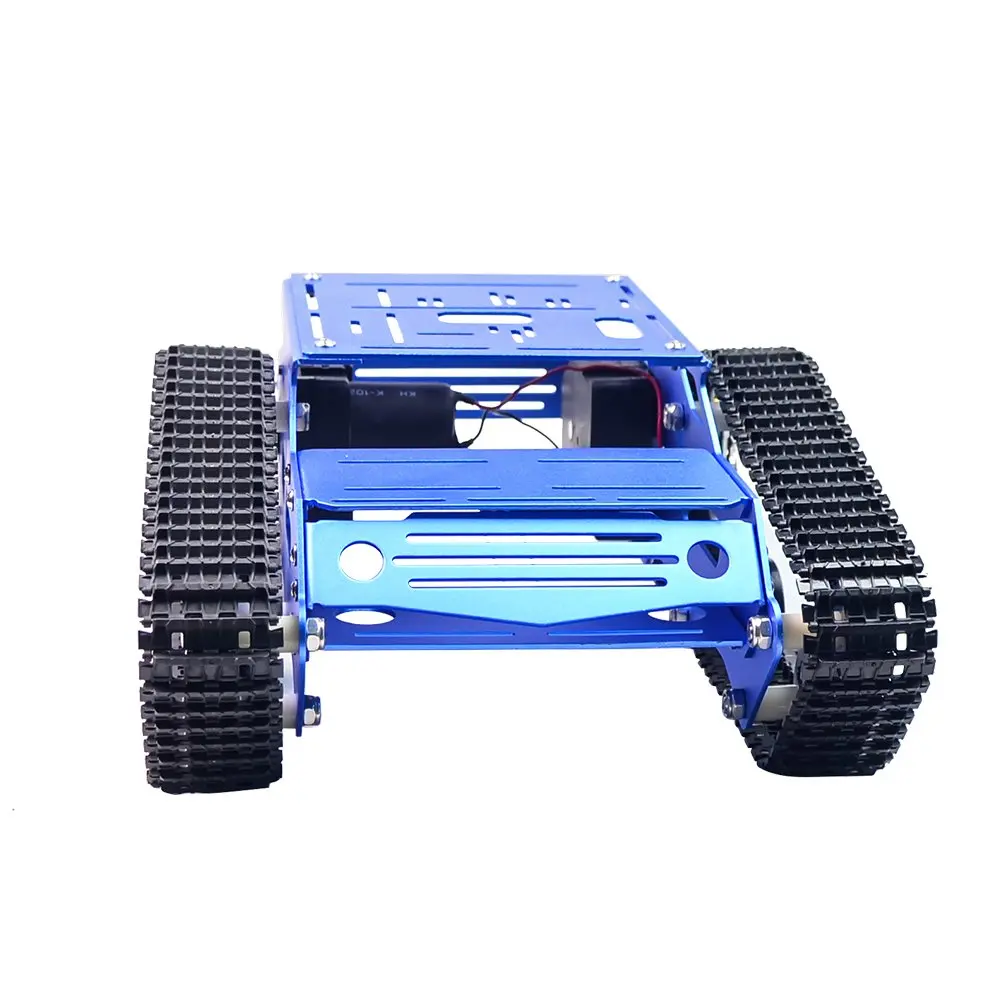

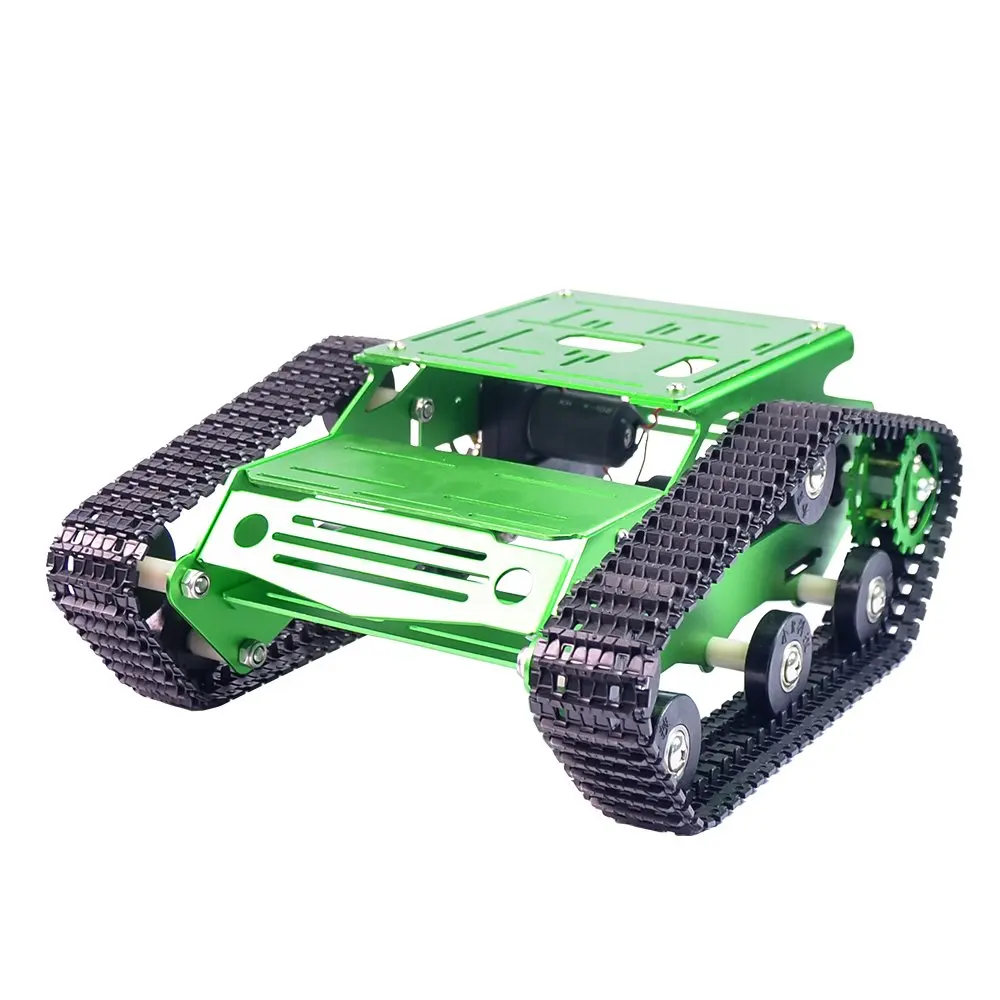

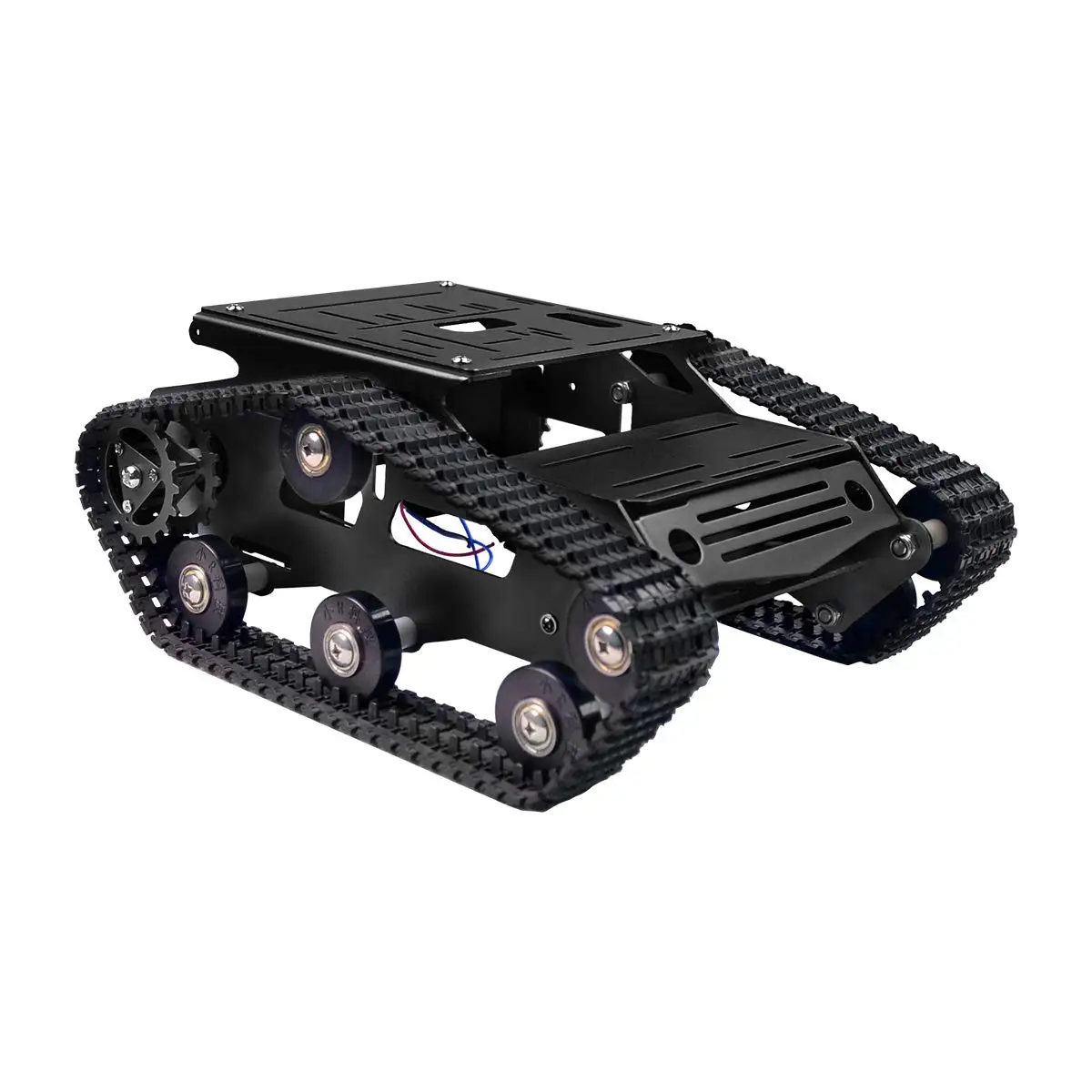

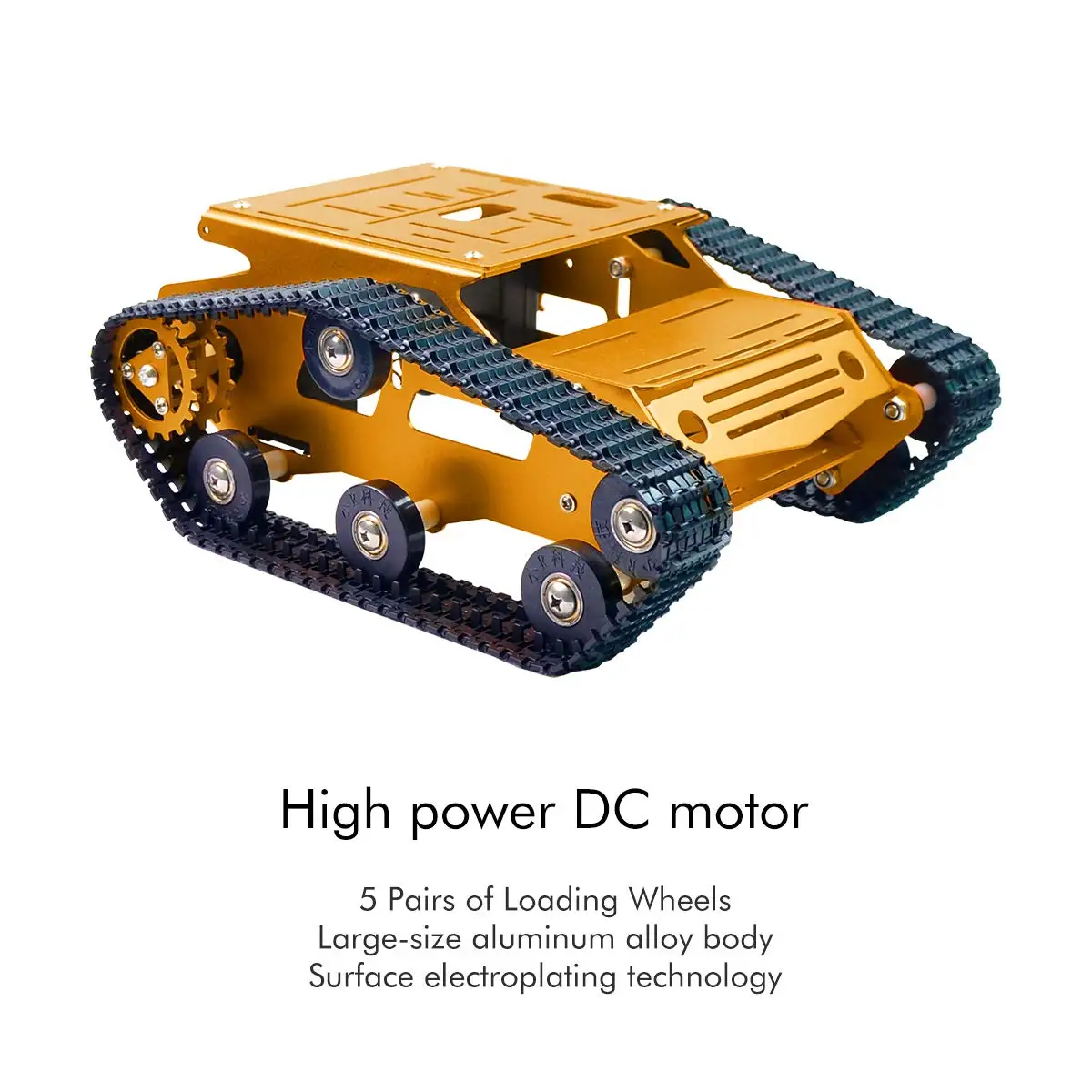

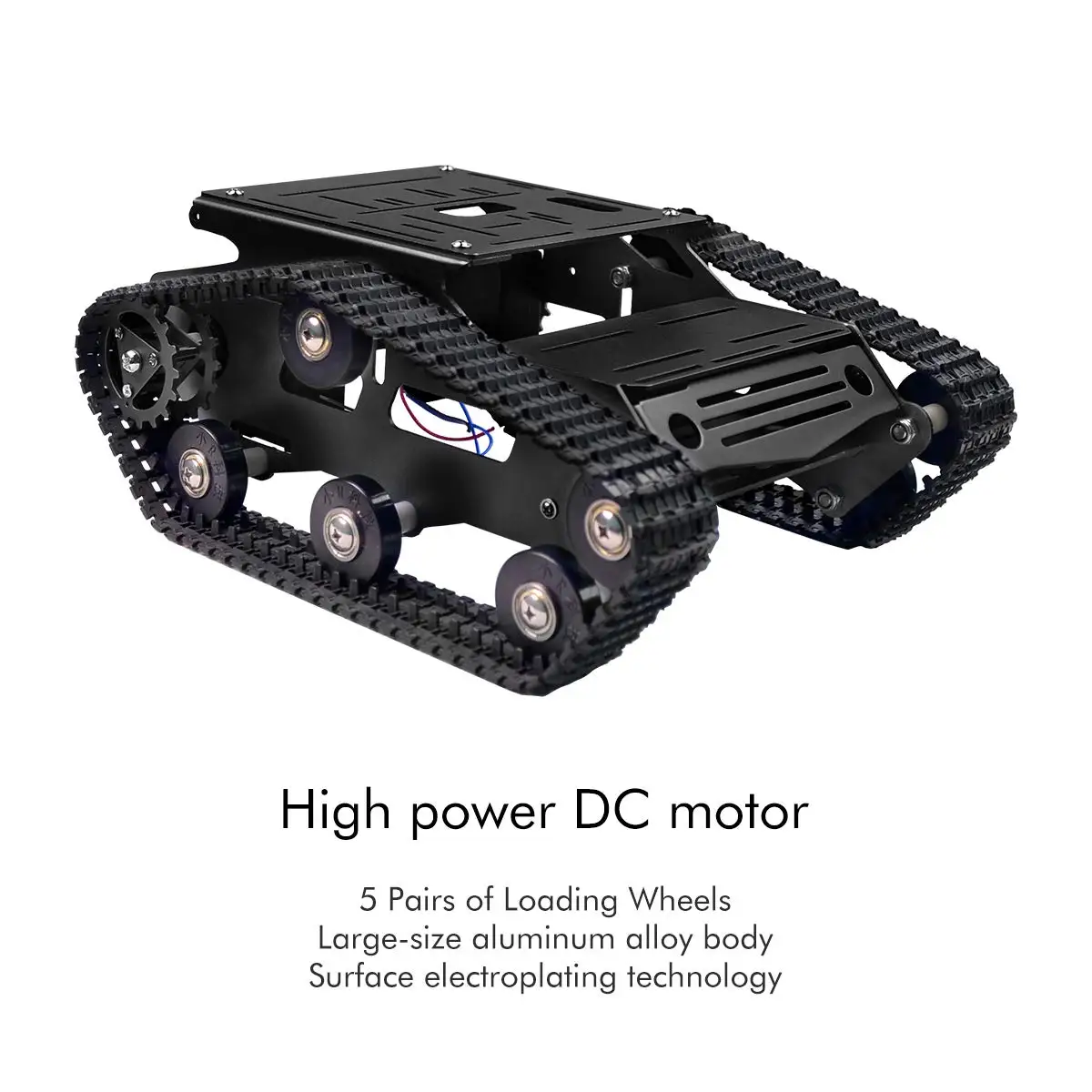

Product picture display

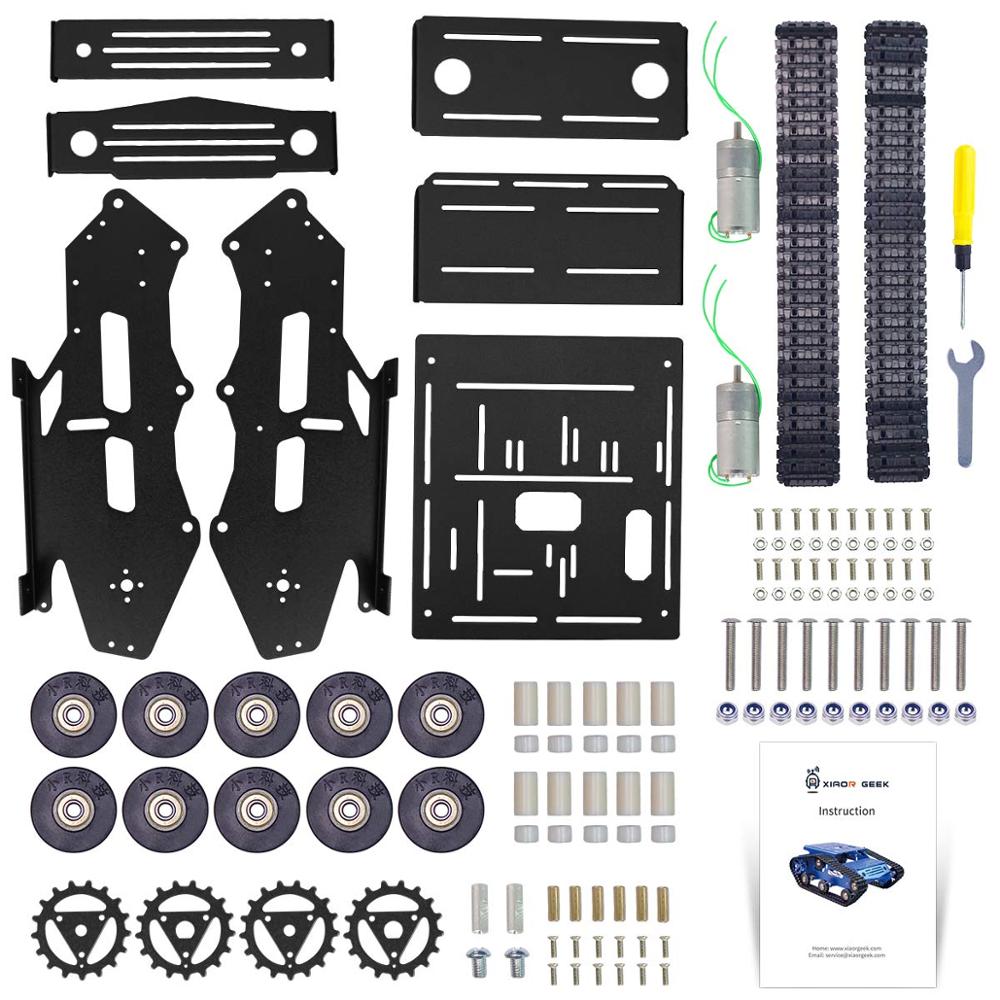

Package includes
1 x Wrench
1 x Screwdriver
2 x Motor
2 x Track
2 x Drive Wheel
10 x Driven Wheel
1 x Instruction
1 Set Base
1 Set Screw Accessory
