Custom Smart Electronics Soil Moisture Hygrometer Detection Humidity Sensor Module For arduino Development Board DIY Robot Smart Car

One weighs about 10.7 grams.

Data download: http://pan.baidu.com/s/1i3j4Ze1

A baby description
1 This is a simple moisture sensor can be used to detect soil moisture, when the soil water shortage, the module output a high level, vice output low level. Use this sensor to create an automatic plant watering device so that the plants in your garden do not need to be managed by humans.
2 Sensitivity adjustable (blue digital potentiometer adjustment in the figure)
4 Working voltage 3.3V-5V
5 modules double output mode, digital output is simple, analog output is more.
6 Bolt holes are provided for easy installation

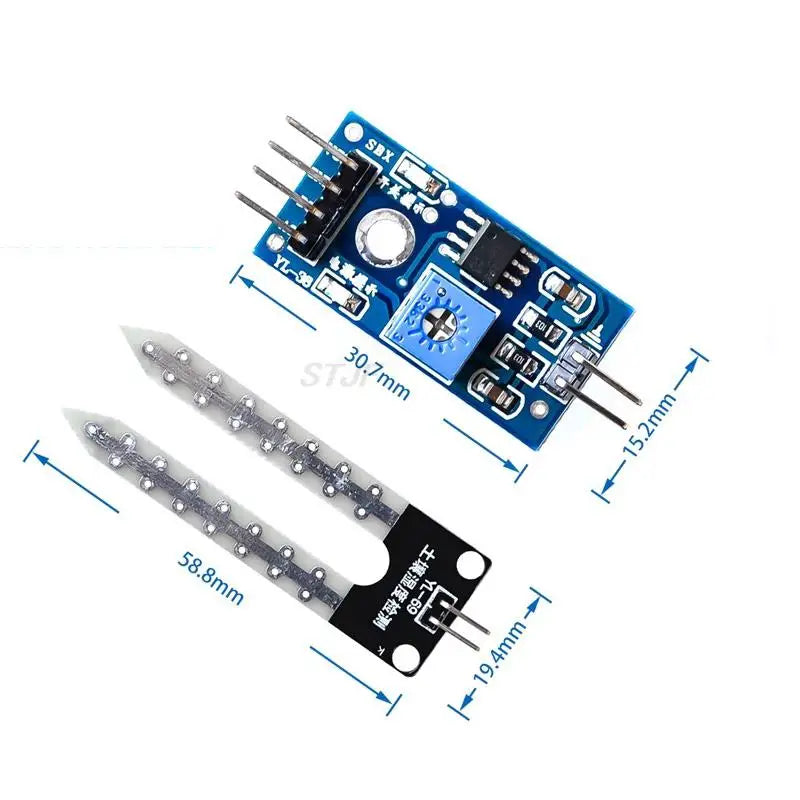

7 PCB size: 3cm * 1.6cm
8 Power indicator (red) and digital switching output indicator (green)
9 The comparator uses LM393 chip and works stably

Two small board interface description (4-wire system)

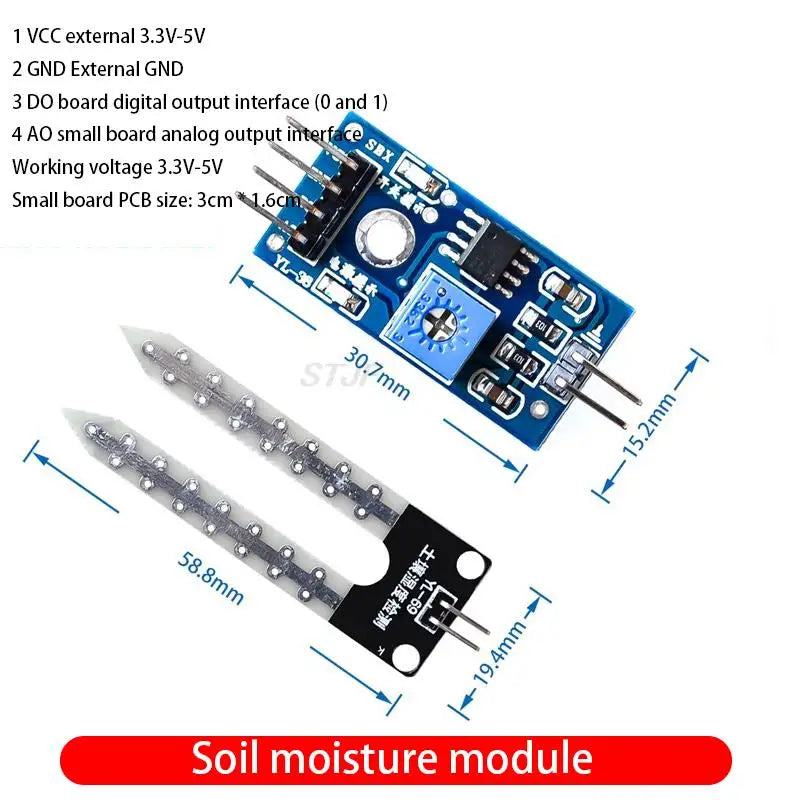

1 VCC external 3.3V-5V
2 GND External GND
3 DO board digital output interface (0 and 1)
4 AO small board analog output interface

Three instructions for use

1 Soil moisture module is sensitive to environmental humidity and is generally used to detect soil moisture.

When the soil moisture does not reach the set threshold, the DO port outputs a high level; when the soil moisture exceeds the set threshold, the D0 module outputs a low level.

3 Small board digital output D0 can be directly connected with the MCU, through the MCU to detect high and low levels, thus detecting soil moisture;

4 Small board digital output DO can directly drive the relay module, buzzer module, etc., which can form a soil moisture alarm equipment;

5. The output AO of the small plate analog quantity can be connected with the AD module. Through the AD conversion, more values of soil moisture can be obtained;

Iv shipping list

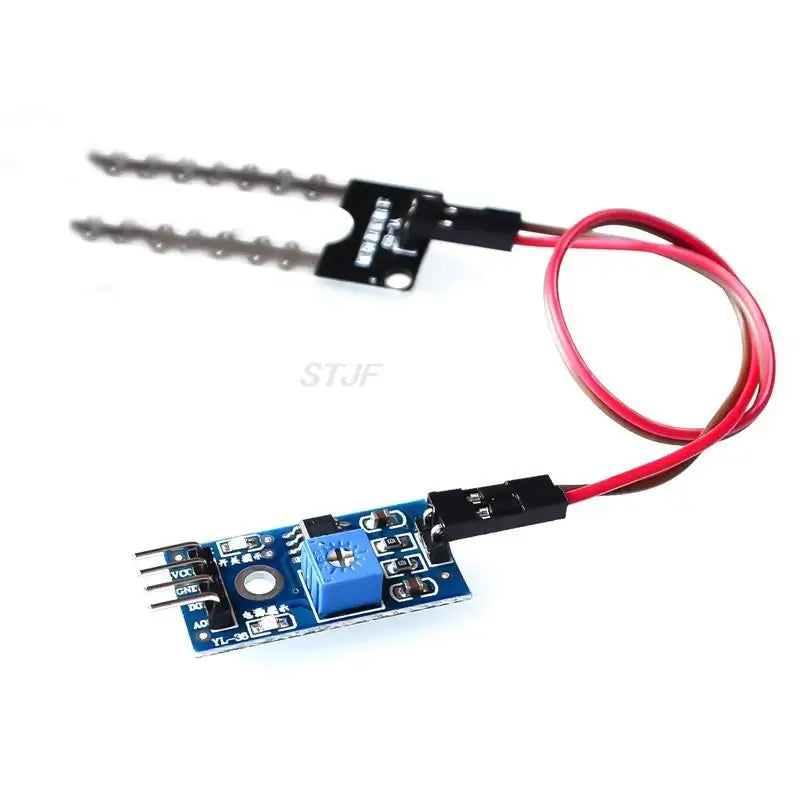

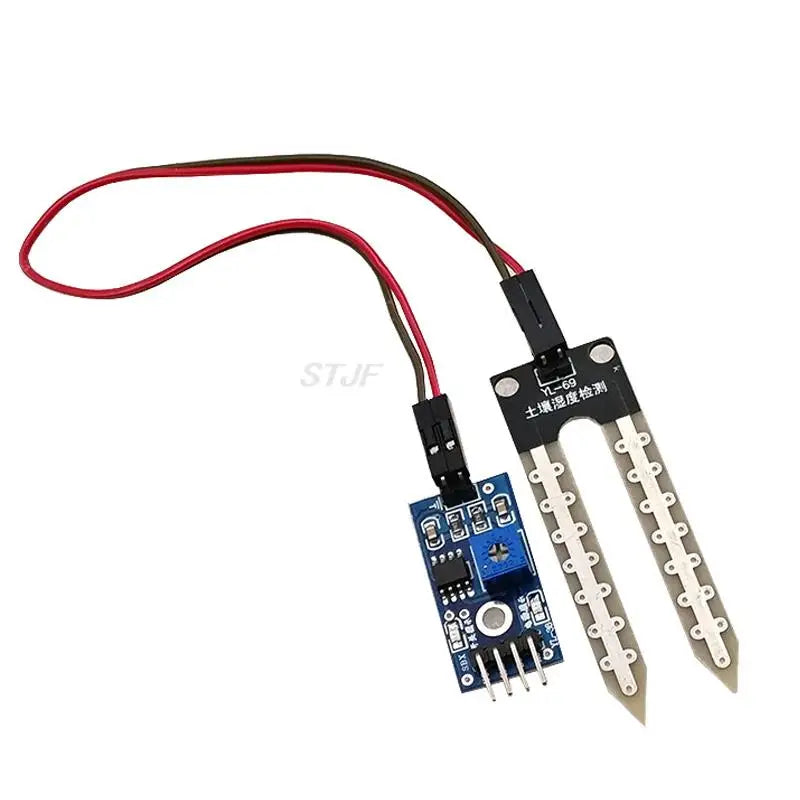

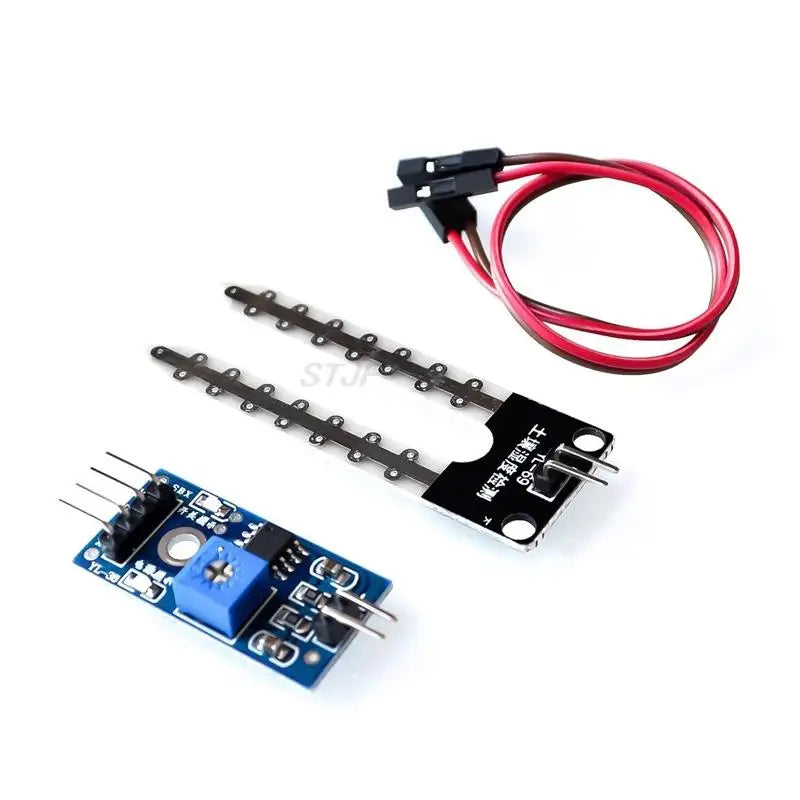

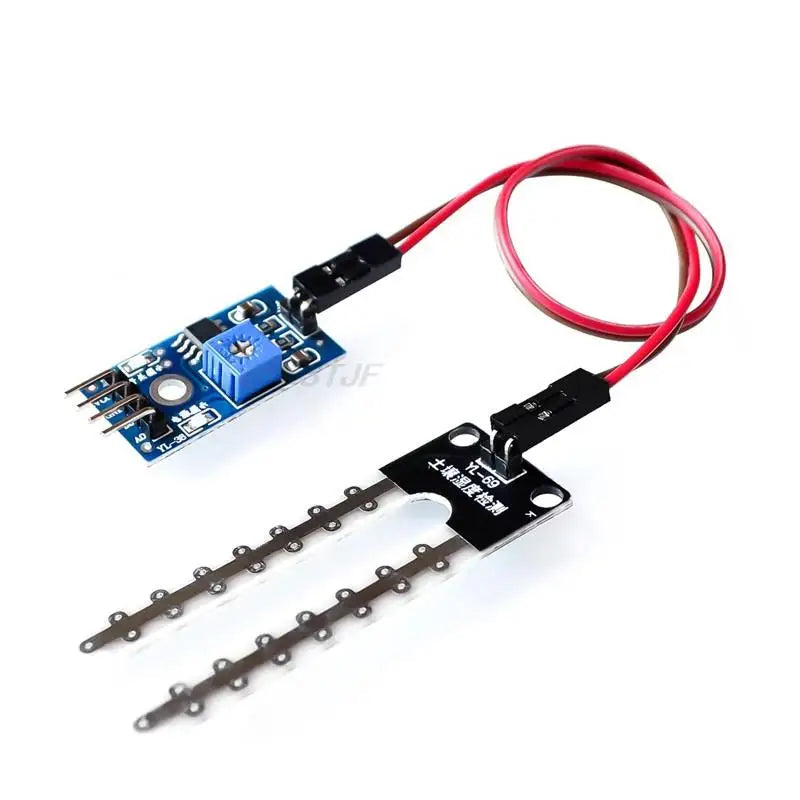

1 Set of finished board of the soil moisture detection module as shown in the figure (including the detection board and soil moisture probe)

2 20cm DuPont wire, easy to connect
