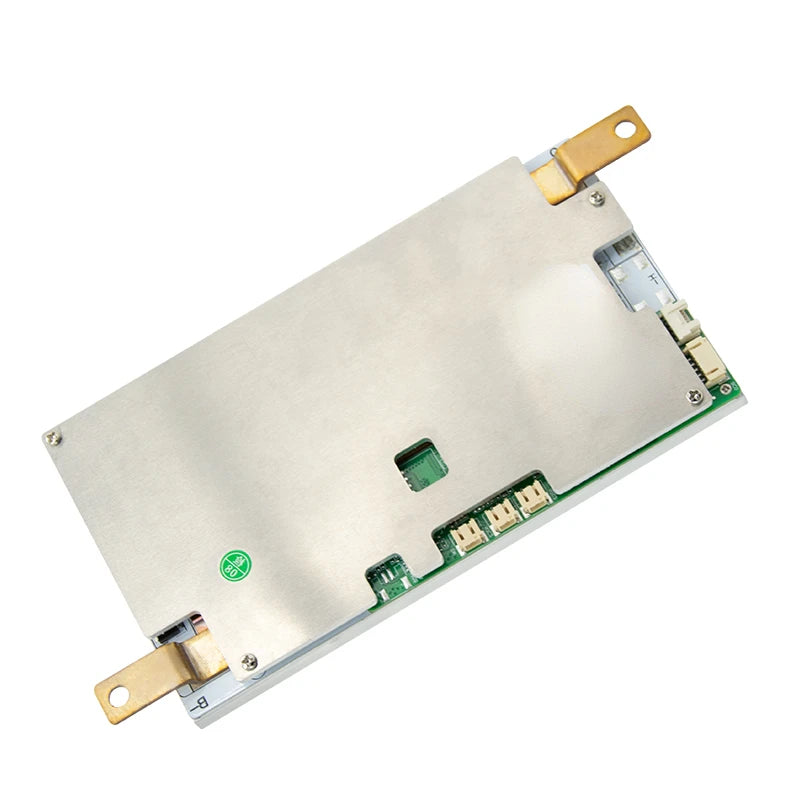

custom Smart bms 4S lifepo4 battery 12v 100a 120a 150a 200a with BT UART RS485 Manufacturer
custom Smart bms 4S lifepo4 battery 12v 100a 120a 150a 200a with BT UART RS485 Manufacturer
Regular price
$6.00 USD
Regular price
$6.00 USD
Sale price
$6.00 USD
Unit price
per
Couldn't load pickup availability
JBD-SP04S034
JBD-SP04S034 specifically for starting batteries, energy storage and other products 4 series battery packs;Suitable for different chemical properties of lithium cells, such as lithium ion, lithium polymer, lithium iron phosphate, etc.Protection plate with strong load capacity, continuous discharge current up to 200A.
● 4 cell series protection
● Various protection functions for charging and discharging
● Discharge over current, short circuit protection functional processes of hardware
● Over voltage, under voltage, temperature and overload protection function processing of software
● Accurate SOC calculation with automatic SOC learning function

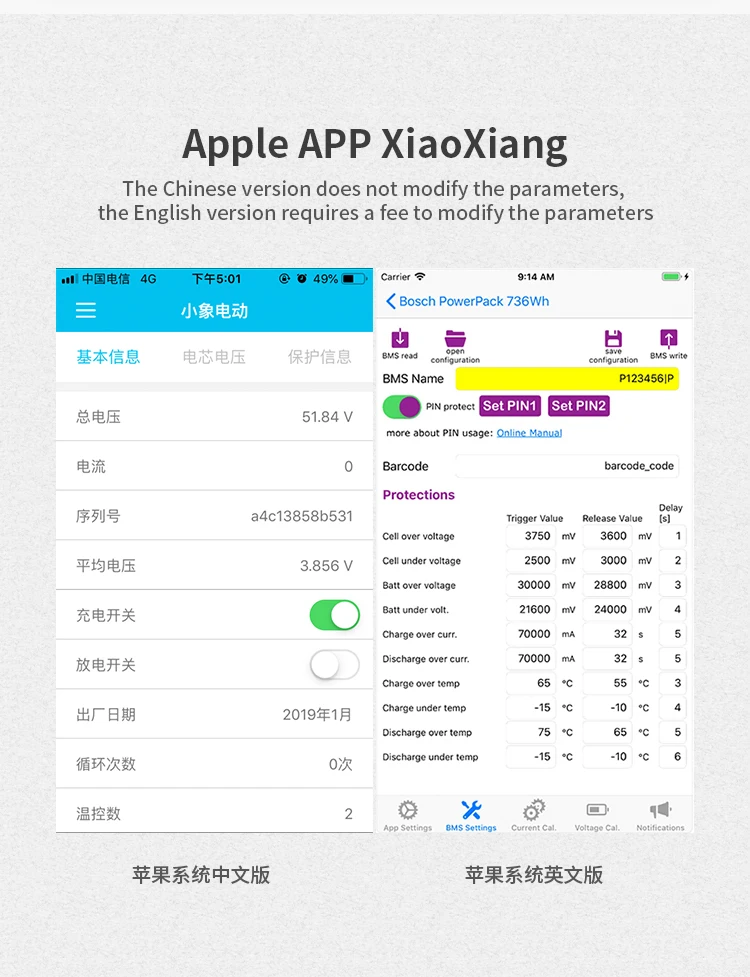

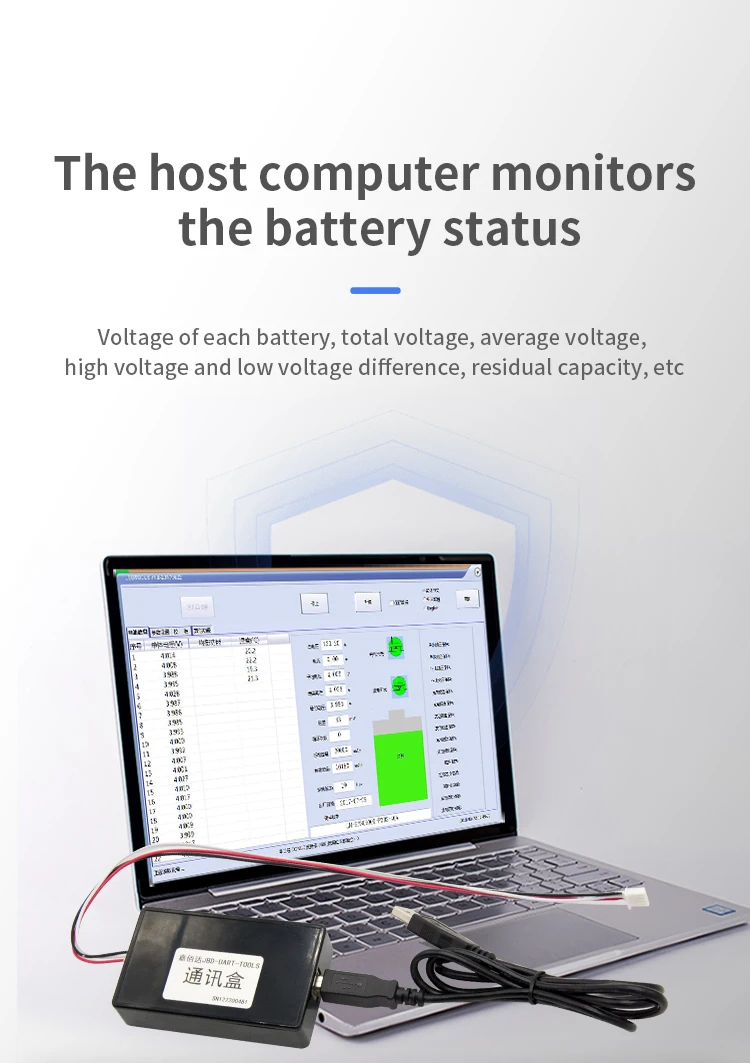

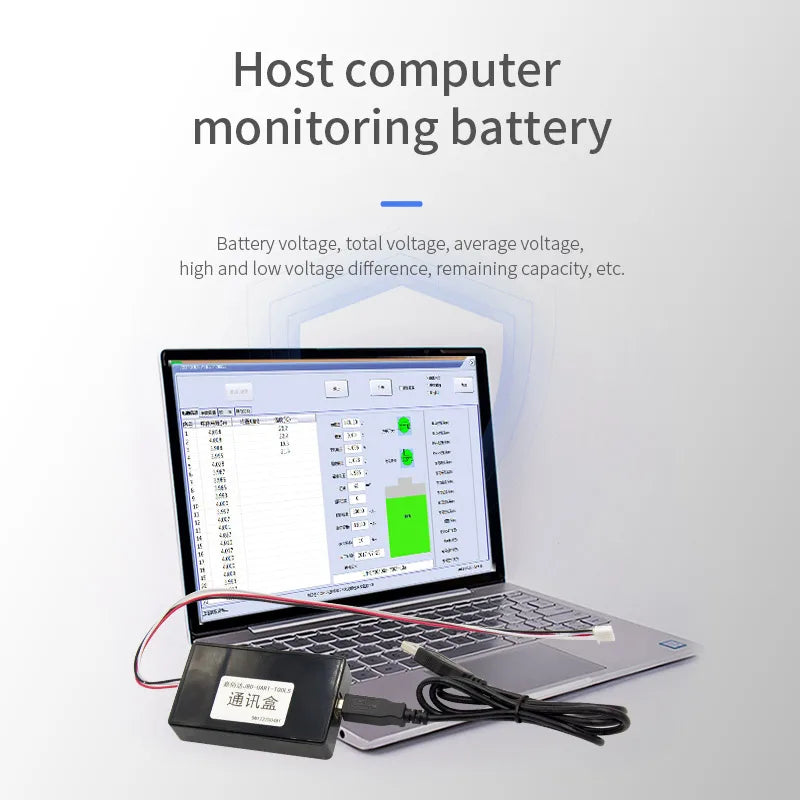

● UART/RS485 communication function, can read all data of battery in real time and upgrade online
● Hardware discharge over-current, short-circuit protection function processing

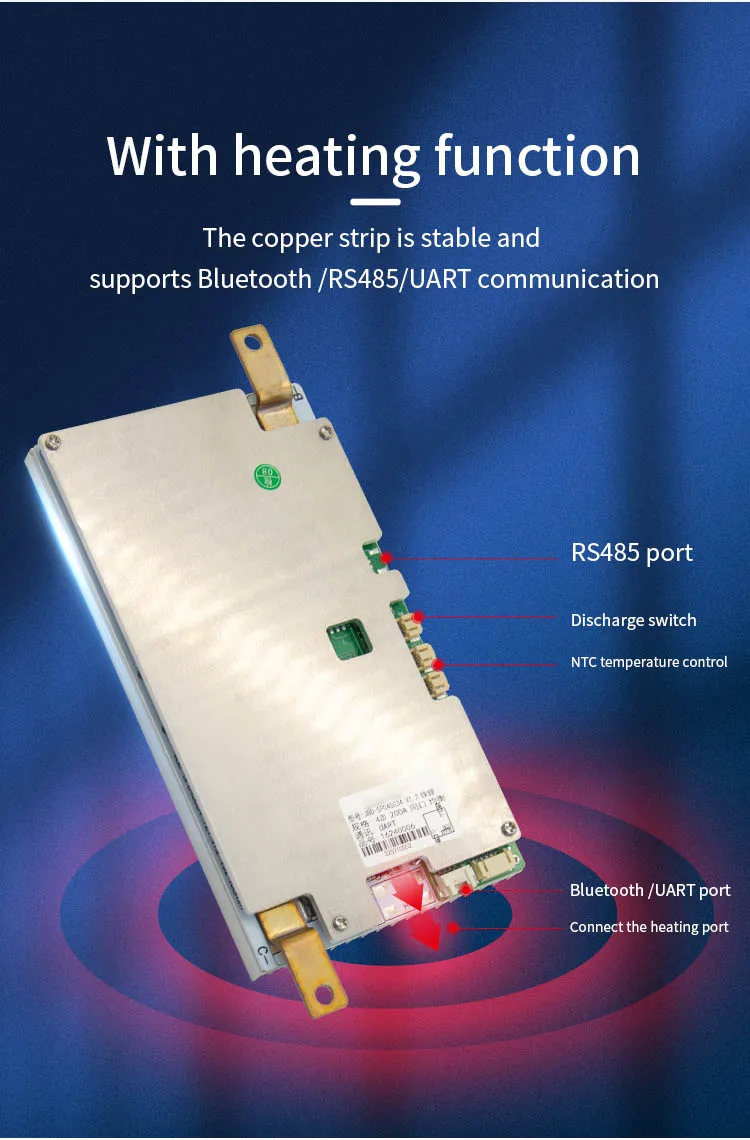

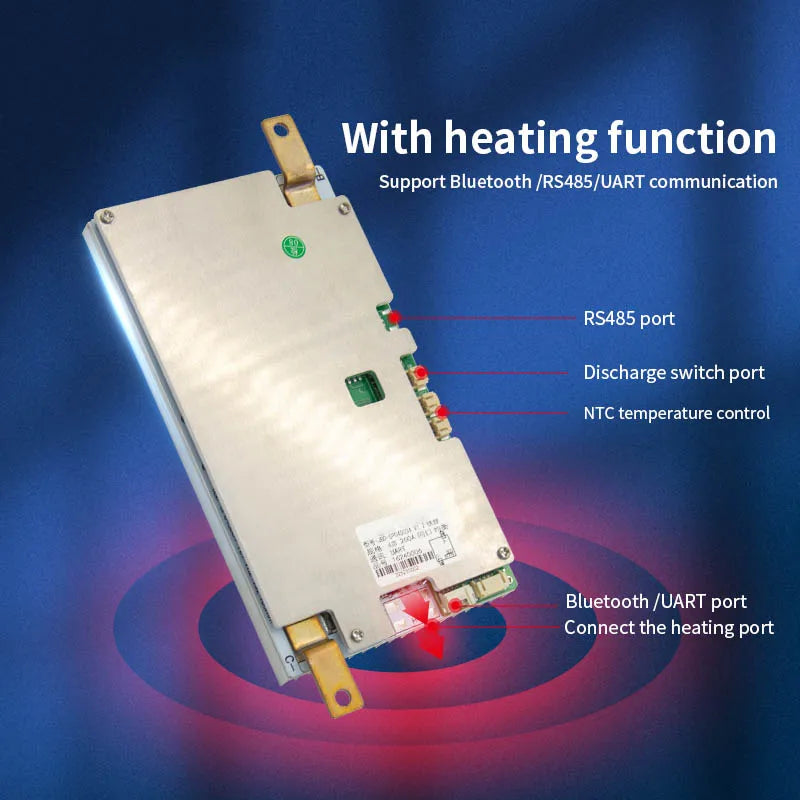

● Reserved switch control protection panel output and low temperature charging and heating function
Products Description
Product Paramenters
| Operating voltage range | 10-15V |
| Operating current (MAX) | 200A |
| Over-charge protection voltage | 3.75±0.05V |
| Over-discharge protection voltage | 2.5±0.05V |
| Balanced turn-on voltage | 3.4±0.05V |
| Charging over current protection value | / |
| High temperature protection value of charging | 75±2℃ |
| High temperature protection value of discharge | 85±2℃ |
| Internal resistance | <10mΩ |
Details Images
