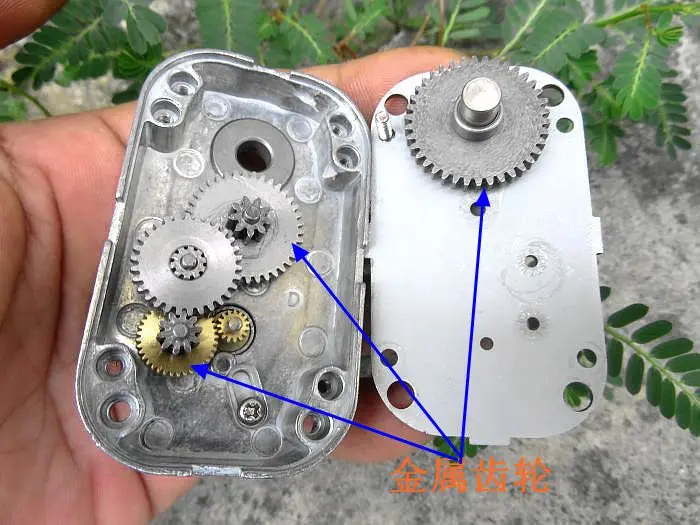

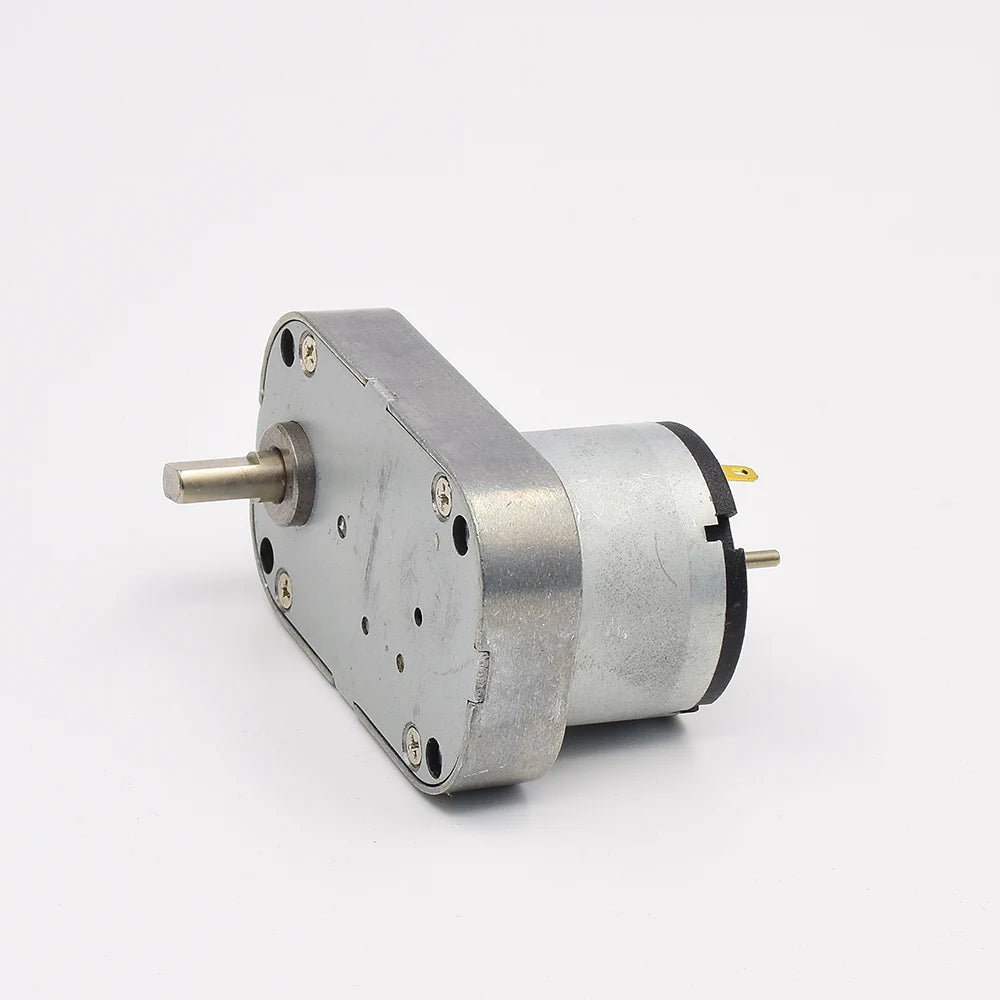

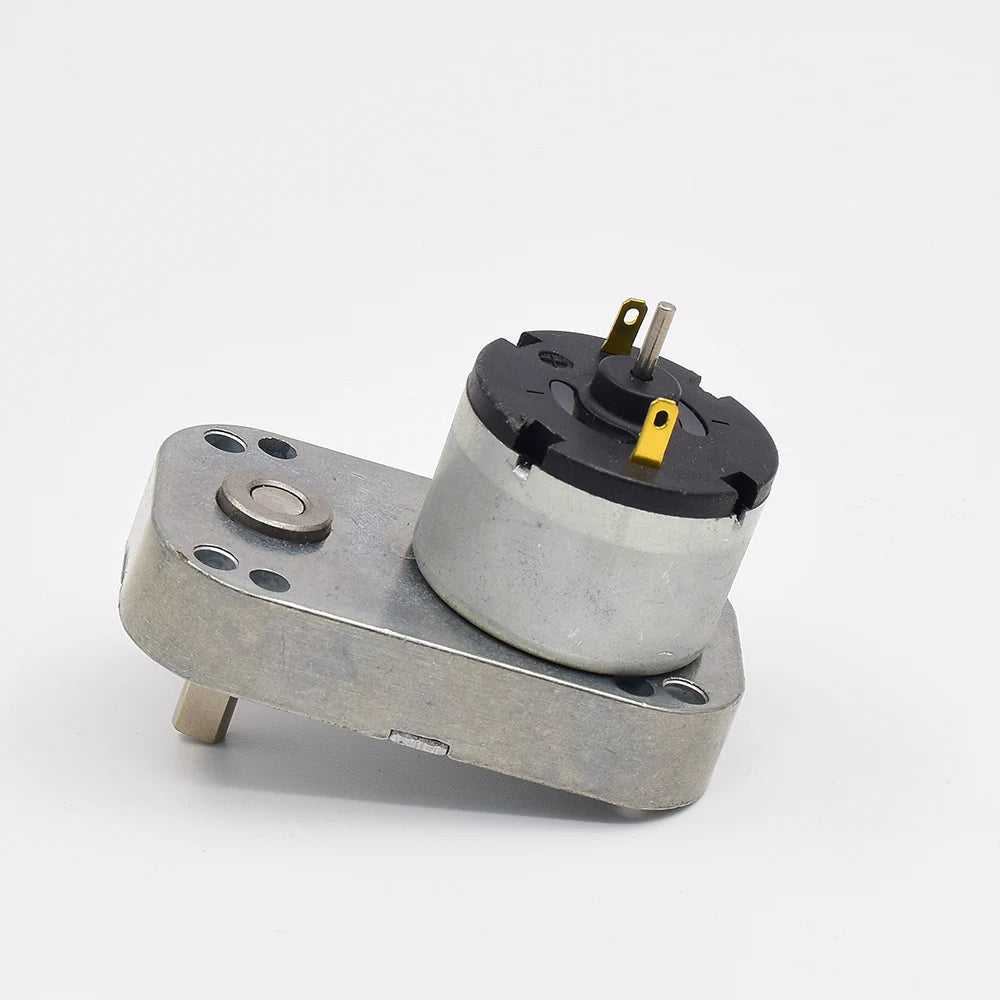

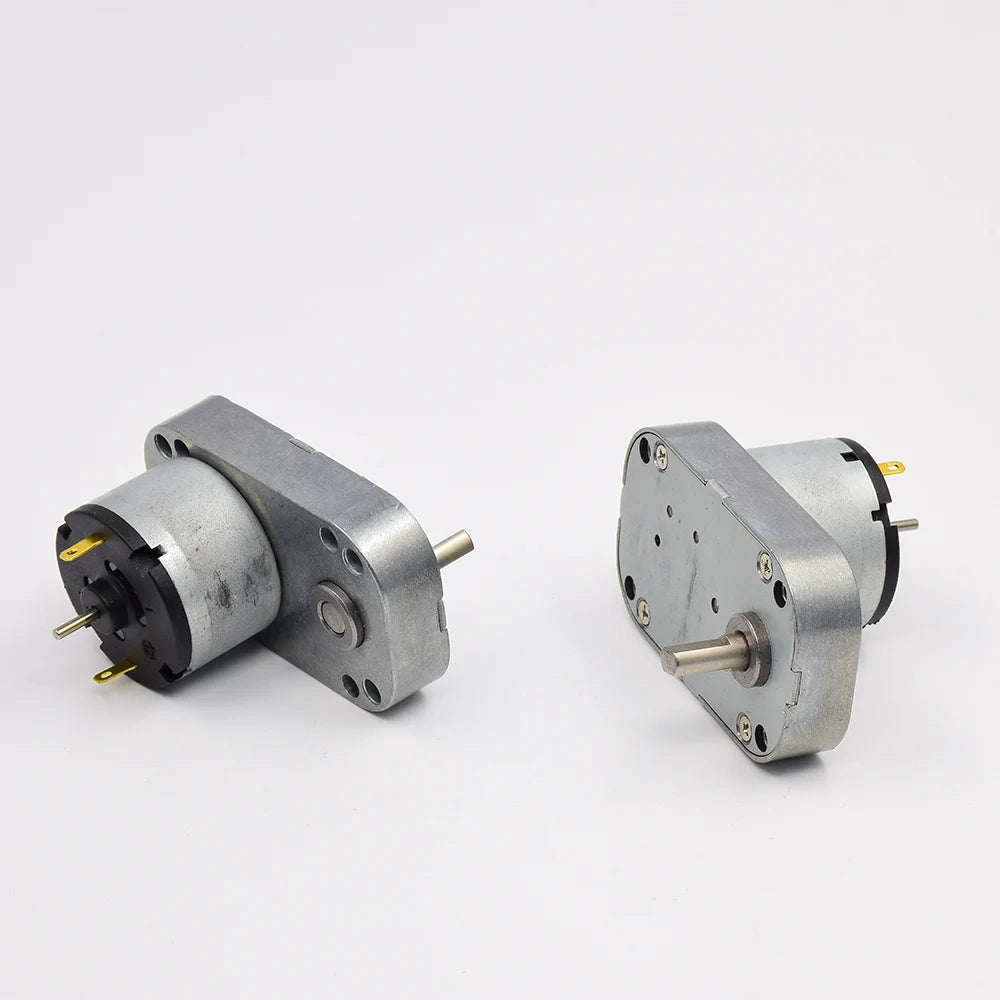

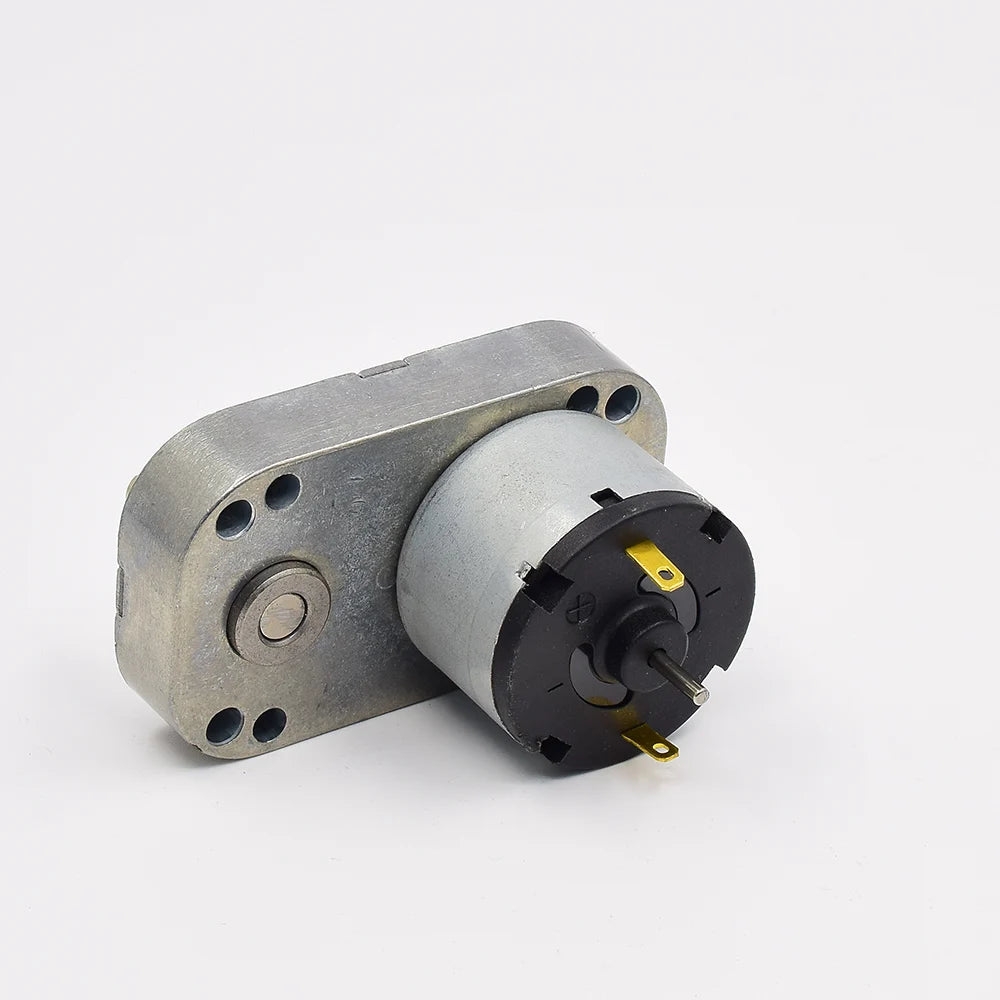

Custom Small 520 Full Metal Gearbox Gear Motor DC 3V 5V 6V 7.4V 12V 96RPM Slow Speed 7-type Z-Shaped Large Torque Dual Shaft Manufacturer
Custom Small 520 Full Metal Gearbox Gear Motor DC 3V 5V 6V 7.4V 12V 96RPM Slow Speed 7-type Z-Shaped Large Torque Dual Shaft Manufacturer
Regular price
$3.75 USD
Regular price
$3.75 USD
Sale price
$3.75 USD
Unit price
per
Couldn't load pickup availability
Specification:
Rated voltage: DC 5V
Applicable voltage: DC5V-12V (we test that 3V can start 12V without abnormality)

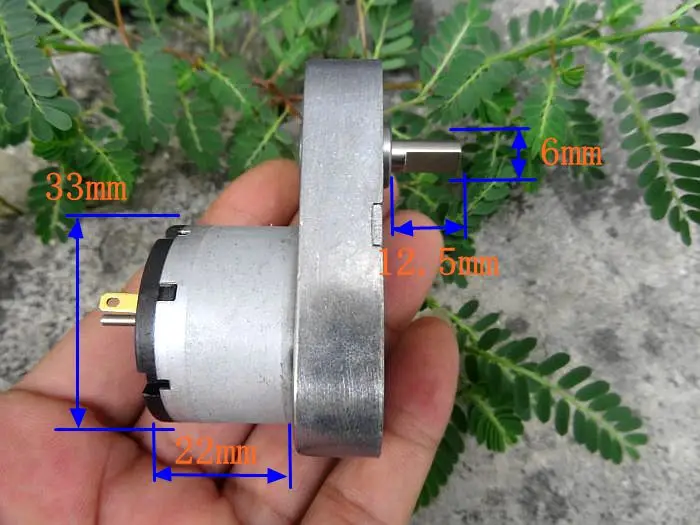

Output shaft length: 12.5mm
Output shaft diameter: 6mm (4mm at flat shaft)
Hole pitch: 50 × 26.5 mm
Aperture: M 2.5
(The screw hole from the front to the bottom of the output shaft is about 7mm, and the thread is about 4.5mm long.)
Weight: 160g
Applicable voltage: DC5V-12V (we test that 3V can start 12V without abnormality)
Output shaft length: 12.5mm
Output shaft diameter: 6mm (4mm at flat shaft)
Hole pitch: 50 × 26.5 mm
Aperture: M 2.5
(The screw hole from the front to the bottom of the output shaft is about 7mm, and the thread is about 4.5mm long.)
Weight: 160g

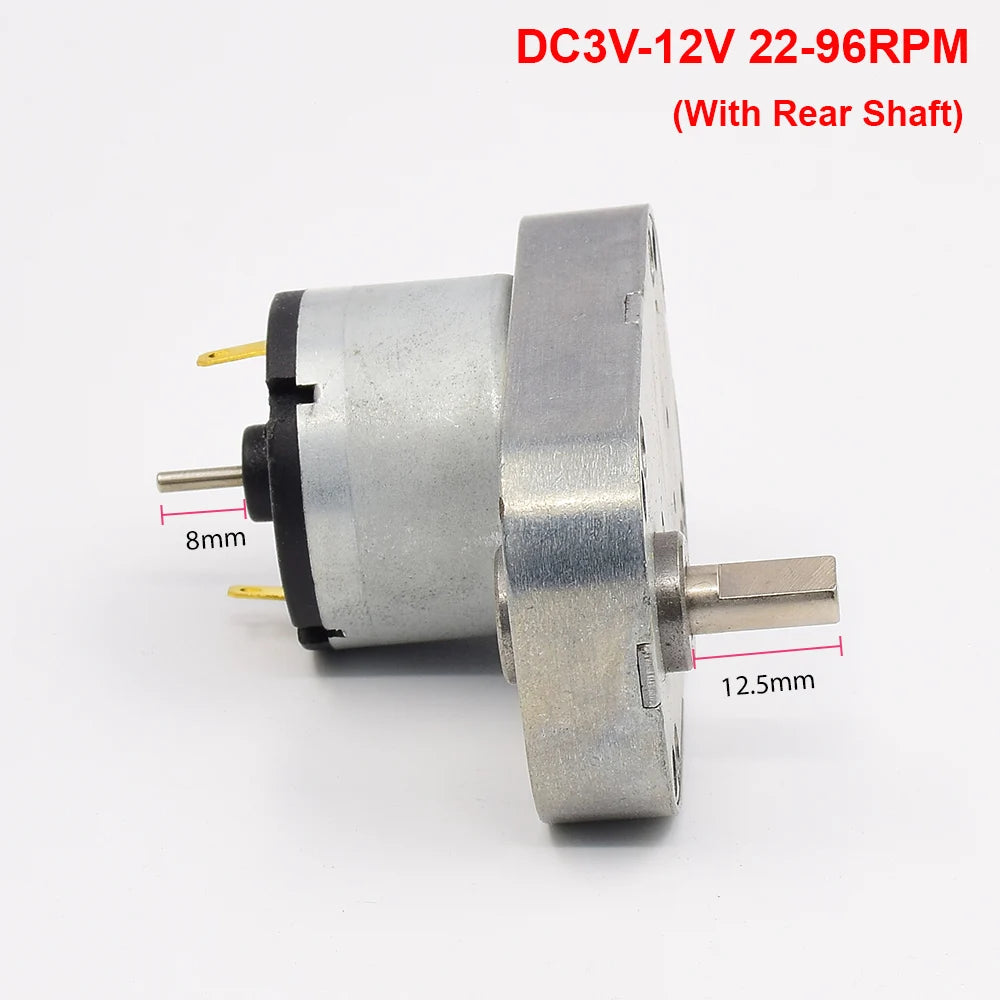

Test data and Shaft Size:(Notes This motor with rear shaft)
5V no load current 180mA speed 39RPM
6V no load current 200mA speed 48RPM
12V no load current 280mA speed 96RPM
Package Include:
Gear Motor x 1pc
