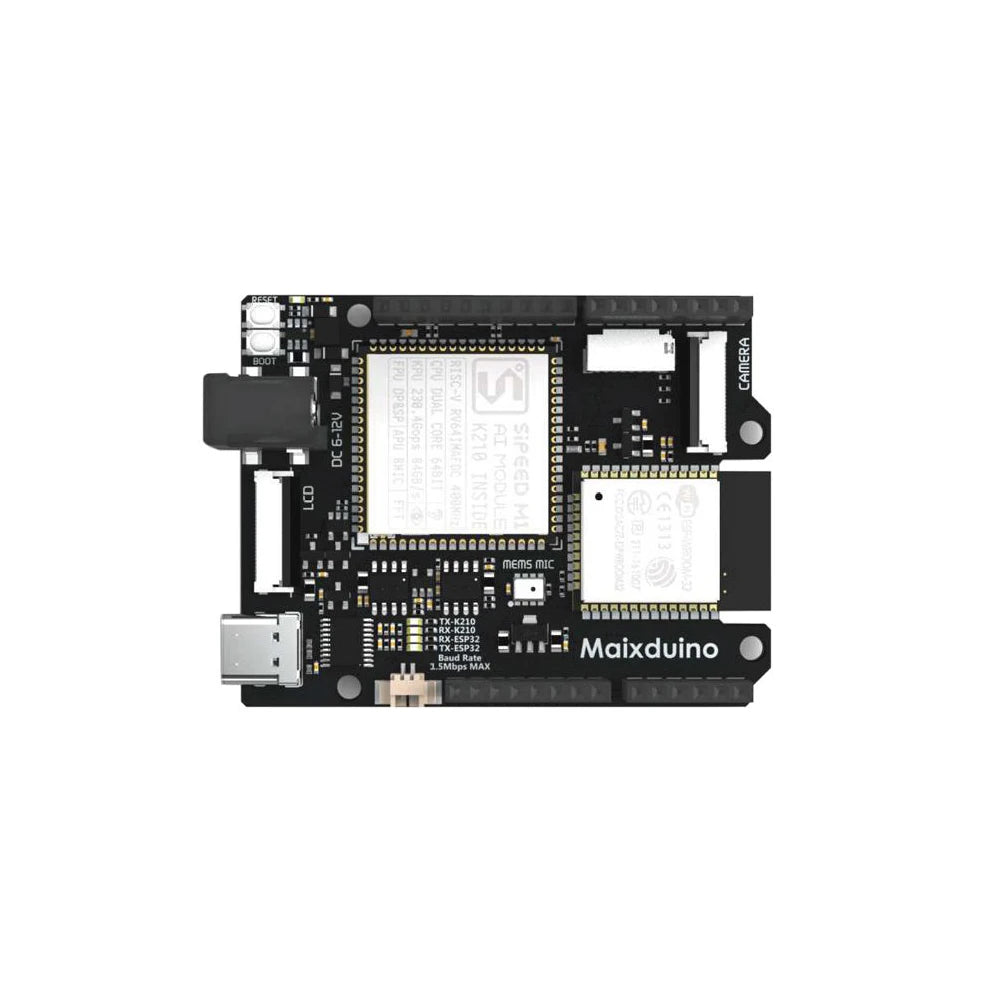

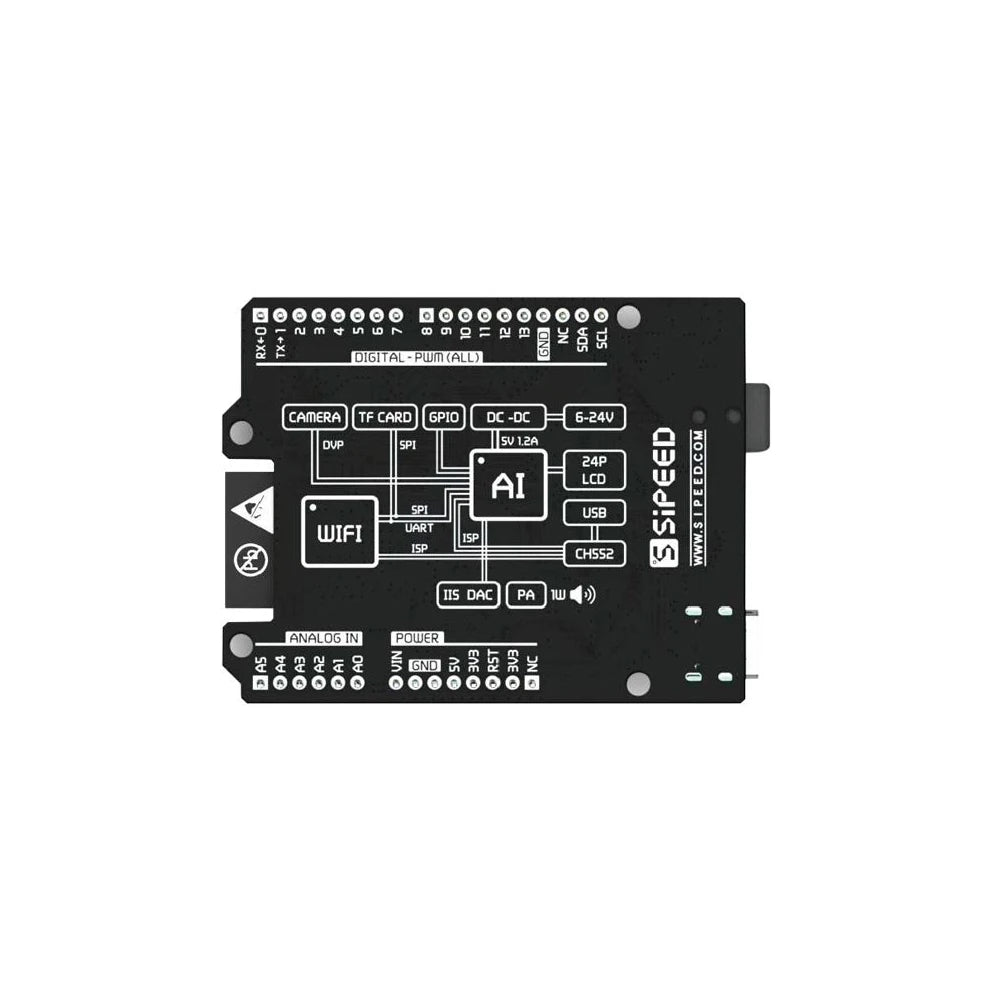

Based on MAIX Module, the Maixduino is a RISC-V 64 development board for AI + IoT applications. Different with other Sipeed MAIX dev. boards, Maixduino was designed in an Ard form factor, with ESP32 module on board together with MAIX AI module.4

Features

  CPU: RISC-V Dual Core 64bit, with FPU; 400MHz neural network processor

  QVGA 60FPS/VGA 30FPS image identification

  Onboard ESP32 module support 2.4G 802.11. b/g/n and Bluetooth 4.2

  Ard Uno form factor, Ard compatible interface

  Onboard omnidirectional I2S digital output MEMS Microphone

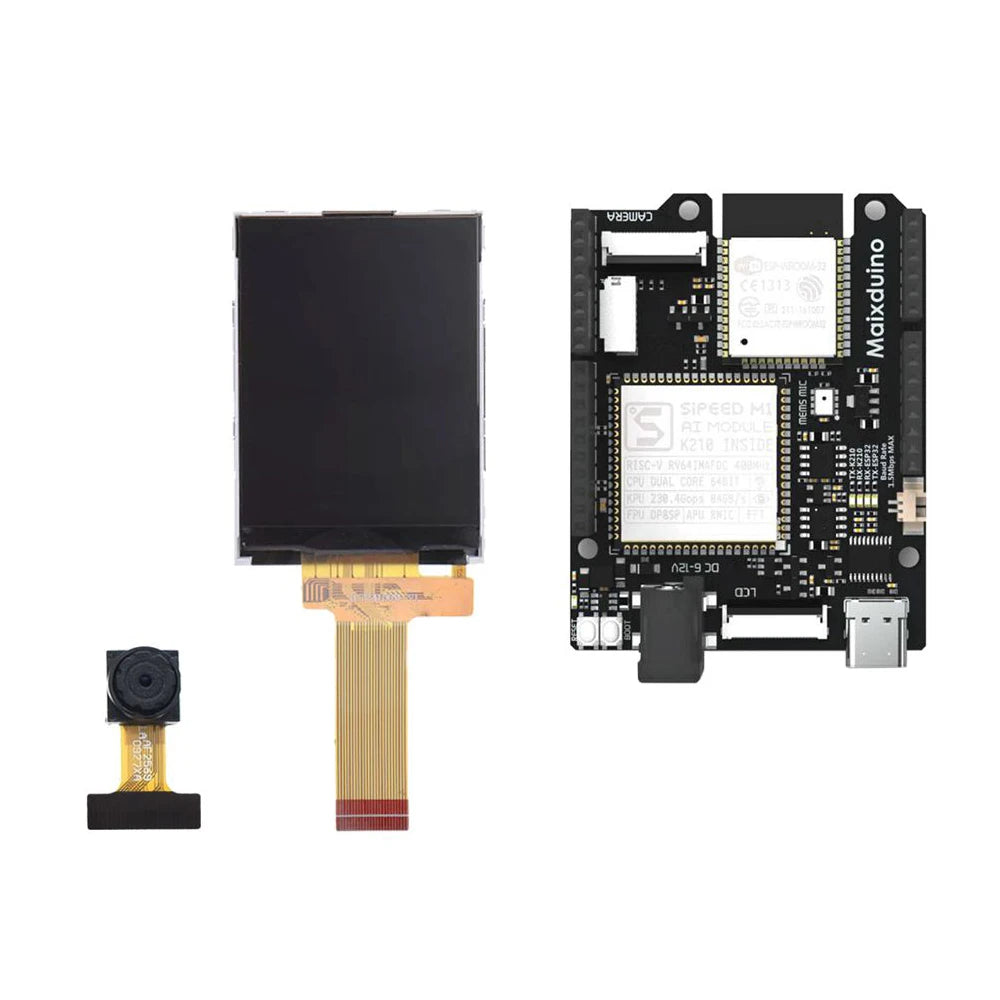

  24P 0.5mm FPC connector for DVP Camera

  8bit MCU LCD 24P 0.5mm FPC connector

  Support self-elastic micro SD card holder

  Reset and boot button; 3W DAC+PA Audio output

  Just connect the USB Type-C cable to complete the download

  Machine vision based on convolutional neural network

Master module Sipeed MAIX-I AIoT module
Power input USB Type-C
DC-DC step-down circuit:support 6-12V input;Provide 5V 1.2A output
Micro SD card(TF card) slot Support Self-elastic card holder
Onboard MEMS microphone MSM261S4030H0 is an omnidirectional, Bottom-ported, I2S digital output MEMS Microphone. It has high performance and Reliability.
DVP Camera interface 24P 0.5mm FPC connector
LCD connector 8bit MCU LCD 24P 0.5mm FPC connector
Audio output DAC+PA:
TM8211:16 bit dynamic range;Low harmonic distortion
NS4150:3W output power;Up to 90% efficiency;
ESP32 module Support 2.4G 802.11.b/g/n
802.11 n (2.4 GHz) speeds up to 150 Mbps
Bluetooth v4.2 full standard, including traditional Bluetooth (BR/EDR) and Bluetooth Low Energy (BLE)
Supply voltage of external power supply 4.8V ~ 5.2V
Supply current of external power supply >600mA
Temperature rise <30K
Range of working temperature -30℃ ~ 85℃
MCU: ESP8285 Tensilica L106 32-bit MCU
Wireless Standard 802.11 b/g/n
Frequency Range 2400Mhz - 2483.5Mhz
TX Power(Conduction test)

802.11.b : +15dBm
802.11.g : +10dBm(54Mbps)
802.11.n : +10dBm (65Mbps)
Antenna Connector IPEX 3.0x3.0mm
Wi-Fi mode Station/SoftAP/SoftAP+Station
