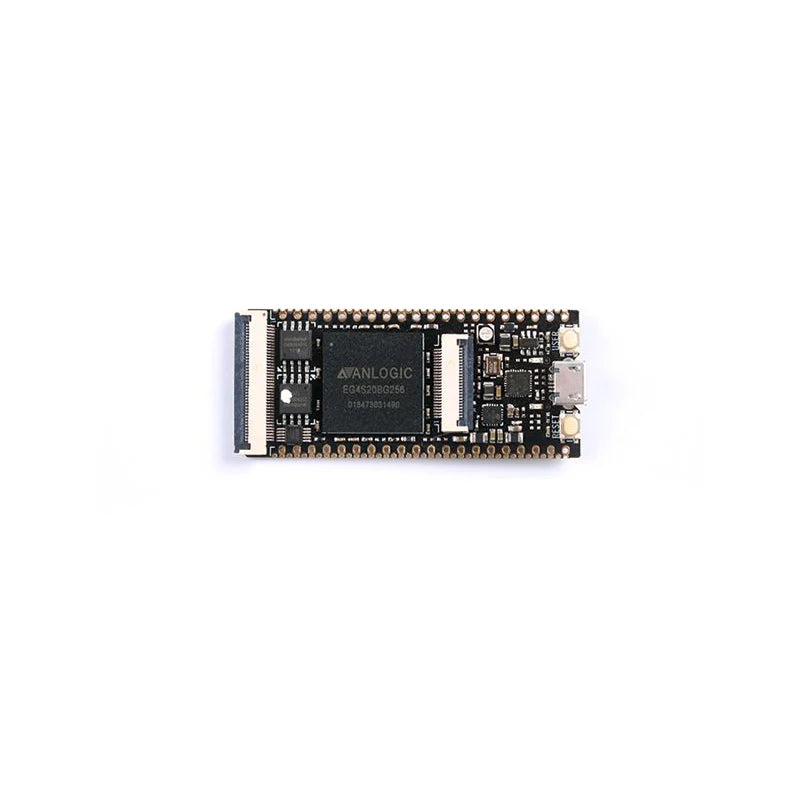

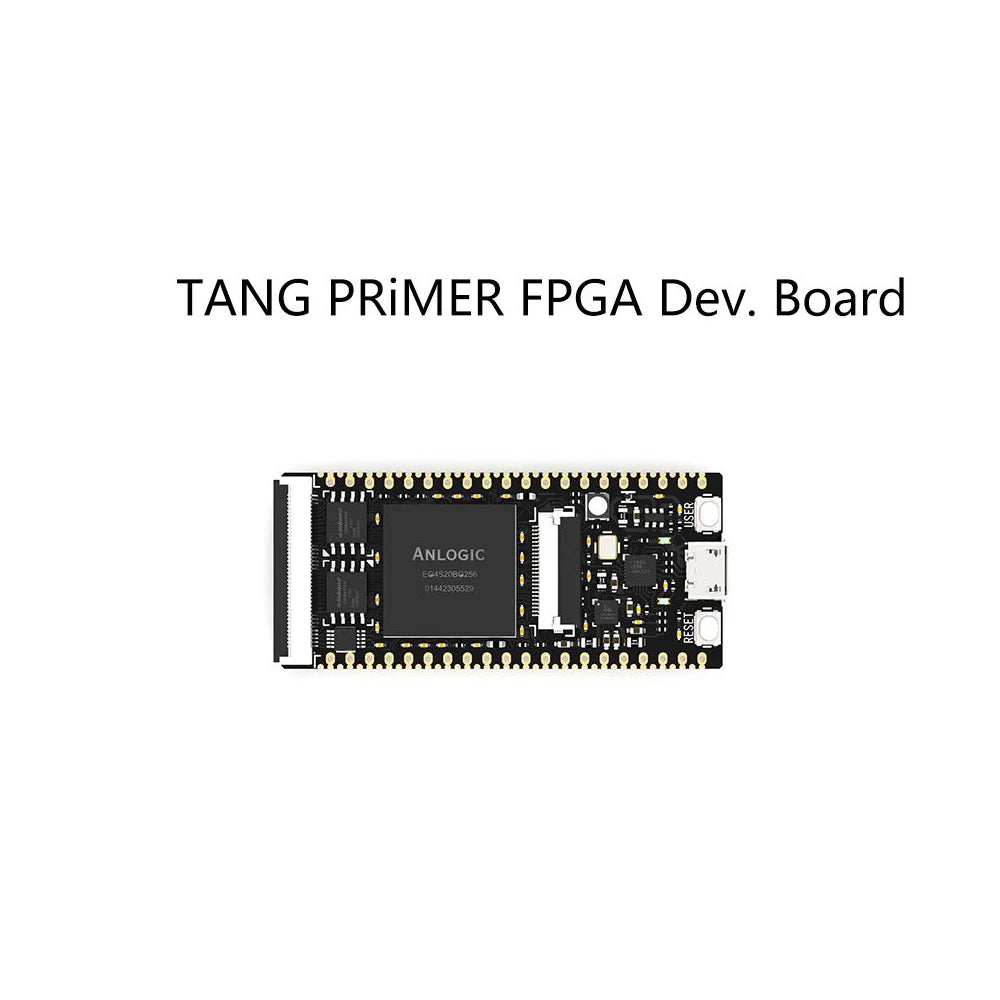

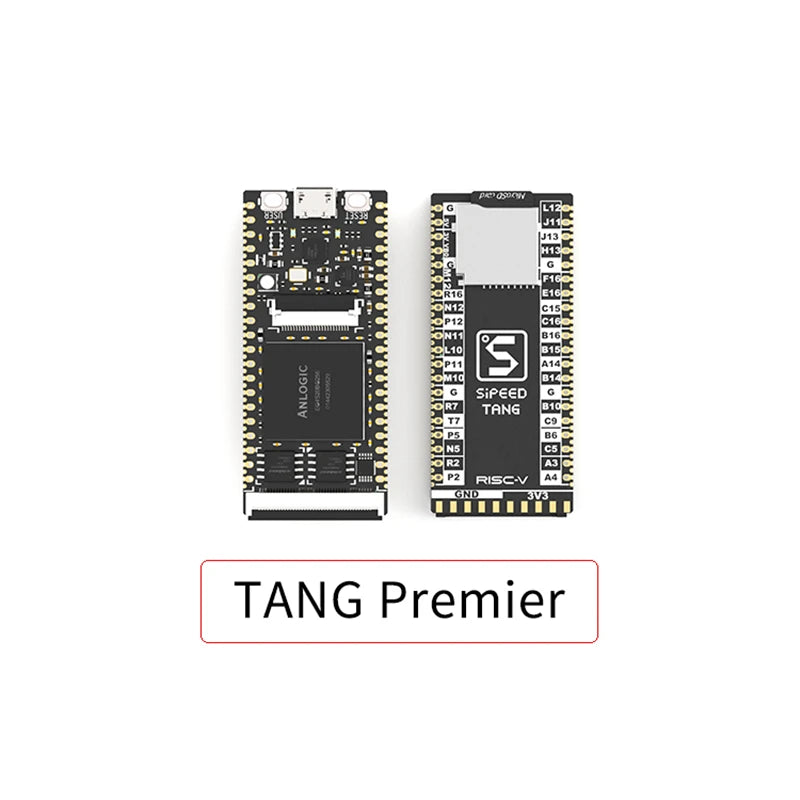

Custom Sipeed Lichee TANG Premier Anlogic EG4s20 FPGA Development Board And Kits Custom PCB dth pcba line pcba Manufacturer

Custom Sipeed Lichee TANG Premier Anlogic EG4s20 FPGA Development Board And Kits Custom PCB dth pcba line pcba Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out


Tang features Anlogic EG4S20 FPGA – unrelated to Amlogic – which run a RISC-V softcore,  and all is packaged in a small small form factor

Specifications:

  • Core unit: Anlogic Technologies EG4S20

  • Logical unit: 20K (LUT4/LUT5 hybrid architecture)

  • SRAM: About 130KB

  • SDRAM: Built-in 32bit bit width 64MBit

  • Flash: FPGA configuration Flash, 8Mbit User Flash, nor/nand optional

  • Download and debug: Onboard FPGA JTAG Download Debugger, RV debugger can debug hummingbird core

  • Interface:

- FPC40P socket, can be connected to RGB LCD, VGA adapter board
- FPC24P socket, can be connected to DVP camera, high speed ADC module
- Resistive touch screen controller for I2C interface, used with RGB LCD

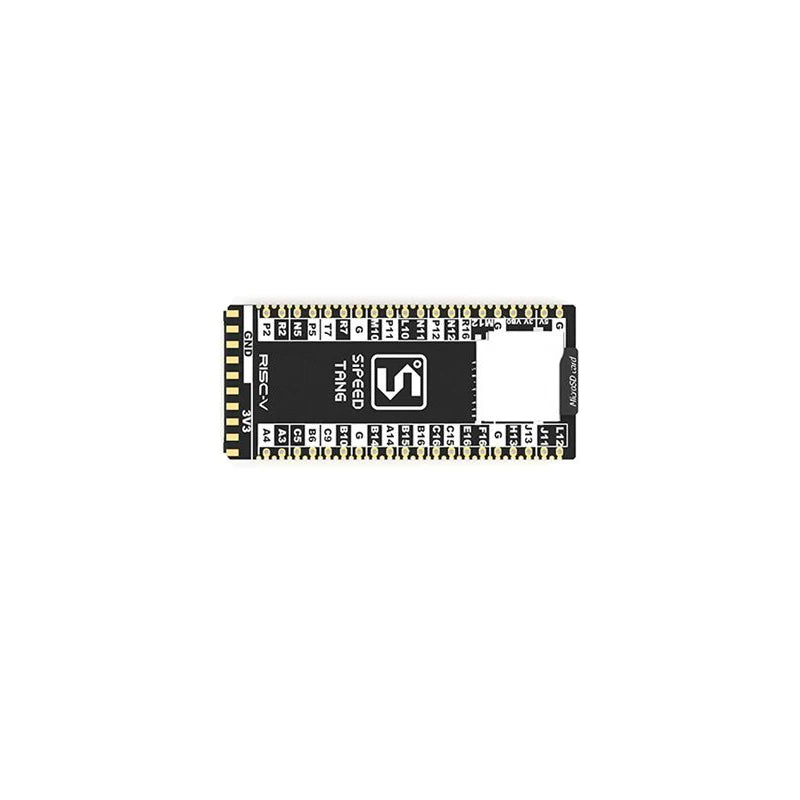

  • Pin and lead:

- The adjacent pins LVDS are drawn in the same length, leading out 8 GCLKs, and all 8 ADCs are taken out.
- Double row pin spacing 900mil, compatible with breadboard development
- Half hole leads to an extra 40 IO, and the whole board leads to 130+ IO

  • Electrical characteristics:

- Micro USB 5V power supply; 2.54mm pin
- 3.3V~5V power supply; 1.27mm stamp hole power supply
- 3-channel DCDC power supply chip, stable and efficient power supply
- independent adjustment of Bank0 IO level

Target application scenario

  • High-speed communication interface interconnection

  • Learning, debugging, research of soft cores such as RISC-V

  • Machine vision processing

  • Parallel computing acceleration



Size and weight

Development board size

25.4x56.0mm

Development board weight

6.2±0.1g

Precautions

RV debugging

When using the RV debugger, if you need to use USB power, try to use a shorter USB cable.

Micro-USB

The  USB  interface  can  be  used  for  power supply, and the interface is fragile. Please pay attention to the use.

Download and debug

On-board  FPGA  JTAG  download  debugger, debugging  hummingbird core requires  other debuggers, such as RV, JLink

Operating temperature

-20~85℃

Power consumption and current

No-load current is about 50mA
