Sipeed Lichee Nano with Flash Linux Development Dev. Board 16M Flash Version  IOT Internet of Things

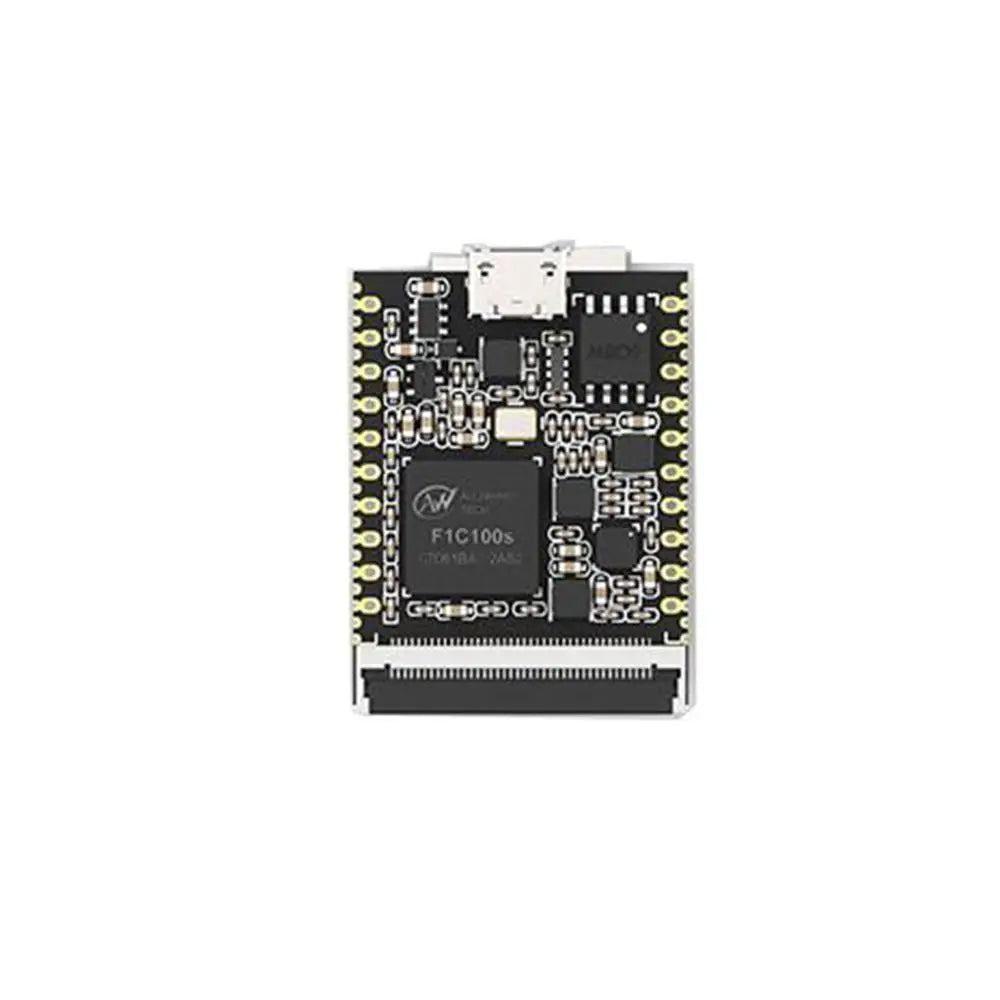

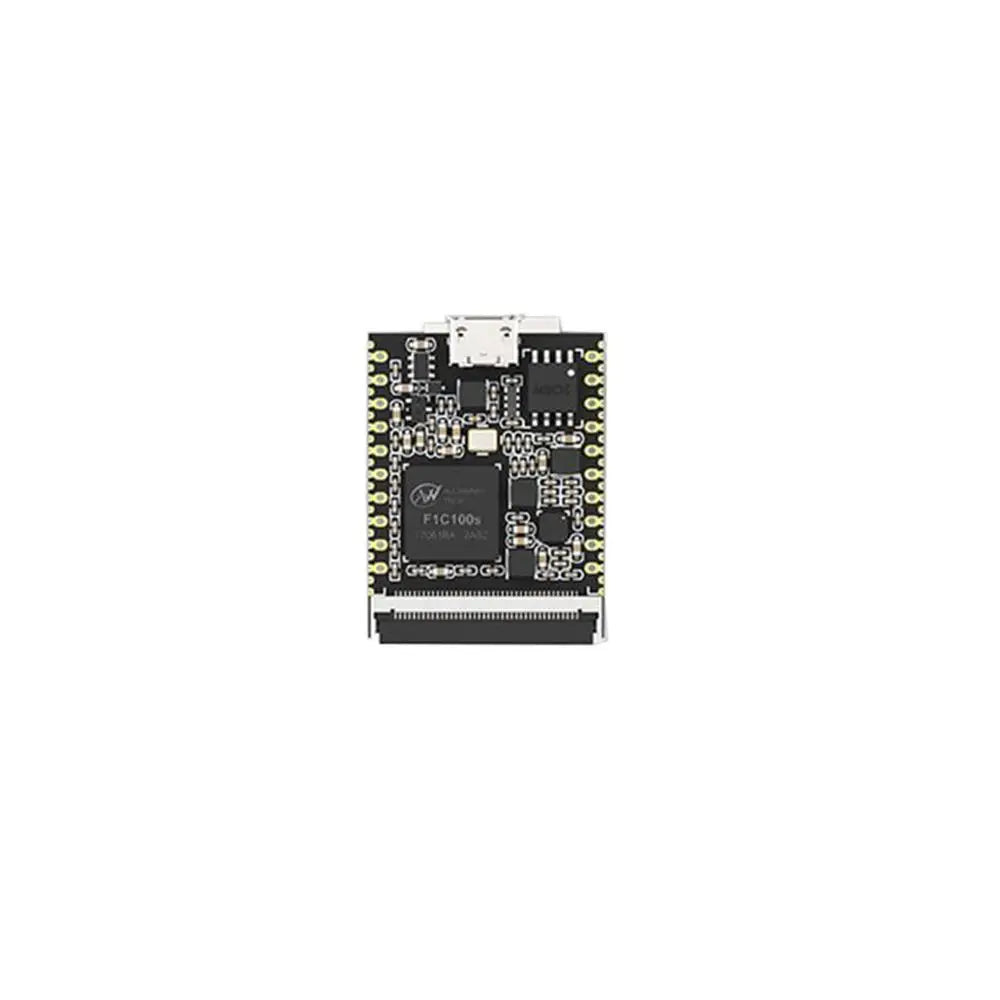

Lichee Nano is a SD card sized Linux development board powered by the Allwinner F1C100s ARM9 processor.


Lichee Nano 22

CPU
-Allwinner F1C100s, ARM 926EJS processor, up to 900MHz



Memory and storage
-32MB DDR integrated into SoC, 16MB SPI Flash
- Onboard TF slot, can be booted from TF card,



display
-40-pin RGB LCD FPC connector, supports 272×480, 480×800, 1024×600

And other resolution resistive displays (and capacitive displays through the adapter board).
- Support 720P video output, support video stream decoding such as H.264 / MPEG


Communication Interface
-SDIO for WiFi module
-SPI x2, TWI x3, UART x3

-OTG USB x1, TV output


Other interface
-PWM x2, LRADC x1

- Headphone output x2, Mic x1

Lichee Nano Pin


Electrical characteristics
- Input 5V through the micro USB port, input 3.3 to 5V through the pin
- Output - 3.3V, optional input RTC voltage
- Power consumption - 54mA (idle) when using Linux, 250mA with display
- Storage temperature: -40~125°C; Operation: -20 to 70°C

Software and development environment

Support for 3.10 BSP linux,
Support 4.19 main line linux,
Support xboot bare metal development environment
Support RT-Thread


Target application scenario:

IoT applications use more complex communication interfaces and protocols
The application of human-computer interaction interface requires more beautiful and complex logic
Application scenarios that require more operations (as opposed to regular MCUs)
Need to use open source software under Linux for rapid development
High-end geek players balance in size, performance and ease of use.
Entry level player, software engineer, hardware diy using familiar language
Size and weight
Core board size is 25.4x33.0mm
Core board weight 4.2±0.2g


Precautions
Starting the Nano requires a card boot (or solder SPI flash), just plugging in the USB without any symptoms
System debugging serial port UART0, specific location reference pin diagram
USB interface OTG usb, power and communication
Working temperature -20~70°C


Package List

  1 X Sipeed Lichee Nano with Flash Linux Development Dev. Board  with Flash

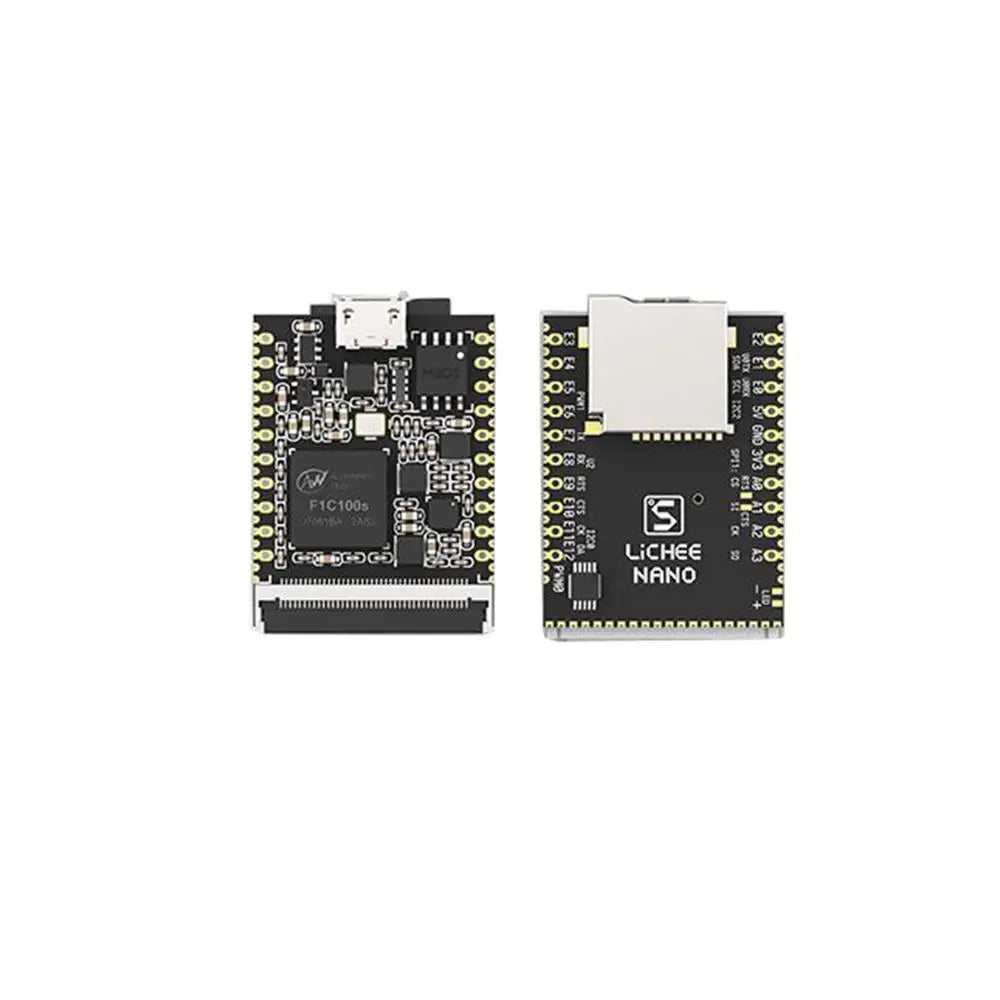

FZ3633 Sipeed Lichee Linux Development Board (2)FZ3633 Sipeed Lichee Linux Development Board (3)
