Custom SIM900A SMT type GSM/GPRS module SIM900 New And Original Parts In store promotion
Custom SIM900A SMT type GSM/GPRS module SIM900 New And Original Parts In store promotion
Regular price
$2.20 USD
Regular price
$8.20 USD
Sale price
$2.20 USD
Unit price
/
per
Couldn't load pickup availability
Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.
Buyer NOTE: Default shipping 5V

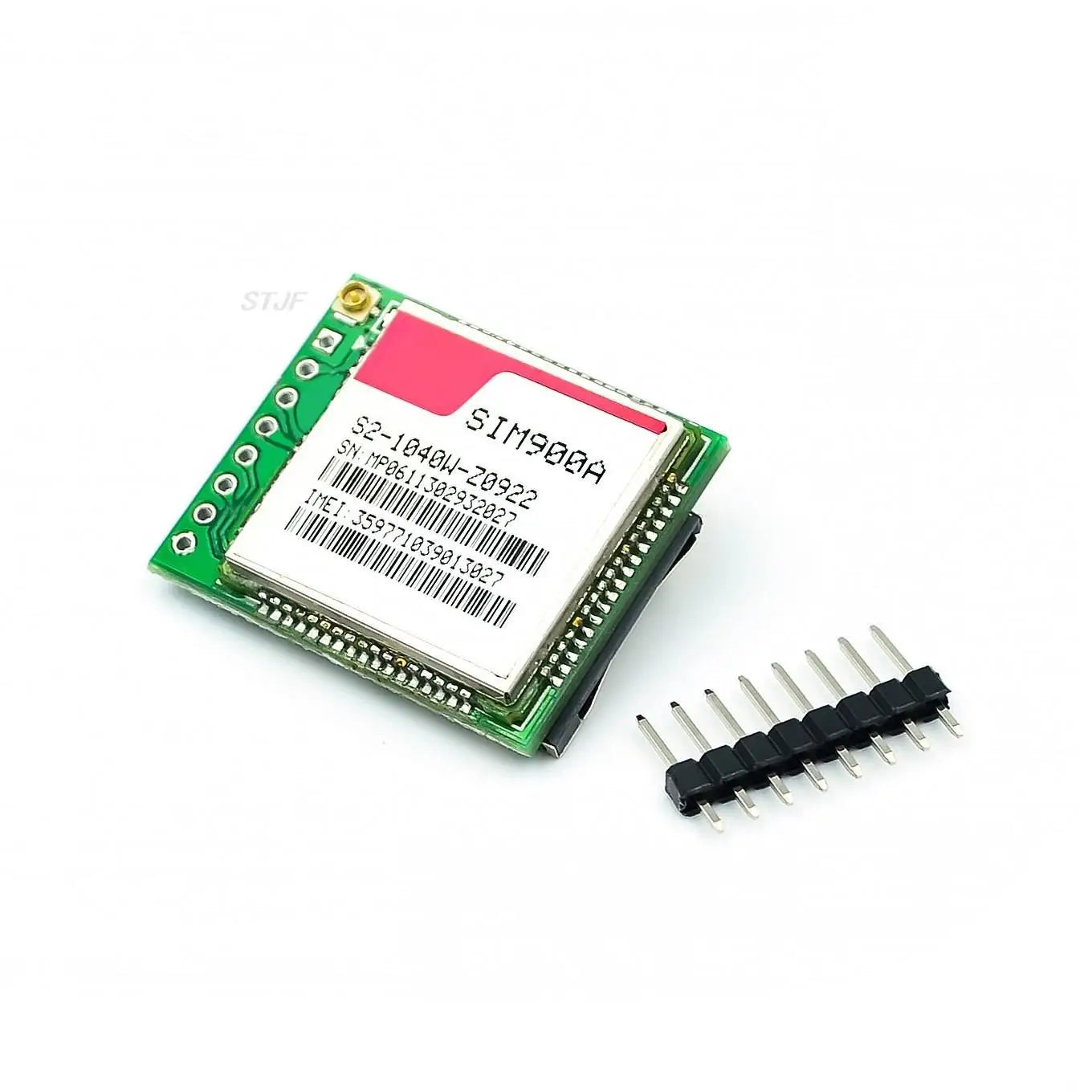

The studio launched an enhanced version of the fourth edition of SIM900A module, has been released, this module without positioning, on-board antenna, can send and receive SMS, GPRS data, transparent transmission, a variety of packages available, free shipping free shipping! ! Pure selling at a loss! ! ! Large dwell

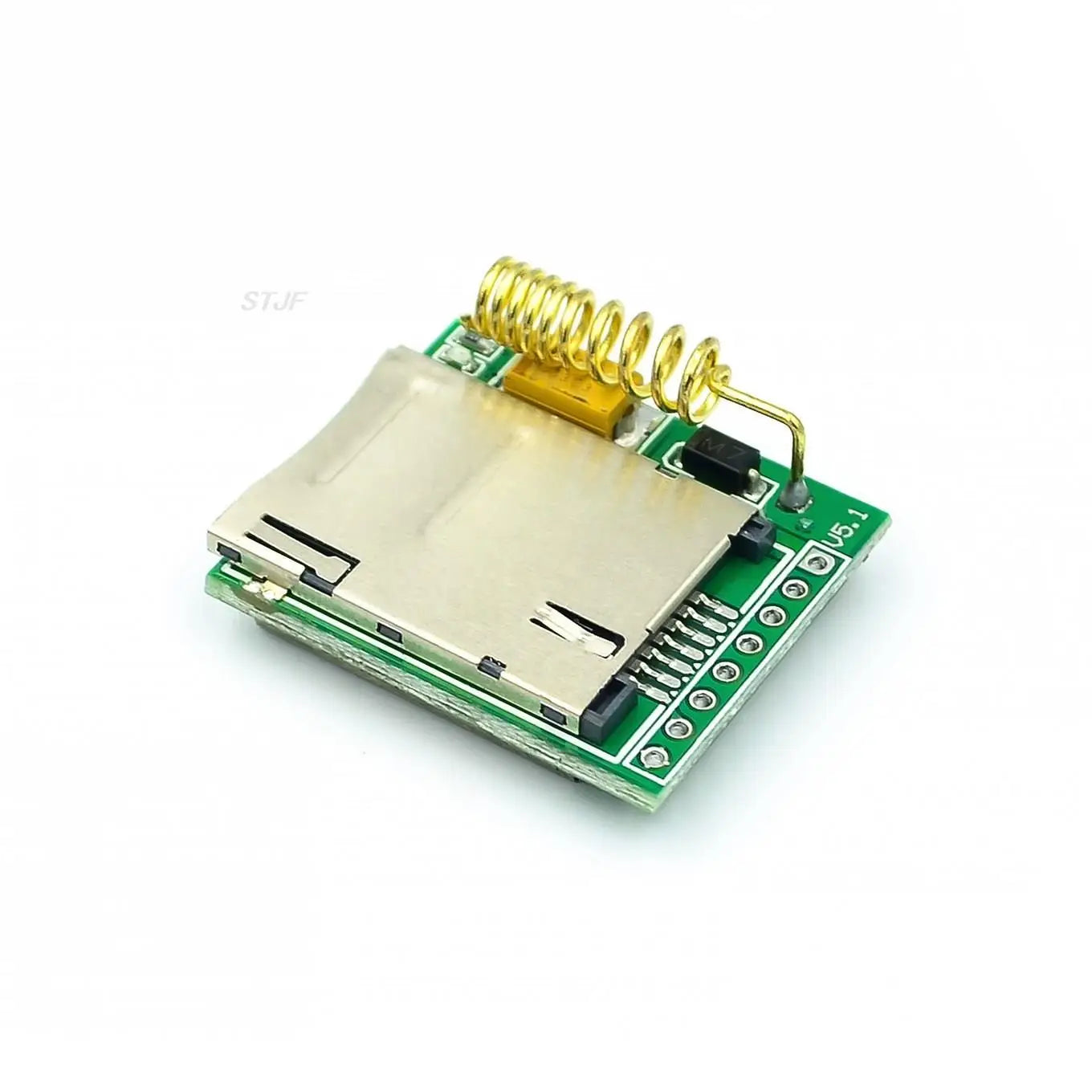

Onboard a giant tantalum, copper antenna, automatic power circuit, circuit card replacements charged, the headset microphone input and output, the sleep circuit, reset circuit.
About Power
5V version: This module supply range 4.5V ~ 5.5V, you can use USB3.0 or 5V switching power supply module for GSM, but remember, do not be greater than 5.5V, otherwise it will burn! ! !
4.2V version: This module supply range 3.5V ~ 4.8V, the module can be powered by a lithium battery to, but remember, do not be greater than 4.8V, otherwise it will burn! ! !
About Serial
This module is TTL level interface, can be directly connected to the MCU, ARM, without conversion devices, and computer links need USB to TTL module to communicate, not with RS232, RS485 and other serial link, the module will burn! !
About Power:
Shutdown Current: 4mA (reset pin GND connection under circumstances)
Working Current: 50mA (average)
Standby current: 20mA (transition 0 ~ 20ma)
Maximum current: 120ma (registration period)
