Custom SIM8200EA-M2 5G Module Designed For Jetson Nano, 5G/4G/3G Support, Snapdragon X55 Onboard Multi Mode Multi Band Custom PCB Manufacturer

Name: Custom SIM8200EA-M2 5G Module Designed For Jetson Nano, 5G/4G/3G Support, Snapdragon X55 Onboard Multi Mode Multi Band Custom PCB Manufacturer
Brand: Lonten Tech
Price: 100.00 USD
Availability: InStock

$100.00 USD

~~$0.00 USD~~ $100.00 USD

Sale Sold out

Quantity

SIM8200EA-M2 5G Module Designed For Jetson Nano, 5G/4G/3G Support, Snapdragon X55 Onboard, Multi Mode Multi Band, Applicable For Regions With 5G Sub-6G Signal Coverage

SIM8200EA-M2 5G MODULE FOR JETSON NANO

Comes With SIM8200EA-M2, Supports 5G/4G/3G, Supports 5G SA And NSA,
Multi Mode Multi Band, Applicable For Regions With 5G Sub-6G Signal Coverage

Features At A Glance

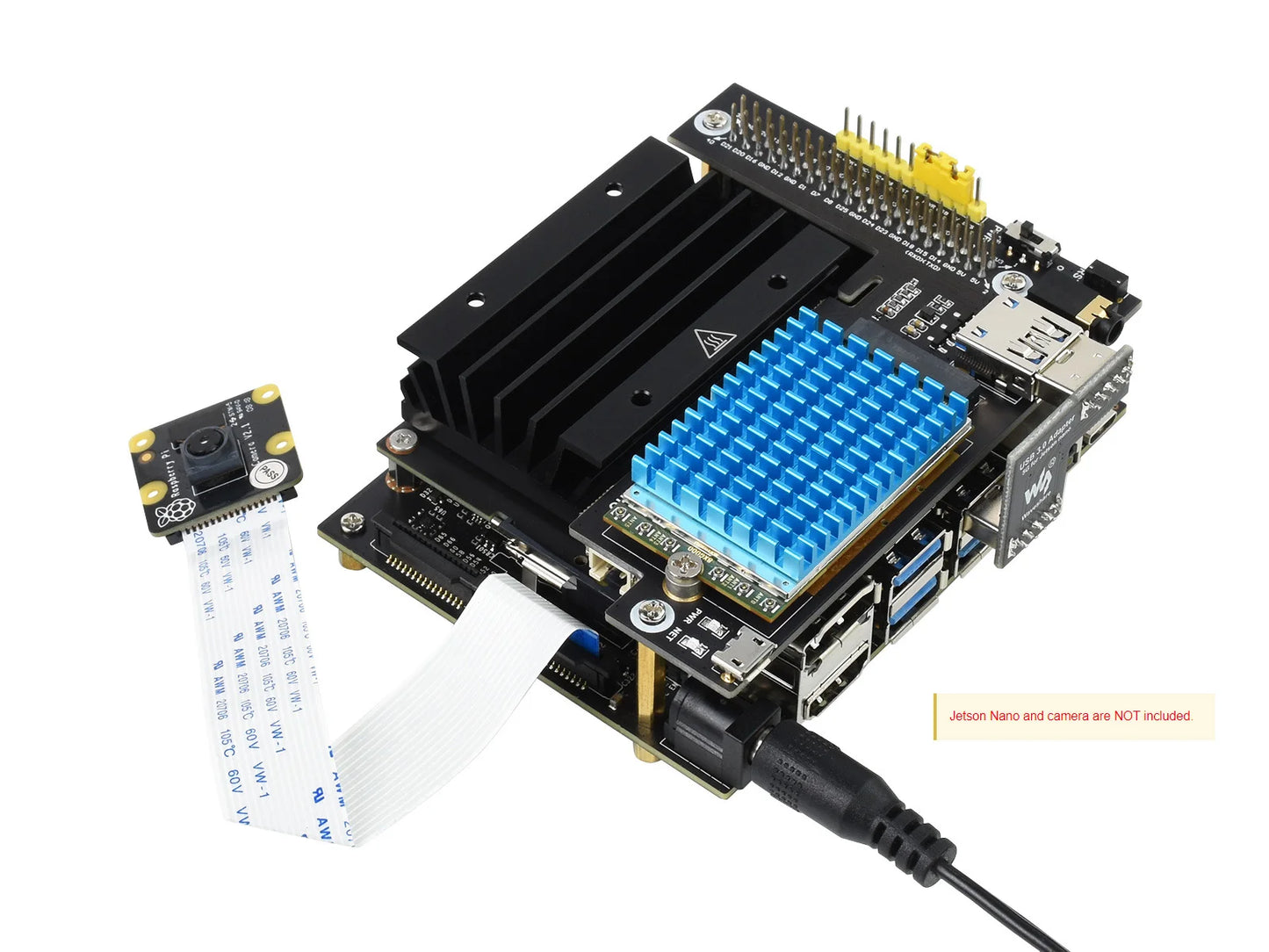

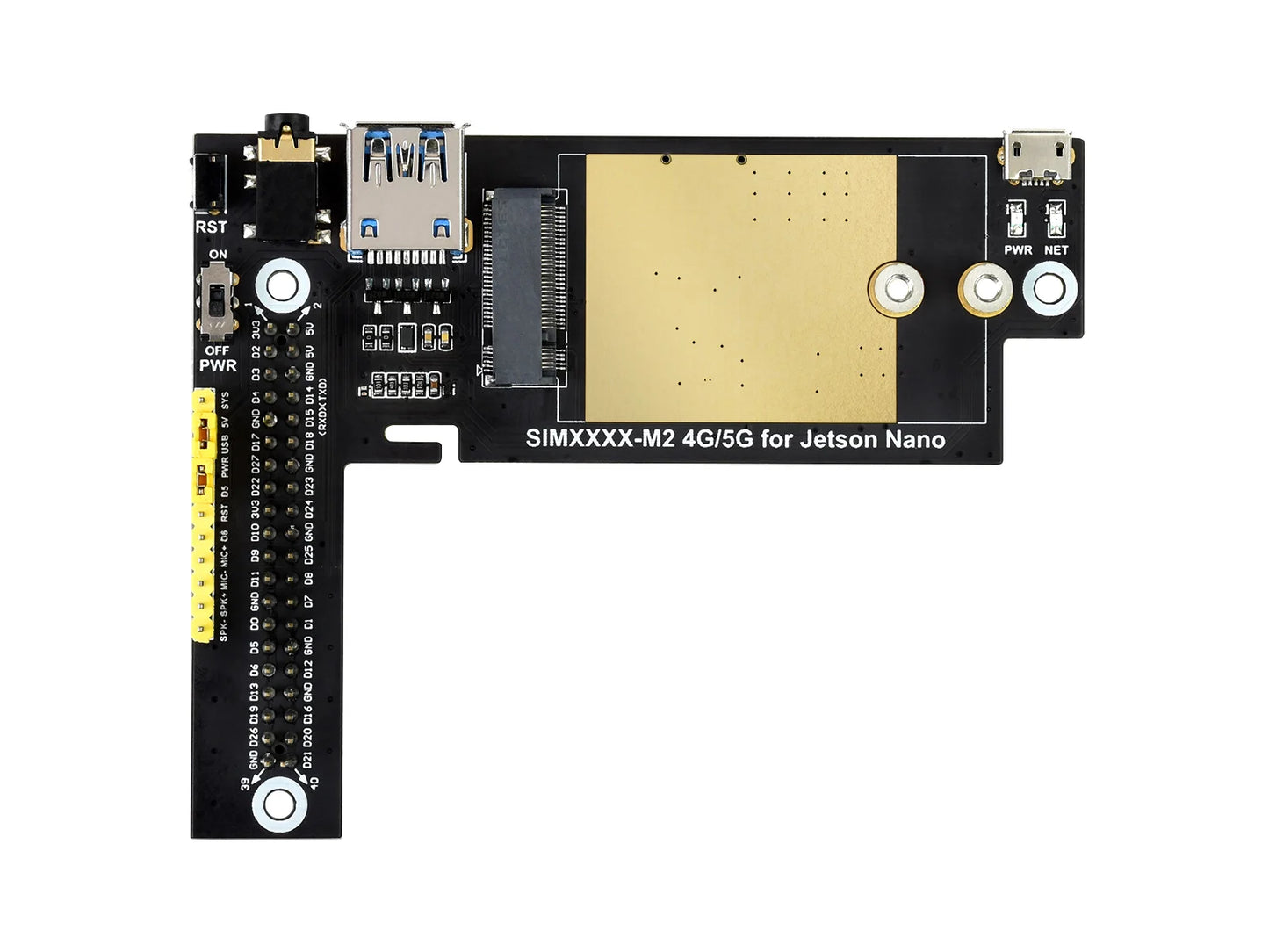

Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano

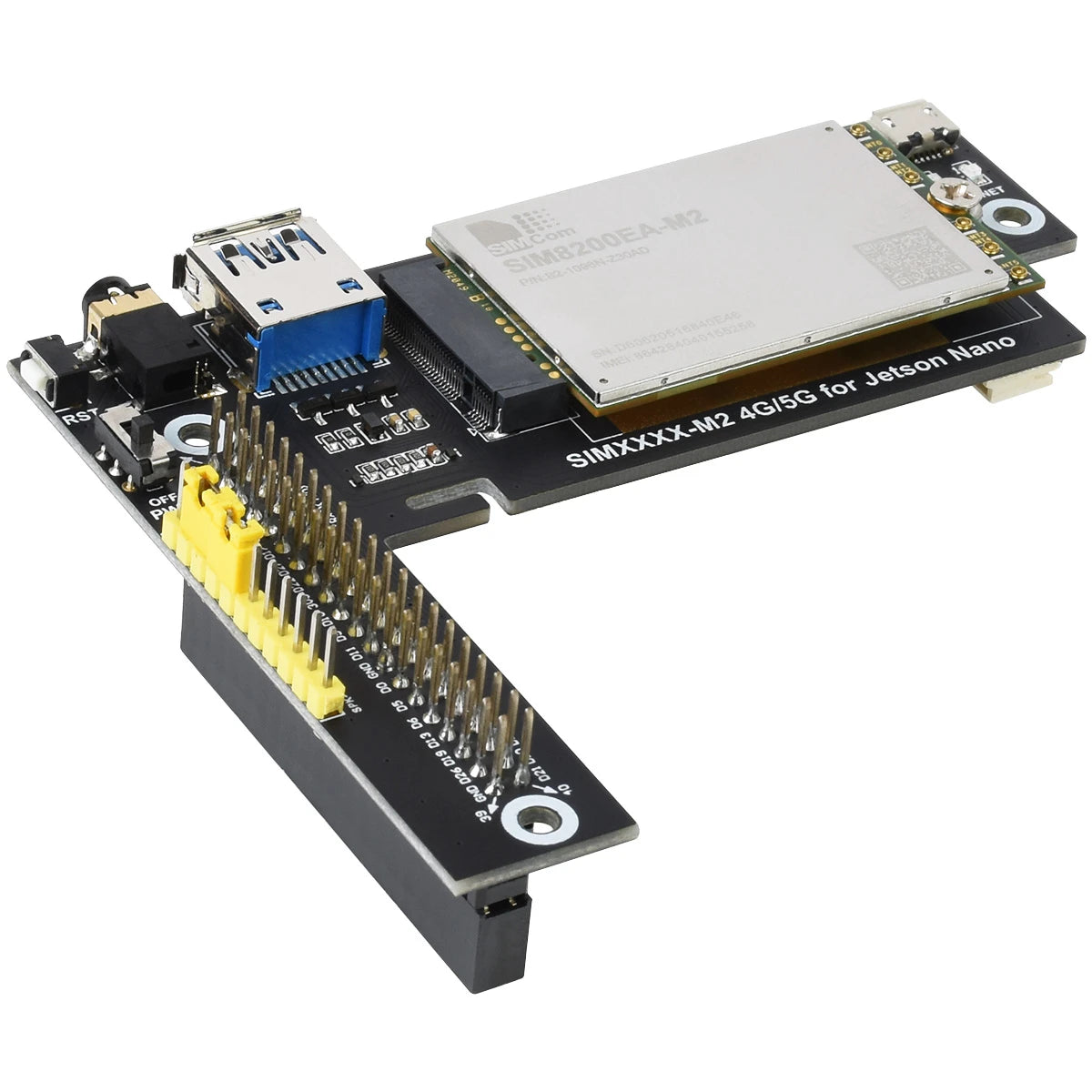

Comes with SIM8200EA-M2 core module, based on Qualcomm snapdragon X55 platform, with multi mode multi band support
5G/4G/3G communication, supports functions like phone call, SMS, cloud communication, etc.
USB3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.

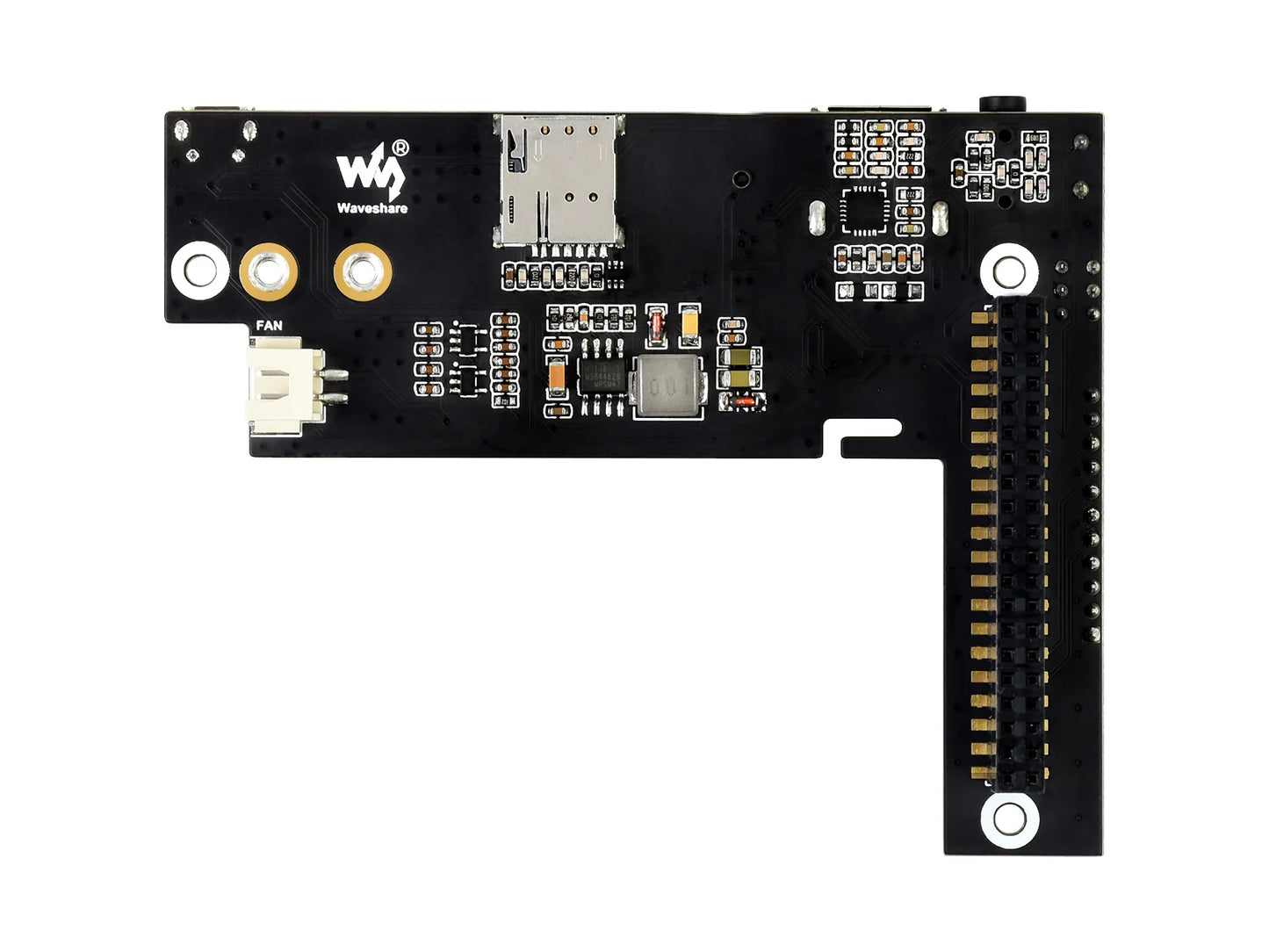

SIM card slot, supports 1.8V / 3V SIM card
2x LED indicators, easy to monitor the working status
AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set
Onboard audio jack and audio decoder, allows audio operation like making phone call
Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
Operating system support: Windows/Linux/Android

5G Module Comparison

Compatible Hardware Interface, Identical Software Function

SIM8200EA-M2 the 6x antennas version (left), SIM8202G-M2 the 4x antennas version (right)

Multi Mode Multi Band

Applicable For Most Of The Countries And Regions

Based on Qualcomm snapdragon X55 platform with multi mode multi band support.
Applicable for regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America...
Supports 5G NSA (4G+5G common networking) and SA (5G standalone networking), compatible with 4G/3G network.

Multi Host Support

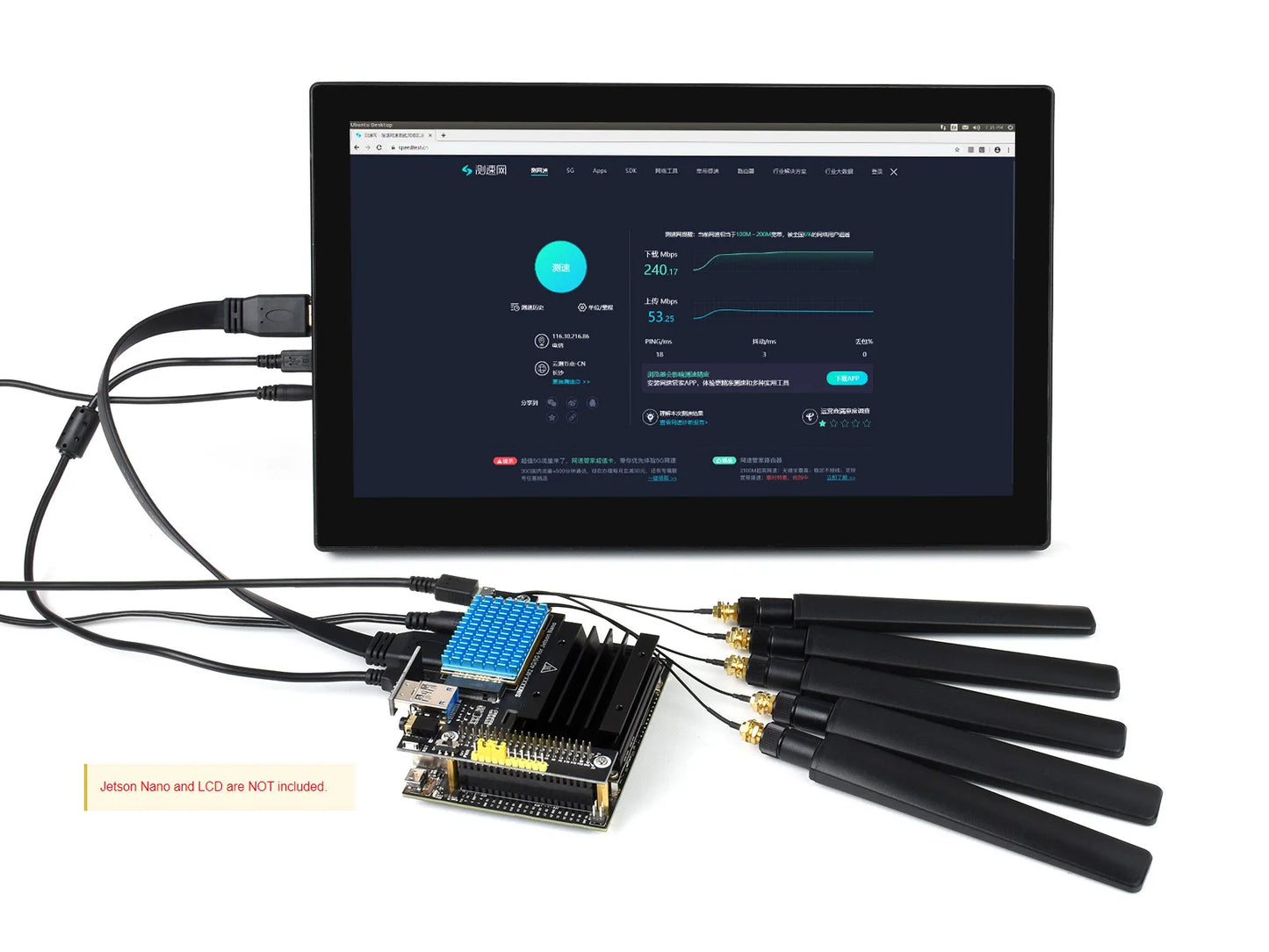

Enabling 5G High Speed Connection For Jetson Nano And Windows Computer

Sub-6G: up to 2.4 Gbps (downlink) / up to 500 Mbps (uplink)*
LET: up to 1 Gbps (downlink) / up to 200 Mbps (uplink)*
HSPA+: up to 42 Mbps (downlink) / up to 5.76 Mbps (uplink)*
