Custom SIM7600CE-CNSE 4G HAT for Raspberry Pi Supports 4G / 3G / 2G Communication, Also LBS Positioning Custom PCB power board pcba Manufacturer
Custom SIM7600CE-CNSE 4G HAT for Raspberry Pi Supports 4G / 3G / 2G Communication, Also LBS Positioning Custom PCB power board pcba Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability
Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

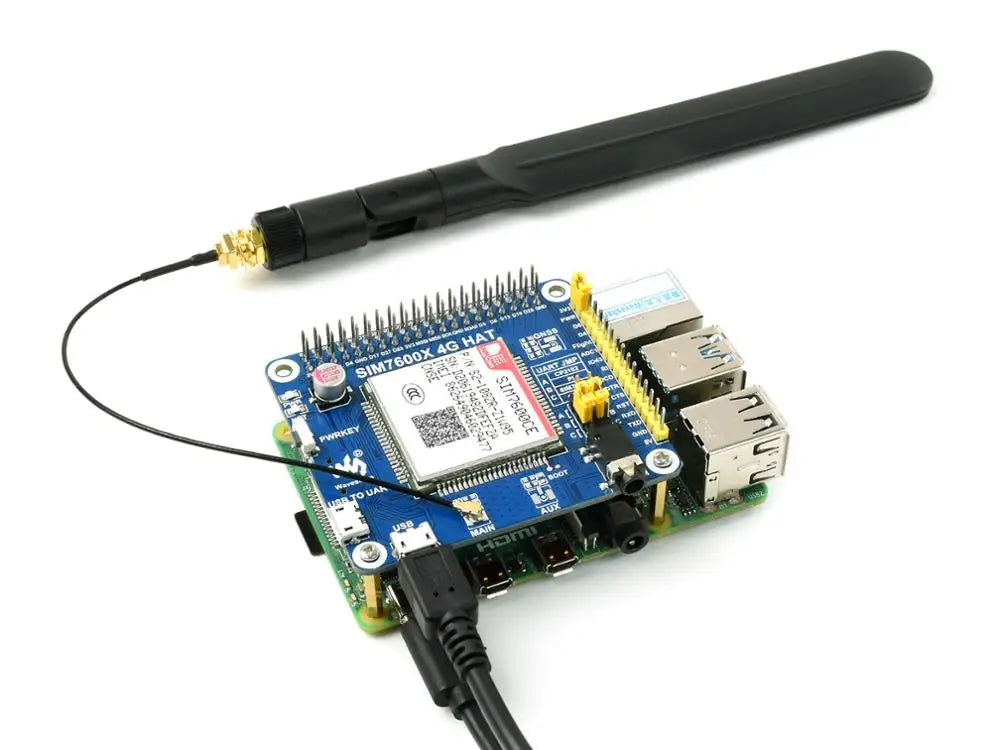

SIM7600CE-CNSE 4G HAT For Raspberry Pi, Supports 4G / 3G / 2G Communication, Also LBS Positioning
For different regions, we provide multiple LTE Cat-4/Cat-1 HATs to choose from:
- SIM7600A-H 4G HAT: mainly applicable in North America (US, CA)
- SIM7600E-H 4G HAT, SIM7600E LTE Cat-1 HAT: mainly applicable in Europe, Southeast Asia, West Asia, Africa, China, North Korea
- SIM7600SA-H 4G HAT: mainly applicable in Australia, New Zealand, Taiwan, Latin America
- SIM7600CE 4G HAT, SIM7600CE-CNSE 4G HAT: mainly applicable in China, and some Southeast Asia countries
- SIM7600G-H 4G HAT: the global version
Please check the supported bands according to your local service provider, select the proper one when placing order.
4G HAT FOR RASPBERRY PI
Enabling 4G / 3G / 2G Communication & LBS Positioning
Based on SIM7600CE-CNSE
Features At A Glance
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
- Supports LBS base station positioning
- Onboard USB interface, for testing AT Commands, establishing network connection, and so on
- Onboard CP2102 USB to UART converter, for serial debugging
- Breakout UART control pins, to connect with host boards like Ard/STM32
- SIM card slot, supports 1.8V/3V SIM card
- TF card slot for storing data like files, messages, etc.
- Onboard audio jack and audio decoder for making telephone call
- 2x LED indicators, easy to monitor the working status
- Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
- Baudrate: 300bps ~ 4Mbps (default: 115200bps)
- Autobauding baudrate: 9600bps ~ 115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Ard/STM32)
Specifications
| FREQUENCY BAND | |
|---|---|
| LTE Cat-4 | LTE-FDD: B1/B3/B5/B8 |
| LTE-TDD: B38/B39/B40/B41 | |
| 3G | UMTS/HSDPA/HSPA+: B1/B8 |
| 2G | GSM/GPRS/EDGE: 900/1800 MHz |
| SMS AND AUDIO | |
| SMS | Supported types: MT, MO, CB, Text, PDU |
| Storage: USIM card and ME (default) | |
| Audio feature | Supports echo cancellation |
| Supports noise reduction | |
| OTHERS | |
| Power supply | 5V |
| Operating voltage | 5V / 3.3V (configured via jumper) |
| Operating temperature | -30°C ~ 80°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 56.01mm × 65.00mm |

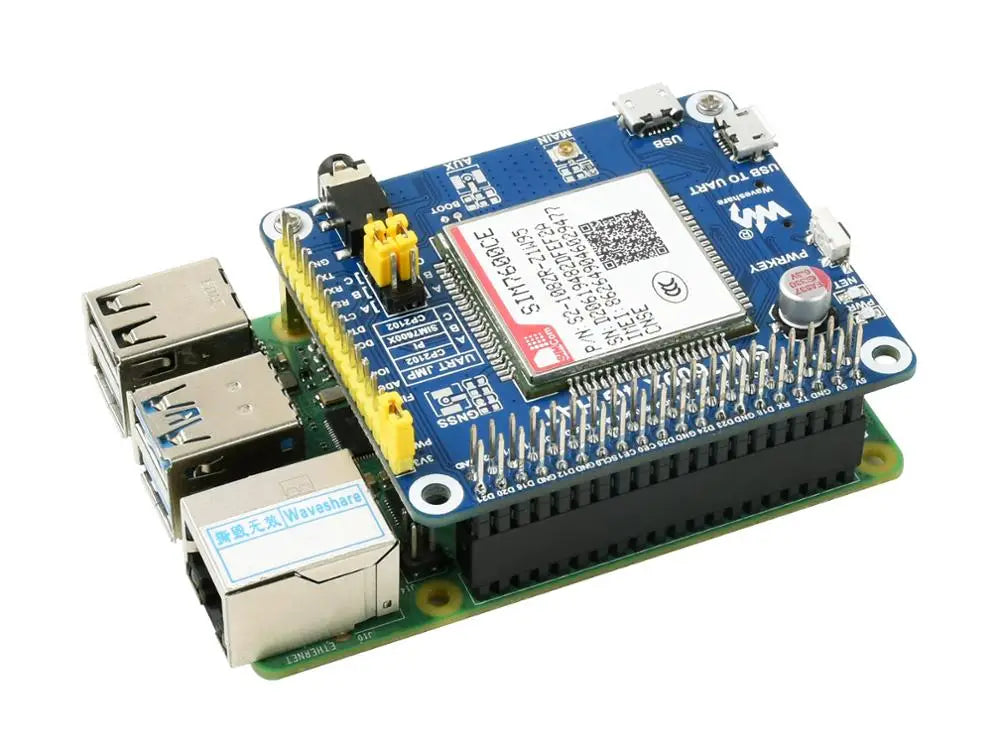

Standard Raspberry Pi 40PIN GPIO
Compatible With Raspberry Pi Series Boards, Jetson Nano

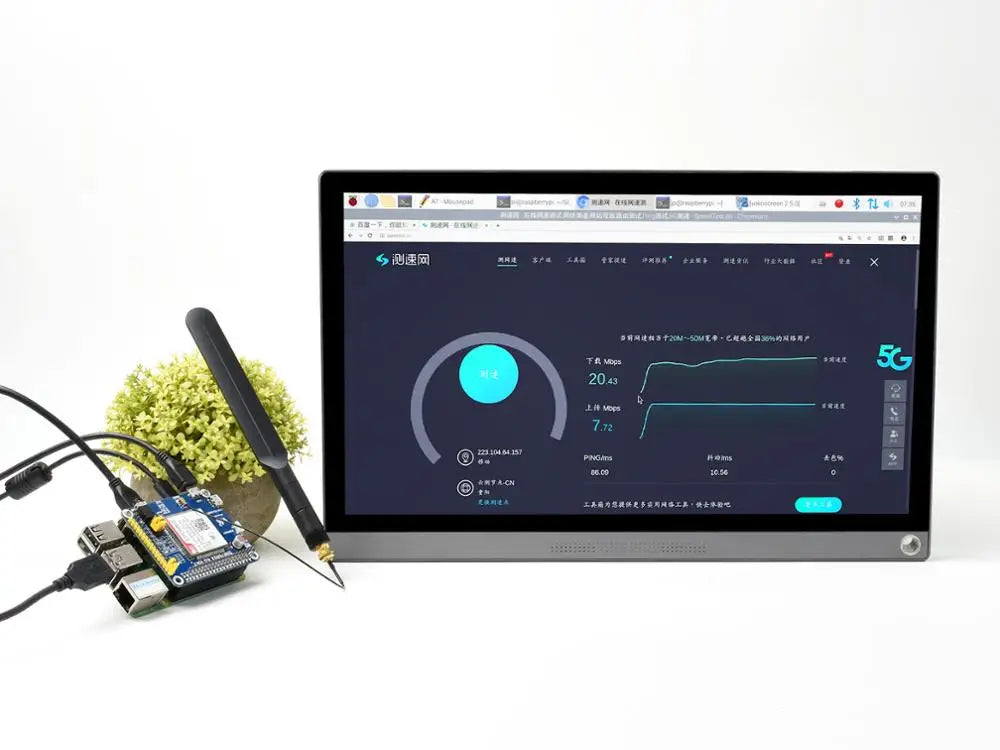

Dial-Up On Windows/Linux
LTE Cat-4: Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink) *
3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *
* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.
Cloud Communication
Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS
Telephoto Call & SMS Support
Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack

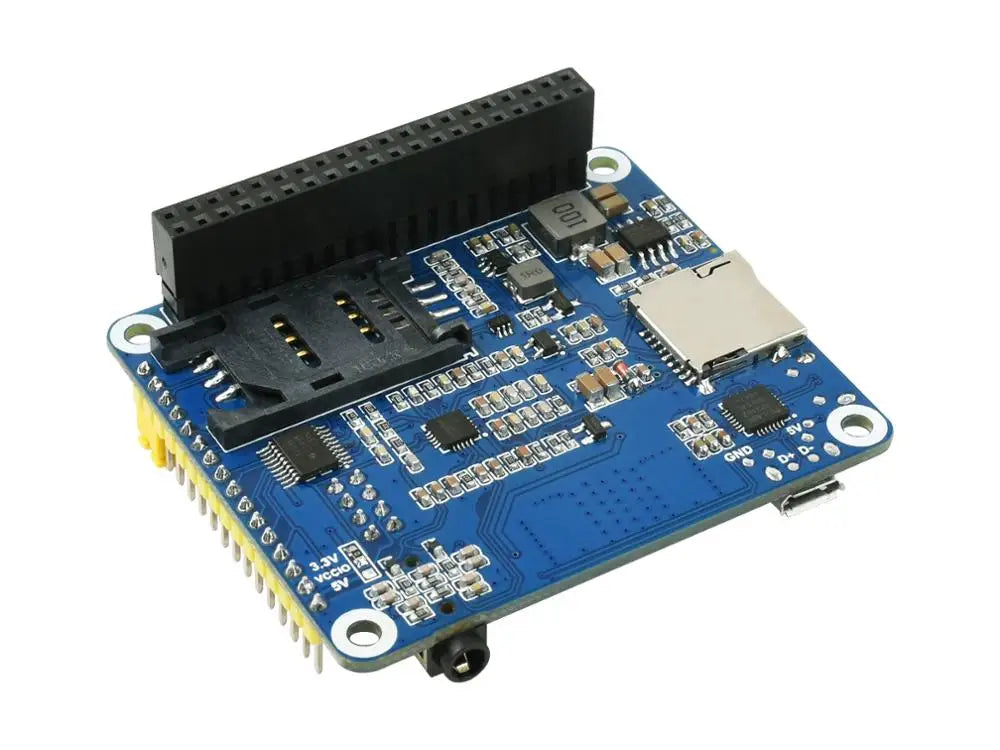

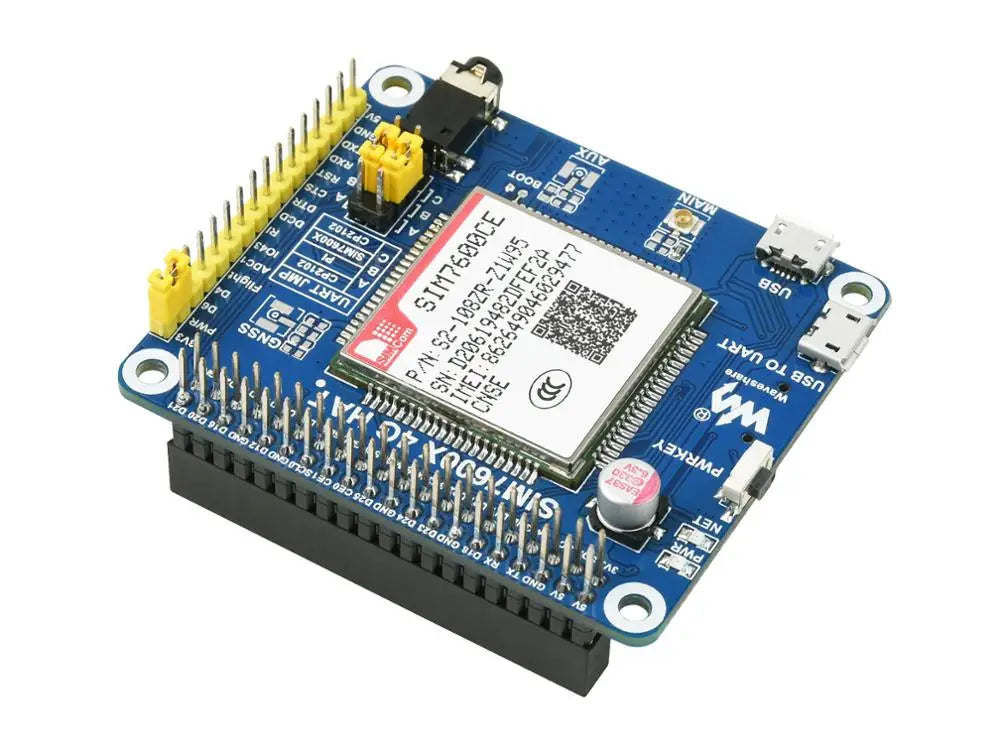

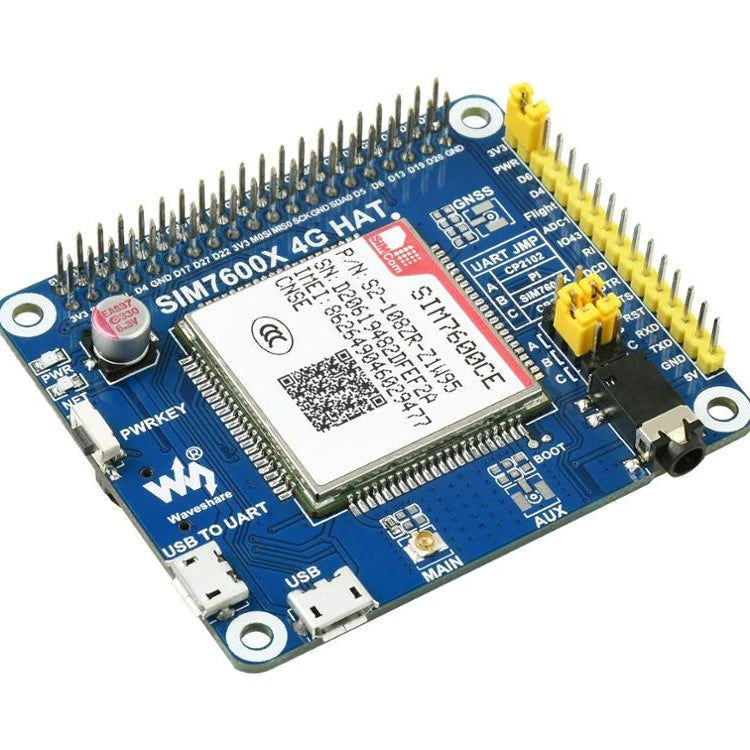

What's On Board
- SIM7600CE-CNSE
- CP2102 USB to UART converter
- NAU8810 audio decoder
- TXS0108EPWR voltage translator
- translates 3.3V/5V into 1.8V
- MP2128DT power chip
- MP1482 power chip
- Raspberry Pi GPIO header
- for connecting with Raspberry Pi
- SIM7600 control interface
- for connecting with host boards like Ard/STM32
- SIM card slot
- supports 1.8V/3V SIM card
- TF card slot
- for storing data like files, messages, etc.
- 3.5mm earphone/mic jack
- for audio actions like making telephoto call
- USB interface
- for testing AT Commands, and so on
- USB TO UART interface
- for serial debugging, or login to Raspberry Pi
- MAIN antenna connector
- Module power switch
- Network status indicator
- Power indicator
- UART selection jumper
- A: access Raspberry Pi via USB to UART
- B: control the SIM7600 by Raspberry Pi
- C: control the SIM7600 via USB to UART
- PWR selection jumper
- PWR - 3V3: auto startup on power-up
- PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
- Flight mode selection jumper
- NC by default, no flight mode control pin
- Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
- Operating voltage selection jumper
- VCCIO - 3.3V: set operating voltage as 3.3V
- VCCIO - 5V: set operating voltage as 5V
- USB connector solder pads
- BOOT forced programming solder pads
Pinout Definition
Outline Dimensions
Selection Guide
| SIM7600CE-CNSE | SIM7600CE-T | SIM7600E | SIM7600E-H | SIM7600A-H | SIM7600G-H | ||
|---|---|---|---|---|---|---|---|
| Applicable regions | China | Europe/Southeast Asia/West Asia/Africa/China/South Korea | North America | Global | |||
| Band | |||||||
| LTE Cat-4 /LTE Cat-1 | LTE-TDD B38/B39/B40/B41 LTE-FDD B1/B3/B5/B8 | LTE-FDD B1/B3/B5/B7/B8/B20 LTE-TDD B38/B40/B41 | LTE-FDD B2/B4/B12 | LTE-TDD B34/B38 /B39/B40/B41 LTE-FDD B1/B2/B3/B4/B5/B7 /B8/B12/B13/B18/B19 /B20/B25/B26/B28/B66 | |||
| 3G | UMTS/HSDPA/HSPA+ B1/B8 TD-SCDMA B34/B39 | UMTS/HSPA+ B1/B5/B8 | UMTS/HSPA+ B2/B5 | UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19 | |||
| 2G | GSM/GPRS/EDGE 900/1800 MHz | N/A | GSM/GPRS/EDGE 850/900/1800/1900MHz | ||||
| GNSS | N/A | GPS/Beidou/GLONASS | |||||
| Data Rate | |||||||
| LTE Cat-4 | 150Mbps(DL)/50Mbps(UL) | N/A | 150Mbps(DL)/50Mbps(UL) | ||||
| LTE Cat-1 | N/A | 10Mbps(DL) /5Mbps(UL) | N/A | ||||
| 3G (HSPA+) | 42Mbps(DL)/5.76Mbps(UL) | ||||||
| 2G (EDGE) | 236.8Kbps(DL)/236.8Kbps(UL) | N/A | 236.8Kbps(DL)/236.8Kbps(UL) | ||||
| 2G (GPRS) | 85.6Kbps(DL)/85.6Kbps(UL) | N/A | 85.6Kbps(DL)/85.6Kbps(UL) | ||||
| Software Features | |||||||
| Network protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | ||||||
| Dial-up protocol | PPP/NDIS/RNDIS | ||||||
| USB driver | Windows XP/7/8/10, Linux (driver free for Raspbian) | ||||||
| Hardware Interfaces | |||||||
| SIM card slot | Compatible with 1.8V and 3V SIM card | ||||||
| UART | Supports AT commands through UART, compatible with 3.3V/5V operating voltage | ||||||
| USB port | Supports AT commands testing, GPS positioning, firmware upgrading, etc. | ||||||
| USB to UART | Supports serial debugging, or login to Raspberry Pi | ||||||
| Audio jack | Supports audio actions like making telephoto call | ||||||
| TF card slot | Yes, for storing data like files, messages, etc. | N/A | Yes | ||||
| Antenna connector | LTE main antenna | LTE main antenna + LTE diversity antenna + GNSS antenna | |||||
| Applications | |||||||
| Examples | Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc. | ||||||
PACKAGE CONTENT
Weight: 0.187 kg
- SIM7600CE-CNSE 4G HAT x1
- LTE Antenna x1
- USB-A to Micro-B cable x2
- RPi screws pack (2pcs) x1
