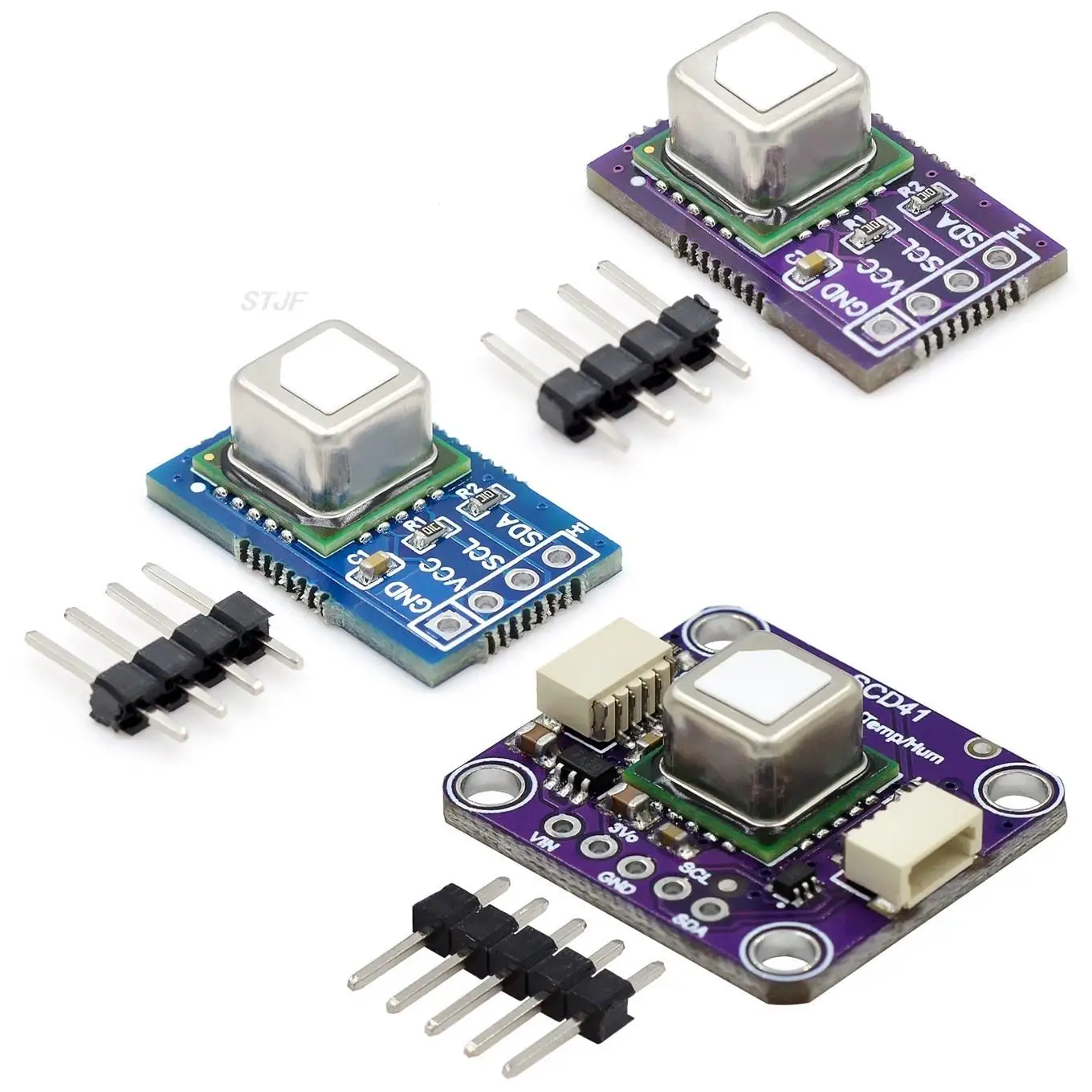

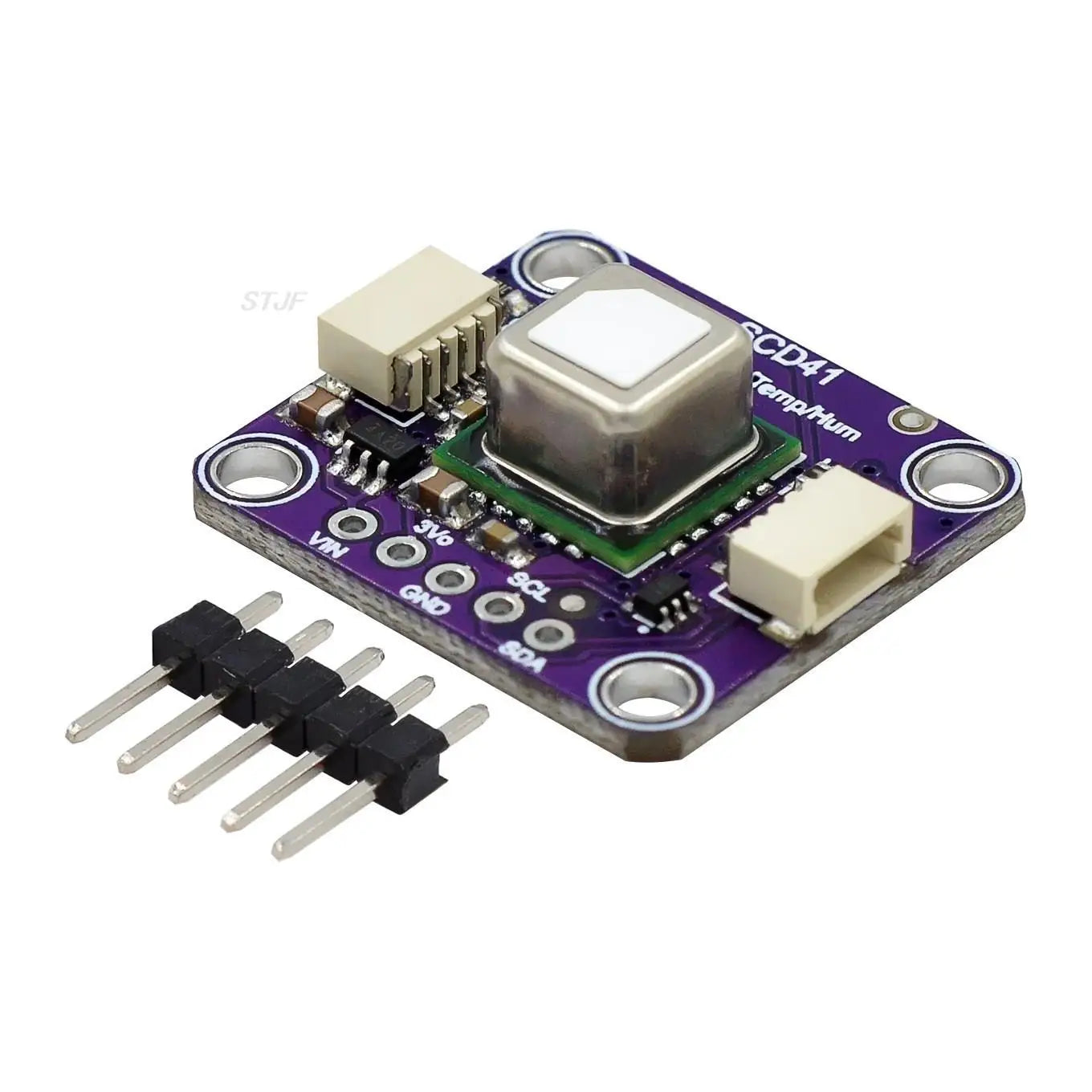

Custom SCD40 SCD41 gas sensor module detects CO2 carbon dioxide temperature and humidity in one sensor I2C communication

Product introduction
Carbon dioxide is a key indicator of indoor air quality, damaging human cognitive ability and happiness. SCD40 is the next generation of micro carbon dioxide sensor of Sensirion. SCD40 has high precision and high cost performance. The module leads out the power supply and communication pins with a 2.54mm spacing pin interface. On chip temperature and humidity compensation realizes humidity and temperature measurement through built-in temperature and humidity sensor. SCD40 can realize intelligent regulation of indoor ventilation system according to carbon dioxide concentration. Indoor air quality helps to maintain a healthy and efficient environment under low carbon dioxide concentration for a period of time.
features
Reference accuracy, specified range 400-2000 ppm
Supply voltage range: 2.4 – 5.5 V
High accuracy: ± (40 ppm + 5%)
Digital I2C interface
Integrated temperature and humidity sensor
Low power operation to < 0.4 Ma average @ 5 V, 1 meas/ 5 minutes
Interface definition:
1. GND: negative input port of power supply
2. VDD: positive input port of power supply
3. SCL: I2C clock port
4. SDA: I2C data port

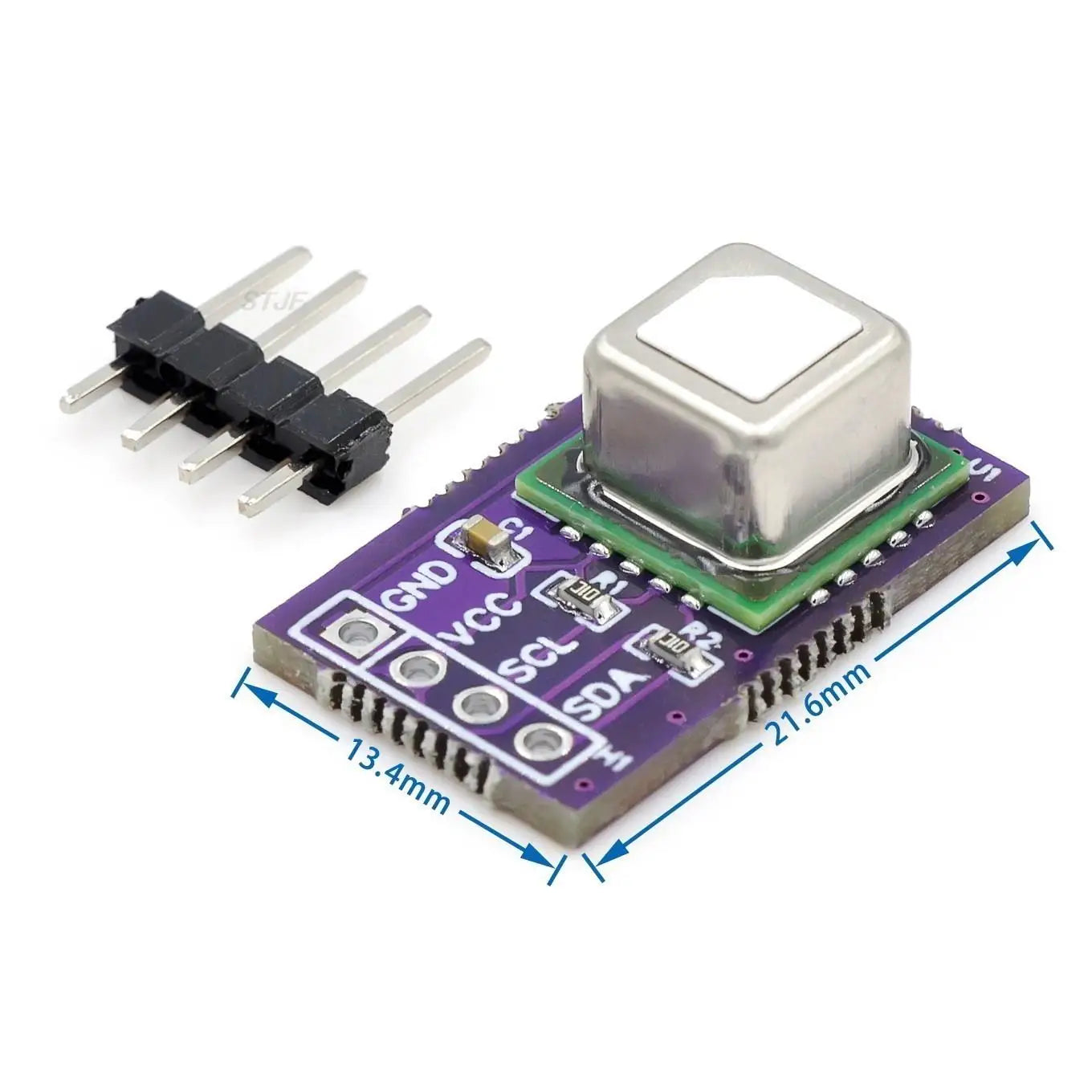

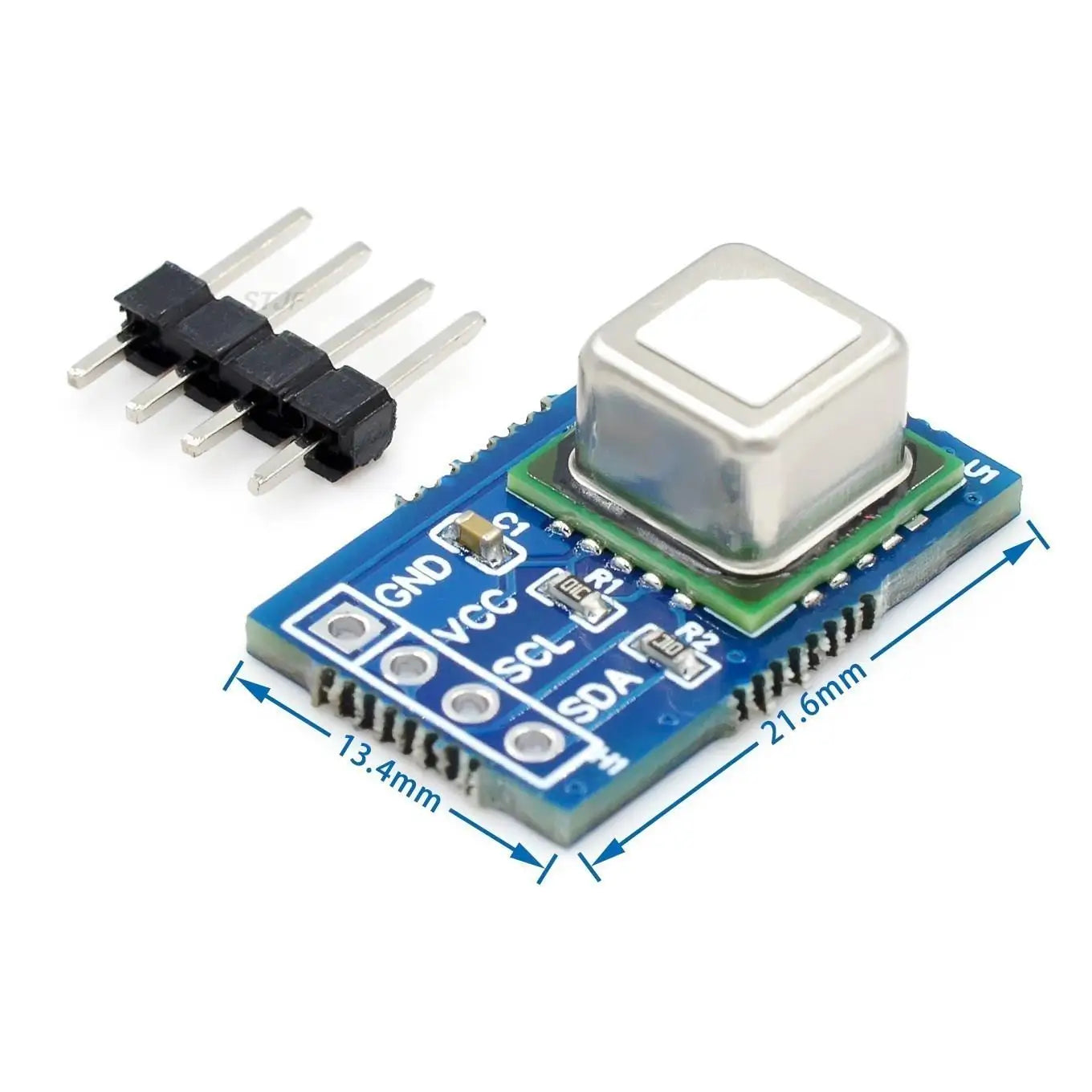

Board size: 13.4 × 21.6mm
