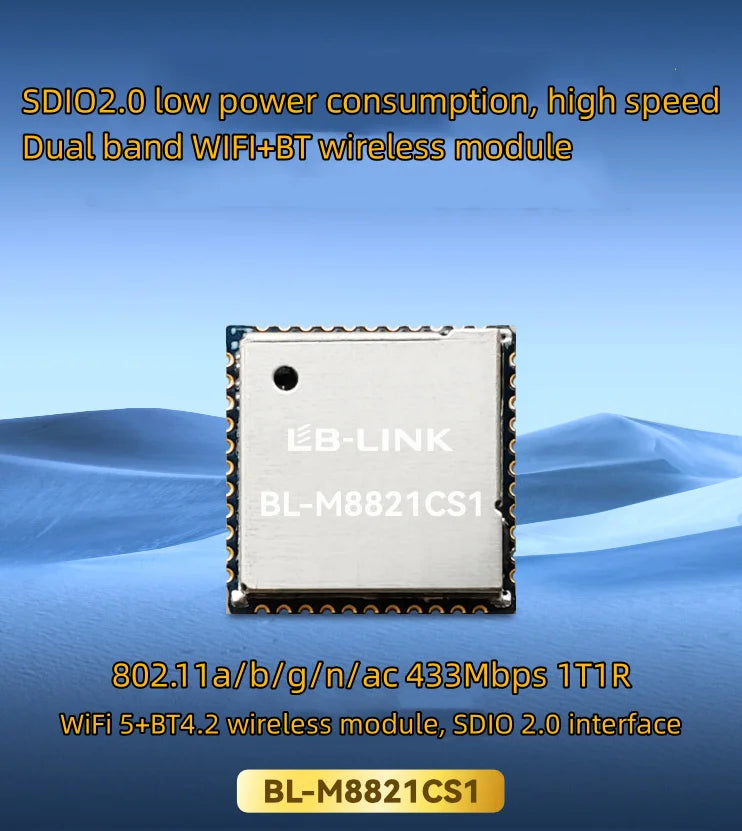

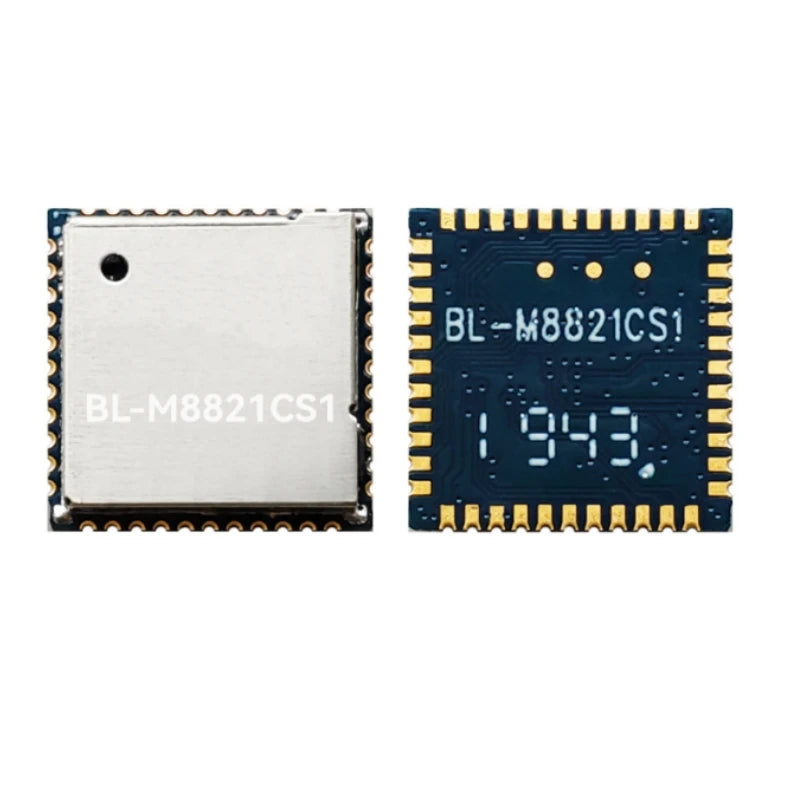

Custom RTL8821CS wireless module dual band 5G Bluetooth BT projector player wifi module BL-M8821CS1

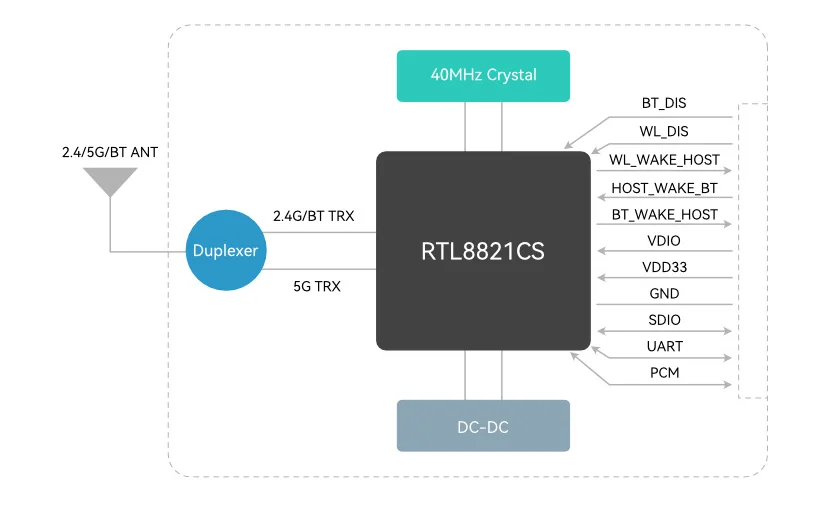

This module uses RTL8821CS solution, SDIO interface, 3.3V power supply, 2.4G+5.8G dual band AC, 600Mbps transmission rate, wifi+Bluetooth, can replace AP6255. The wifi wireless module is suitable for network cameras such as tablets, laptops, readers, set-top boxes, etc; Suitable for smart TVs, high-definition 4K TVs, and smart cinema projection devices; Consumer electronic devices or smart home appliances (TVs, DVD players, Blu ray players, OTT, set-top boxes, IPTV, etc.)

Welcome customers to inquire about our company's WiFi module, USB module, LED intelligent module, cloud control module, USB to WIFI module, SDIO to WIFI module, and camera. Modules, WIFI solutions, etc.

Looking forward to your cooperation!

Chip: RTL8821CS

Standard: 802.11a/b/g/n/ac

Frequency: 2.4GHz/5GHz

Interface: SDIO

Working mode: softap, station

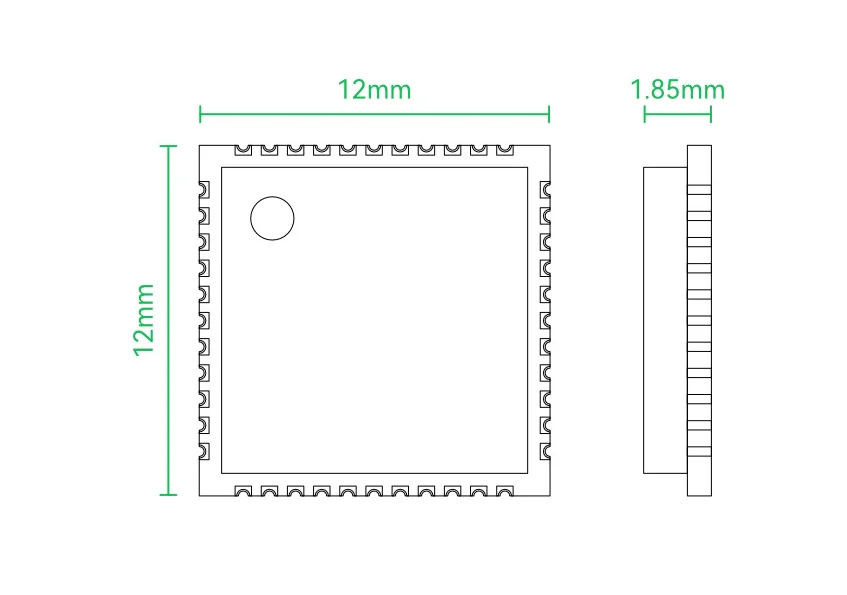

Size: 12.9 * 12.2 * 1.6mm

Power supply: 3.3V ± 0.2V

Working temperature: -20 ℃~70 ℃

Power: ≤ 19dBm

Power consumption: ≤ 420mA
