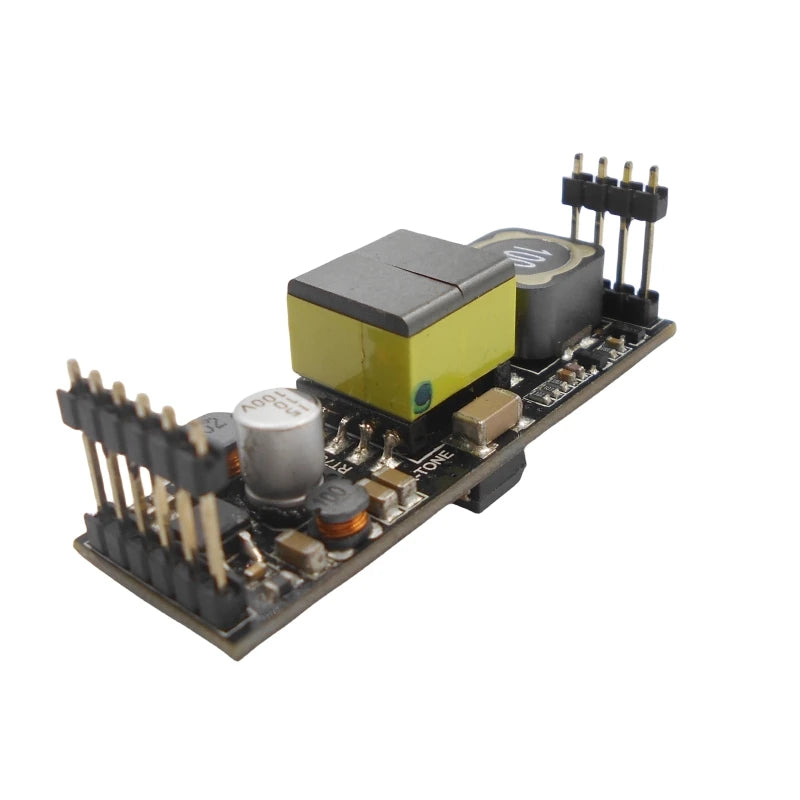

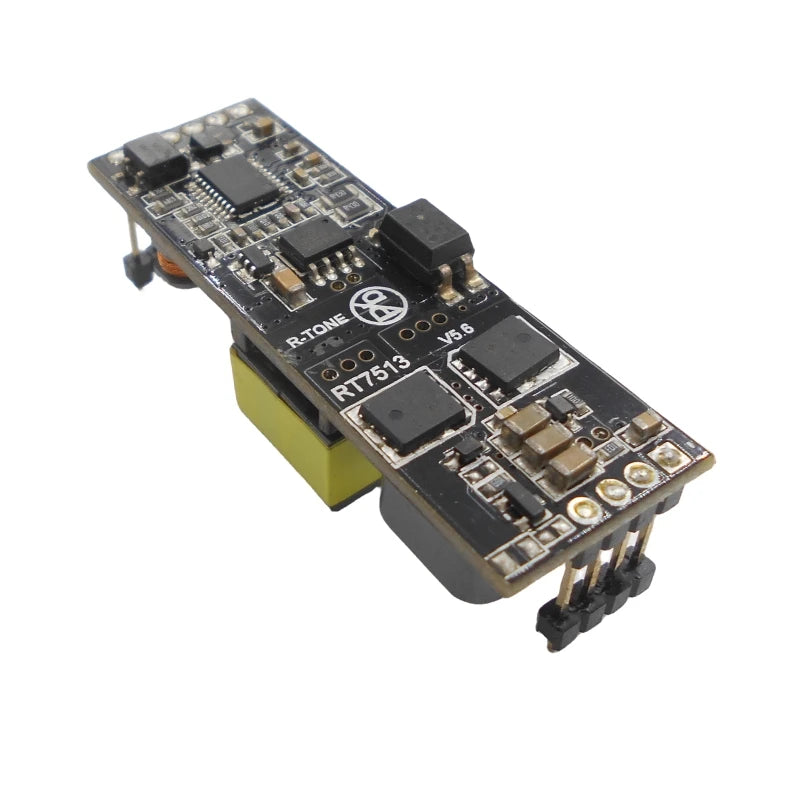

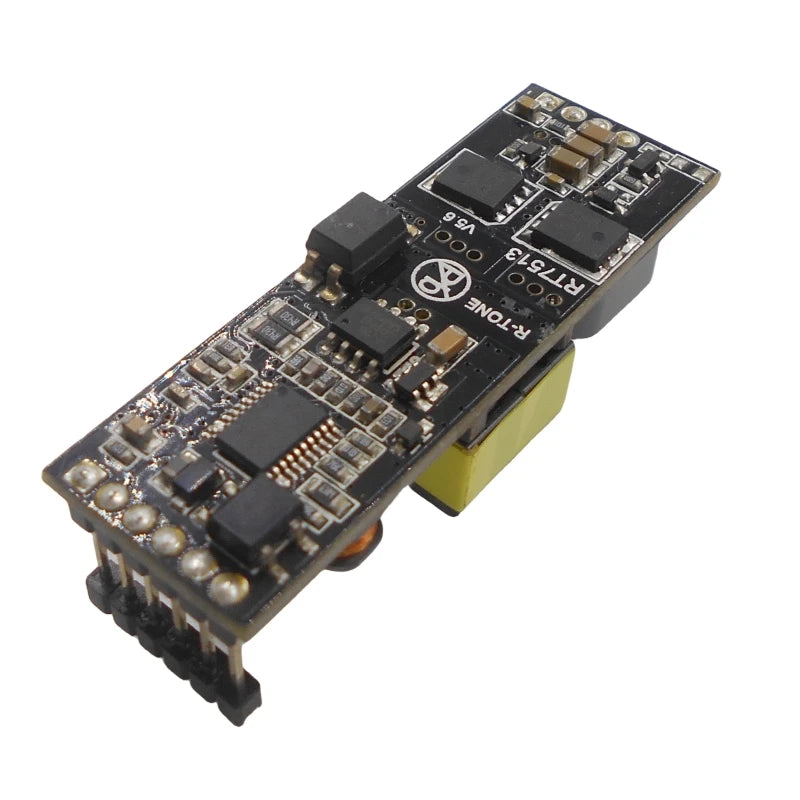

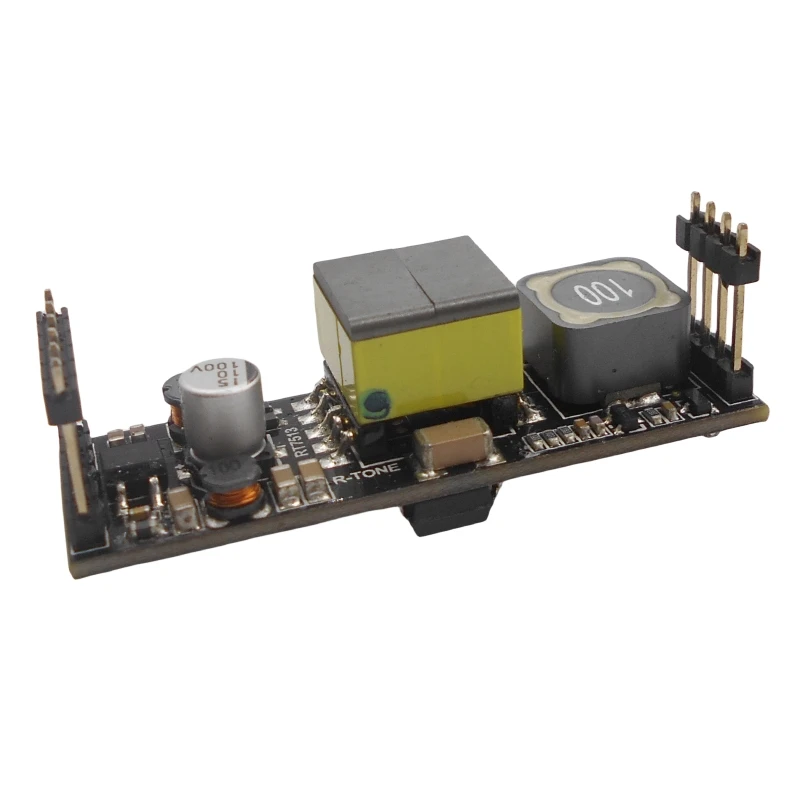

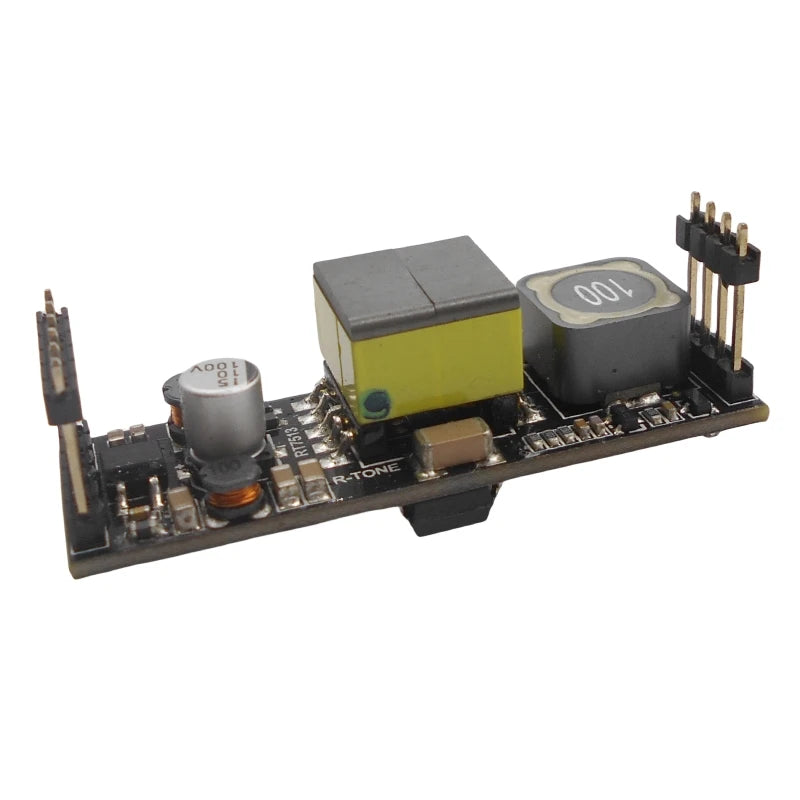

Custom RT7513 20W high efficiency POE module Maximum 5V 4W output power

Features：

·IEEE802.3at and IEEE802.3af compliant

·Maximum 5V 4W output power

·Input voltage range 36V to 57V

·Integral high efficiency DC/DC converter.

·Low output ripple and noise

·High performance Synchronous rectification with low price

·Short-circuit protection

·Transformer isolation ,1500V isolation (input to output)

·Easy to use, with a minimum number of external components.

Applications：

·IP Cameras

·Wireless access point

·Security and alarm systems

·VOIP telephone

·Point of sale network terminal equipment

Description：

The RT7513 series of modules are designed to extract power from a conventional

twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af and IEEE 802.3at    Power-over-Ethernet(PoE) standard.

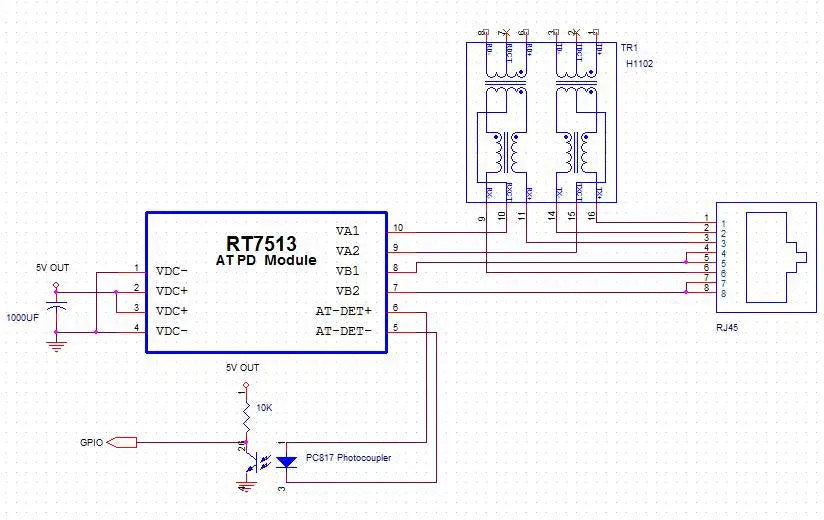

The RT7513 signature and control circuit provides the PoE compatibility signature and

power classification required by the Power Sourcing Equipment (PSE) before applying up

to 18W power to the port.

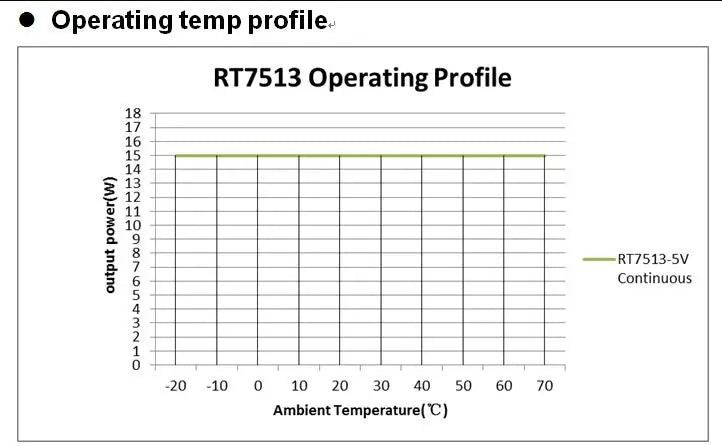

The DC/DC converter operates over a wide input voltage range and provides a regulated

output. The DC/DC converter also has built-in short-circuit output protection.
