Custom RPI UPS HAT (B) For Raspberry Pi 3/3B+/4B, etc., 5V Uninterruptible Power Supply, 5A High Current, Pogo Pins Connector Manufacturer

Custom RPI UPS HAT (B) For Raspberry Pi 3/3B+/4B, etc., 5V Uninterruptible Power Supply, 5A High Current, Pogo Pins Connector Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out

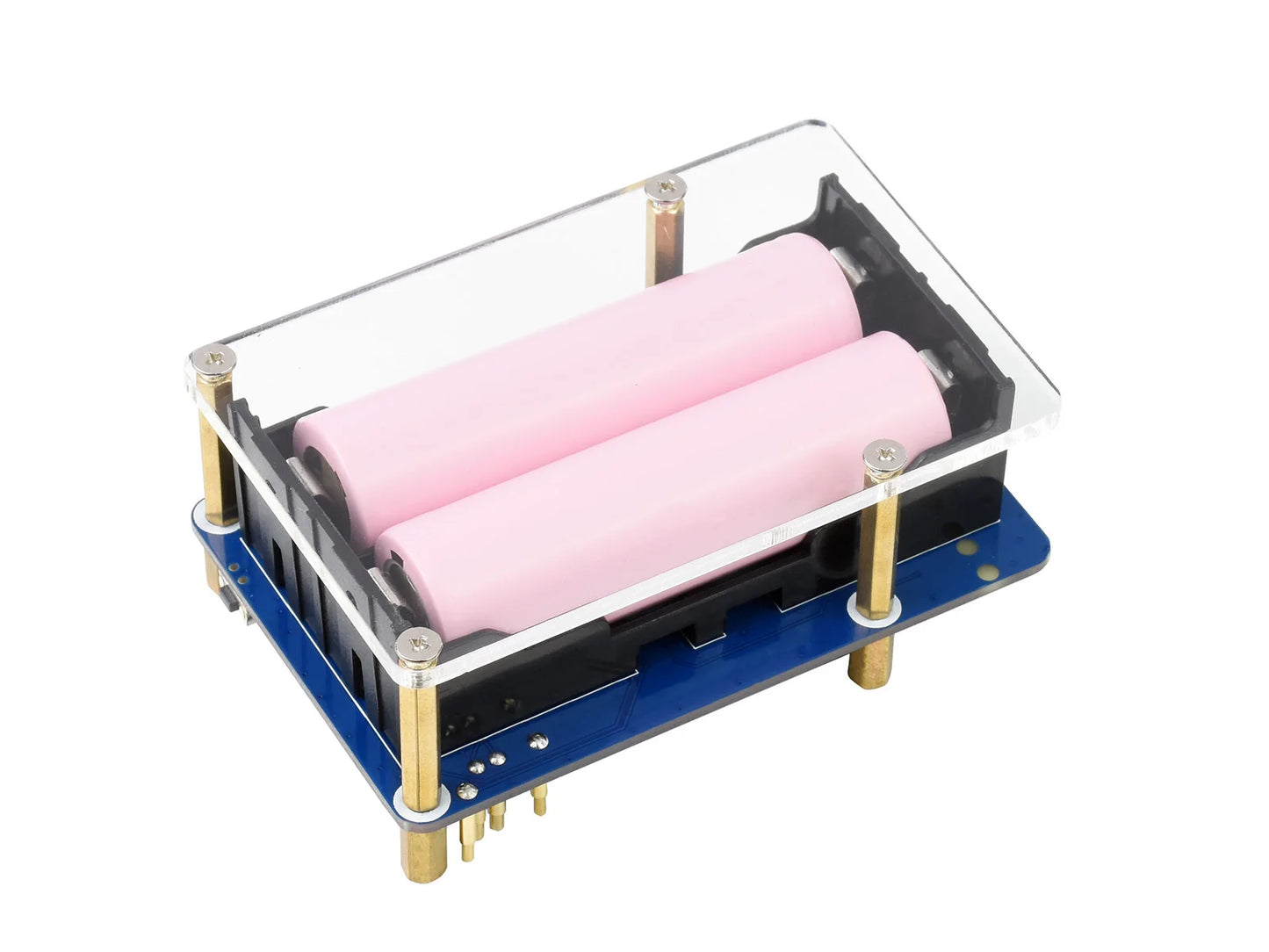

  • The 18650 batteries are NOT included

  • Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more

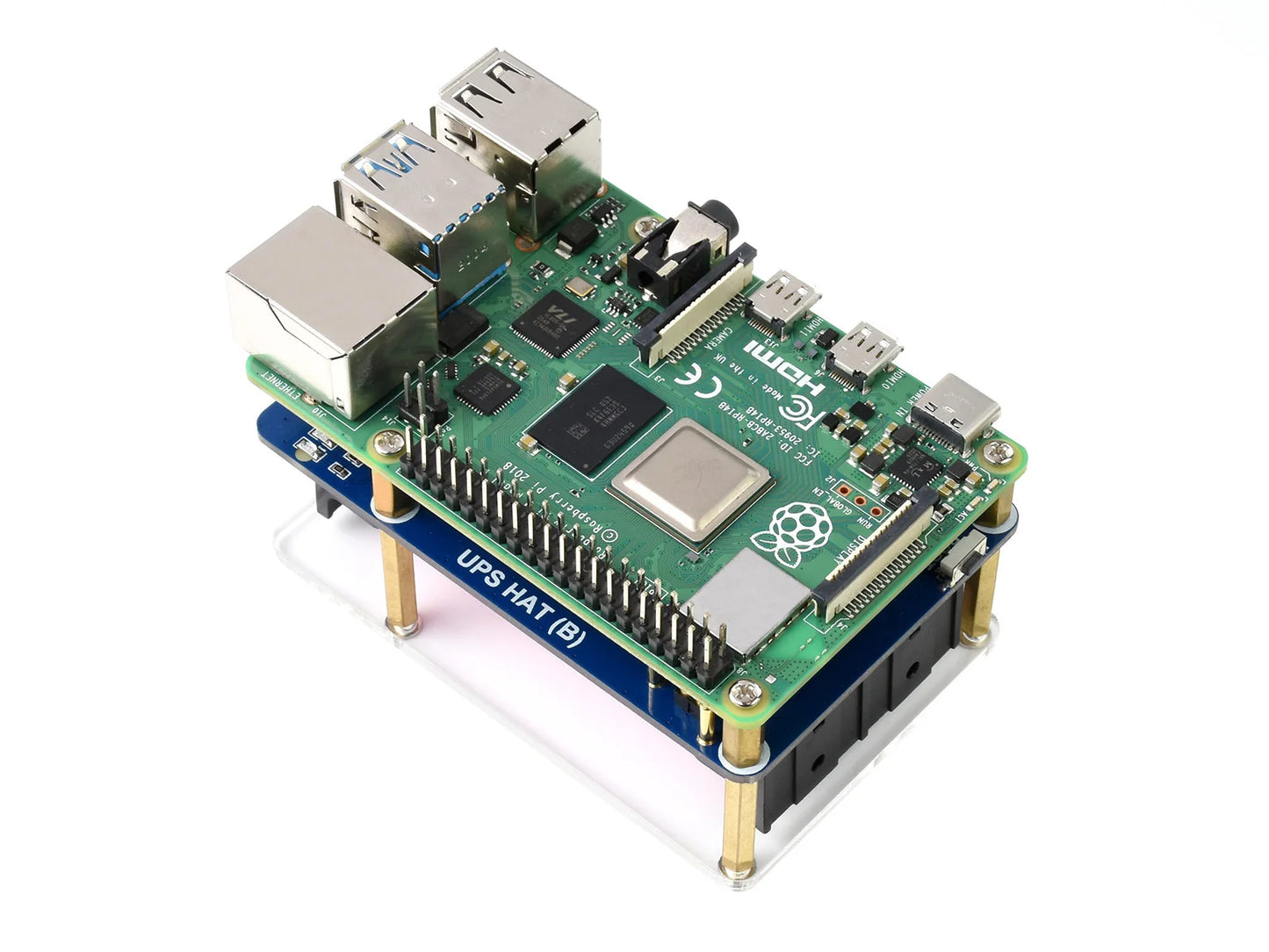

for reference ONLY, the Raspberry Pi and Fan HAT are NOT included.

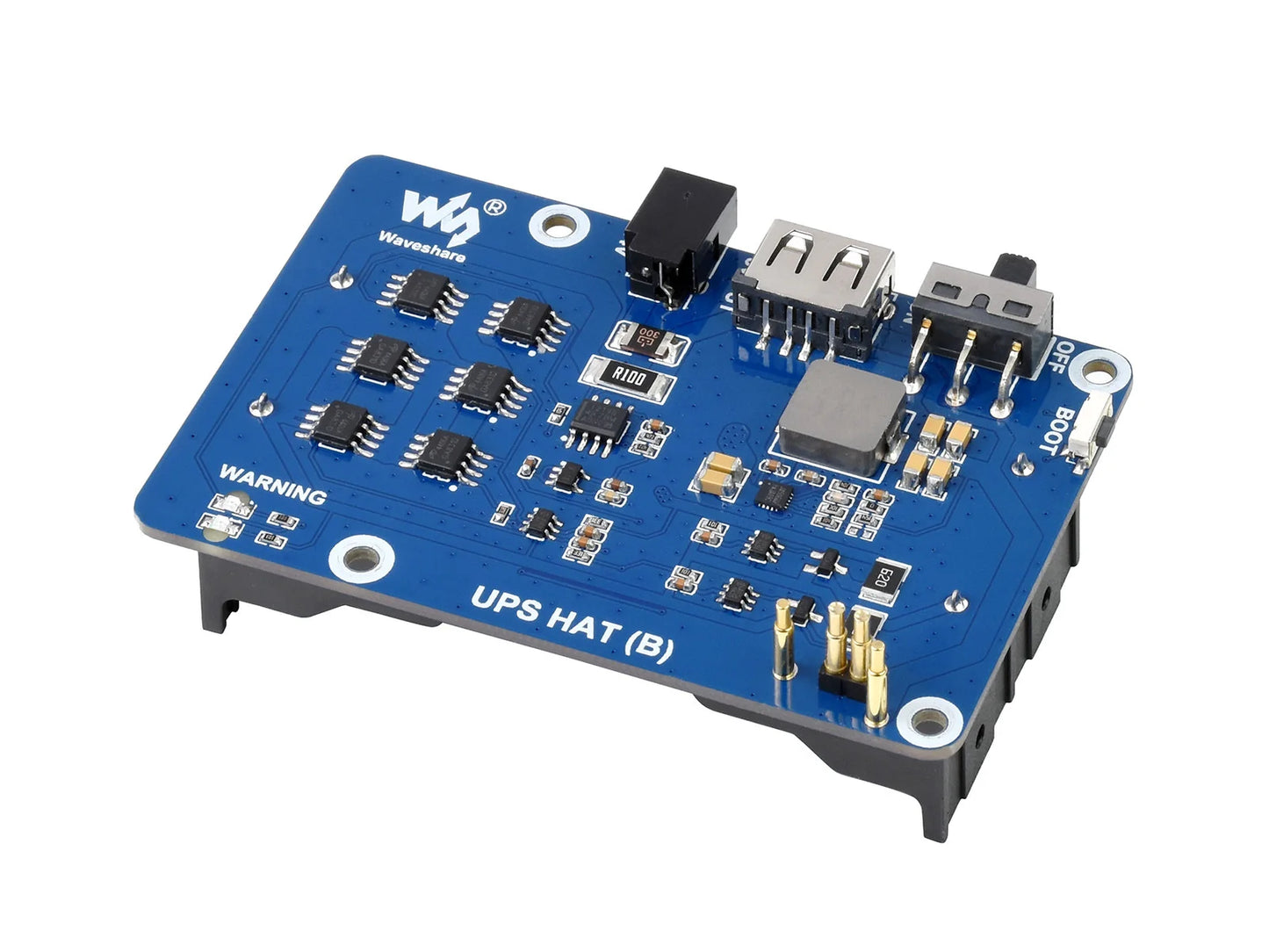

UPS HAT (B) For Raspberry Pi, 5V Uninterruptible Power Supply, 5A High Current, Pogo Pins Connector
Uninterruptible Power Supply   For Raspberry Pi

Power Your Pi Seamlessly From Power Connection OR The Backup Batteries

5A high current, pogo pins connector

SAFETY CAUTIONS

  • Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.

  • Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.

  • Do not mix use old batteries with new ones, avoid using batteries of different brands.

  • When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.

  • Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.

  • Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.

Features At A Glance
  • Designed for Raspberry Pi series, compatible with Raspberry Pi 3 / 3B+ / 4B, etc.

  • I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time

  • Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable

  • Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi

  • 5V USB output, convenient for powering other boards

  • Batteries warning indicators, easy to check if the battery is connected correctly

  • Comes with development resources and manual

Specifications

OUTPUT VOLTAGE

5V

CHARGER

8.4V 2A

CONTROL BUS

I2C

DIMENSIONS

56 × 85mm

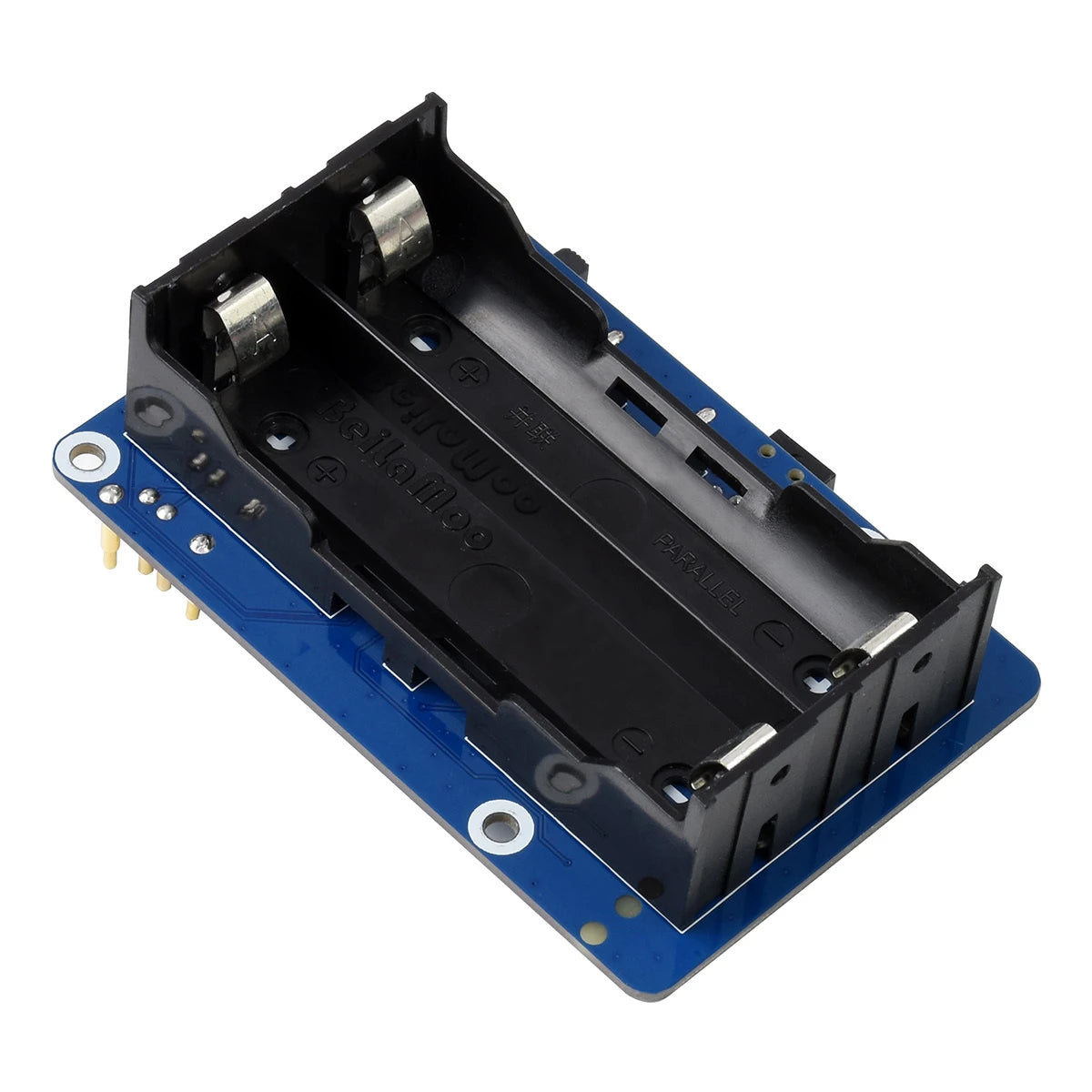

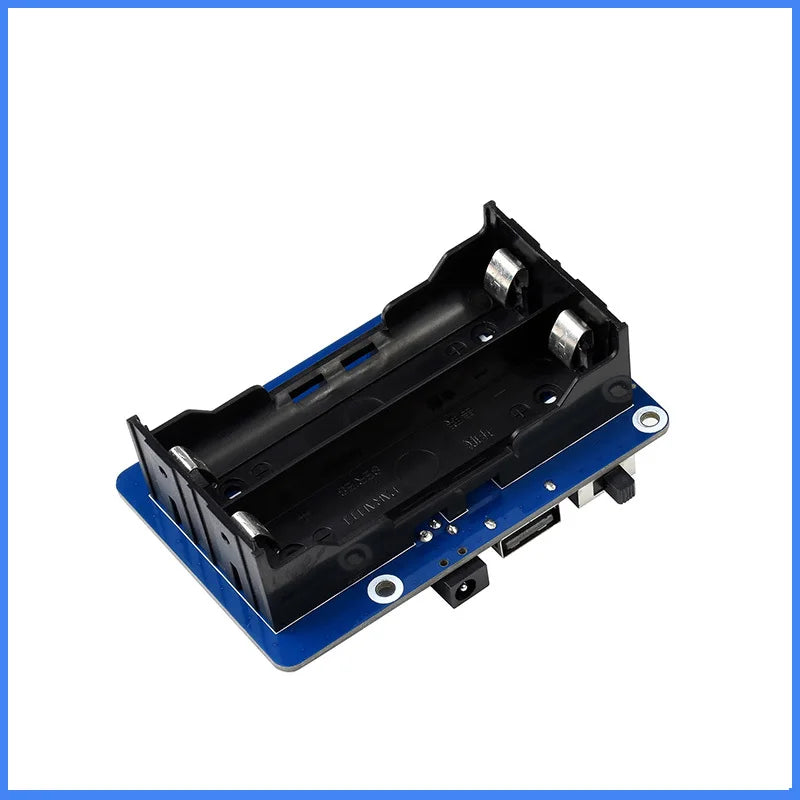

BATTERY SUPPORT

2x 18650 Li batteries (NOT included)

MOUNTING HOLE SIZE

3.0mm

Uninterruptible Power

It is able to charge the batteries and provide power output at the same time from external power supply
Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble


Pogo Pins Connector

Powering The Raspberry Pi Via Pogo Pins, Without Using Any GPIO Resource,
Compatible With Raspberry Pi 3 / 3B+ / 4B, Etc.

Real Time Monitoring

Monitoring The Batteries Voltage, Current, Power, And Remaining Capacity Via I2C

When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss

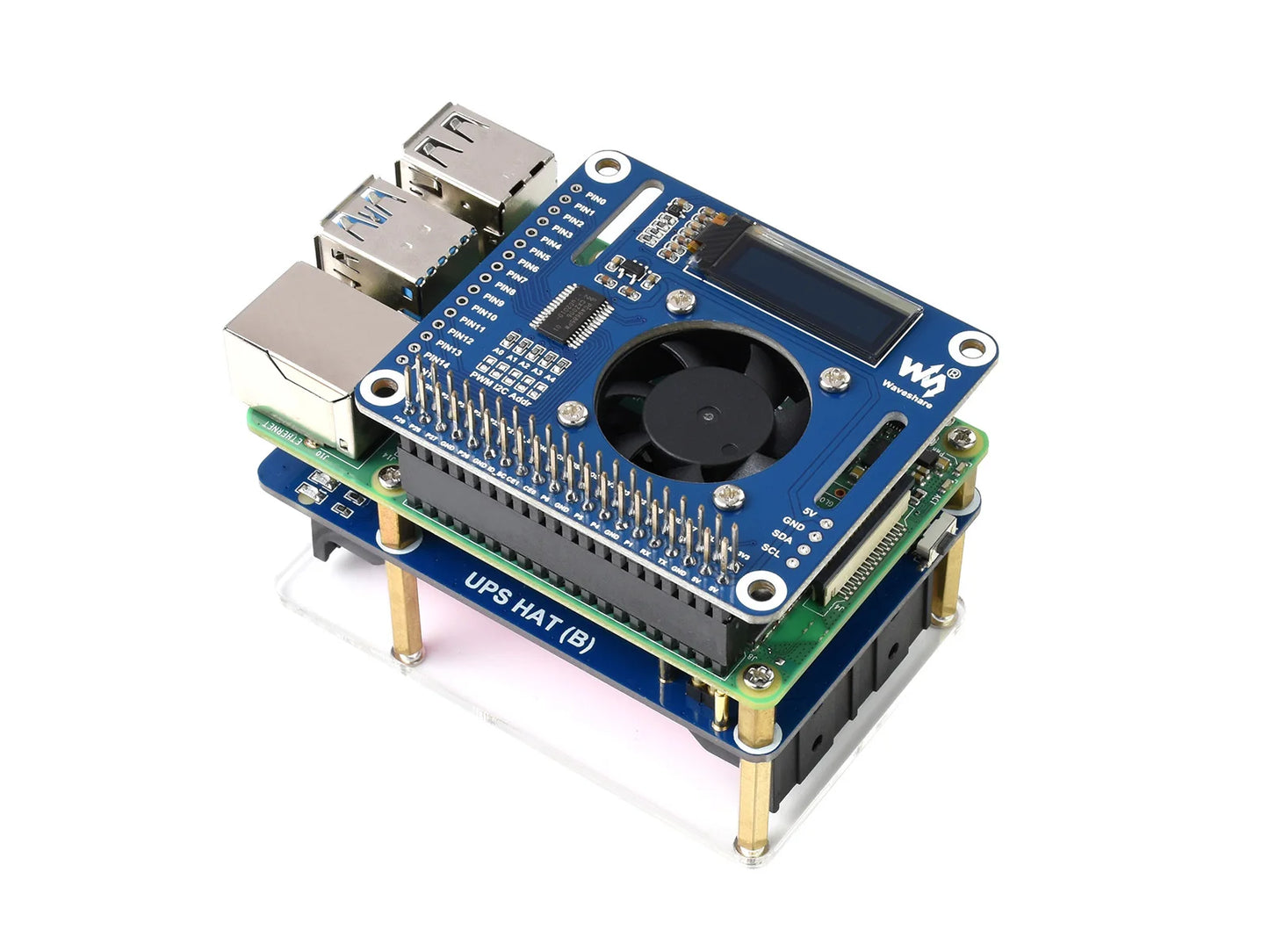

for reference ONLY, the Raspberry Pi and Fan HAT are NOT included.
Safe And Stable Circuit Design

Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse
Along With The Equalizing Charge Feature, More Safe And Stable

5V USB Output As Well

Convenient For Powering Other Boards

Battery Warning Indicators

Easy To Check If The Battery Is Connected Correctly

Outline Dimensions


* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

PACKAGE CONTENT



Weight: 0.179 kg

  1. UPS HAT (B) x1

  2. OPTIONS 8.4V battery charger x1

  3. Acrylic protection panel x1

  4. Screws pack x1

1
2
3
4
