Custom rockchip rk3288 quad core 2G+16G 4g lte gps android smart mother board Manufacturer
Custom rockchip rk3288 quad core 2G+16G 4g lte gps android smart mother board Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability

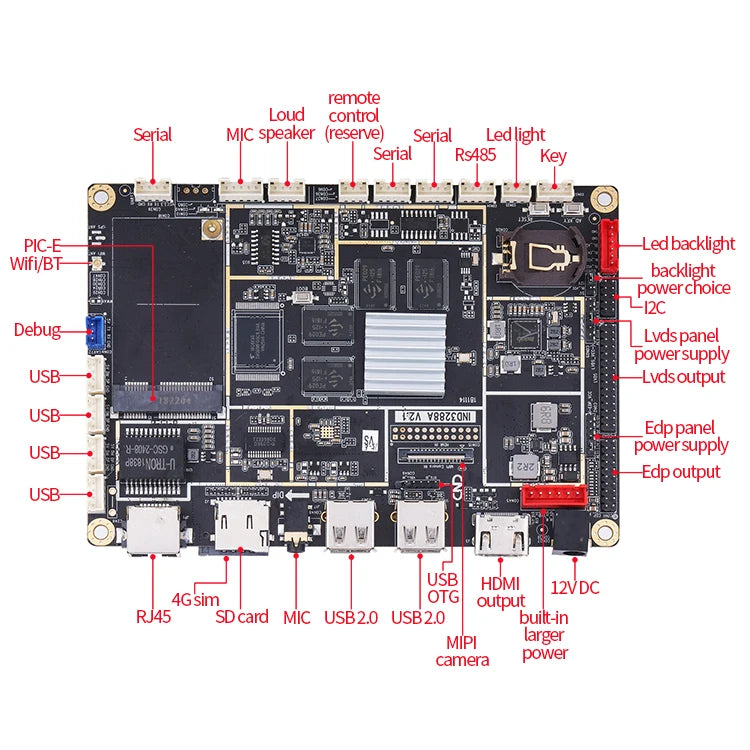

| RK3288 android motherboard Specification | |
| CPU | Cortex-A17,up to 1.8GHz |
| RAM | 1GB/2GB |
| Flash | EMMC 8GB (16GB/32GB/64GB for options) |
| Network | support 10M/100M/1000M, ethernet interface adaptable |
| Communication | 2 pcs buttons |
| 2-ch RS232 | |
| 1-ch RS485 | |
| 1-ch MIPI CSI camera | |
| video decoding:1080p@60hz | |
| WIFI, Blue tooth (option),1-ch 2.4G wifi interface | |
| 2x5pin I2C GPIO extend connector | |
| 6USB HOST +1-ch USB OTG | |
| 1-ch TF card | |
| 1-ch 30pin lvds interface,support all kinds of LCD, MAX 1920x1200@60Hz | |
| 1-ch 2x10pin EDP output | |
| 1-ch headphone | |
| 1-ch MIC interface | |
| 1-ch speaker output interface | |
| Display | support HDMI output 4K@60Hz,LVDS 1920x1080@60Hz, EDP1920x1080@60Hz |
| TP interface | I2C connector |
| GPIO | Support |
| Voltage | DC 5V, BATTERY 3.7V |
| Size | 146x102x8mm |
| System | android 7.1/8.0/9.0/10.1 |
