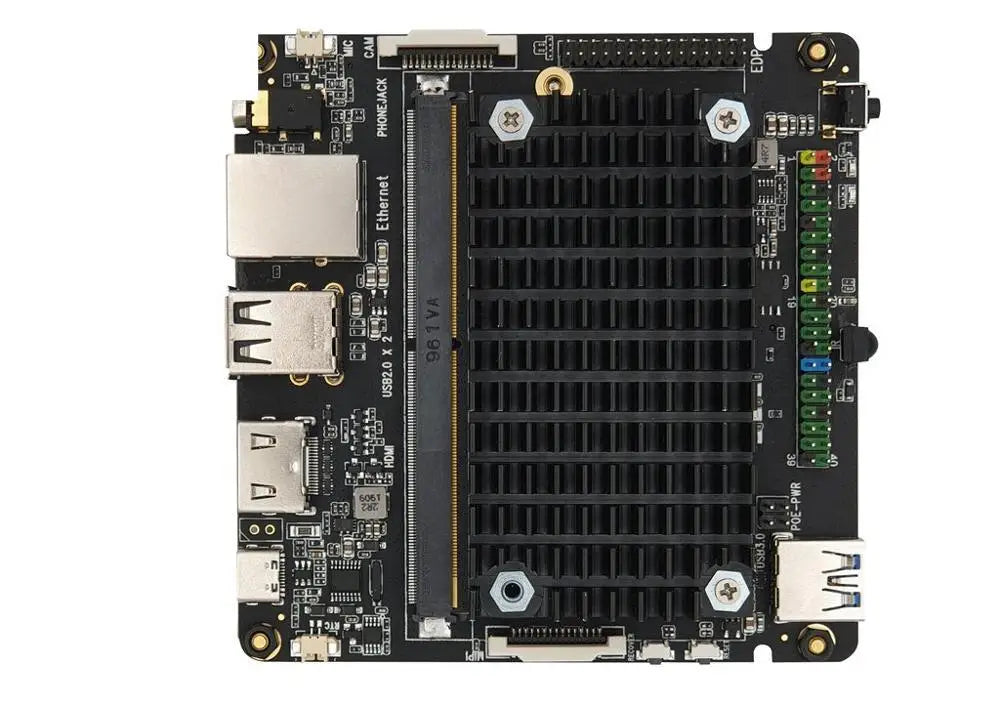

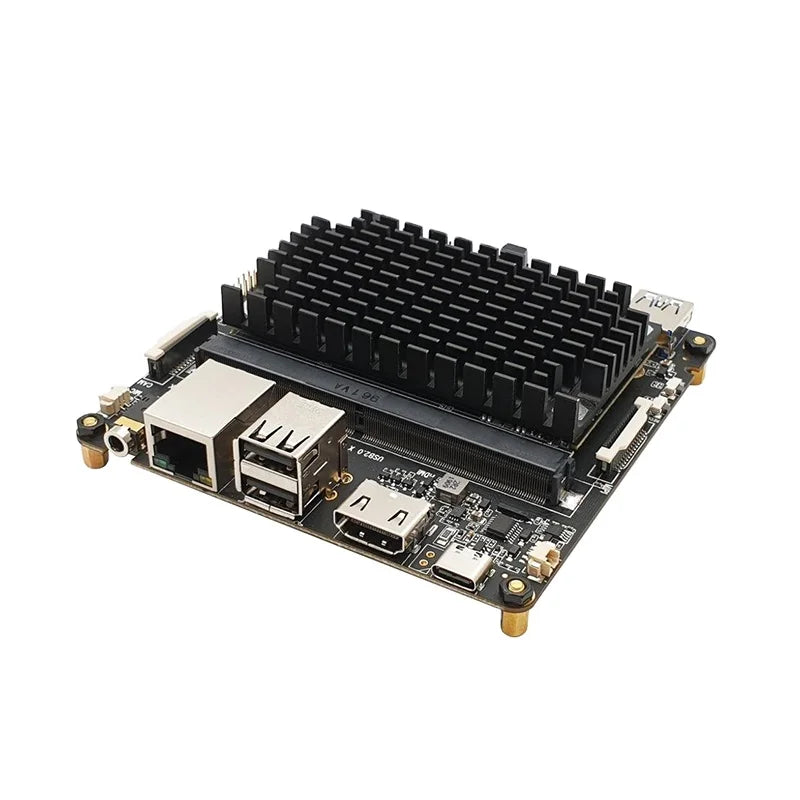

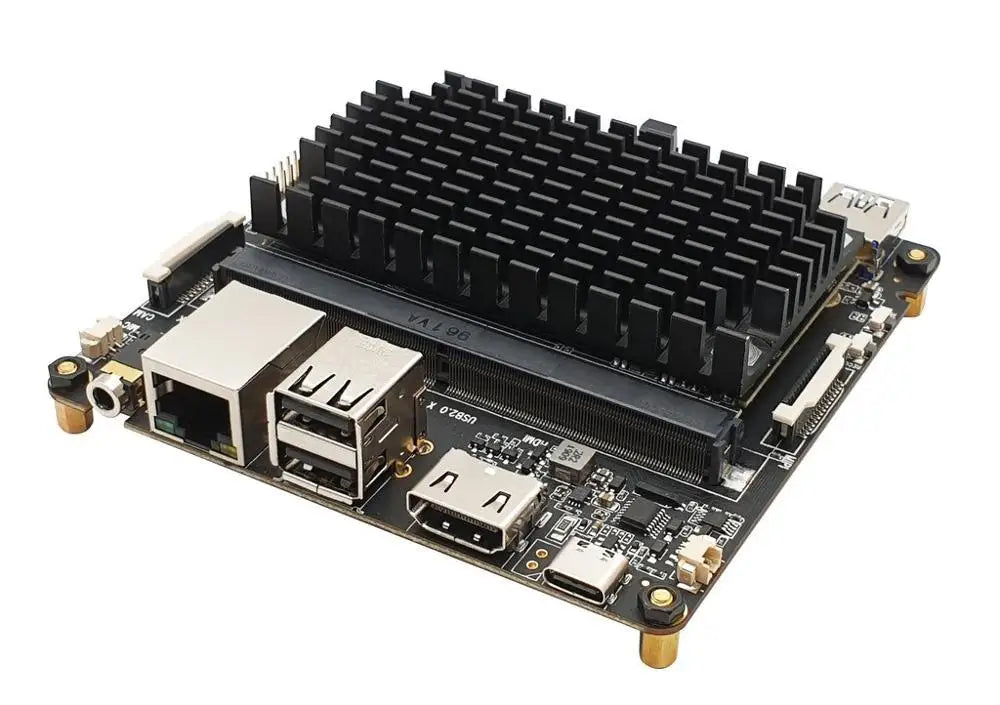

Custom ROCK PI N10 RADXA N10 Designed for AI apps and solutions based on Rockchip RK3399pro Manufacturer

Designed for AI apps and solutions based on Rockchip RK3399pro


VMARC RK3399pro SOM based design (SMARC industrial interface standard 2.0)

Extensively equipped and flexible carrier board for a wide range of industrial and AI use cases

New additional M.2 Key E Interface enables the use of extension modules based on the PIG standard. (e.g. WiFi, 4G/5G )

Dual boot option

Dual Screen feature

ROCK PI N10 Specifications Rockchip RK3399Pro


Dual Cortex-A72, frequency 1.8Ghz with quad Cortex-A53, frequency 1.4Ghz

Mali T860MP4 gpu, OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX1

Support 8bit/16bit computing, up to 3.0TOPs computing power

Memory
LPDDR3 64bit dual channel LPDDR3@1866Mb/s

Storage
eMMC 5.1

uSD card (uSD slot supports up to 128G uSD card)

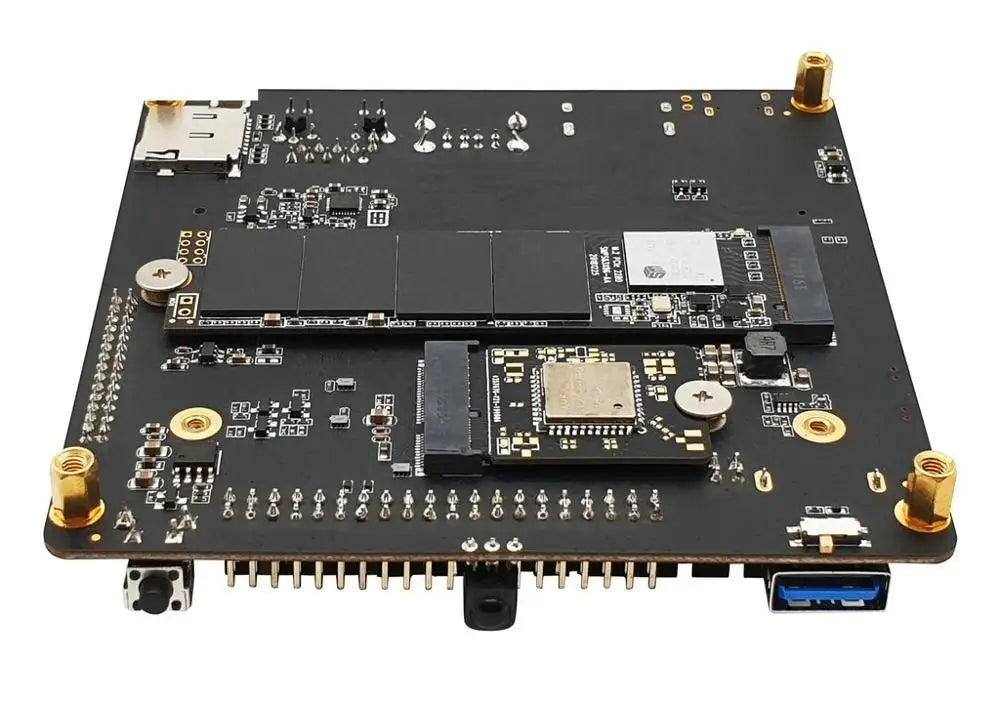

M.2 SSD (M.2 connector supports up to 2T M.2 NVME SSD)

Display
-HDMI
Full size HDMI 2.0 up to 4k@60(Type A)

-MIPI DSI
MIPI DSI 2 lanes via FPC connector

- EDP 1.2

HDMI and MIPI DSI or HDMI and EDP can work at the same time, supports mirrored or extended mode.

Audio
3.5mm jack with mic
HD codec that supports up to 24-bit/96kHz audio.

Camera
MIPI CSI
MIPI CSI 2 lanes via FPC connector, supports up to 800MP camera

Wireless
None
Optional ROCK Pi Wireless Module

USB
USB 3.0 OTG x1
hardware switch for host/device function setting

USB 2.0 HOST x2

Ethernet
GbE LAN with PoE support
additional HAT is required for powering from PoE

IO 40-pin expansion header :
- 1 x UART
- 2 x SPI bus
- 2 x I2C bus
- 1 x PCM/I2S
- 1 x SPDIF
- 1 x PWM
- 1 x ADC
- 6 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin

Others
RTC
RTC battery connector for time backup(optional)

Power
USB PD
Support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A

Qualcomm® Quick Charge™
Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A

Size 100mm x 100mm
