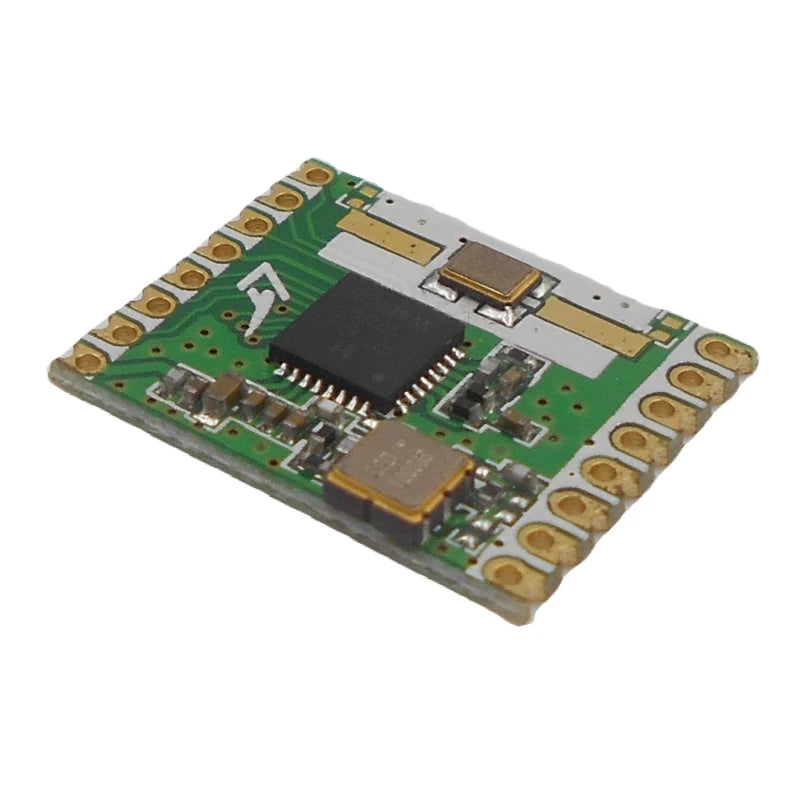

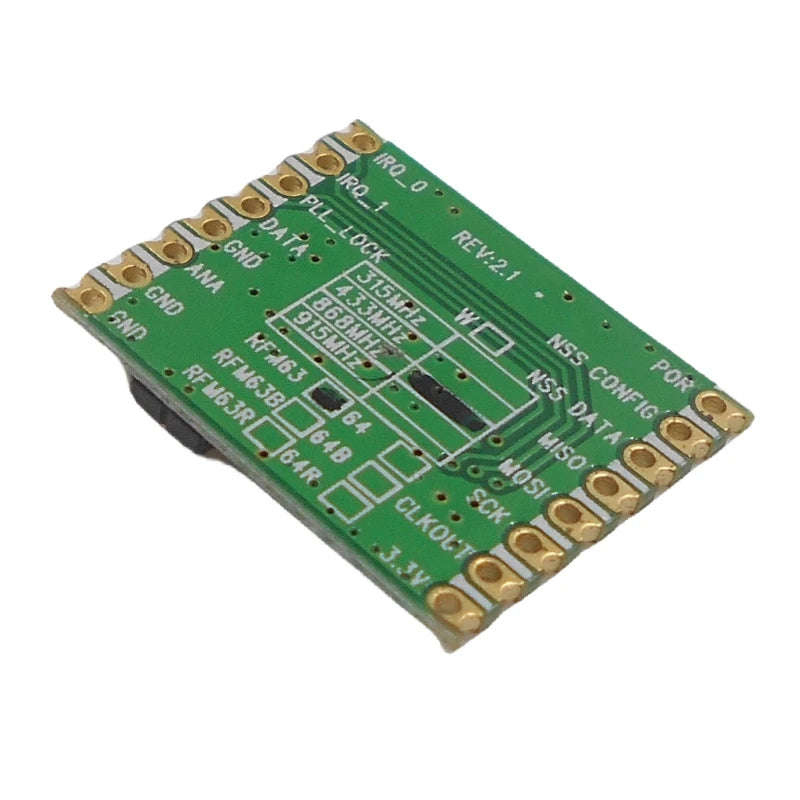

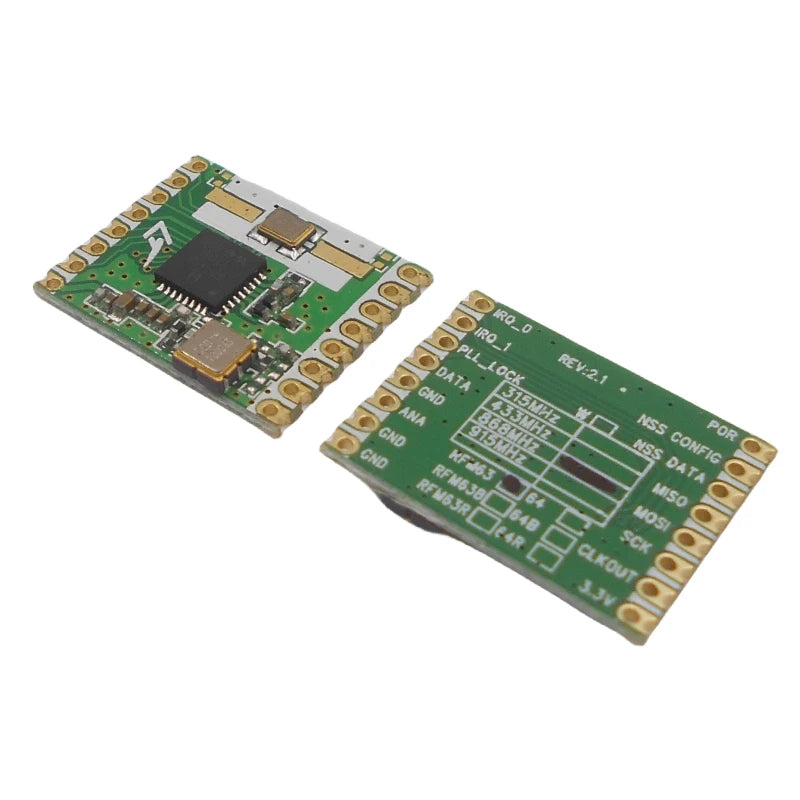

Custom RFM63 10dBm Ultra Low Power and High Performance Wireless Communication Transceiver Module

RFM63 is a low-power and high-performance wireless transceiver module with a maximum transmission power of over 10db, which can operate in the frequency range of 869/915MHz ISM. Therefore, there is no need to apply. The module meets the requirements of FCC and ETSI

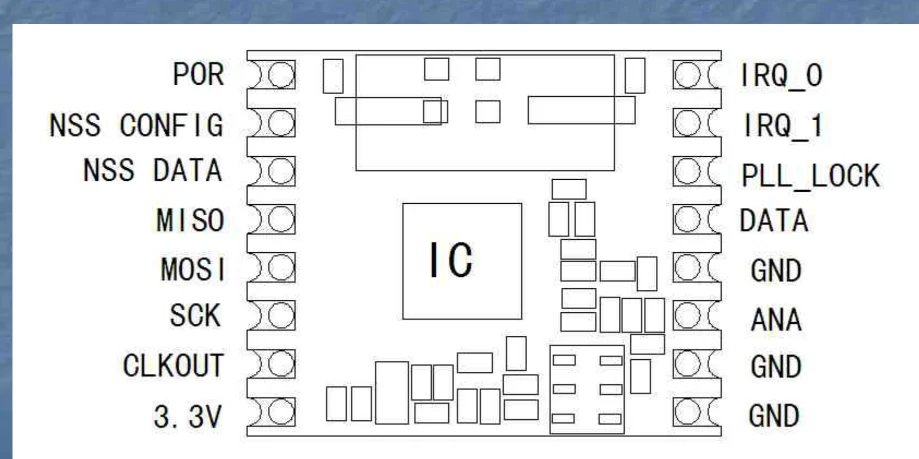

The module provides an SPI communication interface, which can be set by software through MCU for module parameter settings

Low receiving power consumption:<3mA

Low emission power consumption: 25mA @+10dBm (module current will be higher)

Receiving sensitivity: -107dBm @ FSK 25kbps- 113dBm @ OOK 2kbps

Programmable transmission power output: up to+12.5dBm data automatic packaging processing

High data rate: 0-200kbps

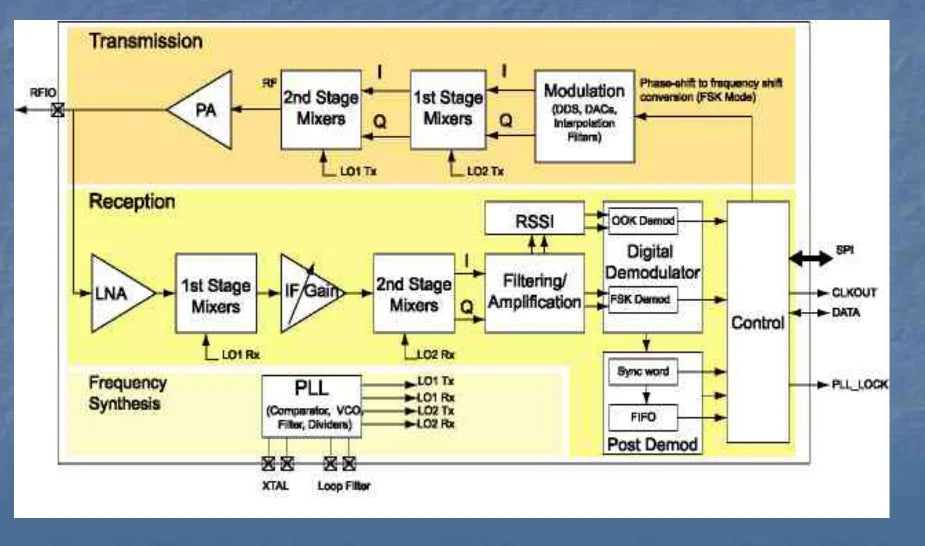

On chip integrated frequency synthesizer

FSK/OOK modulation method

Synchronous word recognition reception method
