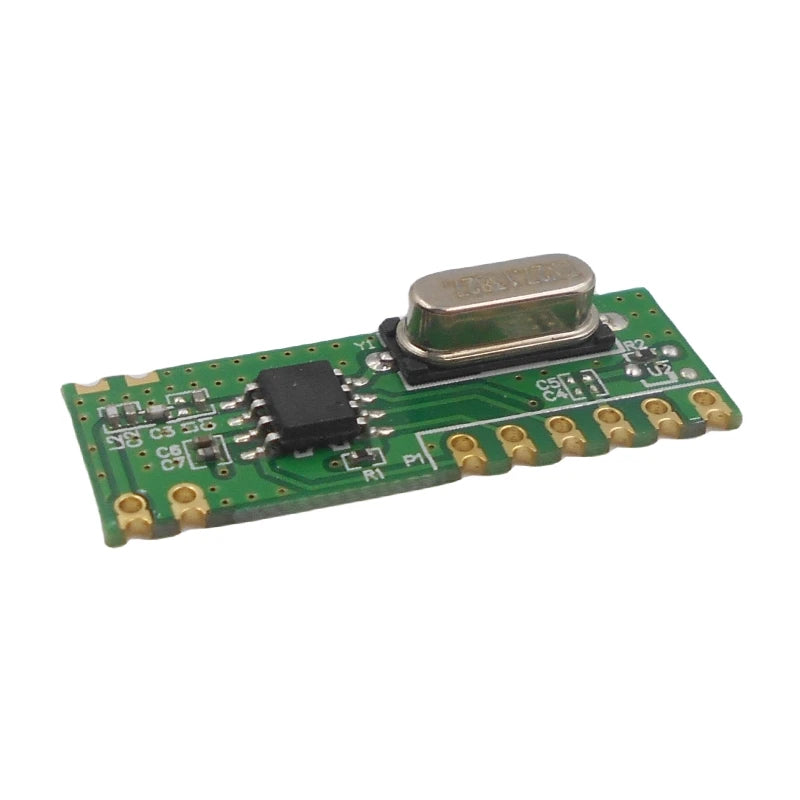

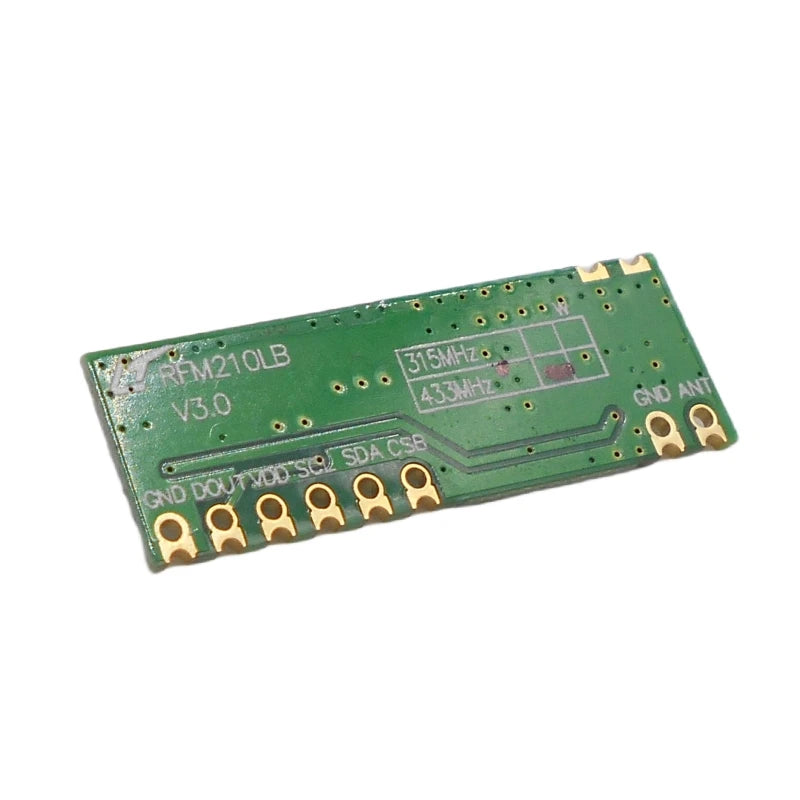

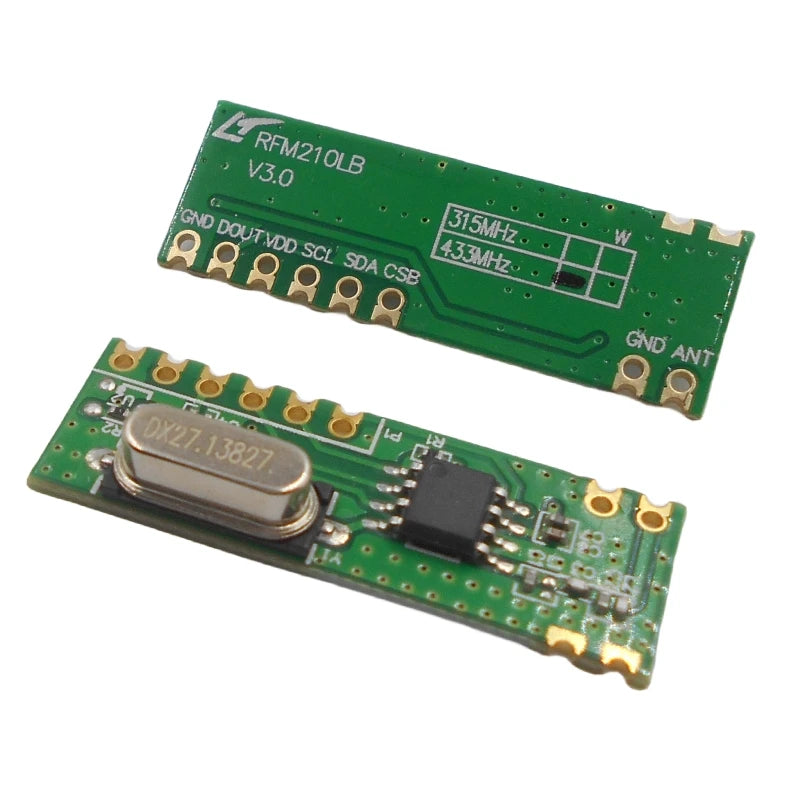

RFM210LB
Wireless receiving module
RFM210LB is an OOK wireless data transmission, ultra-low power consumption, high sensitivity, long-distance communication, and cost-effective OOK RF receiver module suitable for ISM frequency band wireless applications. It has the characteristics of good anti-interference and high reliability, and even when used in complex interference environments, it will not affect the working distance. This product is divided into two operating frequencies: 315MHz and 433.92MHz, supporting a data rate range of 0.1-40kbps. Users only need to add a simple data decoding circuit to easily develop wireless products.
Basic characteristics of the RF receiving module RFM210LB:
● Compliant with FCC and ETSI safety regulations
Strong anti-interference ability, suitable for use in complex interference environments
Receiving sensitivity: -113dBm
Operating frequency: 315MHz or 433.92MHz
Power supply voltage input range: 1.8V-3.6V
Working current: 3.8mA
Sleep current: ≤ 1uA
Operating rate: 0.1-40 kbps
● Support automatic DutyCycle working mode (requires burning parameters)
RF receiving module RFM210LB application range
Remote access control system, car battery car security system, remote socket, remote doorbell, wireless data transmission, wireless lighting control system, wireless toys, small household appliances wireless control, wireless alarm and security system
