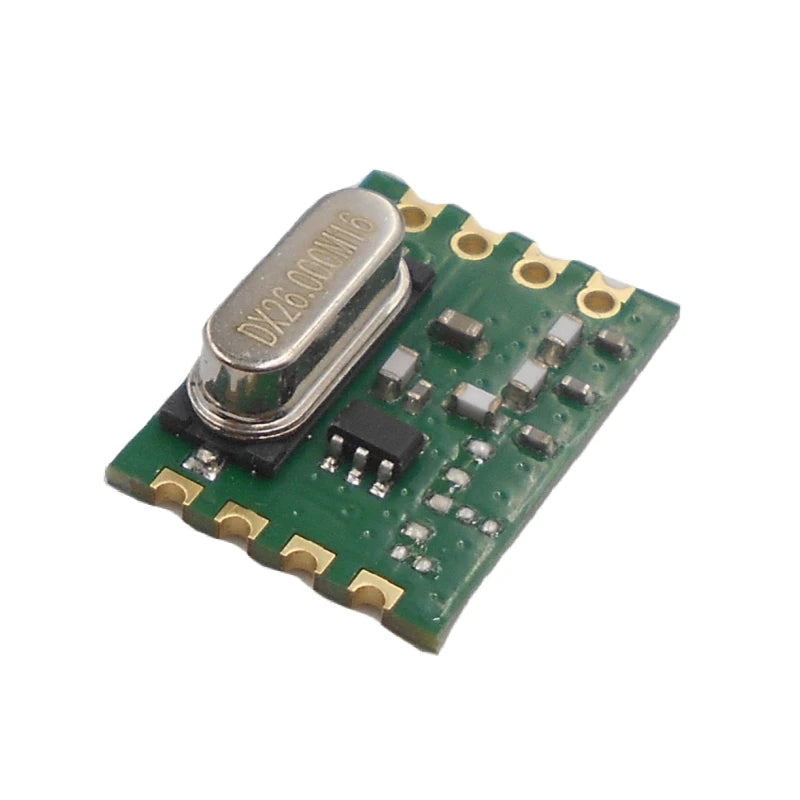

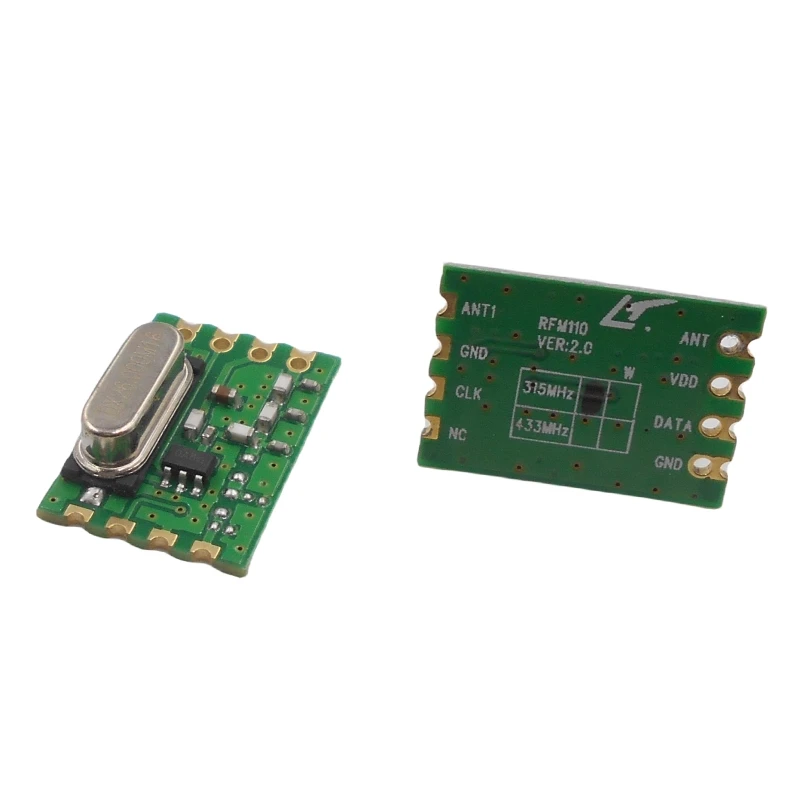

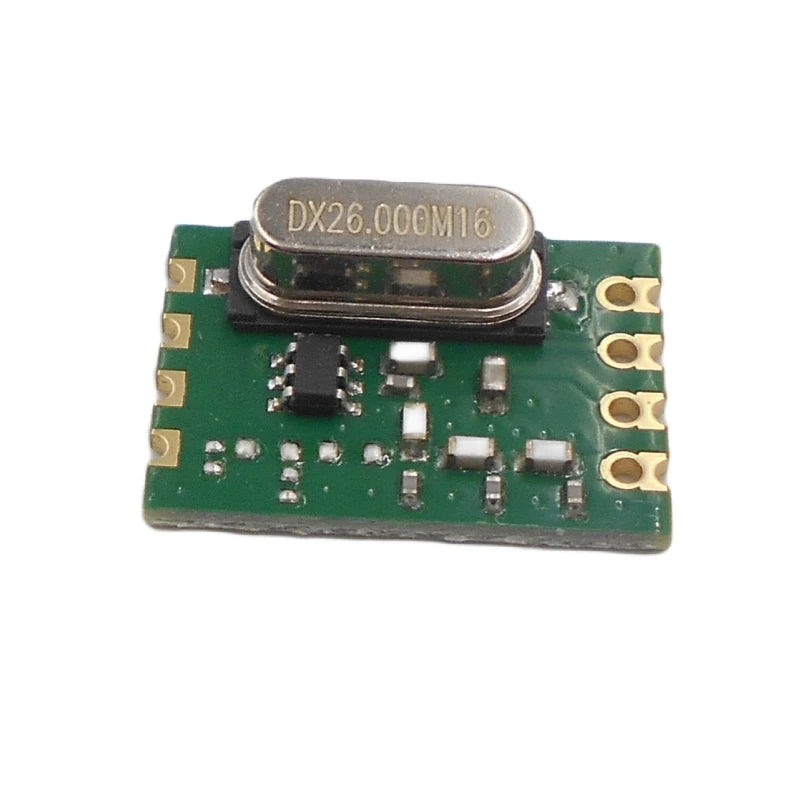

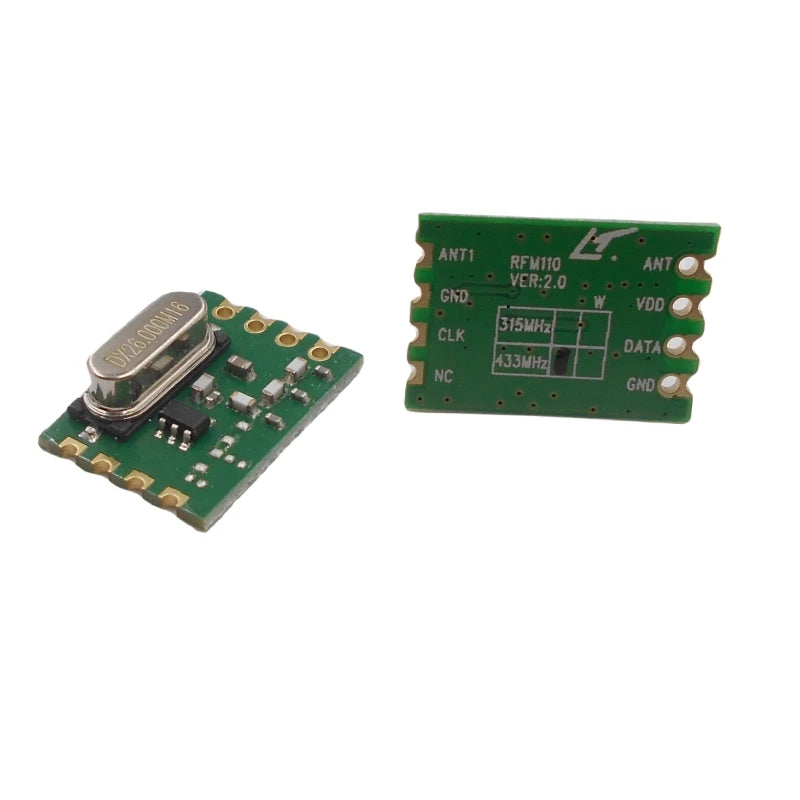

Custom RFM110 315/433mhz low-cost highly flexible high performance single-chip OOK transmitters CMT2110A

Custom RFM110 315/433mhz low-cost highly flexible high performance single-chip OOK transmitters CMT2110A

$0.57 USD
$0.57 USD $0.57 USD
Sale Sold out
color

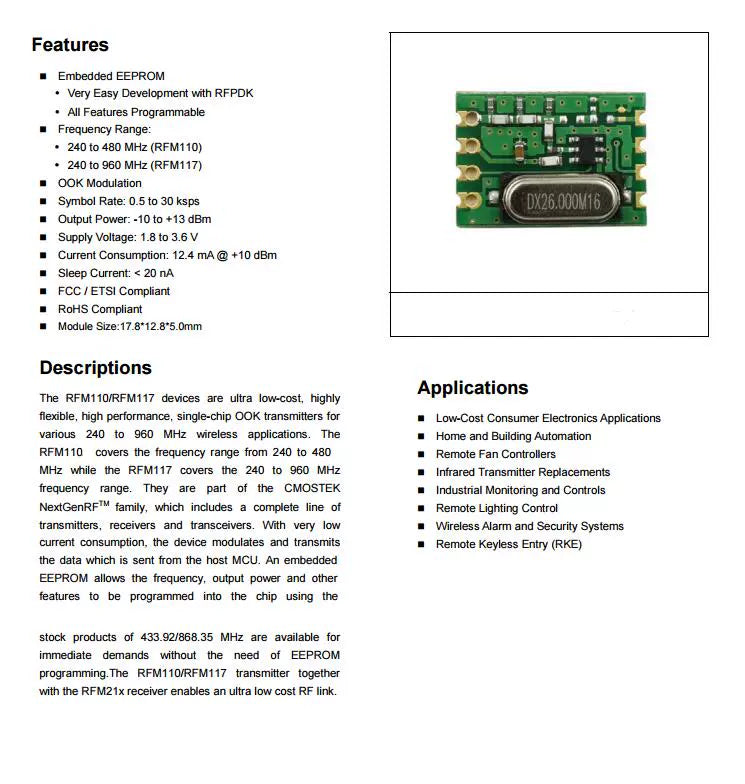

Basic parameters:

● Built-in EEPROM
Simple development with RFPDK
All parameters are programmable
● Frequency range:
240-480 MHz (RFM110)
240-960 MHz (RFM117)
●OOK modulation mode
● Rate: 0.5-30 kbps
●1 wire interface
● Transmission power: -10-+13 dBm
● Operating voltage range: 1.8-3.6V
● Working current: 12.4 mA @ +10 dBm
● Sleep current: < 20 nA
●FCC / ETSI standard
●RoHS standard
● Module size: 17.8*12.8*5.0mm
main application:
● Low-cost consumer electronics applications
●Home and building automation
●Fan remote control
●Replace the infrared emitter
●Industrial monitoring
●Remote light control
●Wireless alarm and security system
●Remote door lock
