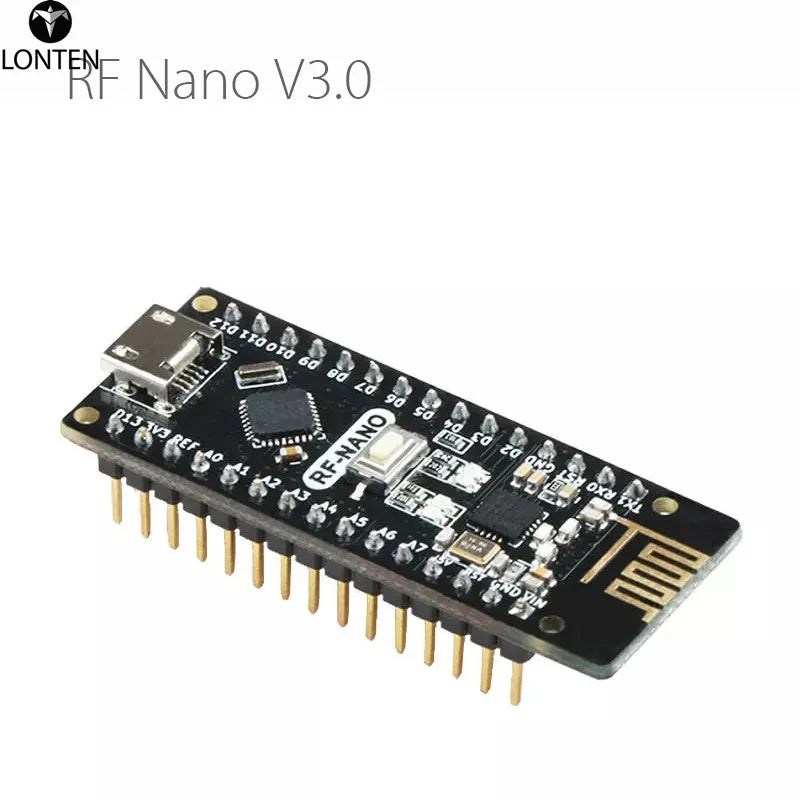

Custom RF Nano V3.0 Micro USB Module ATmega328P QFN32 5V 16M CH340 Integrate NRF24l01+2.4G Wireless Imme Manufacturer
Custom RF Nano V3.0 Micro USB Module ATmega328P QFN32 5V 16M CH340 Integrate NRF24l01+2.4G Wireless Imme Manufacturer
Regular price
$7.99 USD
Regular price
$7.99 USD
Sale price
$7.99 USD
Unit price
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM ,ODM,for more please contact.
Feature:

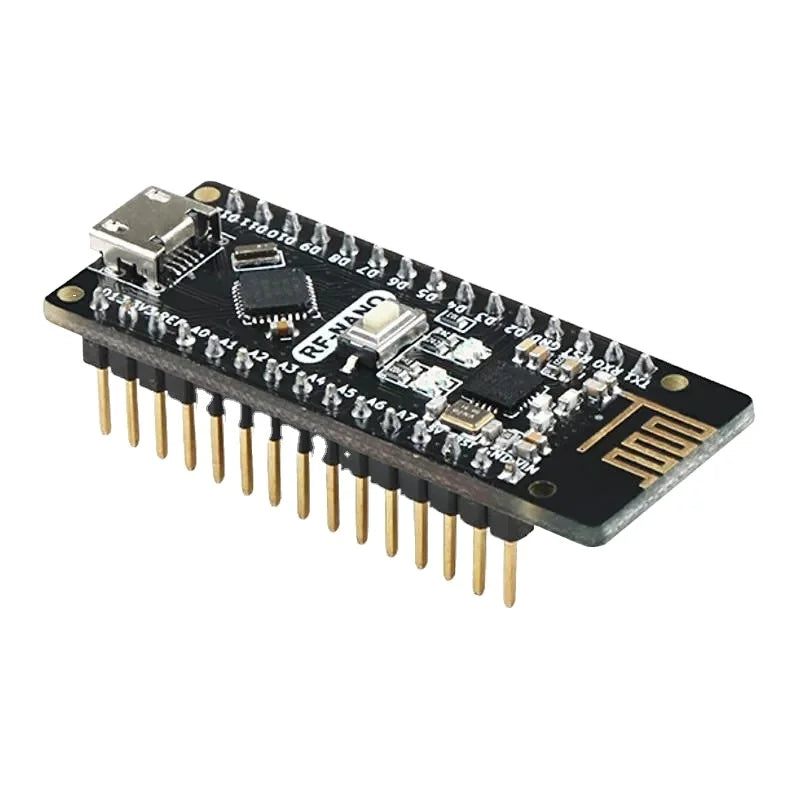

1. Creative products, RF-Nano-Board: Upgraded nano board for , The main chip is ATMEGA328P-MU QFN32, the latest bootloader ( IDE 1.8.8) was burned down. It is fully compatible with the common nano board. RF-Nano-Board is PIN-PIN with Nano V3.0,and share the same codes.

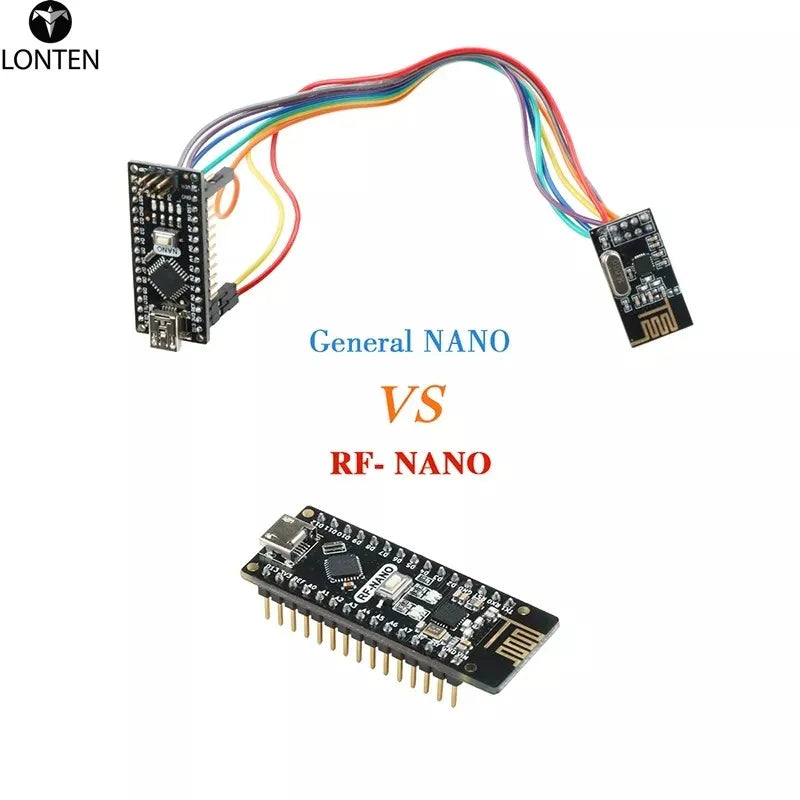

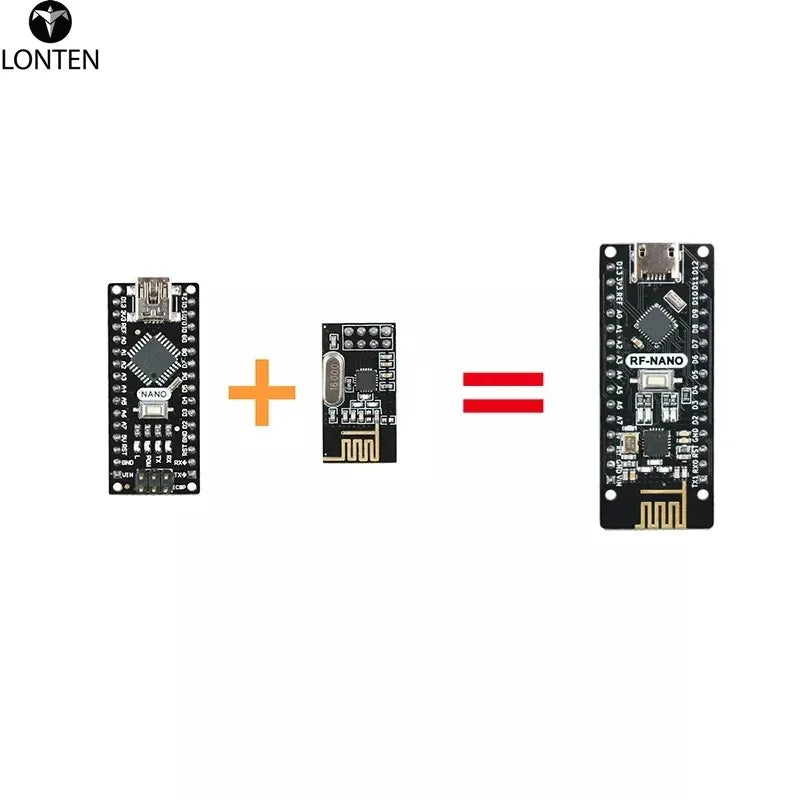

2. More convenient for application: The RF-Nano-Board integrates an NRF24L01+ module with nano v3.0 board, which is very convenient for 2.4G wireless connect application.

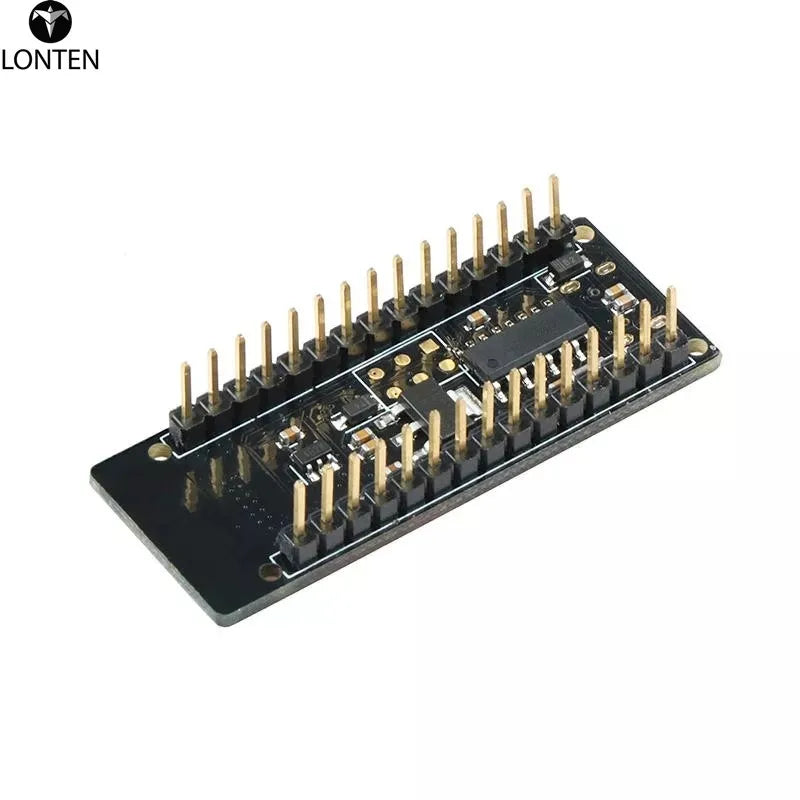

3. High quality material and Technology: We used high quality PCB original material and Immersion Gold Technology to make sure every board has smooth edge and more reliable.

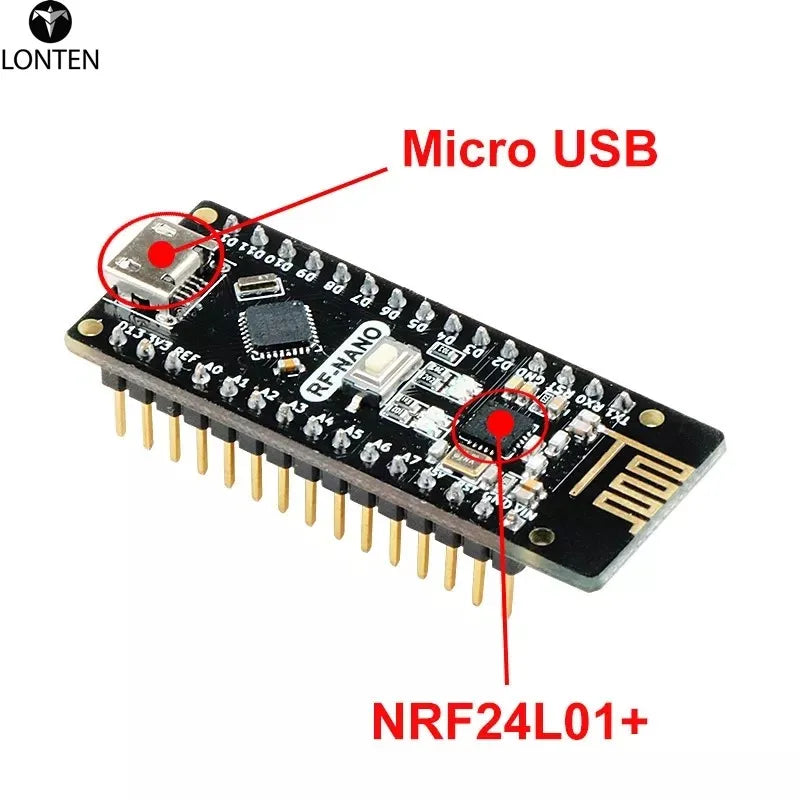

4. Super small volume design, more convenient to use: The PCB size is only 48mm*19mm, the pin is fully compatible with Nano V3.0,No Soldering needed. The micro usb port is more convenient to use.
5. RF-Nano-Board using CH340 chip to UART, you can download mac, windows, Linux three system drivers.
Specification:
Microcontroller ATmega328P
Nrf24L01+ 2.4G wireless
Architecture AVR
Operating Voltage: 5 V
Flash Memory: 32 KB of which 2 KB used by bootloader
SRAM: 2 KB
Clock Speed: 16 MHz
Analog I/O Pins: 8
EEPROM: 1 KB
DC Current per I/O Pins: 40 mA (I/O Pins)
Input Voltage: 7-12 V
Digital I/O Pins: 22
PWM Output: 6
Power Consumption: 19 mA
Weight: 9g
Parameter:
It is fully compatible with the nano-v3.0 pin and its usage method
BLE chip: TI CC2540
Work channel: 2.4G
Transmission distance: 50m
Supports AT directive to configure BLE
Support USB virtual serial port, hardware serial port, BLE three-way transparent transmission
Support master and slave switch
Supports sending over 20byte.
Supports iBeacons
Interface: Micro-USB
Input voltage: USB power supply, Vin6~12V, 5V
MCU: ATmega328P-MU QFN32
Bootloader: Newest 1.8.8
Pin: Two Lines 2.54mm-15Pin
Size: 48mm x 19mm x 12mm
Package includes:
1 x RF Nano board
Note:
Please use IDE 1.8.6 or higher version, First, install the CH340 driver, then follow this selection path in IDE: Tools - Board Nano Processor ATmega328P",
Please use IDE 1.8.6 or higher version, First, install the CH340 driver, then follow this selection path in IDE: Tools - Board Nano Processor ATmega328P",
otherwise you'll find that you can't burn any program.
