Custom Real 100W Tempered Glass Solar Panel Monocrystalline Cell Photovoltaic Panels Solar System Kit For Home RVs Roof Zonnepaneel Manufacturer

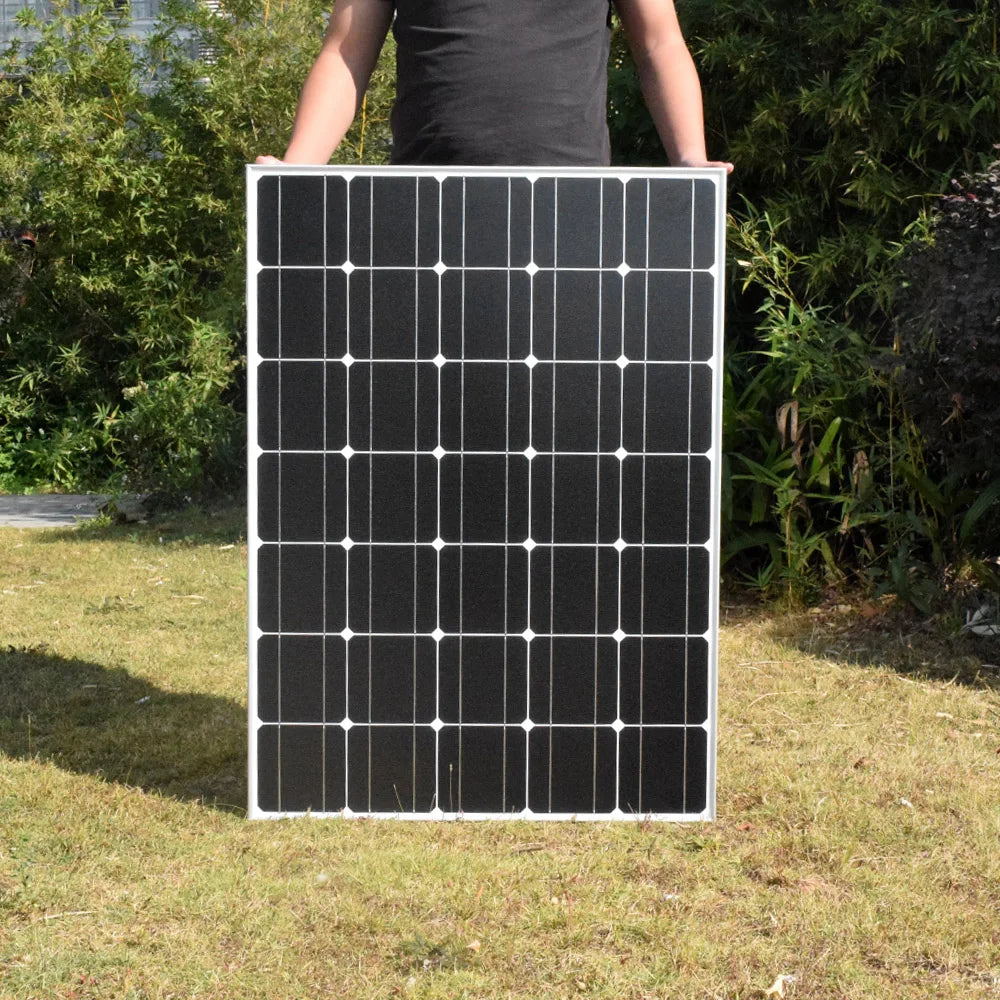

18 Volt 100 Watt Monocrystalline Solar Panel Tempered Glass Aluminum Frame 100W 200W Home PV Panels Solar Kit System


Maximum power(Pmax) 100W



Output tolerance ± 3%



Maximum system voltage 700V DC



Open circuit voltage(Voc) 21.6V



Short circuit current(Isc) 6.11 A



Maximum power voltage(Vmp) 18V



Maximum power current(Imp) 5.55A



Cell efficiency 21%



Operating temperature(NOCT) 45±2℃



Temperature range -40℃~+80℃



Number of cells 36pcs



Weight 4800g



Size 915*660*25 mm



Type Glass panel



Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5



Features:

a. Select high-efficiency 161 * 161mm 12 main lines monocrystalline silicon solar cells, the power generation efficiency is about 1.3 times that of conventional polycrystalline, and the overall area is smaller at the same power.



B. Surface toughened glass has high light transmittance, improves power generation efficiency, and has a longer life.



c. It has high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.



d. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.



e. Use photovoltaic special cable and MC4 connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance, MC4 connector is easy to use, plug and play.



f. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.



Packing list

1 x 100W 18V Glass Solar Panel (100W)

or

2 x 100W 18V Glass Solar Panel (200W)

or

1 x 100W 18V Glass Solar Panel (100W Kit)

1 Set 3m Cable with PV connector

1 Set 3m Cable with Alligator clip

1 X 10A Controller

4 X Z Bracket

or

2 x 100W 18V Glass Solar Panel (200W Kit)

1 Set 3m Cable with PV connector

1 Set 3m Cable with Alligator clip

1 X 20A Controller

8 X Z Bracket



 Welcome Customize Order!
