Custom RC Two Wheel DIY Arduinos R3 Balance Educational Robot Kit With Beautiful Acrylic Platform

Instruction

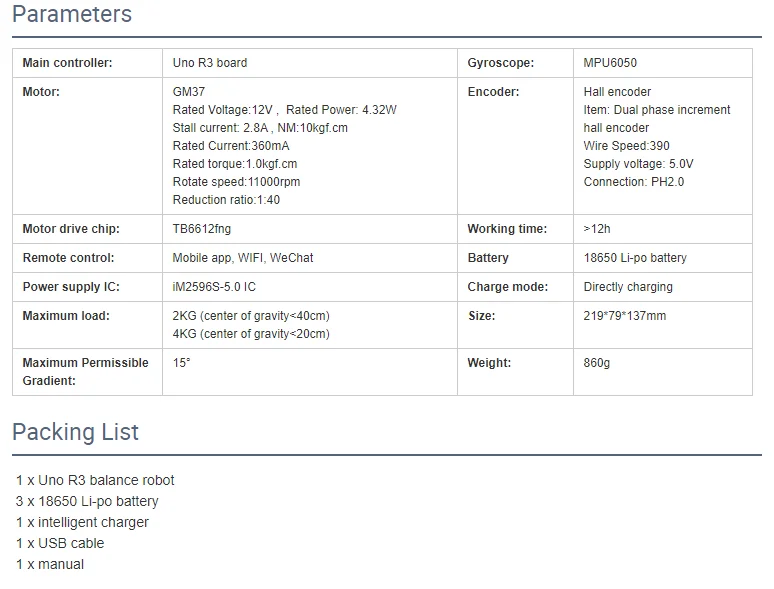

-Product name:Arduinos Balance robot car
-Gyroscope:MPU6050
-Remote control:Mobile App
-Power supply IC:iM2596S-5.0 IC
-Motor:GM37
-Encoder:Hall encoder
-Working time:>12h
-Maximum load:2KG
-Robot Weight:Battery

2018 RC two wheel DIY Uno R3 balance educational robot kit With Beautiful Acrylic Platform for Uno R3

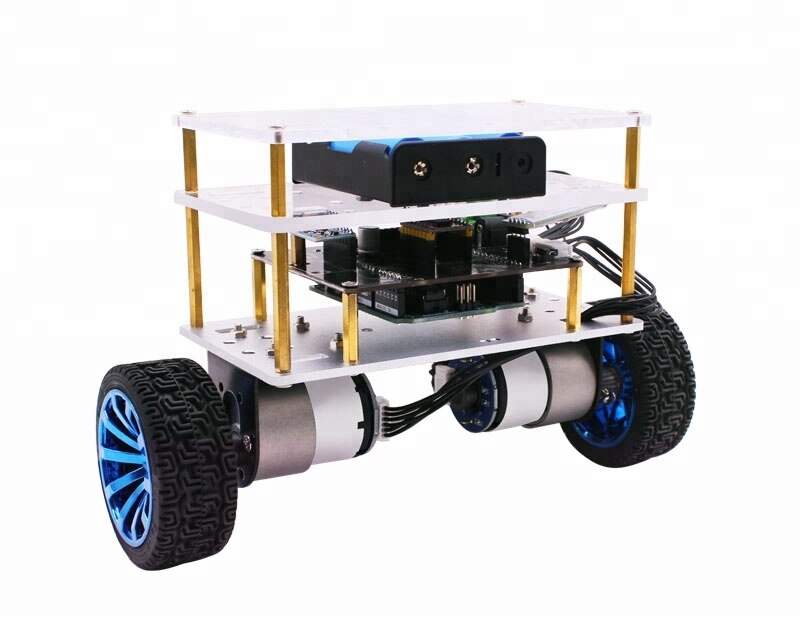

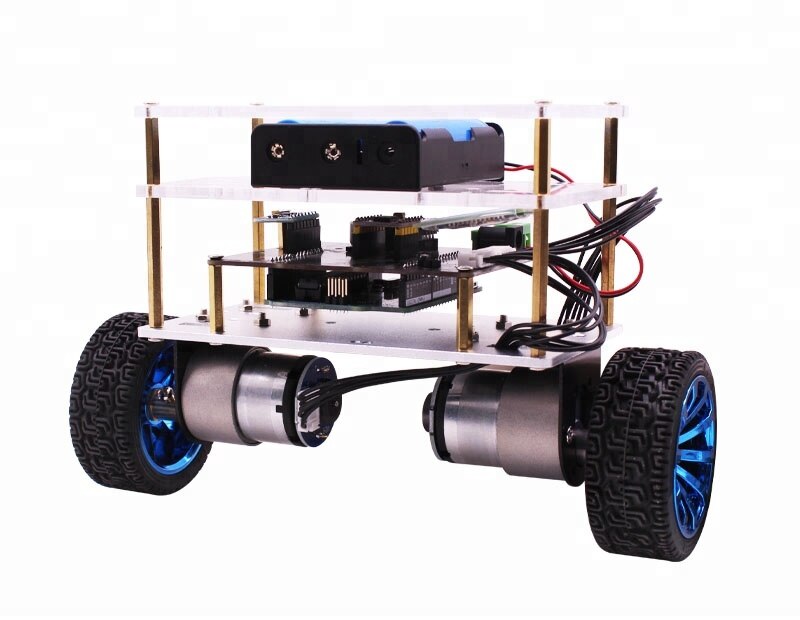

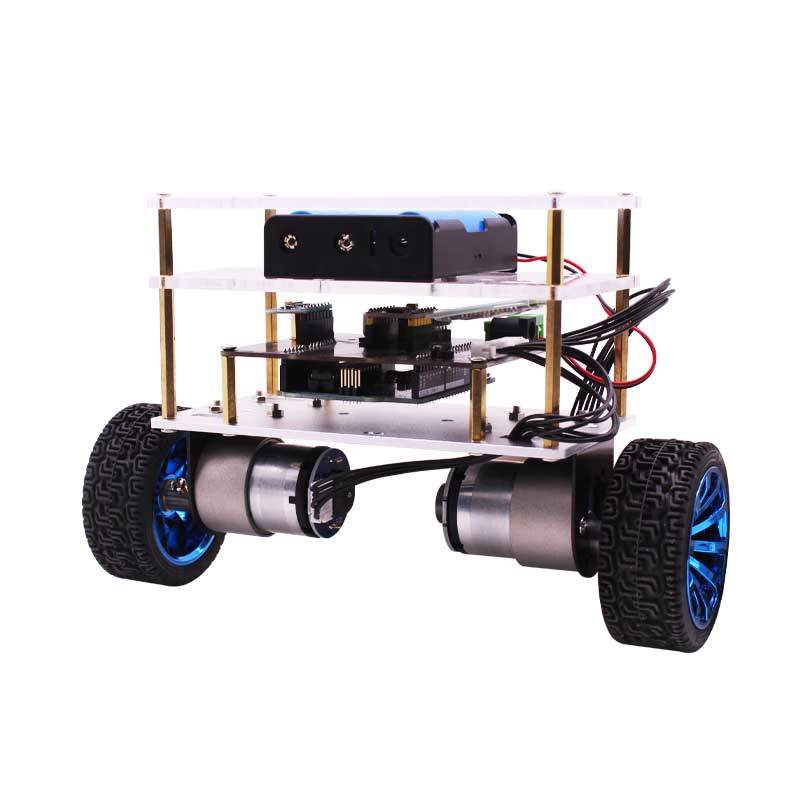

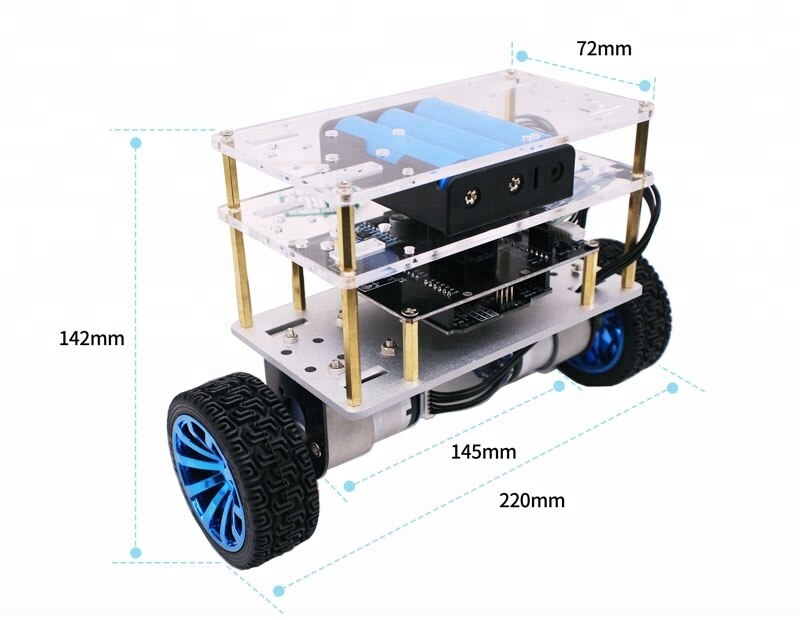

Arduinos Balance robot is a stable, rugged and durable two-wheel balance vehicle. We optimized the balancer algorithm, and the excellent software algorithm makes UNO R3 as the core controller of the balance car. The car is a three-layer structure with a load capacity of more than 2KG. We adopt simple and clear modular design, which is suitable for balance car beginners.

Arduinos UNO board can be taken down easily for secondary development. You can control the car by Android mobile App remote controller connecting on the vehicle. This is a multi-functional, autonomous balanced two-wheel vehicle for all types of competitions and research projects.

1.RTR robot with directly charge system, you can play with it any time.

2. This robot adopts antiskid tires, aluminum alloy chassis, high-power motors and high-precision AB incremental hall encoder.

3. The high quality integrated circuit board is used as the core board of the car, and some direct plug interfaces for insertion of modules are designed on the core board.

4.It can be controlled by App remote controller by Android mobile. App supports multiple functions:changing control method at any time,such as buttons, gravity and rocker; viewing and debugging the current PID parameters of the vehicle directly; displaying waveform of acceleration, gyroscope and voltage simultaneously.

5. Open source code is PID Angle fusion and balance algorithm. After our debugging carefully, we ensure that every vehicle can be used normally.

6. The vehicle can control the switch of the balance system automatically by posture recognition.
