Custom Raspberry pie 7 inch digital LCD screen displays DIY kits with the function of touch HD + VGA + 2 av AT070TN92/800 x480 Manufacturer



LCD screen appearance size: 165 mmx100mm, touch screen appearance size: 165 mmx100mm; The driven plate appearance size: mmX44.3 77.2 mm

7 "digital LCD hd vehicle-mounted LCD back - plus + AV + HDMI VGA + 2 road



Working voltage: 5 v and 24 v

AV signal input: 2 road + VGA, HDMI

System: PAL/NTSC

VGA input: 800 * 480 resolution of physics, can support range resolution 640 x 480-1600 x 1200 between adjusted!

Can perfect support 800 x 480 resolution, point-to-point display

A. AV1 video input (linkable DVD equipment or front-facing camera)

A. AV2 video input (picture) to the car automatically switches to the camera

Plug and play function: support

OSD language: simplified Chinese, traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese

Control mode: multi-function OSD operation or potential adjust brightness and color

Characteristics: the scheme of mature clear display

Reverse priority set of functions:

A, the default boot last saved.

B, boot, reverse signals, switch to the AV2, reverse signals disappear, back to the original channel.

C, standby, reversing signals to switch to the AV2, reverse signals disappear, back to the standby



Scope of application: used in visible interphone, on-board computers, instrumentation, industrial control, medical equipment, * * device, portable display equipment such as electronic field.





A: product features:



1. Reverse priority function



2: HDMI AV1 AV2 VGA signal input four channels



3: single point resistance touch nesting



4: touch screen resistance wire adopts imported materials, quality stable, won't appear like jumping phenomenon.



2: LCD screen resolution is 800 x480 TTL50p

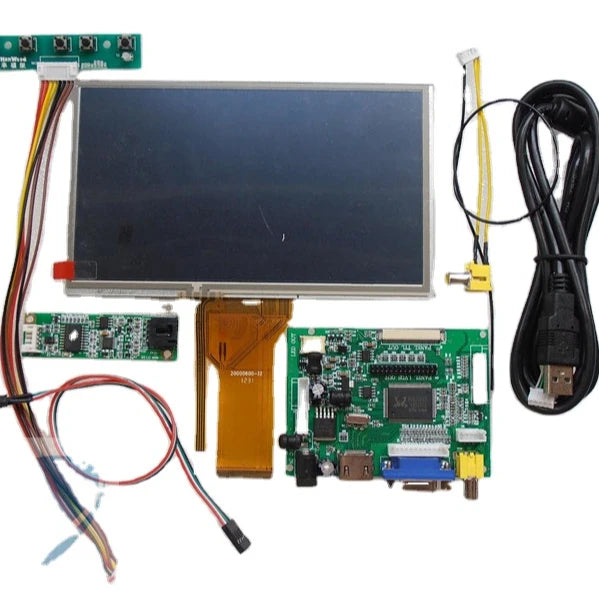

3: shipping list



1:7 inch LCD screen 800 x480 1 piece



2: multi-function car wide voltage 5 v and 24 v driver board 1 piece



3:1 piece of form a complete set of 7 inch touch screen (touch screen + controller + link line)



4: the five key press keypad 1 (optional with remote plus $5)



Article 5: reverse first touch line 1 (back light, support the 12 v and 24 v voltage)



6: reverse video head AV2 one



Press the keypad light place for 1 (switch) 2 key menu (-) 3 key menu (+) 4 (menu) 5 keys (signal)

 Welcome Customize Order!
