Custom Raspberry Pi Zero V1.3 Camera Supports Raspberry Pi Zero V1.3 ONLY Manufacturer

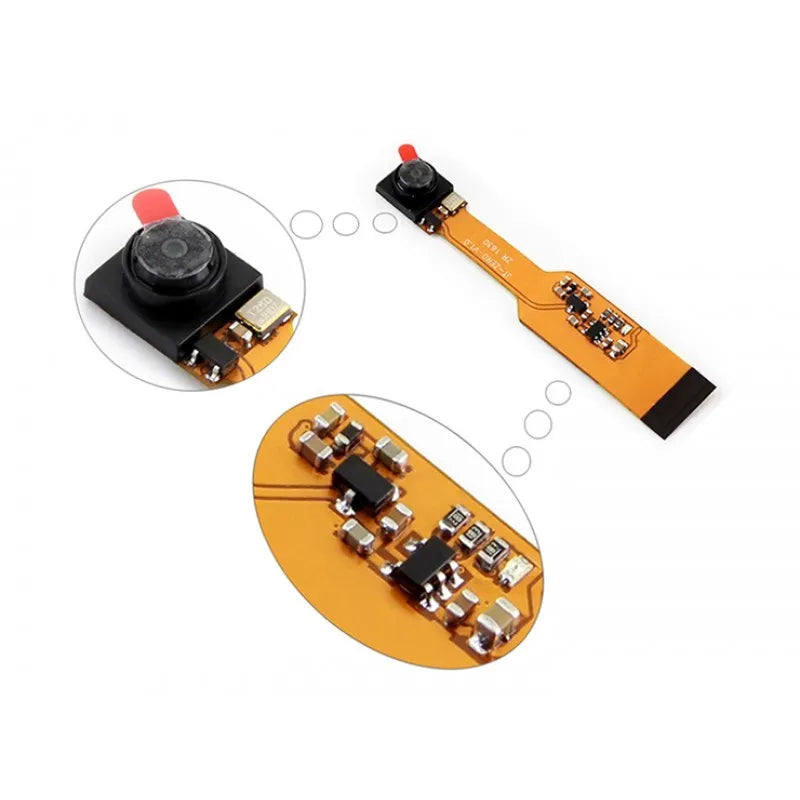

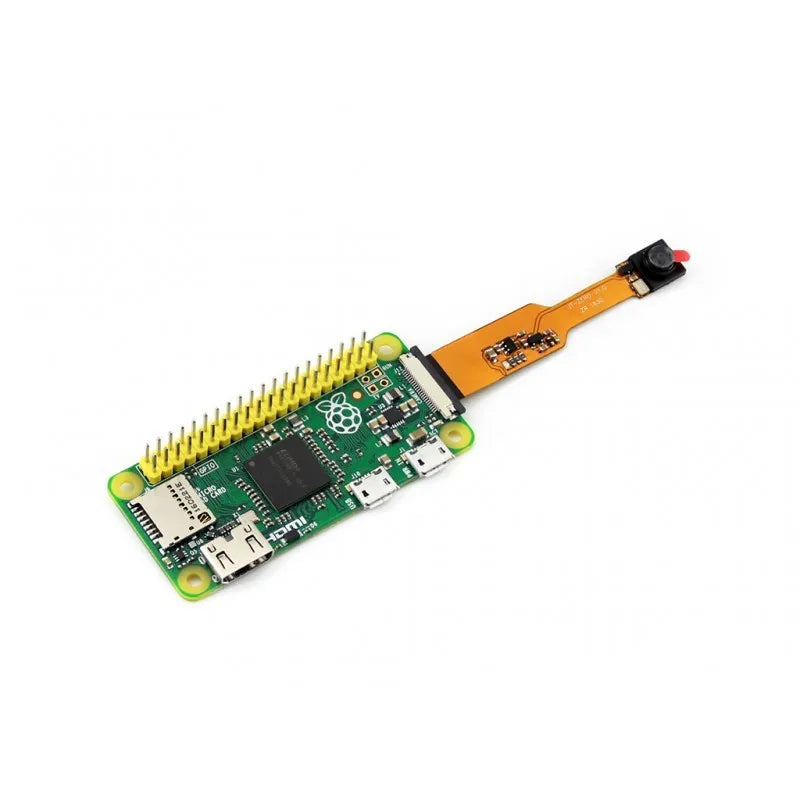

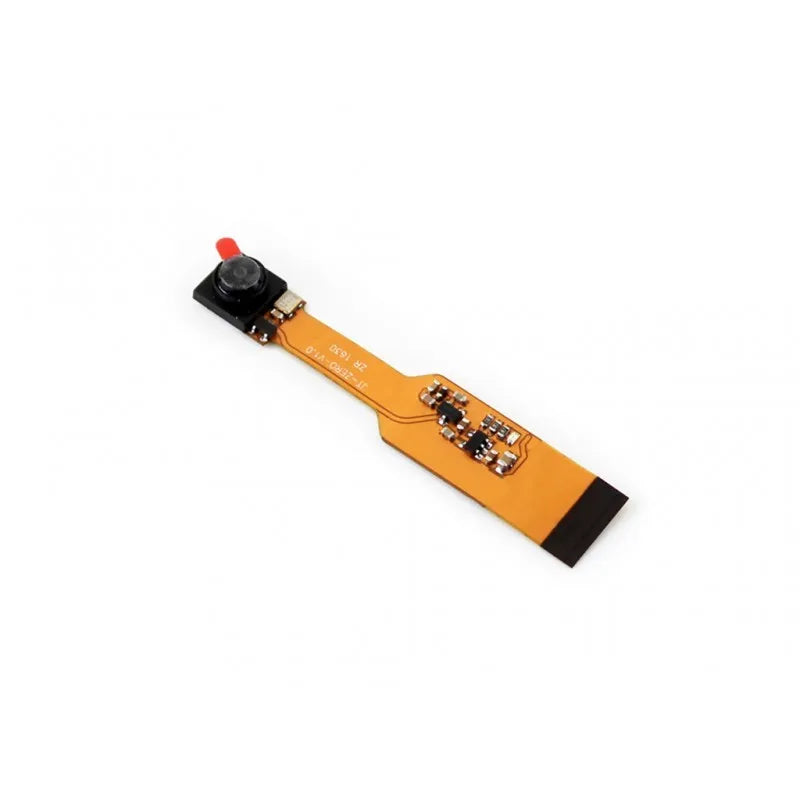

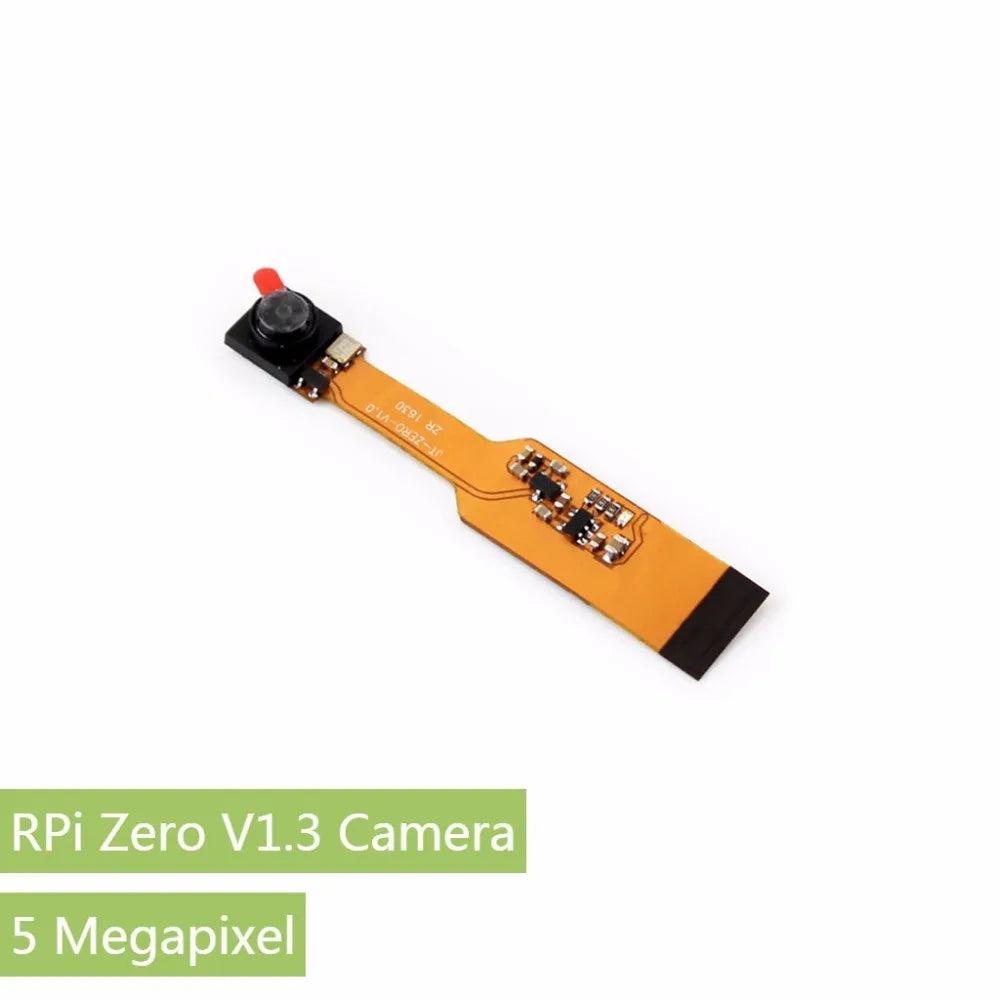

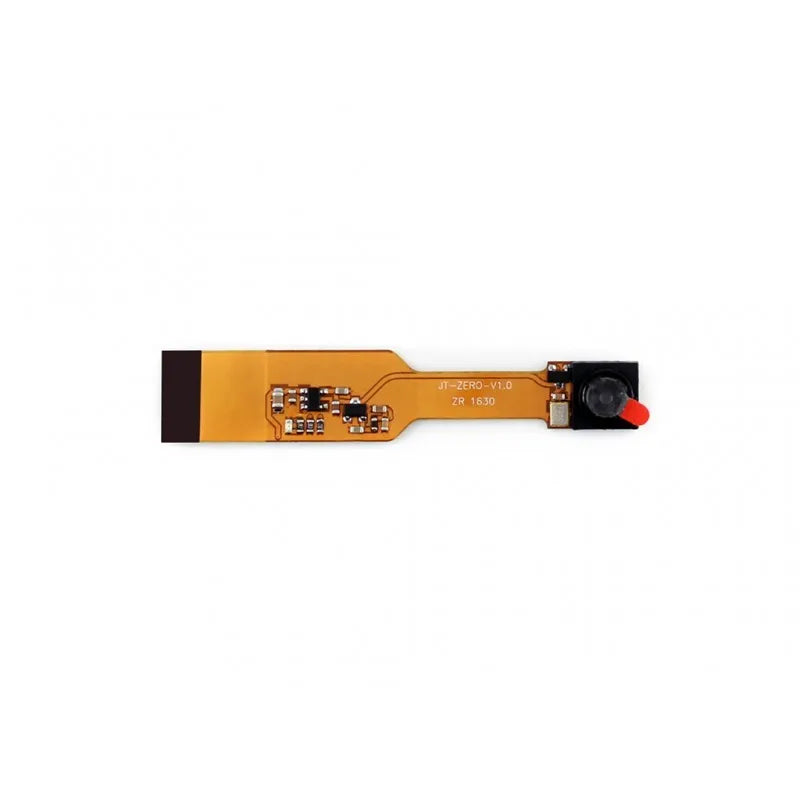

Raspberry Pi Zero V1.3 Camera Module Kit Mini Size Supports Raspberry Pi Zero V1.3 ONLY

DESCRIPTION

Raspberry Pi Camera Module, Pi-Zero-Specific, Mini Size

Features

• Raspberry Pi Camera, supports only Raspberry Pi Zero V1.3 and Raspberry Pi Zero W
• 5 megapixel OV5647 sensor
• Camera specifications
  • CCD size : 1/4inch
  • Focal Length : 3.51mm
  • Angle of View (diagonal) : 69.1 degree
  • Sensor best resolution : 1080p
• 2592 × 1944 still picture resolution
• Support 1080p30, 720p60 and 640x480p60/90 video record
• Dimension: 60mm × 11.5mm × 5mm

Development Resources

: //RPi_Zero_V1.3_Camera

Selection Guide

Partnumber	Pixels	Sensor	Adjustable Focus Distance	Infrared Night Vision	Angle of View (diagonal) (degree)	Manufacturer	Dimensions (mm)	Recommendation1
RPi Camera V2	8 Mega	IMX219	×	×	62.2	element14	25x24x9	/span>
RPi NoIR Camera V2	8 Mega	IMX219	×	√	62.2	element14	25xx9	/span>
RPi Camera (B)	5 Mega	OV5647	√	×	60.6		32x32
RPi Camera (D)	5 Mega	OV5647	×	×	66		25x24x9
RPi Camera (E)	5 Mega	OV5647	×	√	69.1		25x24x6
RPi Camera (F)	5 Mega	OV5647	√	√	75		25x24
RPi Camera (G)	5 Mega	OV5647	√	×	160		25x24
RPi Camera (H)	5 Mega	OV5647	√	√	160		25x24
RPi Camera (I)	5 Mega	OV5647	√	×	170		32x32	span>
RPi Camera (M)	5 Mega	OV5647	√	×	200		25x24
RPi IR-CUT Camera2	5 Mega	OV5647	√	√	75.7		31x32	/span>
RPi IR-CUT Camera (B)2	5 Mega	OV5647	√	√	40		31x32	/span>
RPi Zero V1.3 Camera3	5 Mega	OV5647	×	×	69.1		60x11.5x5
RPi FPC Camera	5 Mega	OV5647	×	×	72		300x16x5

1. The recommendation is considered from sales report and cost performance.
2. While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
3. RPi Zero V1.3 Camera supports only Raspberry Pi Zero V1.3, Raspberry Pi Zero W, and Raspberry Pi Zero WH



PACKAGE CONTENT



• RPi Zero V1.3 Camera × 1
