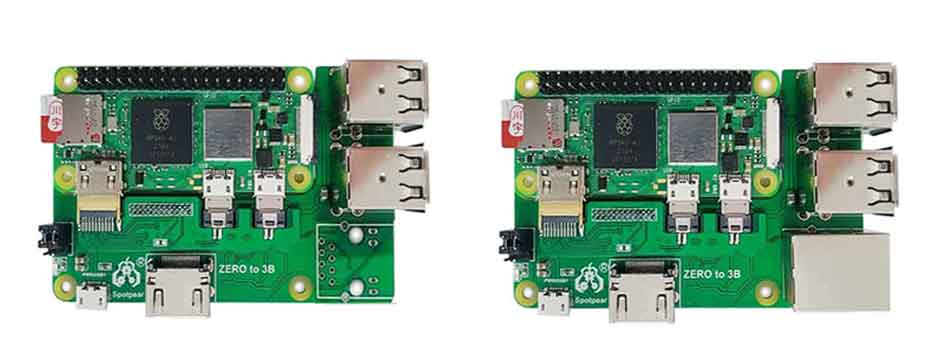

Custom Raspberry Pi ZERO to 3B Adapter 3B converted from Raspberry Pi Zero 2W OR Raspberry Pi 2 W zero pi0 2 with Raspberry Pi Zero 2W Manufacturer

Introduction

• The Raspberry Pi Zero to 3B interface adapter with USB hub and RJ45 10/100M port ,

• which is designed refer to the Raspberry Pi 3B size

• When the official factory stop to product 3B, Some old project have to change to use 4B.

• Now we give another option which use a zero to replace 3B with this adapter

Features

• With the unique design , you can make your zero with same USB/HDM/RJ45 port.

• The height of 20x2 GPIO Pins will not change . You can use GPIO expansion board perfectly

Introduction to interface

• 3x USB ports, compatible with USB2.0/1.1

• 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip

• Micro HDM to 3B HDM port

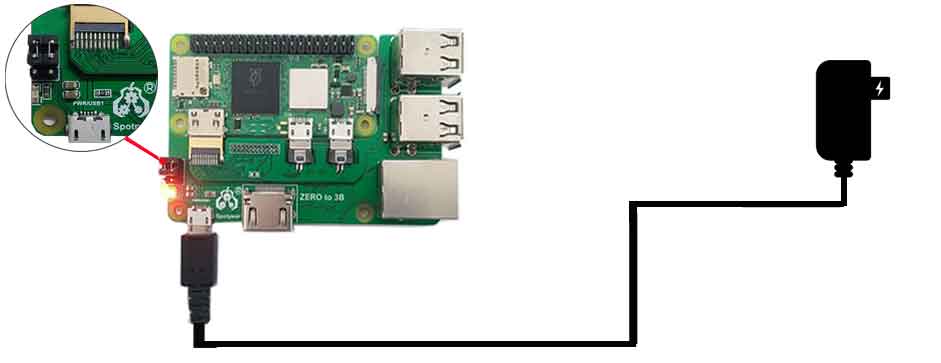

• Work at zero also can work at a computer/Android phone with micro usb/3B/4B or other mini computer with a micro usb cable

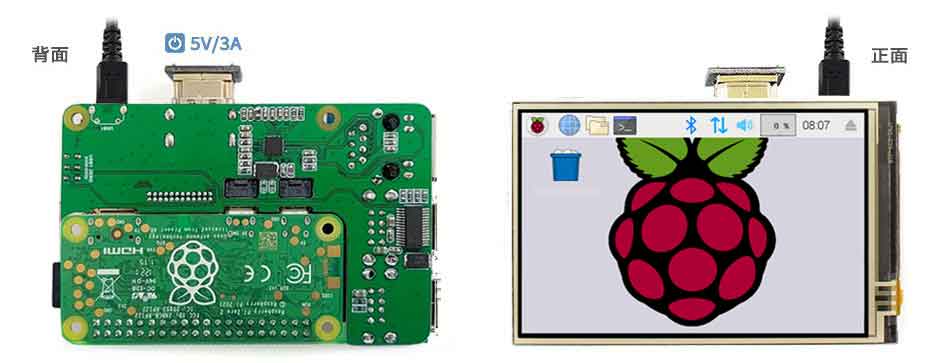

Working With 3.5inch HDM LCD

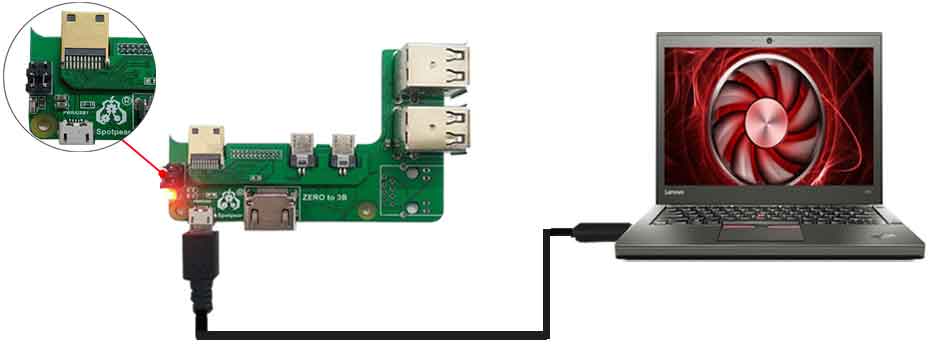

Working With Computer

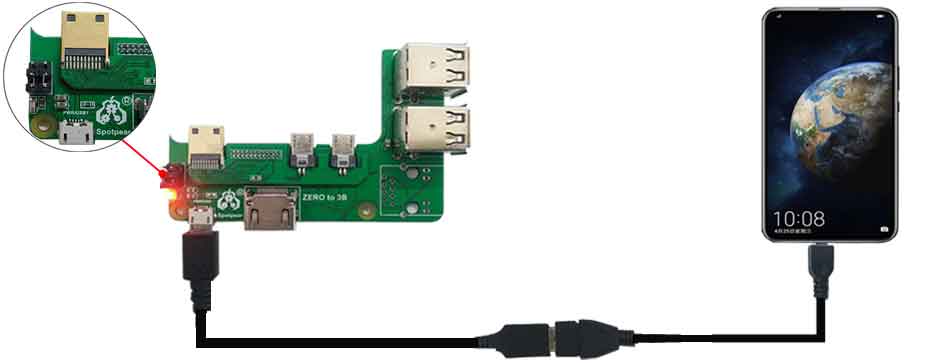

Working With Mobile

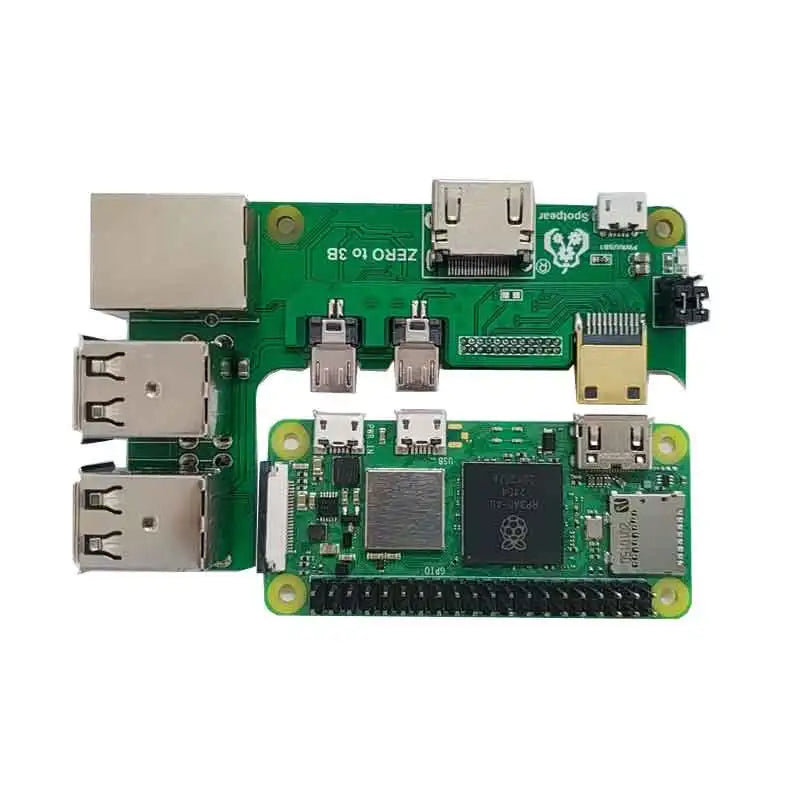

Working With ZERO 2W

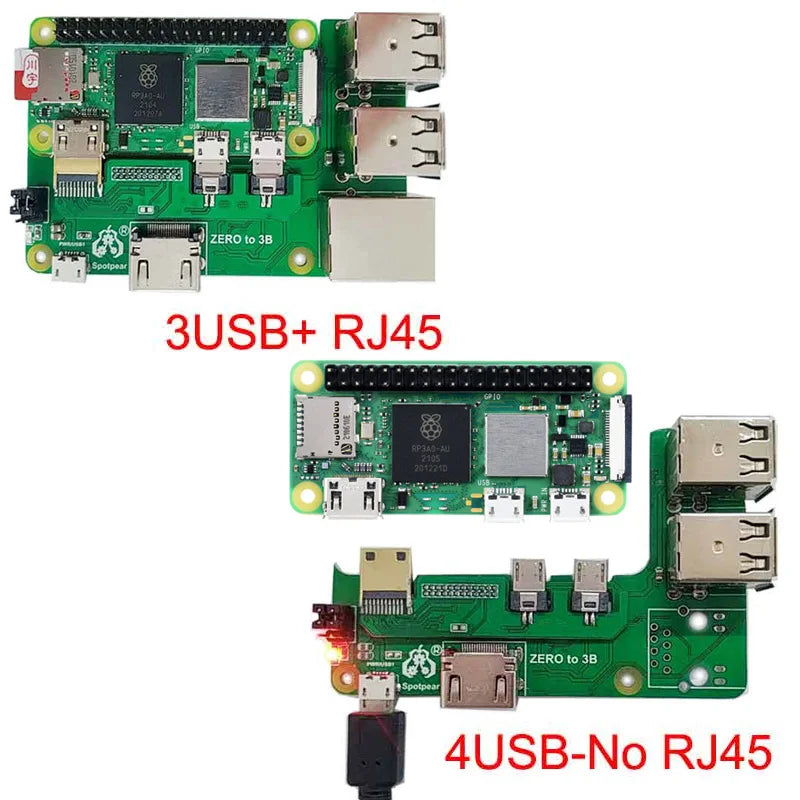

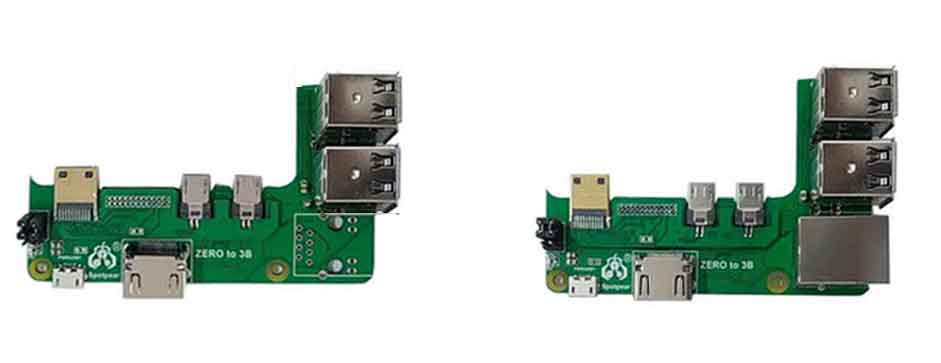

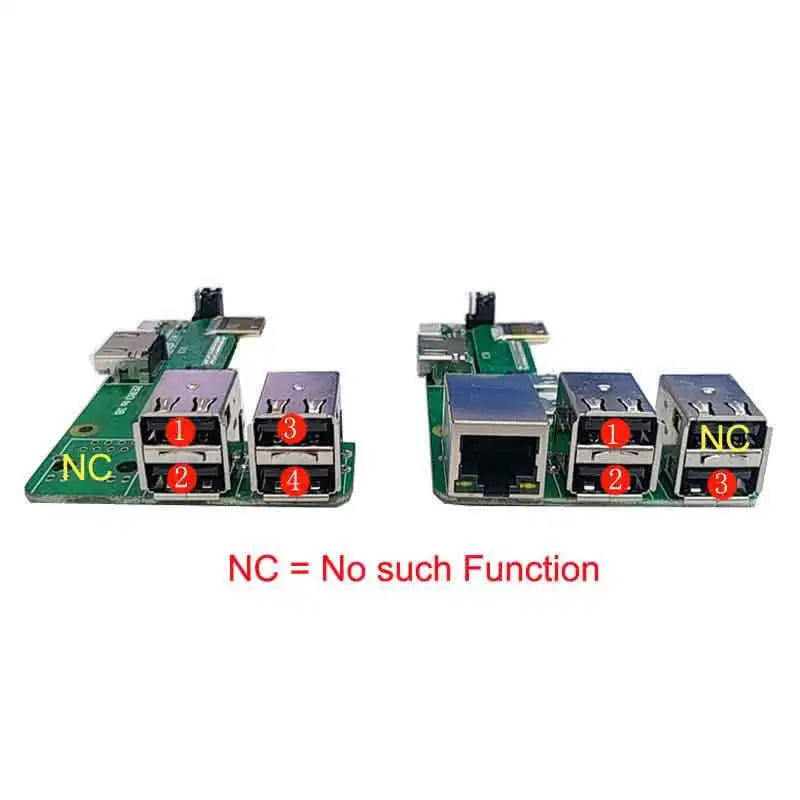

Two Specifications Are Available:

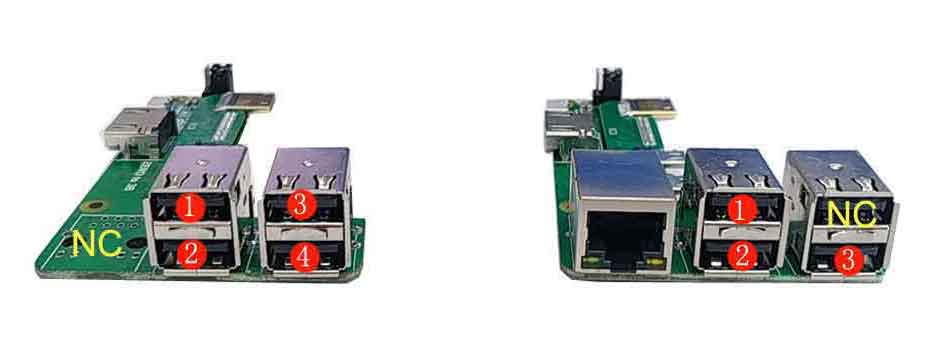

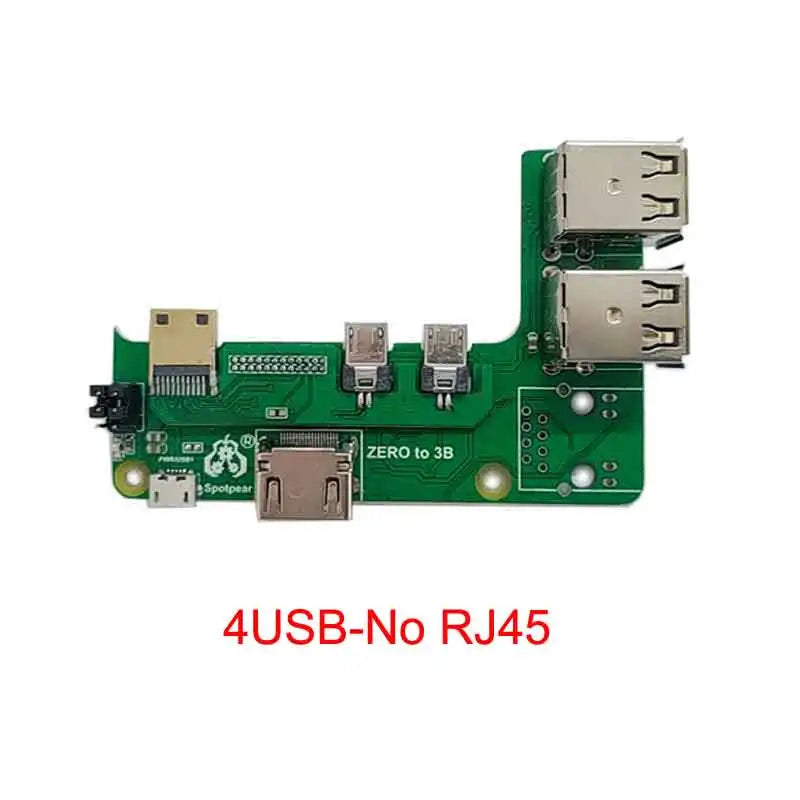

• 4USB-No RJ45 expansion board: 4 USB interfaces without RJ45 Ethernet interface

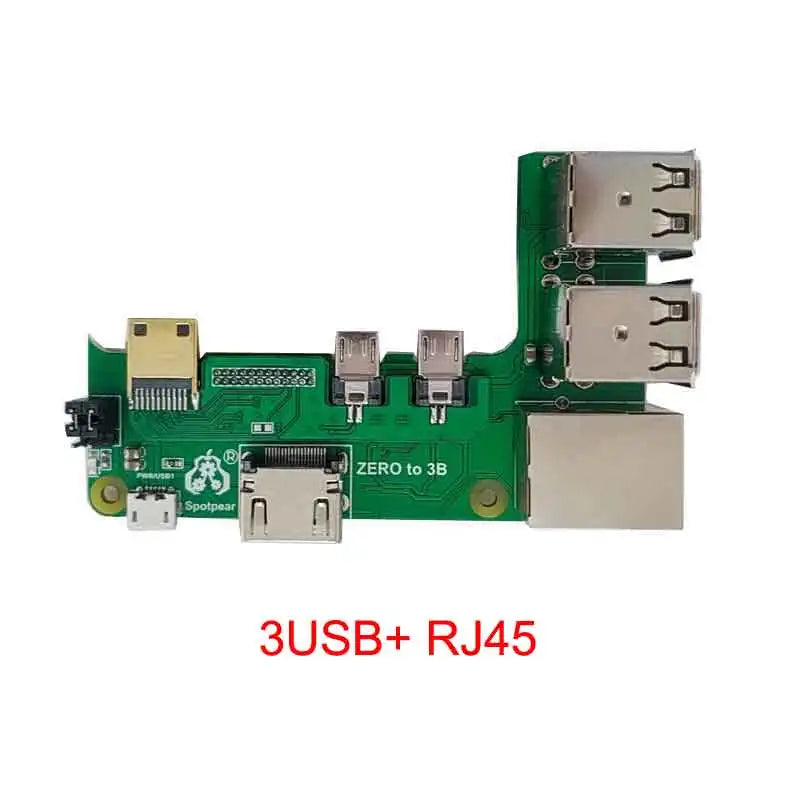

• 3USB+RJ45 expansion board: 3 USB interfaces with RJ45 Ethernet interface

• NC = No such Function
