Custom Raspberry Pi Zero 2w To 3B/4B Interface Adapter Zero To Pi3/Pi4 Expansion Board Pi Zero Pi0 USB HUB RJ45 HAT Manufacturer
Custom Raspberry Pi Zero 2w To 3B/4B Interface Adapter Zero To Pi3/Pi4 Expansion Board Pi Zero Pi0 USB HUB RJ45 HAT Manufacturer
Couldn't load pickup availability
This product does not include raspberry pi Zero 2W.
Introduction

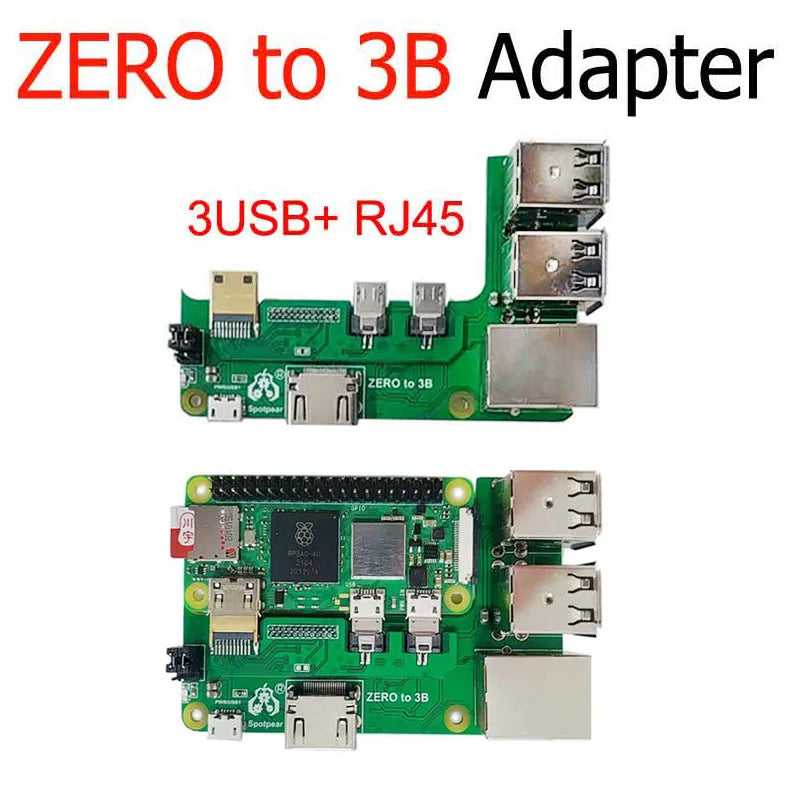

The Raspberry Pi Zero to 3B/4B interface adapter with USB hub and RJ45 10/100M port ,
which is designed refer to the Raspberry Pi 3B/4B size
When the official factory stop to product 3B, Some old project have to change to use 4B.
Now we give another option which use a zero to replace 3B/4B with this adapter
Features
With the unique design , you can make your zero with same USB/HD/RJ45 port .
The height of 20x2 GPIO Pins will not change . You can use GPIO expansion board perfectly
Introduction to interface
•3x USB ports, compatible with USB2.0/1.1
•1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
•Micro HD to 3B/4B HD port
•Work at zero also can work at a computer/Android phone with micro usb/3B/4B or other mini computer with a micro usb cable
Working With 3.5inch HDMI LCD
Working With Computer
Working With Mobile
Working With ZERO 2W
Two Specifications Are Available:
-

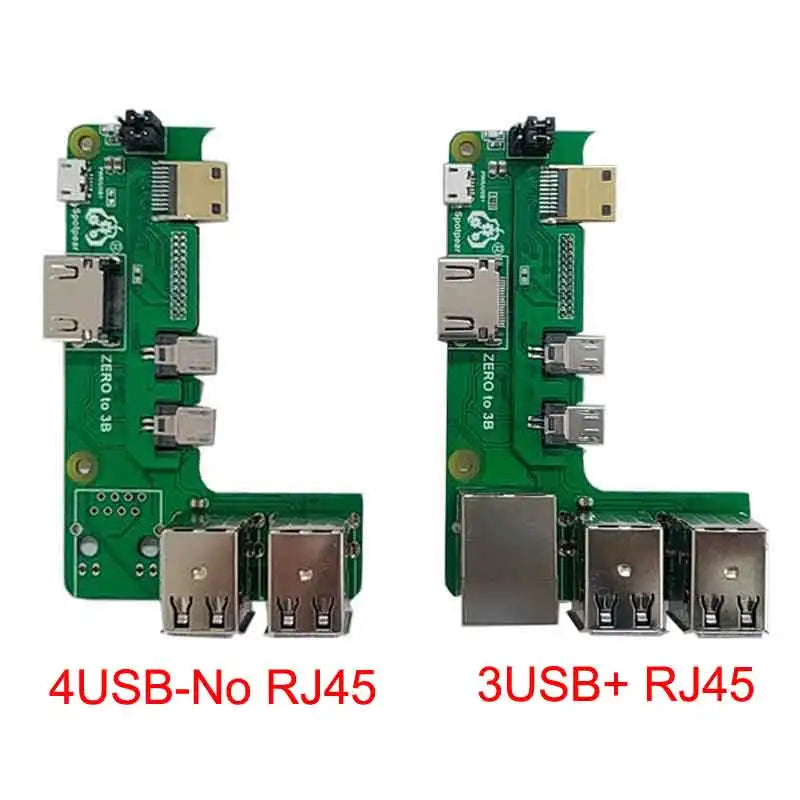

4USB-No RJ45 expansion board: 4 USB interfaces without RJ45 Ethernet interface
-
3USB+RJ45 expansion board: 3 USB interfaces with RJ45 Ethernet interface
-

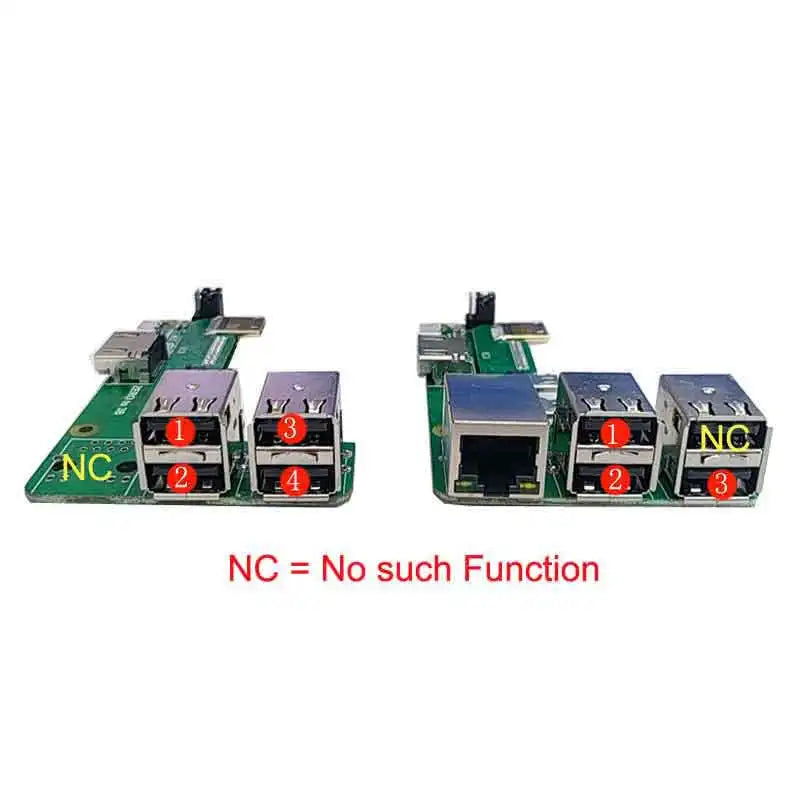

NC = No such Function

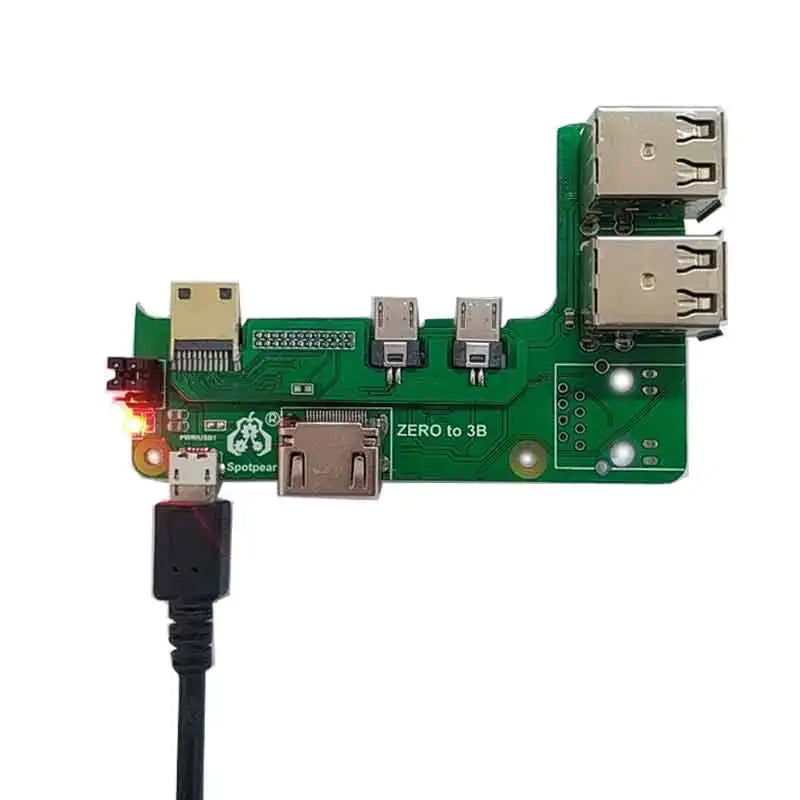

Bundle:Just Zero to 3B Adapter
-
4USB -No RJ45 x1
-
Micro USB x1
Bundle:Just Zero to 3B Adapter
-
3USB+RJ45 x1
-
Micro USB x1

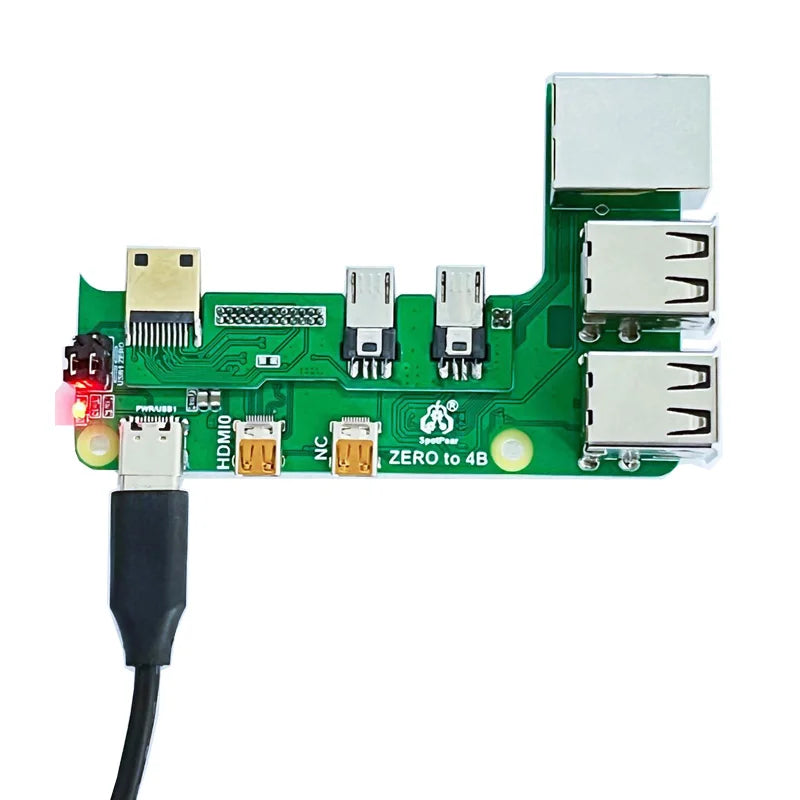

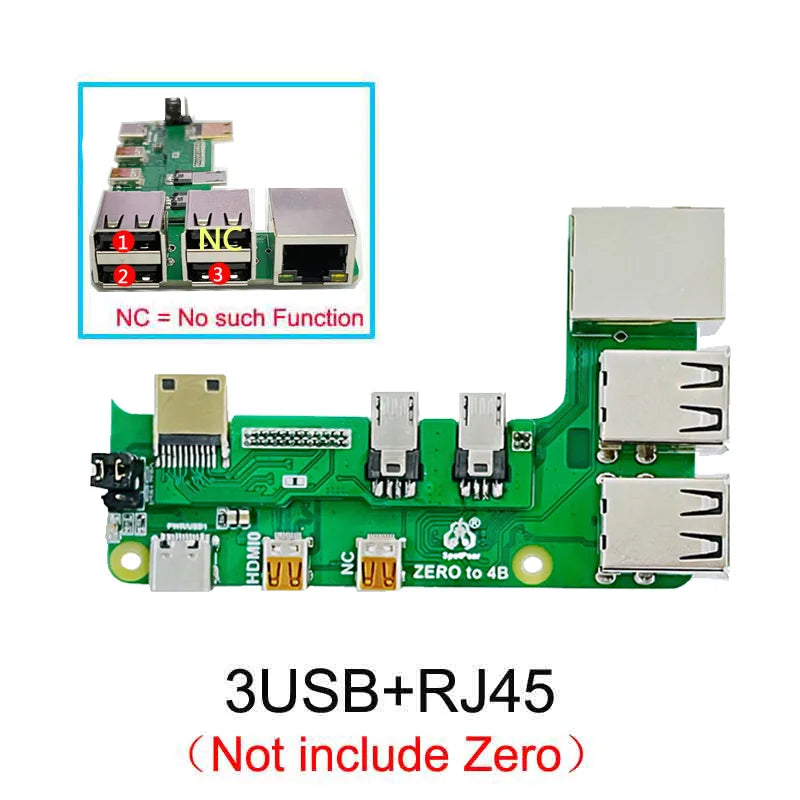

Bundle:Just Zero to 4B Adapter
-
3USB+RJ45 x1
-
Type-C USB x1
Welcome Customize Order!
