Note:

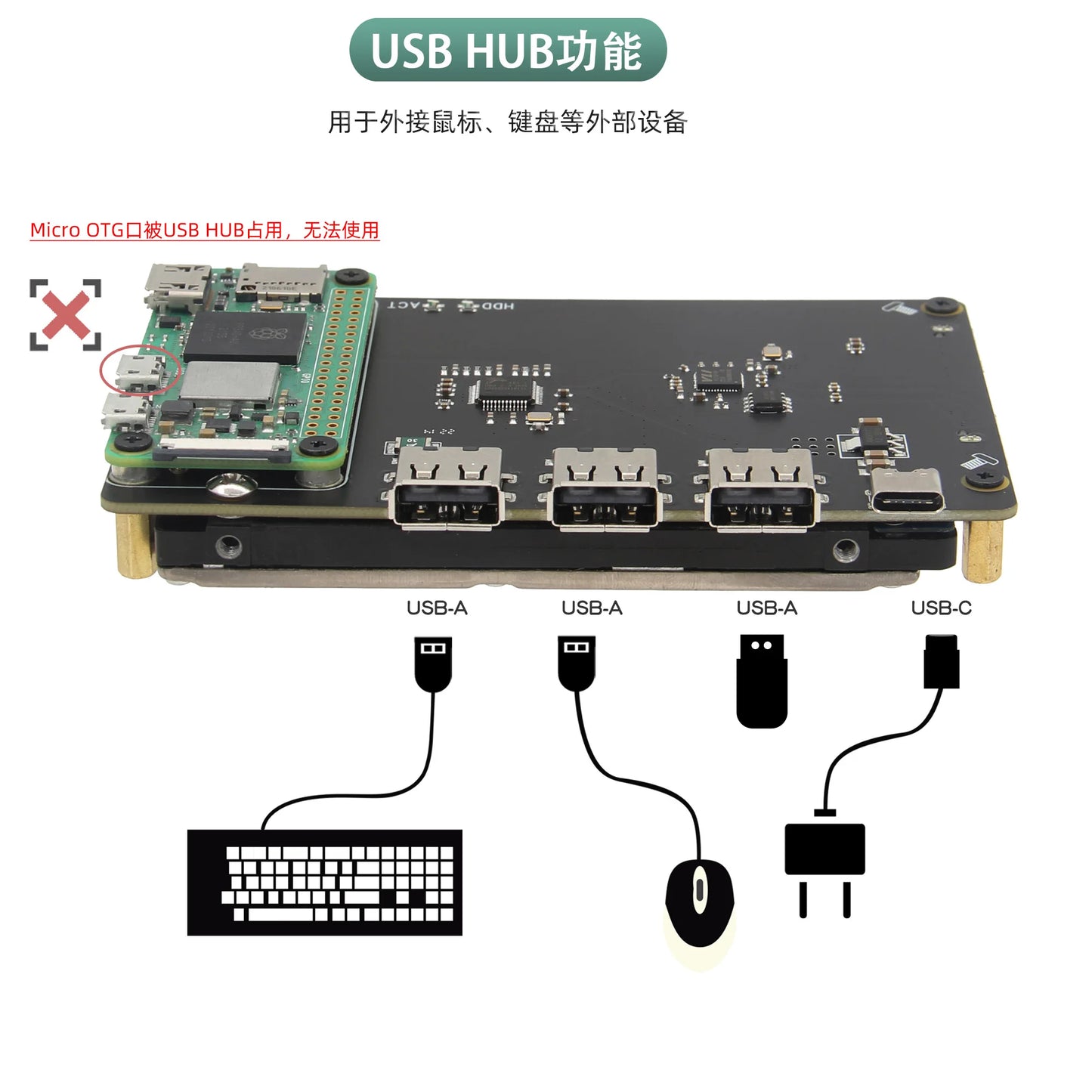

Raspberry pi micro OTG port cannot be used as it is occupied by USB HUB.

[Overview]

X306 is a one cell 18650 UPS shield designed for Raspberry Pi zero w / 2W.

It equipped with 3 standard USB-A 2.0 ports, and a USB Type C to power. The USB-A port can be used to connect external devices such as mouse, keyboard etc.

[Features]

• Ideal Uninterruptible Power Supply (UPS) solution for Raspberry Pi Zero W/2W

• Max 5.1V 4000mA Power Backup for even the most demanding Raspberry Pi set ups

• 18650 single cell battery holder

• Upto 1000mA charging current

• Integrated battery reverse polarity protection circuit

• Integrated over current protection and over voltage protection

• Intelligent automatic charging and discharging

• 4 blue LEDs indicate battery charging and discharging levels of 25%, 50% , 75% and 100%

• Red & green LEDs show the status of power on/off and charging status

• On-board push button to control power on /off (Press-ON, Hold the button pressed at least 3s -OFF)

• Ultra-low standby power consumption of μA to maximize battery life

• Integrated IN-to-SYS pass-through path to pass the input voltage to the system

• Advanced system power path management avoids frequent charging and extend battery life

• Connects to the Raspberry Pi via Pogo Pins - no wirindg & soldering required

• 4-pin header for external power swtich and always-on power option

• Equipped with three USB2.0 ports and one USB2.0 4-through-holes for more USB expansion

[Specification]

• Input supply voltage: 5Vdc +/-5%

• Input supply current: ≥3A

• Charging current: 900~1050mA

• Trickle charge current: 130~140mA

• Predetermined Charge voltage: 4.2V +/-1.5%

• Output voltage: 5.1V +/-5%

• Max output current: 4000mA


[How to Power]

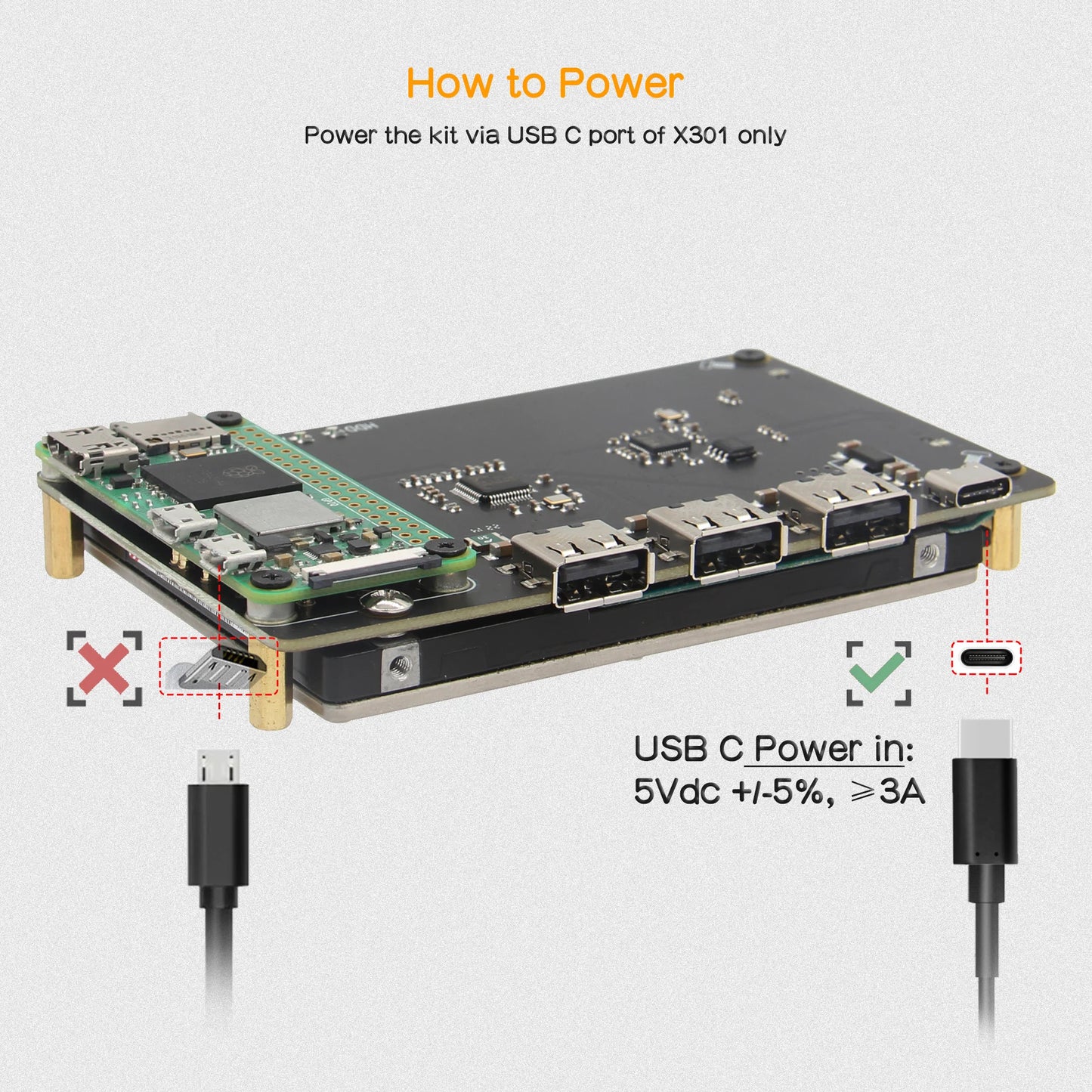

• Power Input: 5.1Vdc +/-5% , ≥3A (Power Via USB Type-C port of X306 NOT Pi zero 2W)

[How to Cool]

• Aluminum Heatsink for raspberry pi zero 2 w, please refer to C296

[Packing List]

The Raspberry Pi board is not included in the packing list.

Kit-A:

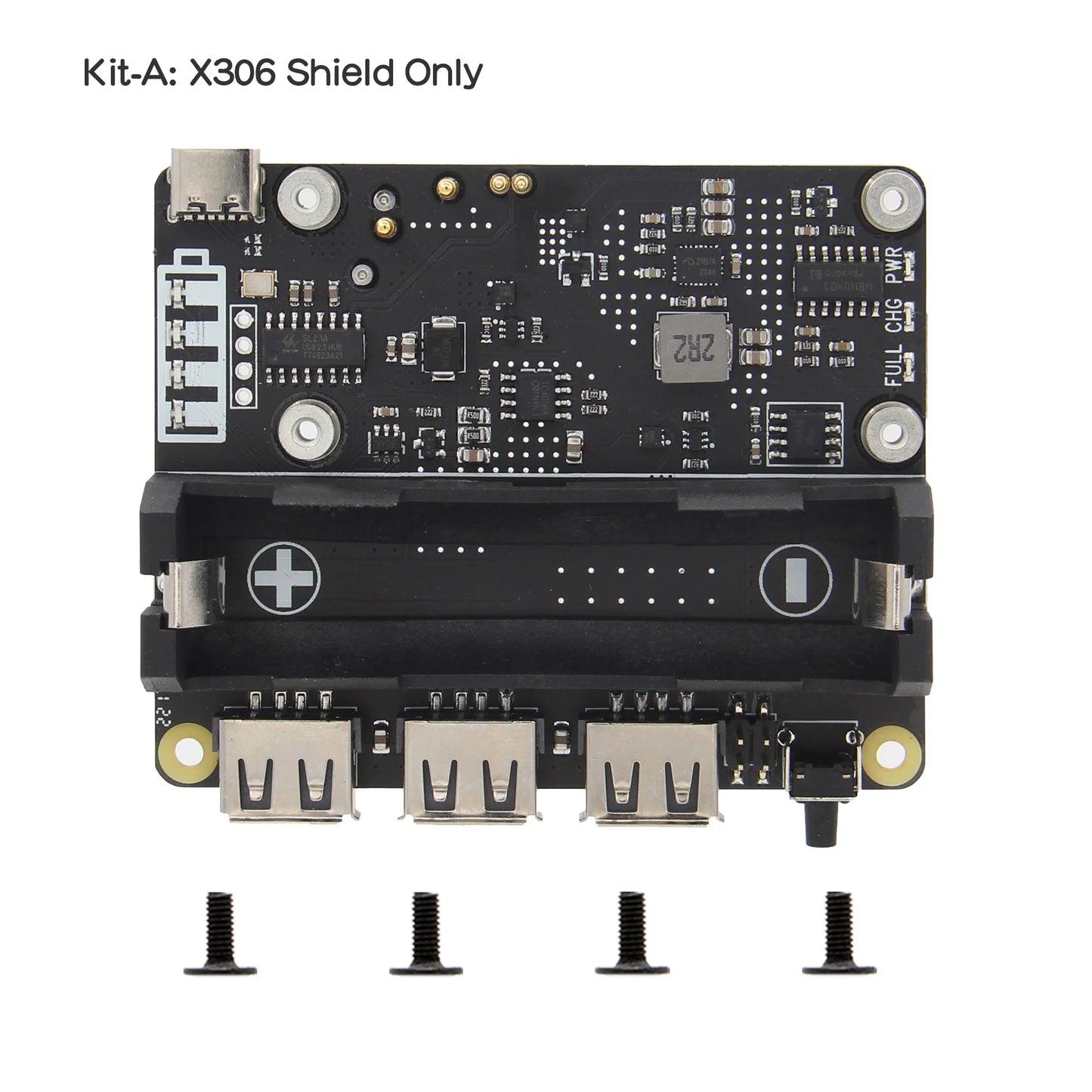

• 1 x X306 18650 UPS Shield

• 4 x M2.5 x 5 Screws

Kit-B:

• 1 x X306 18650 UPS Shield

• 4 x M2.5 x 5 Screws

• 1 x USB Type-C Power Adapter (5V 4A 20W) - EU Plug

Kit-C:

• 1 x X306 18650 UPS Shield

• 4 x M2.5 x 5 Screws

• 1 x USB Type-C Power Adapter (5V 4A 20W) - US Plug
