Custom Raspberry Pi X872 NVMe M.2 2280 SATA SSD Shield/Expansion Board for Raspberry Pi 4 Model B Manufacturer

NOTES



NOT INCLUDE raspberry pi board

Additional spacer required for SSD lengths 2260, 2242 and 2230 (not supplied with X872)

A microSD card is required for forcing the Raspbian OS to use the HDD/SSD for its "root" partition

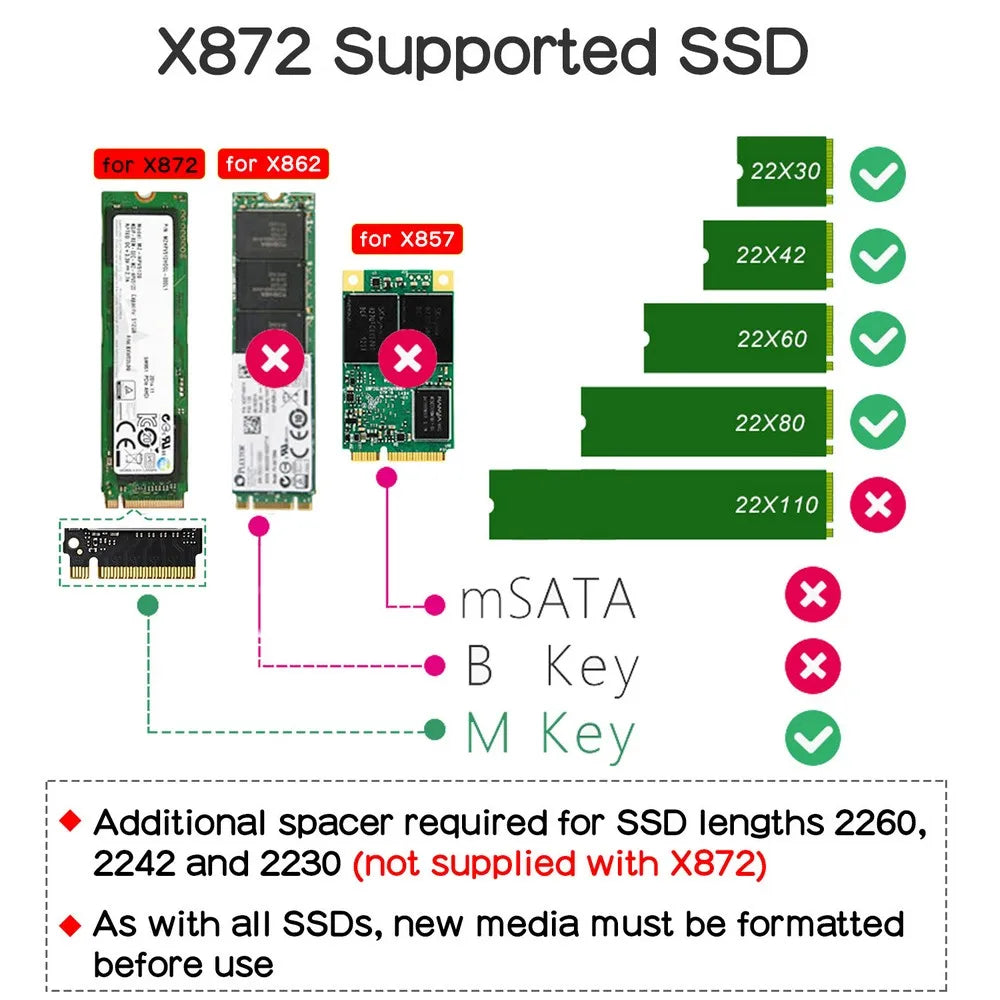

Only compatible with NVMe M.2 SSDs

Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices

As with all SSDs, new media must be formatted before use, please refer to Tutorial Initalize New SSD

SSDs use exceptionally high performance storage media that will run hot when under load

Older SSD drives with less efficient flash media may not perform as well as newer drives

USB 3.0 devices might generate radio frequency interference that can cause Wi-Fi and other wireless devices operating in the 2.4GHz band to have issues communicating with your Raspberry Pi4. To avoid interference on the 2.4GHz band using Wi-Fi, try using the 5GHz band instead. If problem still exists, please turn off WiFi and use the wired network instead.



Overview

This is the X872 NVMe M.2 SSD Storage Expansion Board for Raspbeerry Pi 4 model B, it provides a complete storage solution for raspberry pi 4. It supports multiple M.2 NVMe SSD lengths including: 2280, 2260, 2242, 2230.



Features

Ideal storage solution only for Raspberry Pi 4 - M.2 NVMe SSD Shield

Supports up to 2TB M.2 NVMe SSD solid-state drives

Supports multiple M.2 NVMe SSD lengths including: 2280, 2260, 2242, 2230,additional spacer required for SSD lengths 2260, 2242 and 2230 (not supplied with X872)

Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see FAQ 1)

USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4

Ultra-fast Data Transfers from a PC or a Mac (USB3.1 Gen2 10Gb/s, Gen1 5Gb/s, USB2.0 480Mb/s)

Integrated USB 3.1 Gen2 to PCIe Gen3x2 10Gb/s bridge controller

Integrated high efficiency step-Down Converter, 3.3V max3.5A to power the SSD

External self-powered or USB bus-powered

Onboard DC 55x25 jack & XH2.54 connector for extra SSD power supply

LED red indicator indicates powered status and blue indicator indicates drive status

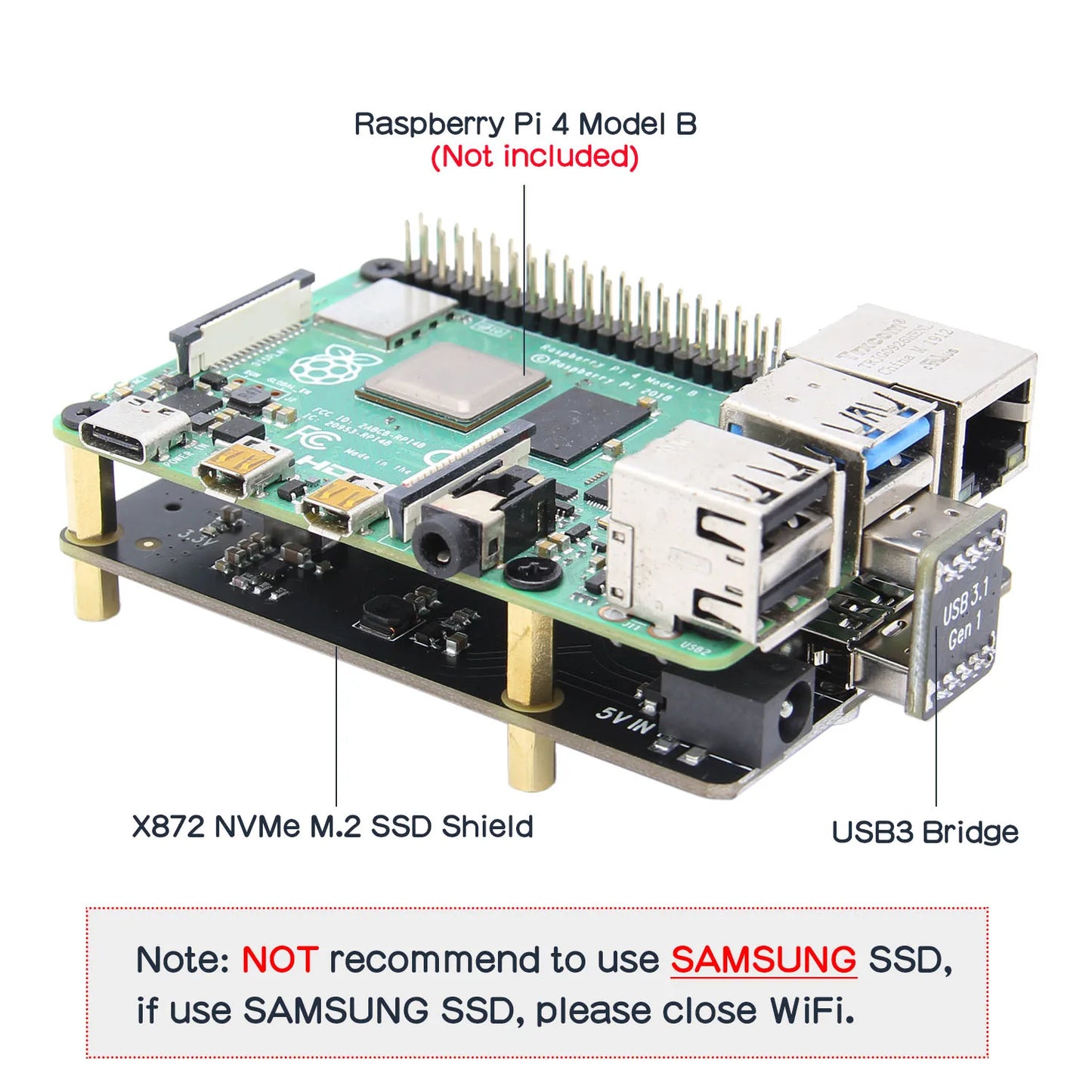

Specially-made USB3.1 jumper to connect with Raspberry Pi - no cabling required!

Fully compatible with X735 for intelligent power management and cooling your Raspberry Pi

Fully compatible with X710 for wide input voltage (6~36V) and intelligent power management

Fully compatible with X765 for powering over Ethernet (POE, 5V 5A)

Fully compatible with X725 for uninterruptible power supply (18650 UPS, 5.1V 8A, WOL)



SPECIFICATION

Power Supply

5Vdc +/-5% , Powered by Raspberry Pi USB port

5Vdc via DC power jack or XH2.5 connector, Extra power for the SSD

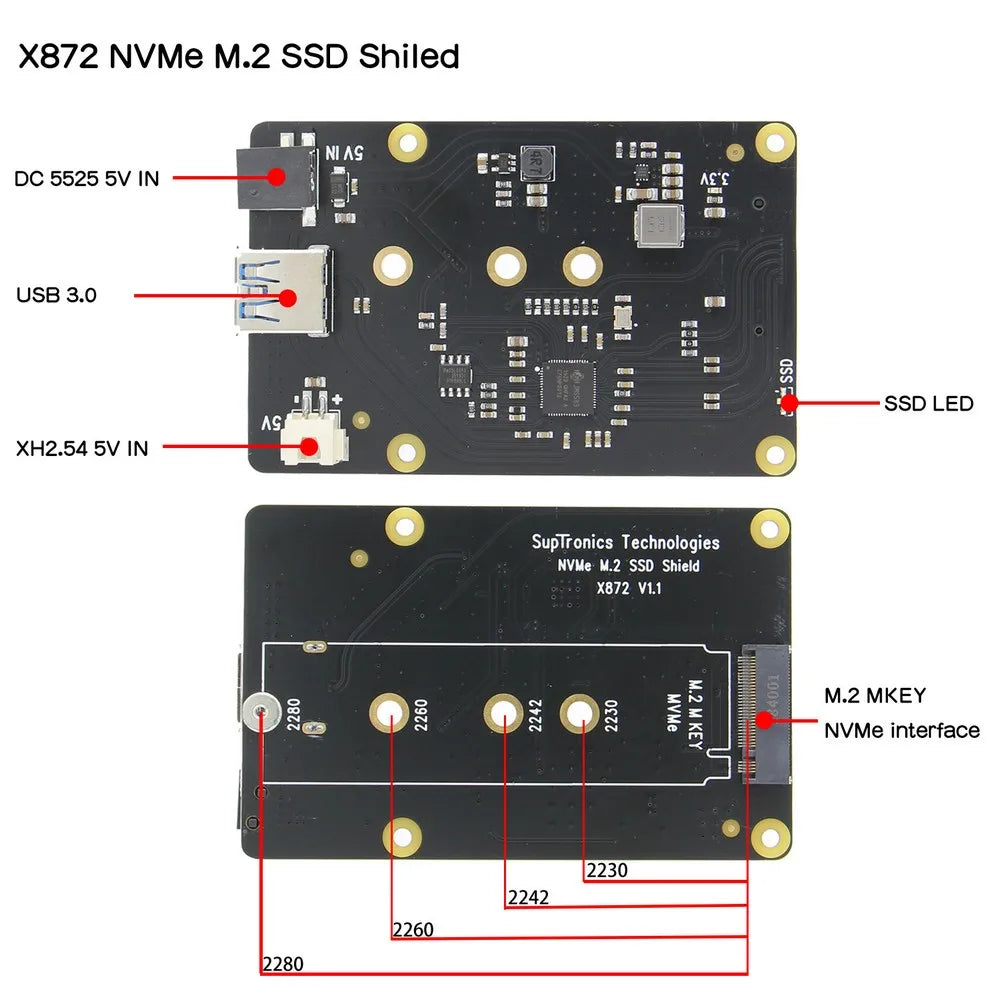

Ports & Connectors

1x USB A socket

1x DC power jack 5.5*2.5mm

1x XH2.54 power connector

1x 67Pin M.2 connector P=0.5mm, H3.2mm, Key M

PCB Size

87mm x 56mm

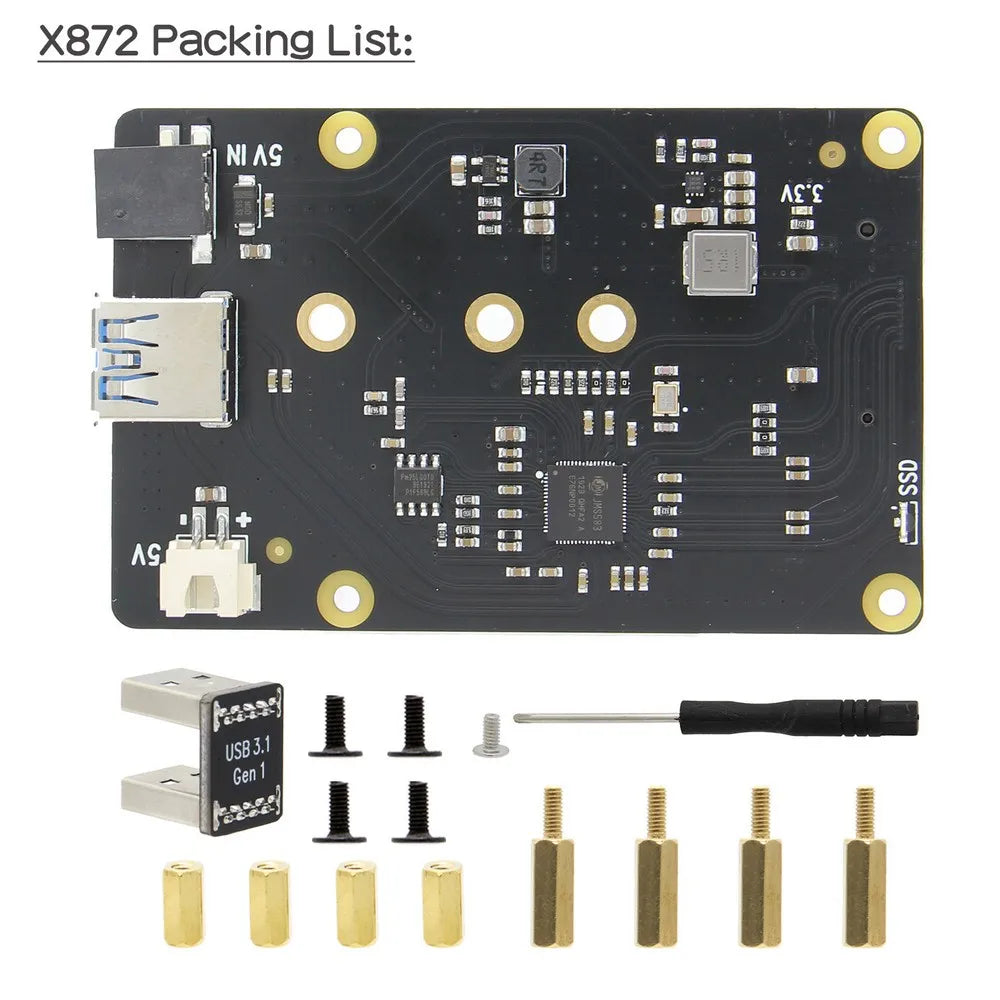

Packing List

Bundle1:

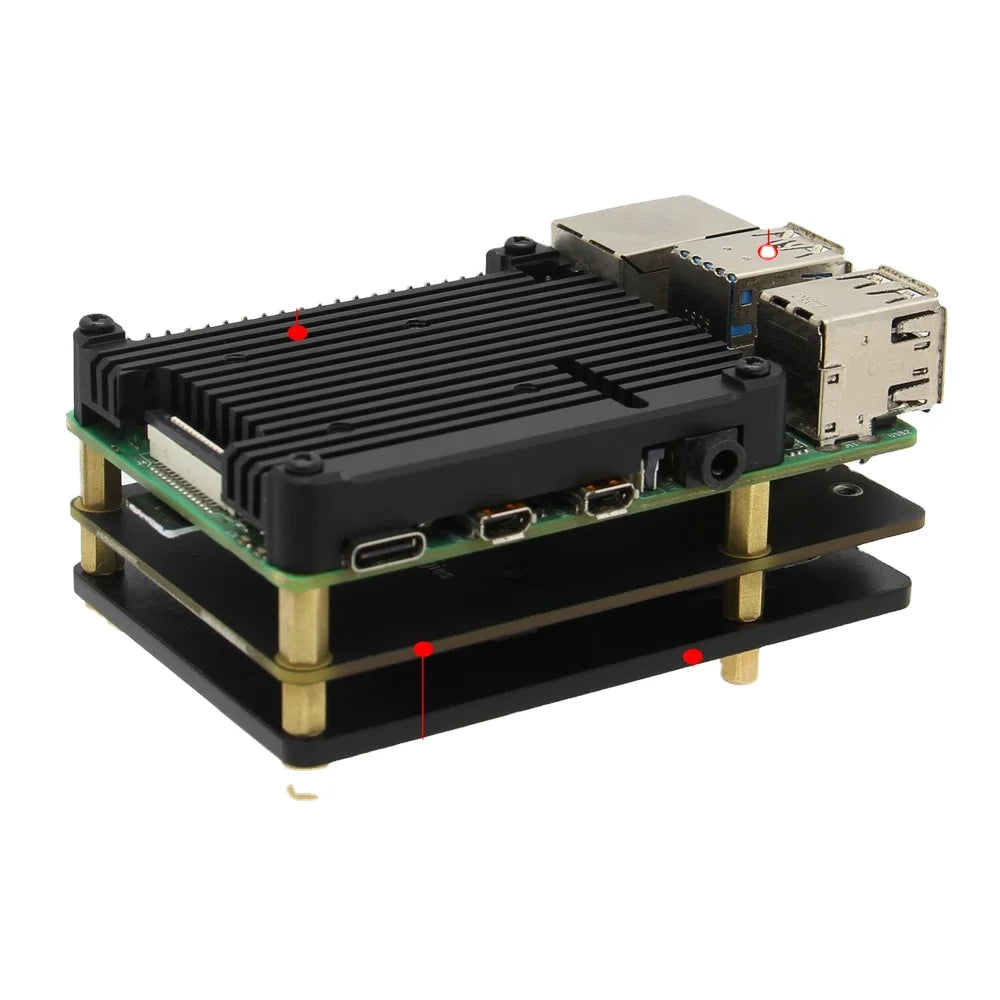

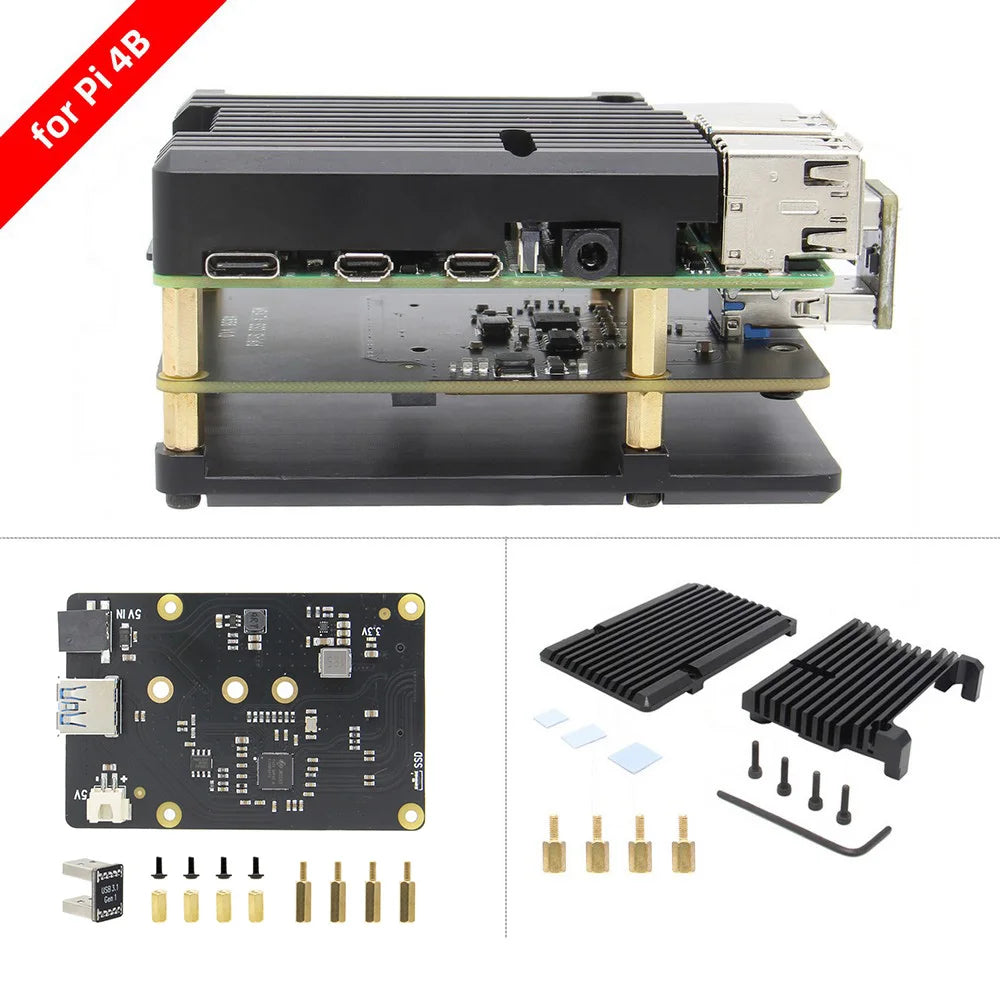

Bundle2 + Case

Bundle2:



1 x X872 M.2 NVME SSD shield (Not include the NVMe SSD)

1 x USB3.1 jumper / Connector

4 x Spacer M/F M2.5 x 12mm

4 x Spacer F/F M2.5 x 8mm

4 x Screw M2.5 x 6mm

1 x SSD Screw driver

1 x Screw M2 *4mm





 Welcome Customize Order!
