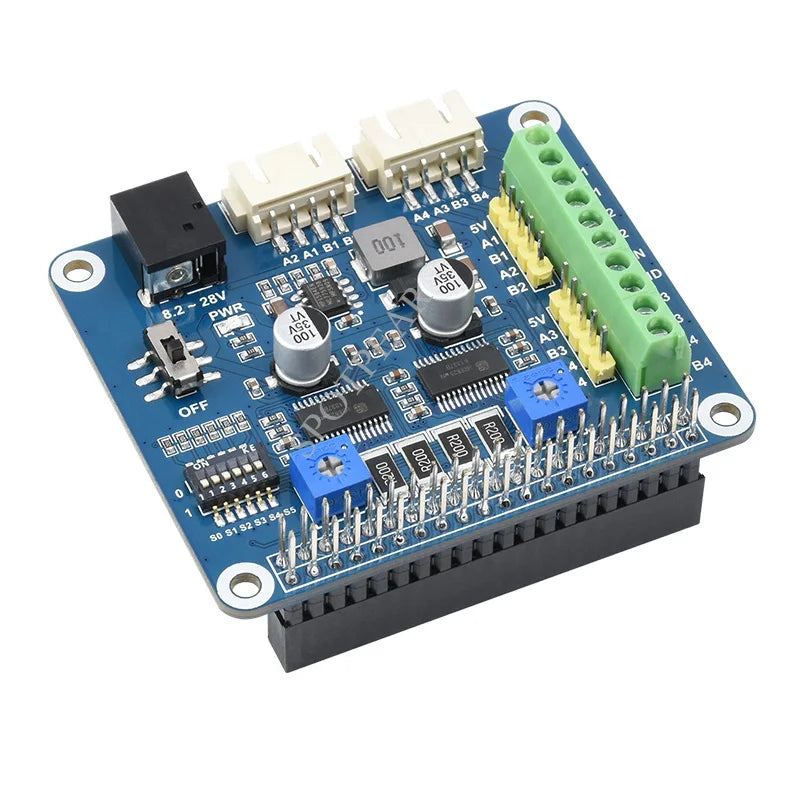

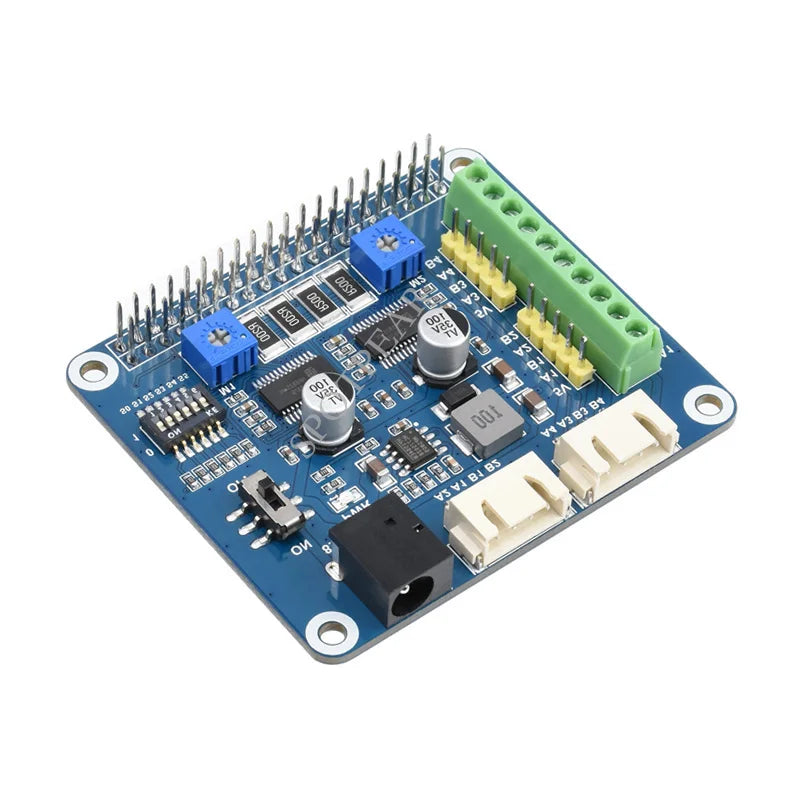

Custom Raspberry Pi Stepper Motor HAT HRB8825 Drives Two Stepper Motors Up To 1/32 Microstepping Manufacturer
Custom Raspberry Pi Stepper Motor HAT HRB8825 Drives Two Stepper Motors Up To 1/32 Microstepping Manufacturer
Couldn't load pickup availability
Note: Do not include Raspberry Pi and Jetson Nano, Please Buy alone.
Features
-
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
-
Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use
-
6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
-
Adjustable motor drive current via potentiometer, maximum 2.5A current output
-
Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO)
-
Integrates 5V regulator, allows providing power to Raspberry Pi
-

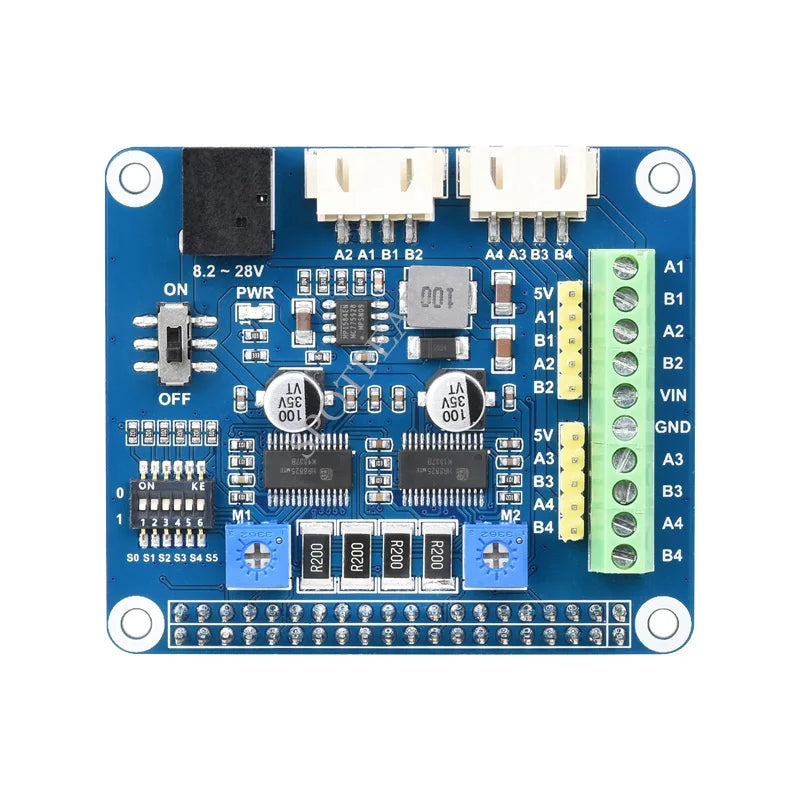

Onboard multi connector options for stepper motors in different specifications
-
Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
Specifications
-
Motor controller: HR8825
-
Motor drive voltage: 8.2V~28V
-
Motor drive current: 2.5A
-
Dimension: 65mm × 56mm
-
Mounting hole size: 3.0mm

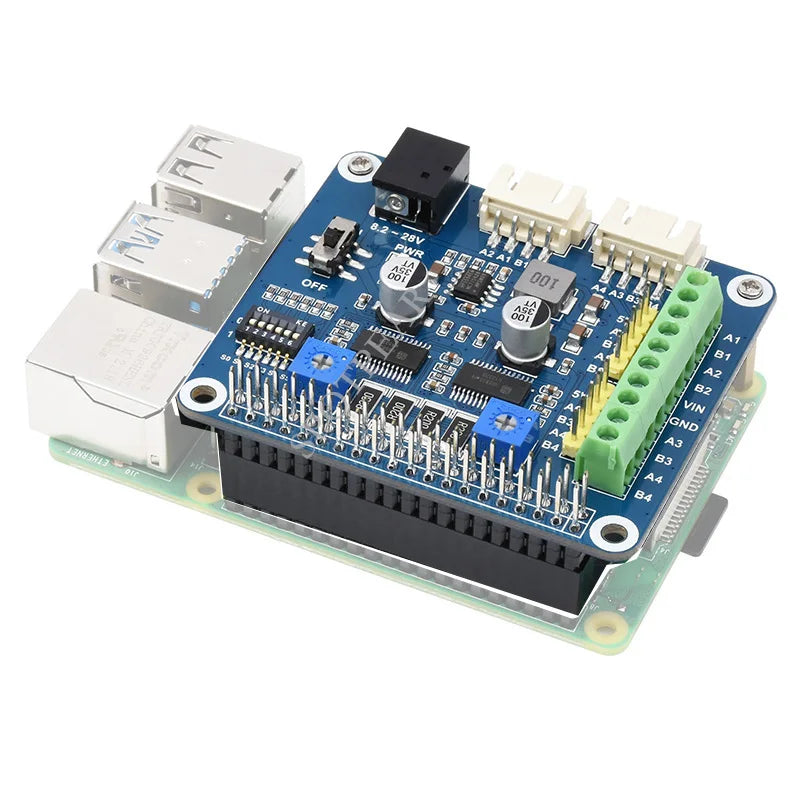

Designed For Raspberry Pi Boards / Jetson Nano
Built-In Converter For Easy Control, Can Drive Two Stepper Motors
Configured Via The DIP Switches:
Full-Step, Half-Step, 1/4-Step, 1/8-Step, 1/16-Step, And 1/32-Step
| MODE2 | MODE1 | MODE0 | MOTOR MICROSTEPPING SETTING |
| 0 | 0 | 0 | full-step |
| 0 | 0 | 1 | half-step |
| 0 | 1 | 0 | 1/4-step |
| 0 | 1 | 1 | 1/8-step |
| 1 | 0 | 0 | 1/16-step |
| 1 | 0 | 1 | 1/32-step |
| 1 | 1 | 0 | 1/32-step |
| 1 | 1 | 1 | 1/32-step |
.
Easy Access To Stepper Motors In Different Specifications
|
|
-

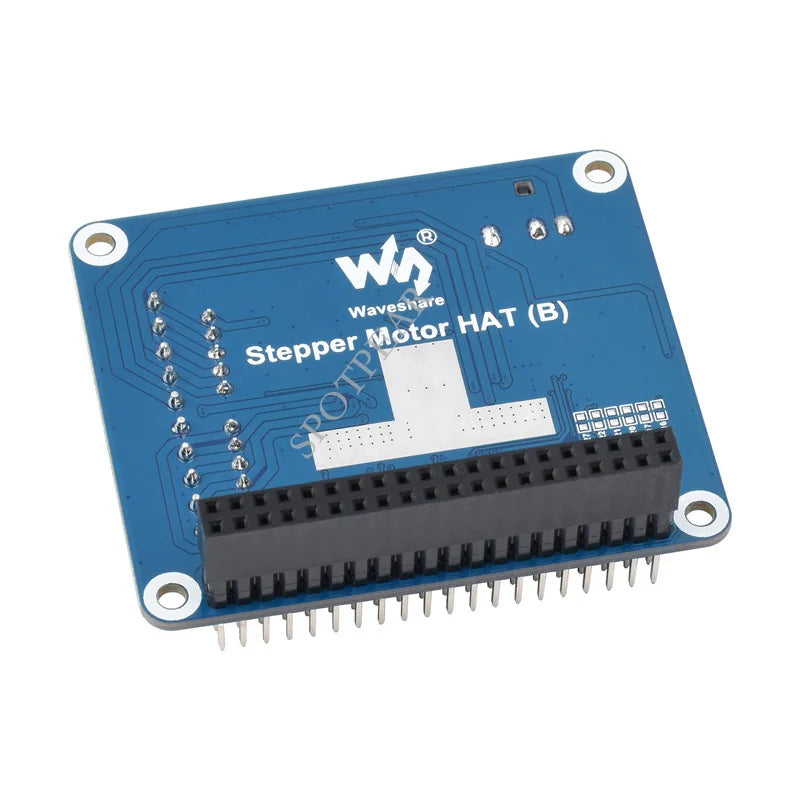

Stepper Motor HAT (B) x1
-
RPi screws pack (2pcs) x1
-
Aluminum heatsink x1
Welcome Customize Order!
