Custom Raspberry Pi Sensor Starter kit PCF8591 AD/DA ADS1115 High-precision AD Sensor expansion board Manufacturer

Custom Raspberry Pi Sensor Starter kit PCF8591 AD/DA ADS1115 High-precision AD Sensor expansion board Manufacturer

Regular price $19.90 USD
Regular price $19.90 USD Sale price $19.90 USD
Sale Sold out
Specification

Note: Do not include Raspberry Pi, Please Buy alone.

        PCF8591 Introduction

  • The PCF8591 is a single-supply, low-power 8-bit CMOS data acquisition device with 4 analog inputs, one output, and a serial I2C bus interface.

  • Three address pins, A0, A1, and A2, are used to program hardware addresses, allowing up to 8 devices to be connected to the I2C bus without additional hardware.

        ADS1115 Introduction

  • The ADS1115 device is a precision, low power, 16-bit, I2C compatible analog-to-digital converter ADC that integrates a low drift voltage reference and oscillator.

  • The ADS1115 performs conversions at data rates up to 860 samples per second (SPS).

        Comparison of PCF8591 & ADS1115

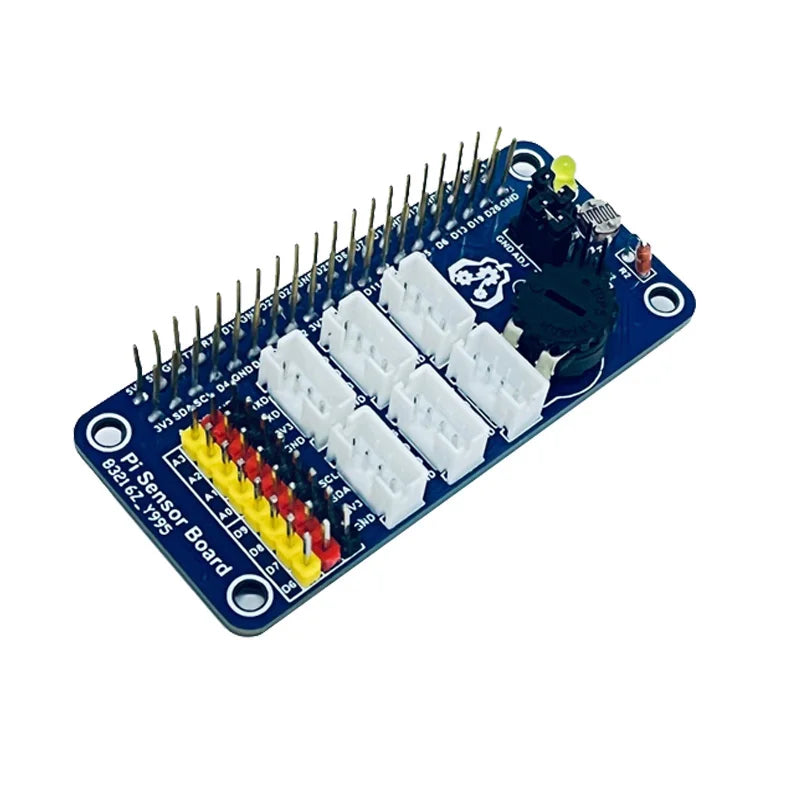

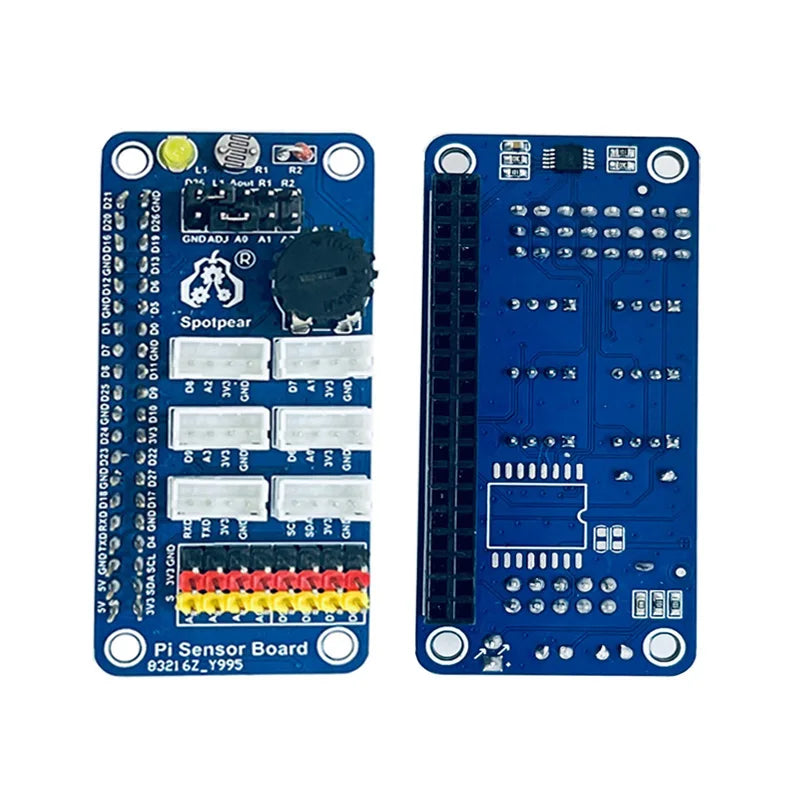

        Pi Sensor Board Interface Introduction

(Onboard photosensitive/thermal/LED/adjustable resistance 4 sensors)








1.Thermistor                              5.Adjustable knob resistance        9.Sensor interface A
2.Photoresistor                          6.Sensor A/D interface                  10.Raspberry Pi UART
3.LED                                          7.Raspberry Pi I2C                          11.20x2 Raspberry Pi interface
4.Onboard jumper selection    8.Sensor interface D                      12.ADS1115 / PCF8591 Options


        20 Sensors Introduction




This product is an expansion board tailored for Raspberry Pi. It is equipped with common input and output modules and sensor circuits, and LED lights flash. It can be equipped with various sensor circuits on the expansion board for experiments, which is easy to use.

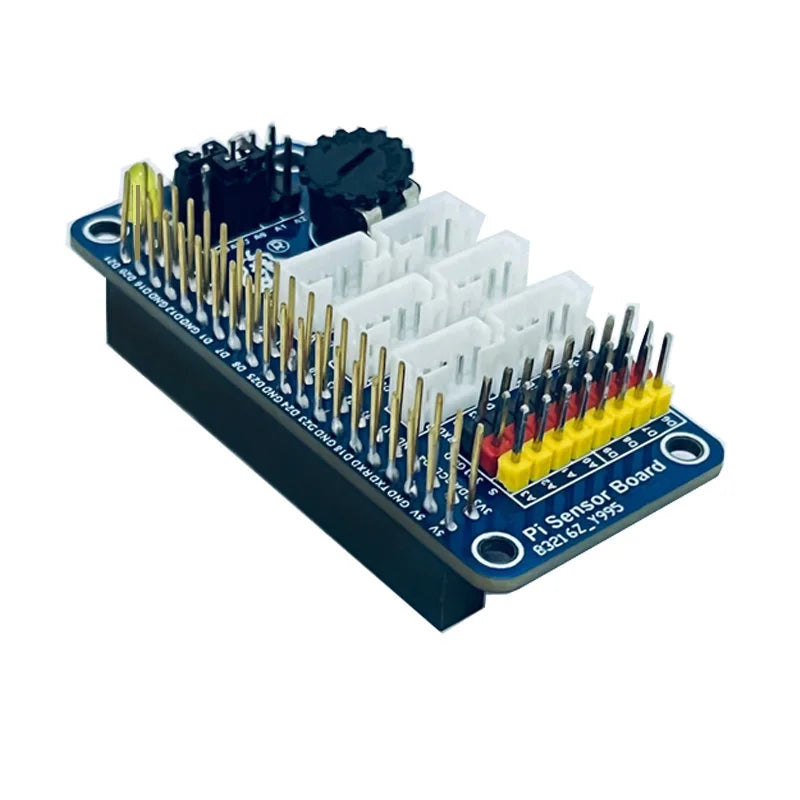

        Product Image

Raspberry Pi Zero prototyping




Also compatible with Raspberry Pi 3B/4B

        Program screenshot





Package Contains


Bundle: Just board (ADS1115/PCF8591  Options ):





Bundle: Kit A


  1. Pi Sensor Board (PCF8591 version) x1

  2. PIN + 9P Dupont line x1

  3. Sensor x20






 Welcome Customize Order!
