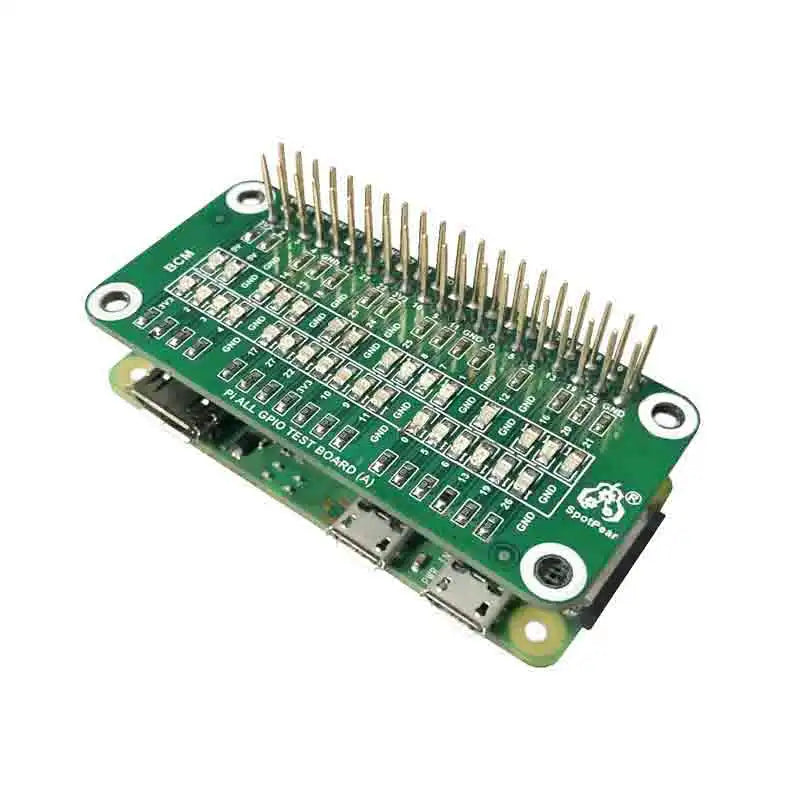

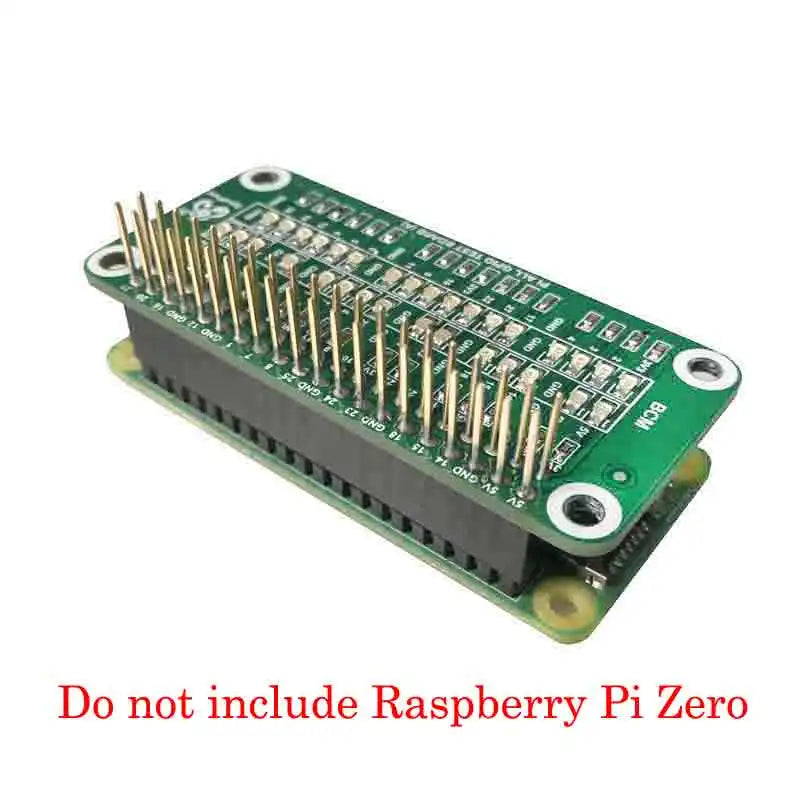

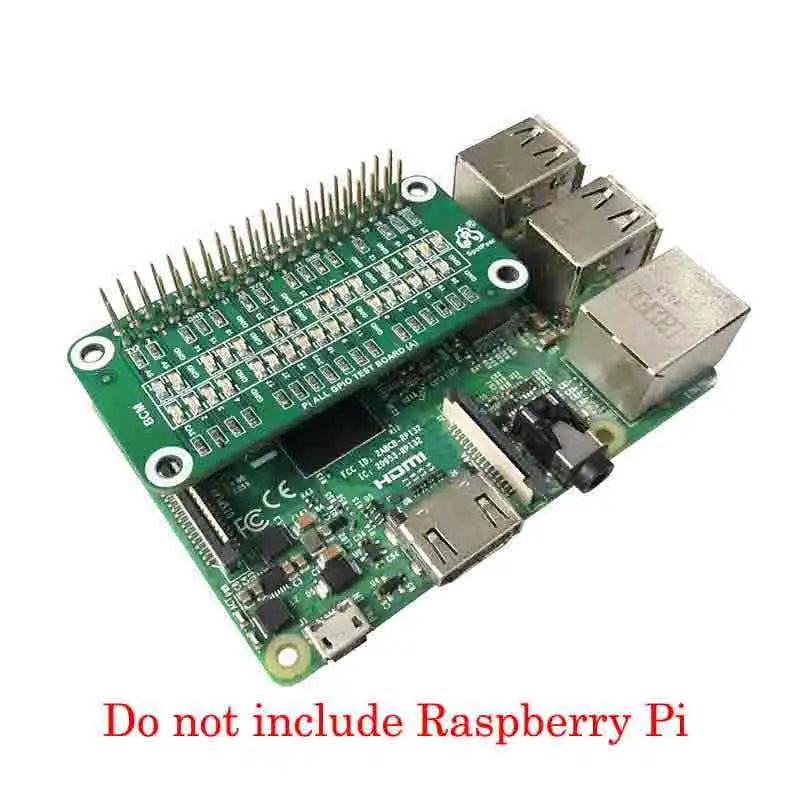

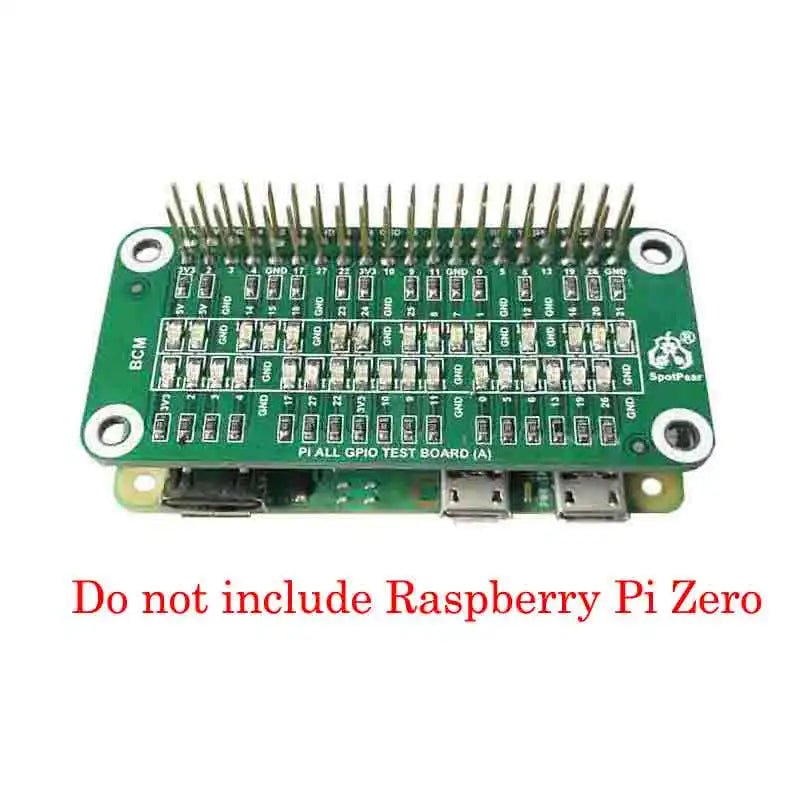

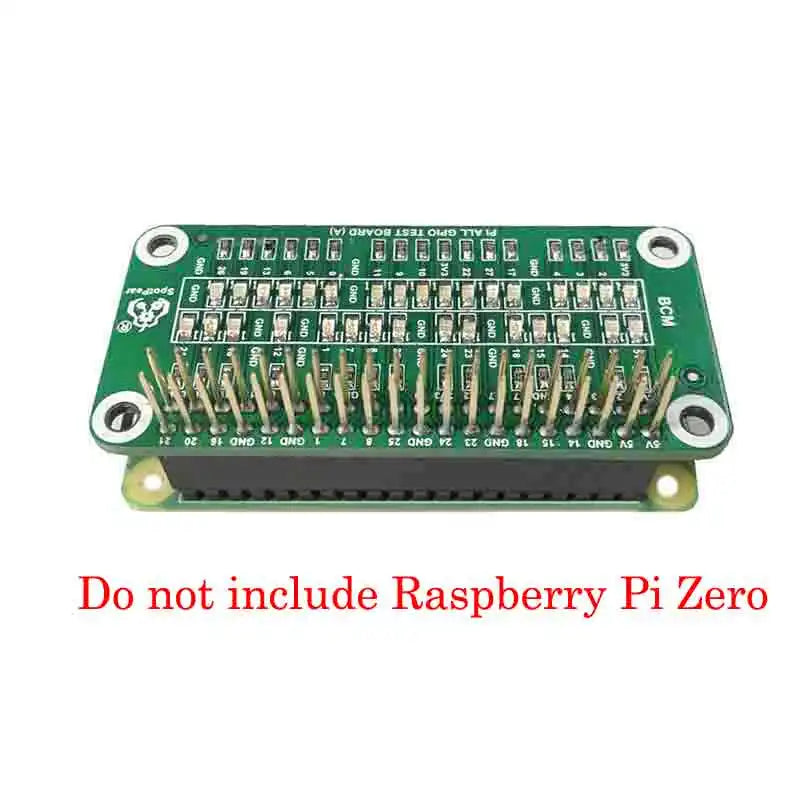

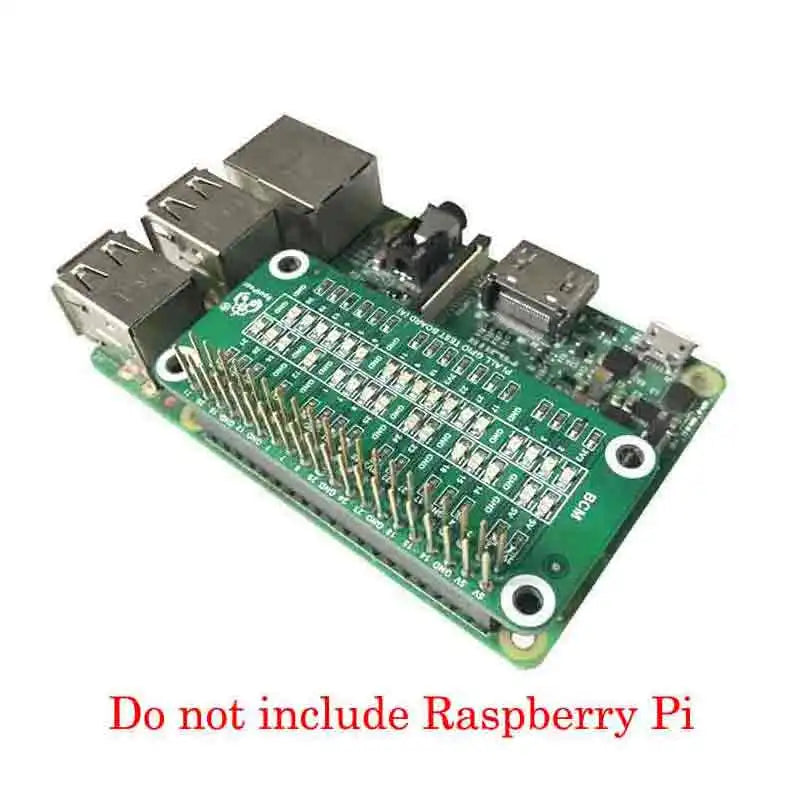

Custom Raspberry Pi IO All gpio test LED Test board starter board easy test board Manufacturer

Radxa unveiled Rock Pi X intel SBC powered by an Intel Atom x5-Z8350 processor over a year ago with a starting price of just $39 making one of the cheapest Windows 10 single board computer together with Atomic Pi, but the latter is not super convenient to use.

Rock Pi X model B specifications:

• SoC – Intel Atom x5-Z8350 "Cherry Trail" quad-core processor @ 1.44 GHz / 1.92 GHz (Turbo) with Intel Gen8 HD graphics @ 500 MHz

• System Memory – 1 GB, 2 GB. or 4GB LPDDR3-1866

• Storage – 8GB, 16GB, 32GB, 64GB or 128GB eMMC flash , MicroSD card socket

• Video Output – HDMI 1.4 port up to 4K @ 30 Hz

• Audio I/O – Via HDMI, 3.5mm audio jack

Connectivity

• Gigabit Ethernet with PoE support (additional PoE HAT required),

• 802.11 a/b/g/n/ac WiFi 5 and BT 4.2 Classic + LE with u.FL antenna connector

• USB – 1x USB 3.0 port, 3x USB 2.0 host ports, 1x USB OTG Type-C port

• Expansion – 40-pin Raspberry Pi compatible header with 6x GPIOs, 2x UART, 2x SPI, 2x I2C, 1x PCM/I2S, 1x SPDIF, 2x PWM, 1x ADC, and power signals (5V, 3.3V and GND)

• Misc – Power button, LED, RTC with battery connector

Power Supply

• 5V-20V up to 3A/1A Via USB-C port with QC and PD fast charging support;

• AXP288C PMIC

• PoE support via additional HAT

• Dimensions – 85 x 54 mm

• Rock Pi X 1.4 Model B

• Rock Pi X 1.4 Model B

The specifications have changed since last year with the eMMC flash being soldered directly to the board instead of having a removable module found in Rock Pi X v1.3 or earlier, and the MIPI DSI/eDP display port and MIPI CSI camera interface have been removed from the specs. However, we can still see an LCD connector on the top right corner of the photo above.

If you intend to run Windows 10 on the board, you'll need to buy Rock Pi X with 32 GB or more storage capacity. Ubuntu 20.04 should work fine with just 16 GB, and other lightweight distributions will have no problem running on 8 GB storage. Want more technical details about the board and getting started guides?
