Custom Raspberry Pi Expansion Board 8-ch Relay channelfor Raspberry Pi A+/B+/2B/3B/3B+ Onboard LED Custom PCB usb charge pcba Manufacturer

DESCRIPTION





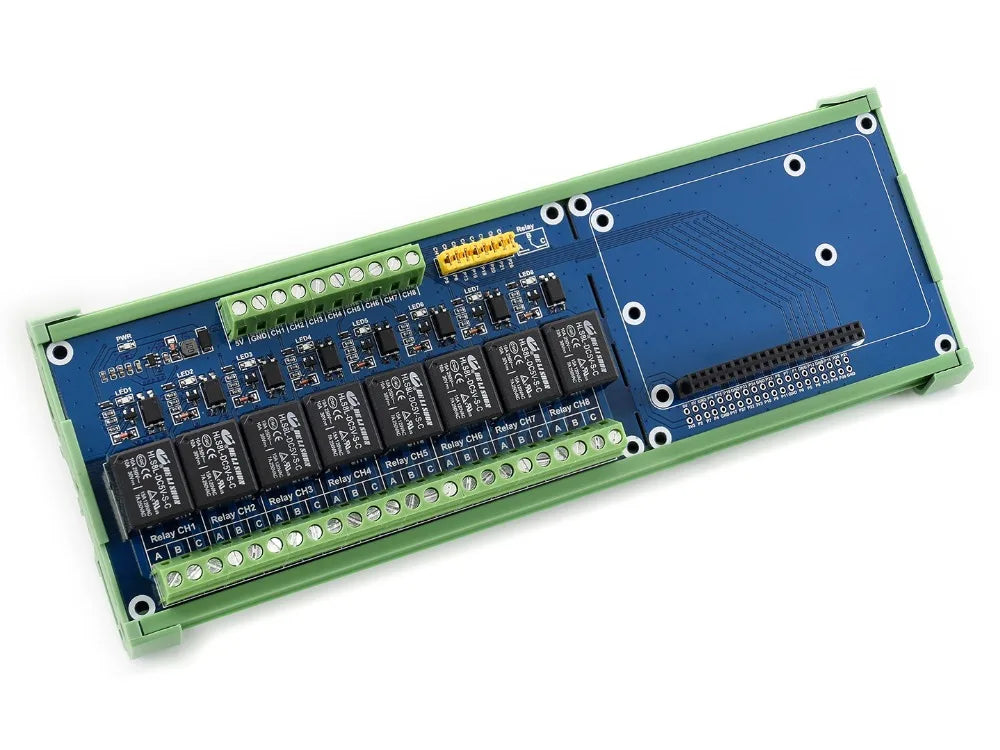

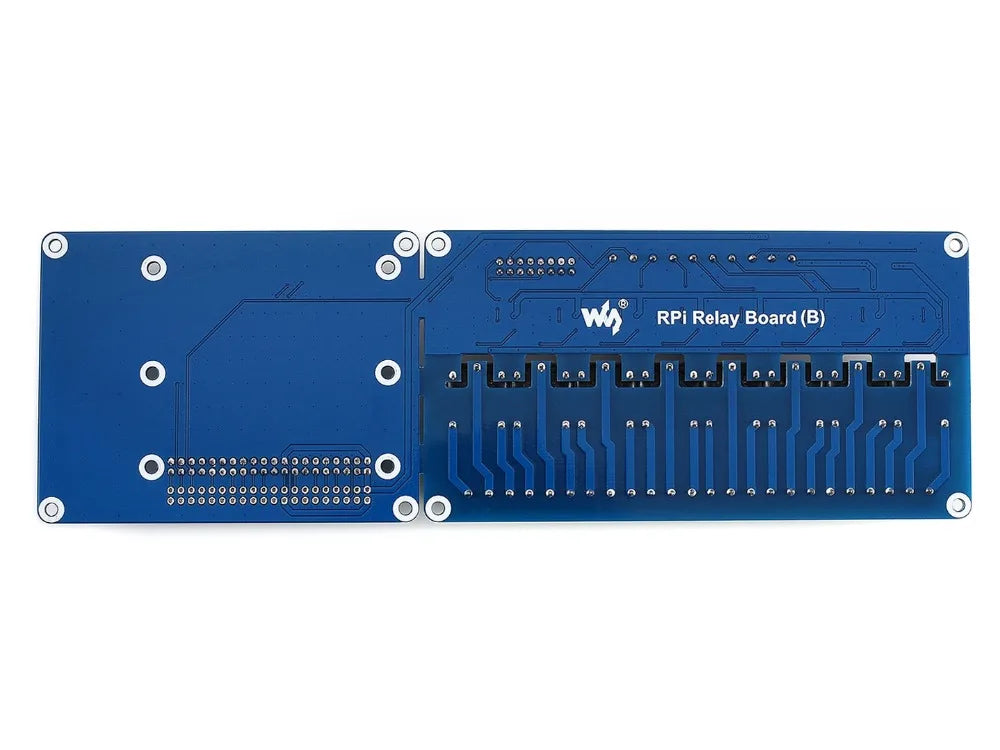

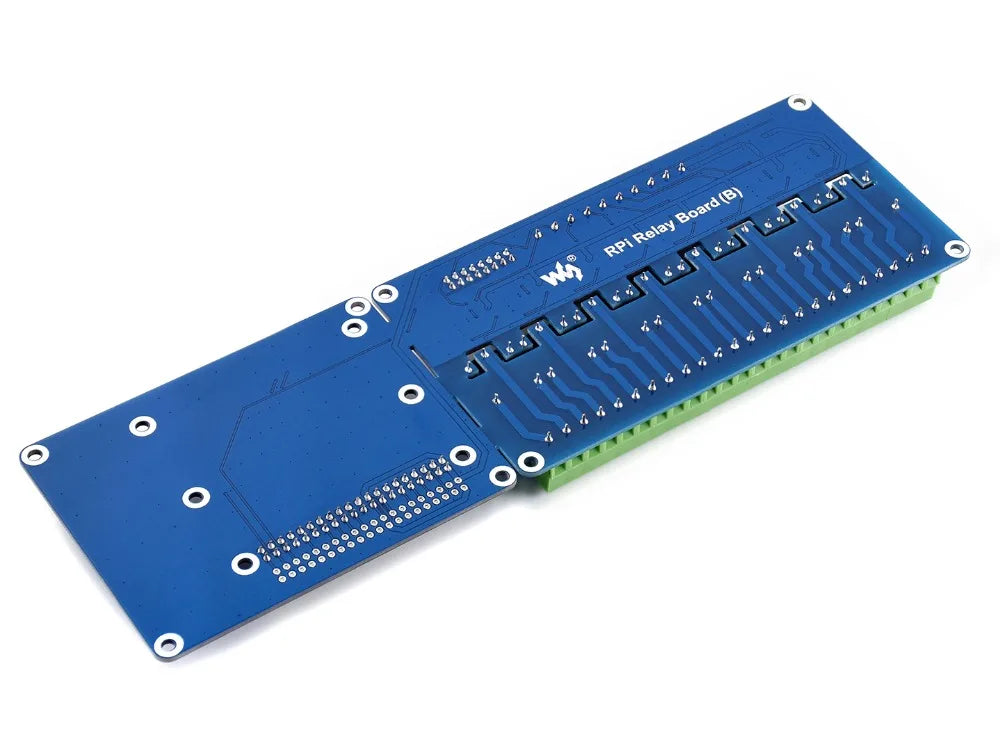

Raspberry Pi Expansion Board, 8-ch Relays

Overview

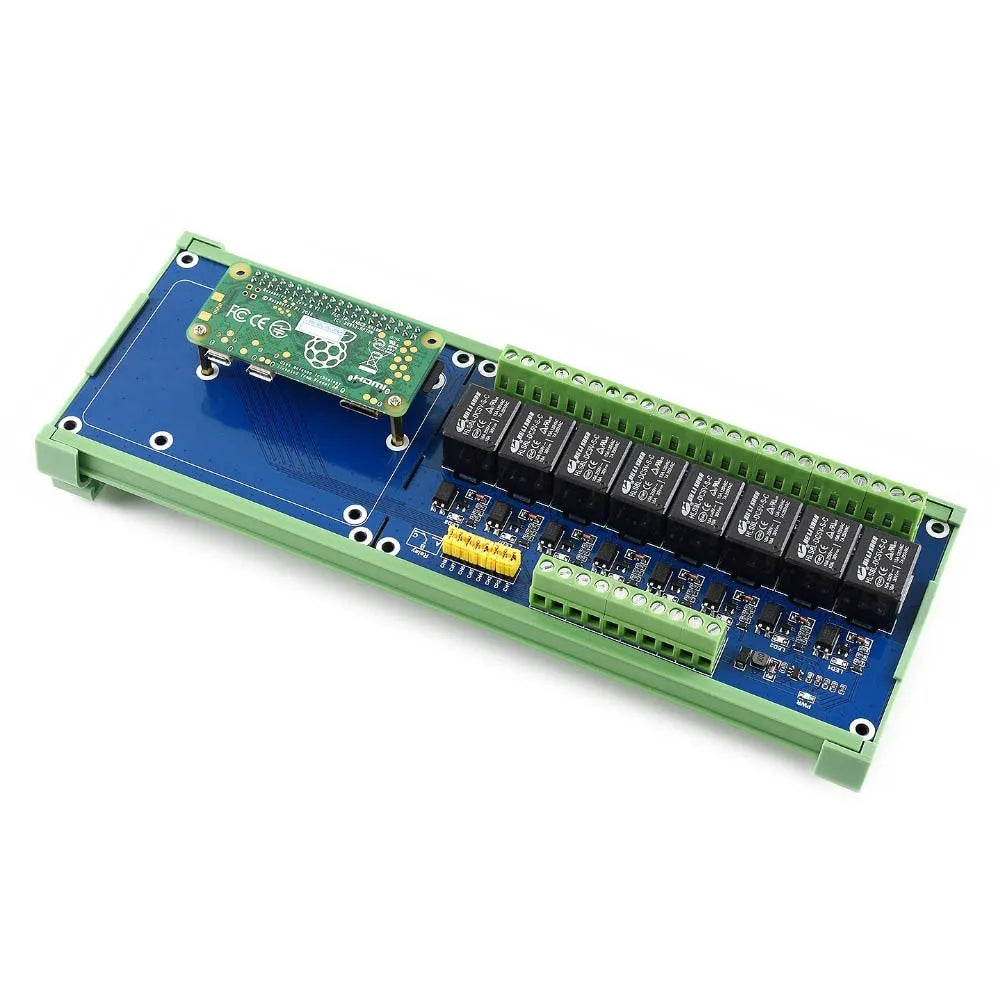

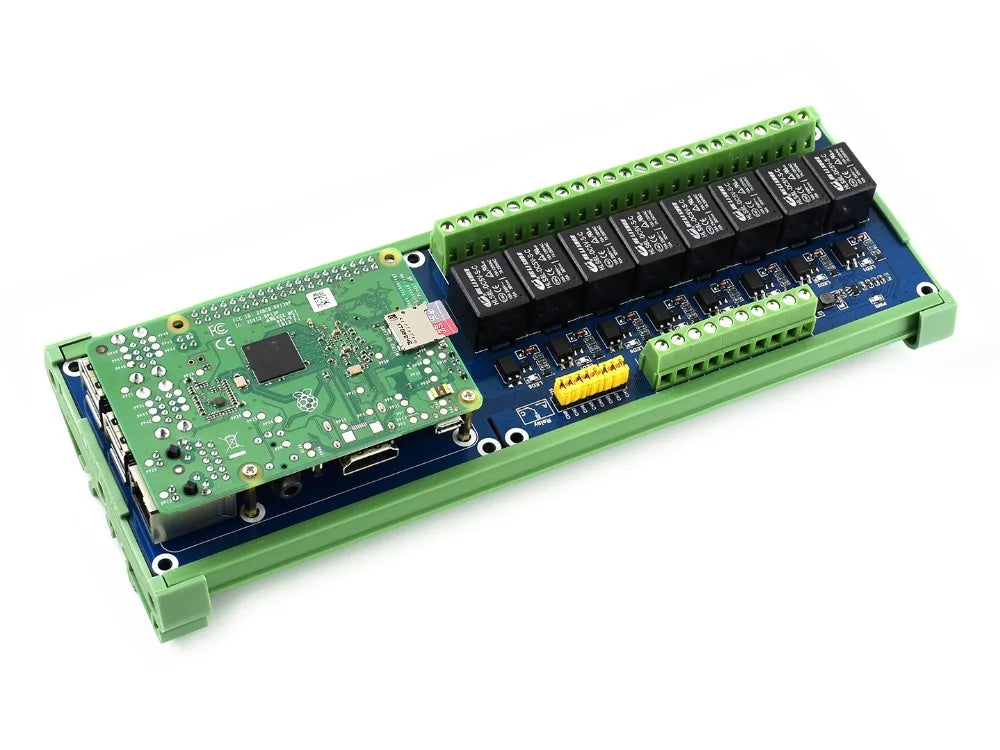

The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi. It gives your Pi the ability to control high voltage products such as home appliances.

Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano High quality relays, loads up to 5A 250V AC or 5A 30V DC Photo coupling isolation, prevent interference from high voltage circuit Standard rail mount bottom case Onboard LEDs for indicating relays status Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins Reserved control Interface, allows to work with controllers like PLC Comes with development resources, including examples in wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job)

Specifications Power supply voltage: 5V Trigger signal: 3.3V/5V Relay channels: 8-ch Contact form: SPDT-NO,NCClosed current: 6mA (per channel Connector: screw terminal block Dimension: 232 × 72 (mm) Mounting hole size: 3.0mm

Dimensions

Development Resources

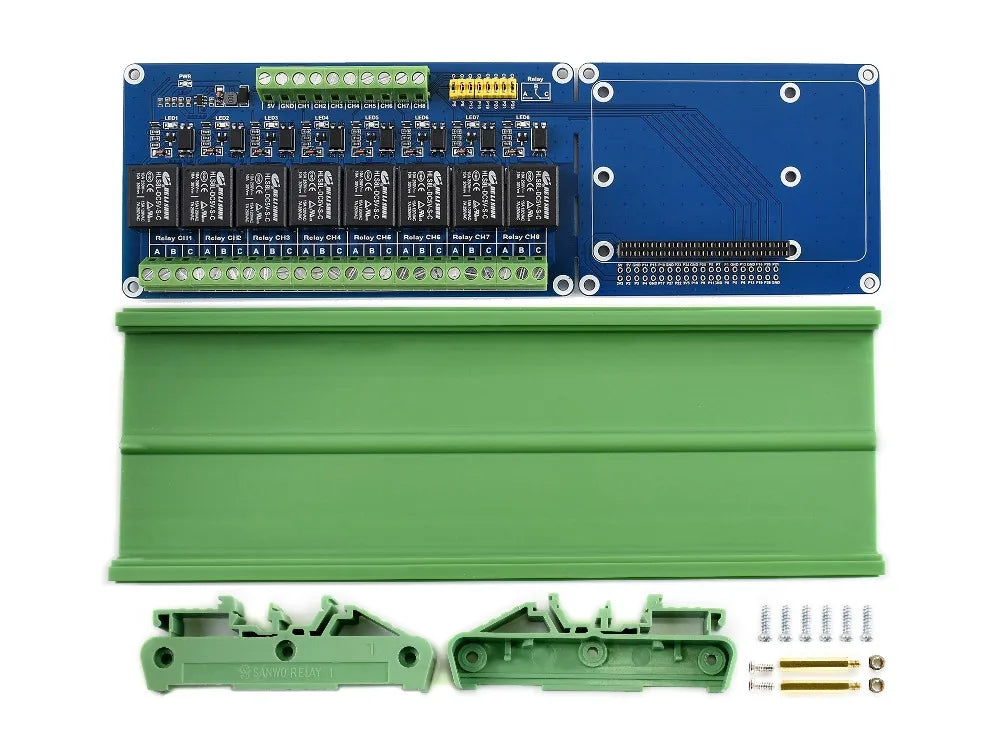

PACKAGE CONTENT

Weight: 0.096 kg
