Custom Raspberry Pi DC Motor Driver HAT(V1.0) Support 2-way DC Motor Manufacturer
Custom Raspberry Pi DC Motor Driver HAT(V1.0) Support 2-way DC Motor Manufacturer
Regular price
$19.66 USD
Regular price
$19.66 USD
Sale price
$19.66 USD
Unit price
per
Couldn't load pickup availability
The price is only for Bundle(optiona)1, provide electronic component ,welcome OEM ,ODM,for more please contact.
INTRODUCTION

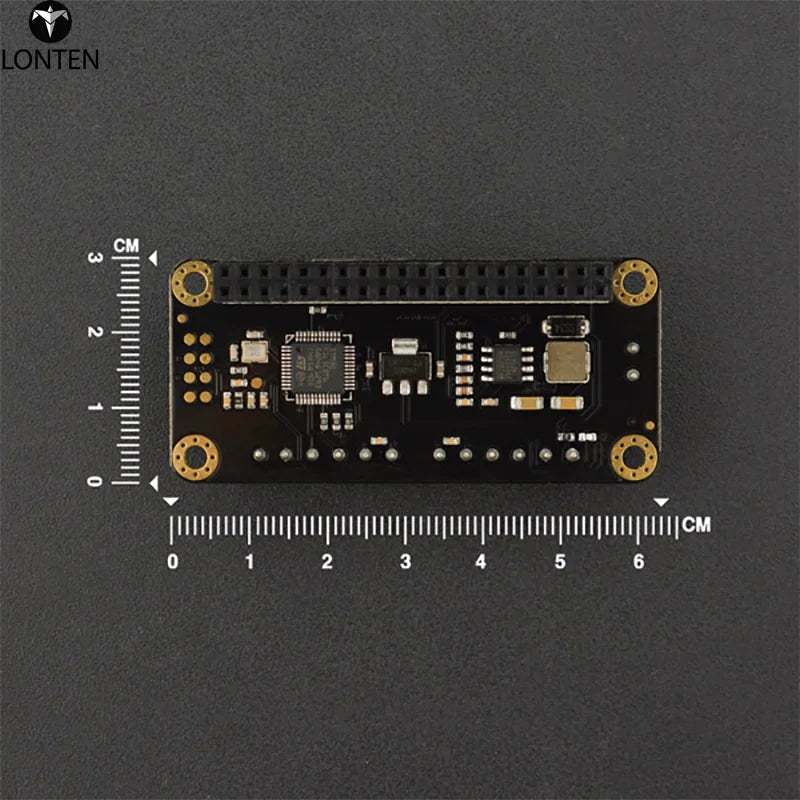

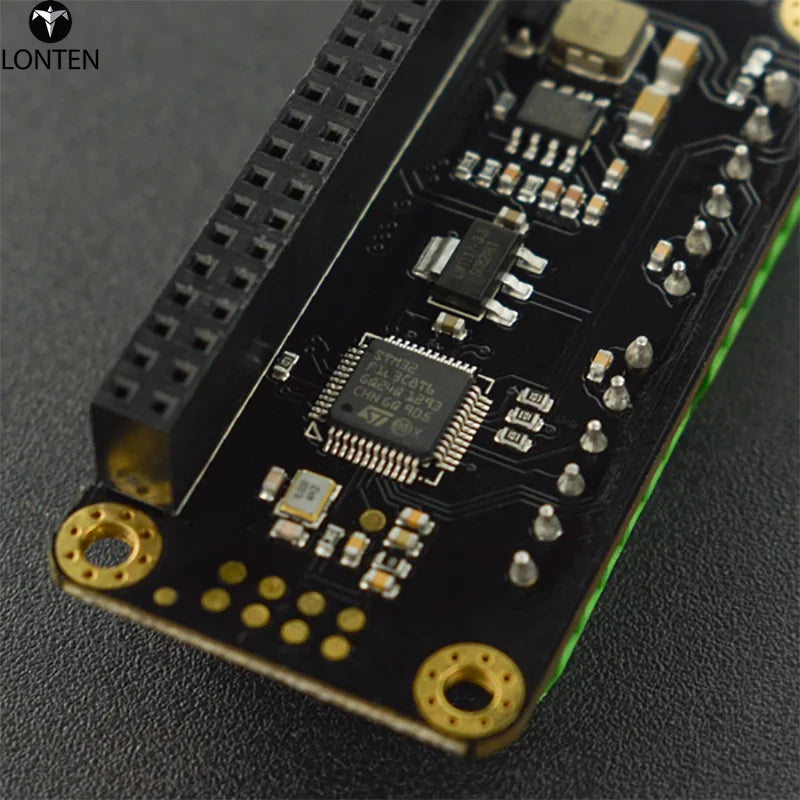

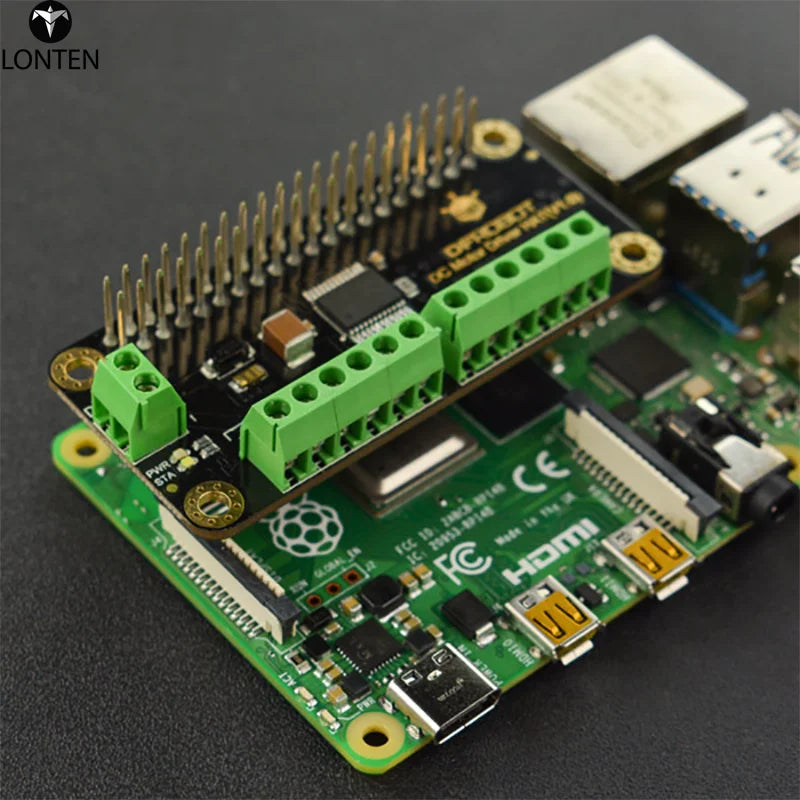

This is a Raspberry Pi DC motor driver board with on-board encoder interface, which can drive 2-way DC motor and DC motor with encoder. It communicates with Raspberry Pi via I2C, easy to configure and drive motors. The DC Motor Driver HAT adopts STM32 micro processor to analyze the command sent by the upper host, and then convert into motor drive signal after calculation. Besides that, a high-performance TB6612FNG motor drive chip is integrated on the module. The single channel continuous current is 1.2A and the peak current is up to 2A. The motor driver supports 7~12V wide input voltage. It can be used together with Raspberry Pi to make smart DIY car, balance car, DIY tank, mechanical fish, etc.
FEATURES
Motor Drive
I2C Communication
Raspberry Pi Shield
SPECIFICATION
Operating Voltage: 7~12V
Logical Voltage: 5V
Motor Driver Chip: TB6612FNG
Communication Interface: I2C
Default I2C Address: 0 x10
Continuous Drive Current: 1.2A
Peak Current: 2A
Support 2-way DC Motor/DC Motor with Encoder
Dimension: 65*30mm/2.56*1.18”
SHIPPING LIST
DC Motor Driver HAT(V1.0) x1
