Custom Raspberry Pi CM4 computing module 7 inch touch screen 1024*600 4G ZIGBEE RS485 CM4 module touch screen Manufacturer
Custom Raspberry Pi CM4 computing module 7 inch touch screen 1024*600 4G ZIGBEE RS485 CM4 module touch screen Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability
PRODUCT INFORMATION
| Brand: | Canruo |
| Demo Board Type: | ARM |
| ZIGBEE: | Support onboard Zigbee, Zigbee is not installed by default, optional. |
| Interface: | TF Card Support |
| Camera: | No camera is installed by default,optional. |
| LAN: | 1 Giga LAN. |
| Model Number: | Raspberry Pi CM4, CM4 Lite Quad Cortex-A72; 1.5GHz |
| Intergrated Feature: | The baseboard does not have additional WiFi/BT, you can use the WIFI/BT on CM4. |
Raspberry Pi CM4 computing module 7 inch touch screen 1024*600 4G ZIGBEE RS485 CM4 module touch screen

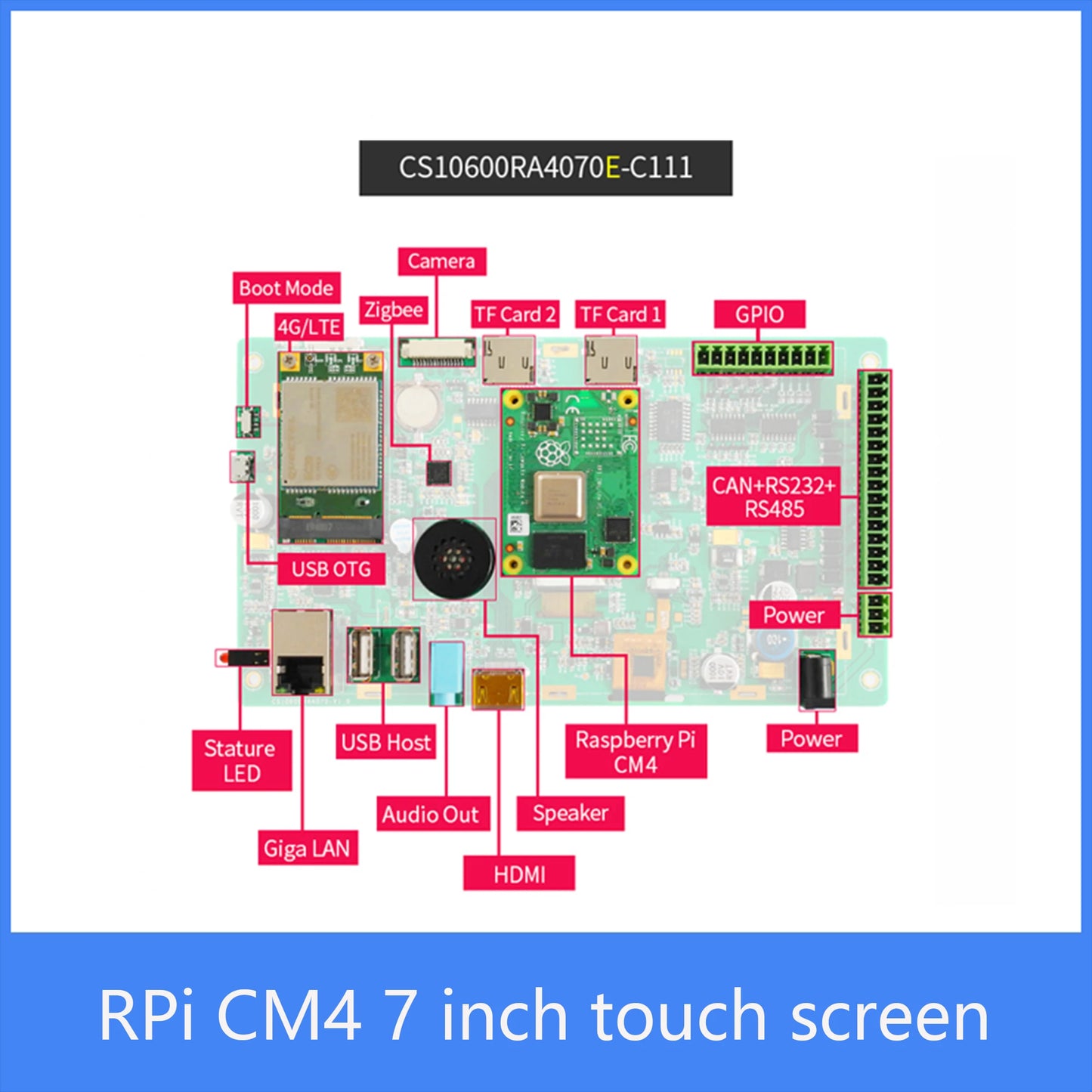

Hardware parameters CPU: Raspberry Pi CM4, CM4 Lite Quad Cortex-A72; 1.5GHz Storage: 2 TF card slots. A Lite version of a card slot design without eMMC. The other card slot is designed for storage and expansion. LCD screen: 7.0-inch IPS LCD display, 1024*600 pixels, screen brightness 500NIT. Touch: Five-point capacitive touch, 0.7mm tempered glass. USB: 2xUSB 2.0Host interface, 1xminiUSB OTG interface. LAN: 1 Giga LAN. Audio: 3.5mm audio output interface, built-in 2W speaker. HDMI: Onboard HDMI interface (the HDMI interface is not welded by default) Buzzer: Onboard buzzer, running through GPIO RTC: High-precision RTC, using lithium coin-type nickel coin batteries. Note: Due to shipping restrictions, lithium coin-type nickel coin batteries are not installed by default. RS232: up to 4 channels RS485: up to 2 channels. The RS485 circuit automatically controls the input/output direction and does not require software control. CAN BUS: 1 way GPIO: Optically isolated GPIO, 4 inputs, 4 outputs, each can drive up to 500mA current (requires an external power supply). WIFI/BT: The baseboard does not have additional WiFi/BT, you can use the WIFI/BT on CM4. ZIGBEE: Support onboard Zigbee, Zigbee is not installed by default, it is optional. 4G/LTE: Support 4G/LTE module in miniPCle slot, 4G/LTE module is not installed by default, it is optional. There is a camera interface compatible with Raspberry Pi. Camera: No camera is installed by default, it is optional. Power input: 6~36V DC current@12V up to 700 mA power 8.4W Working temperature: 0℃ to +50℃ Operating system: Debian, Ubuntu Size: Without shell: (190*107.8*27.7mm) With shell: (206*135*30.1mm) Weight: Without shell: (about 40g) with shell (about 700g)
PRODUCT DETAILS
PRODUCT SHOW
APPLICATION AREA
Consumer Electronics
Industrial Manufacture
