Custom Raspberry Pi Camera IMX219 Camera Module for the official Raspberry Pi Camera Board V2, 77.6 degree Manufacturer
Custom Raspberry Pi Camera IMX219 Camera Module for the official Raspberry Pi Camera Board V2, 77.6 degree Manufacturer
Couldn't load pickup availability
Do not include Raspberry Pi

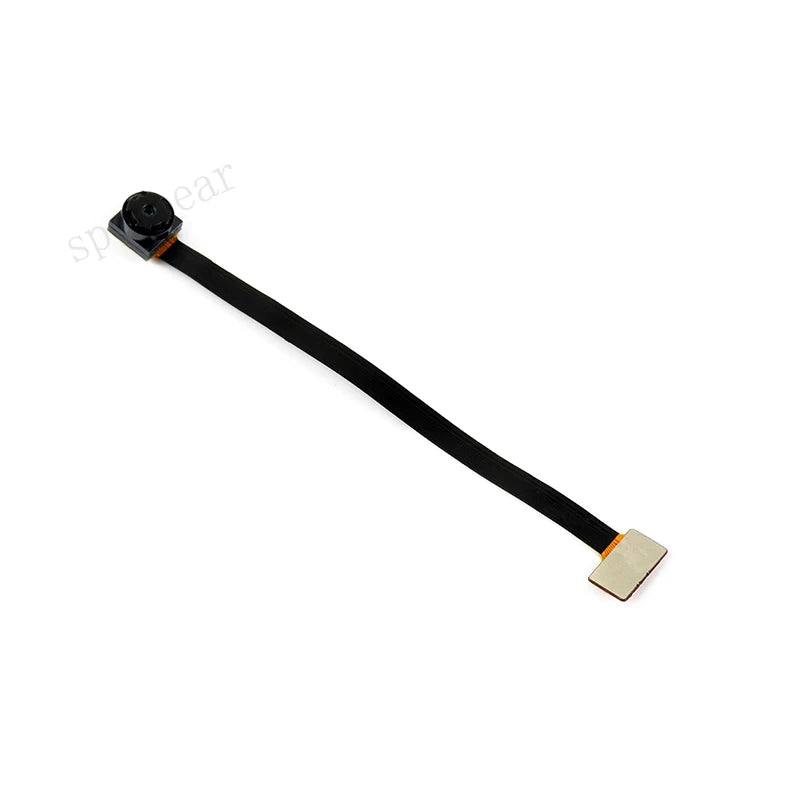

This is a camera module (without driver PCB) compatible with the officialRaspberry Pi Camera Board V2, with 8-megapixel IMX219 sensor and features 77.6 degree field of view.
If you got a Raspberry Pi Camera Board V2 and just want to try something new, here it is.
-
Sony IMX219 8-megapixel sensor
- Camera specifications
-
CMOS size : 1/4inch
-
Aperture (F) : 2.0
-
Focal Length : 2.96mm
-
Angle of View (diagonal) : 77.6 degree (while the original V2 camera is only 62.2 degree)
-
Distortion: < 1%
-
Focusing Range: 20cm ~ infinity
-
-
3280 x2464 still picture resolution
-
Support 1080p30, 720p60 and 640x480p90 video record
Selection Guide
| Camera Module | Pixels | Sensor | Infrared | Angle of View (diagonal) (degree) | Aperture (F) | Focal Length (mm) |
| RPi Camera V2 original camera module | 8 Mega | IMX219 | × | 62.2 | 2.0 | 3.04 |
| RPi NoIR Camera V2 original camera module | 8 Mega | IMX219 | √ | 62.2 | 2.0 | 3.04 |
| IMX219-D160 | 8 Mega | IMX219 | × | 160 | 2.35 | 3.15 |
| IMX219-D77 | 8 Mega | IMX219 | × | 77.6 | 2.0 | 2.96 |
Note: thanks to the interface compatibility, camera modules listed above are interchangeable according to your needs.

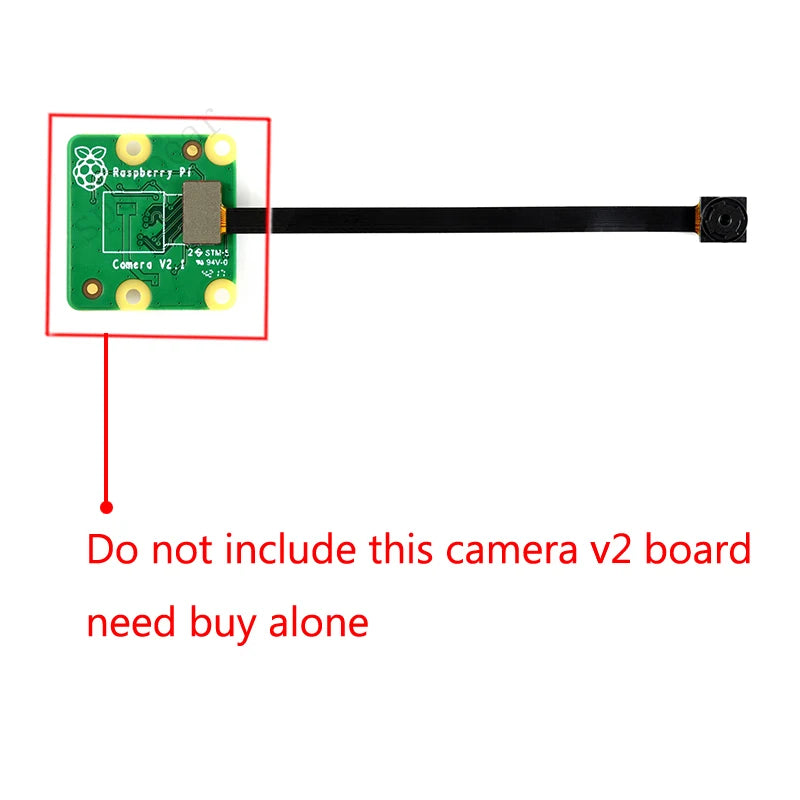

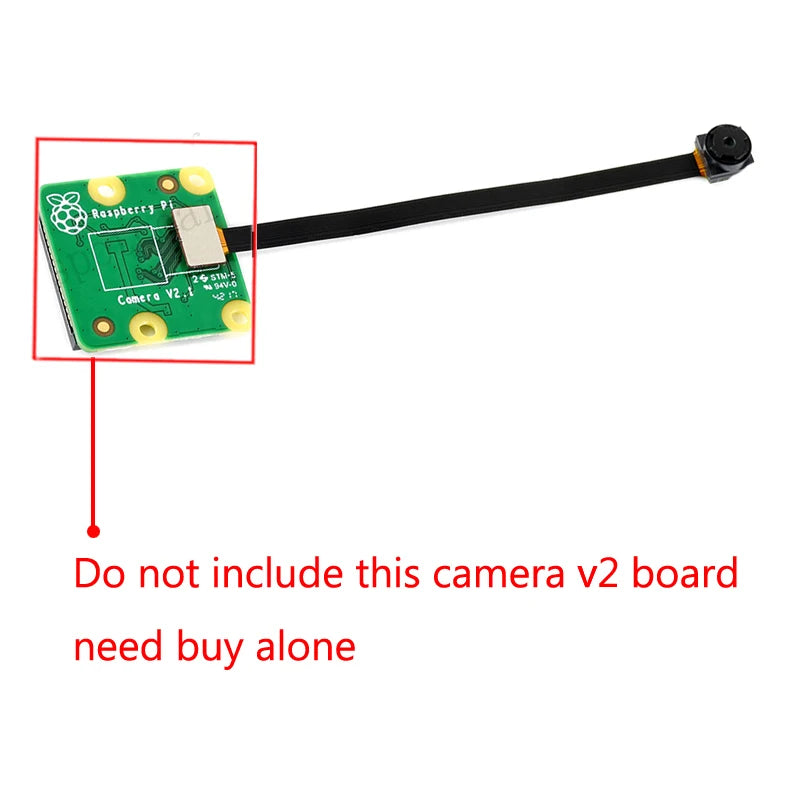

Do not include Raspberry Pi and camera ve board need buy alone
-
IMX219-D77 x1
