Custom Raspberry Pi Camera IMX219 Camera Module for the official Raspberry Pi Camera Board V2, 160 degree Manufacturer

Name: Custom Raspberry Pi Camera IMX219 Camera Module for the official Raspberry Pi Camera Board V2, 160 degree Manufacturer
Brand: Lonten Tech
Price: 100.00 USD
Availability: InStock

$100.00 USD

~~$0.00 USD~~ $100.00 USD

Sale Sold out

Quantity

Do not include Raspberry Pi

Do not include Camera V2 board

Attention

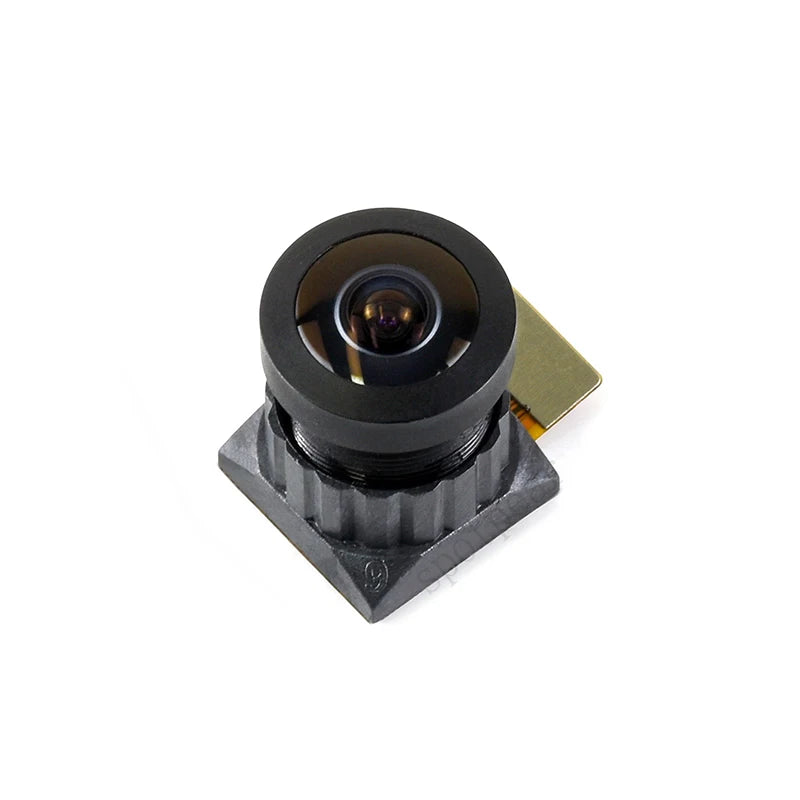

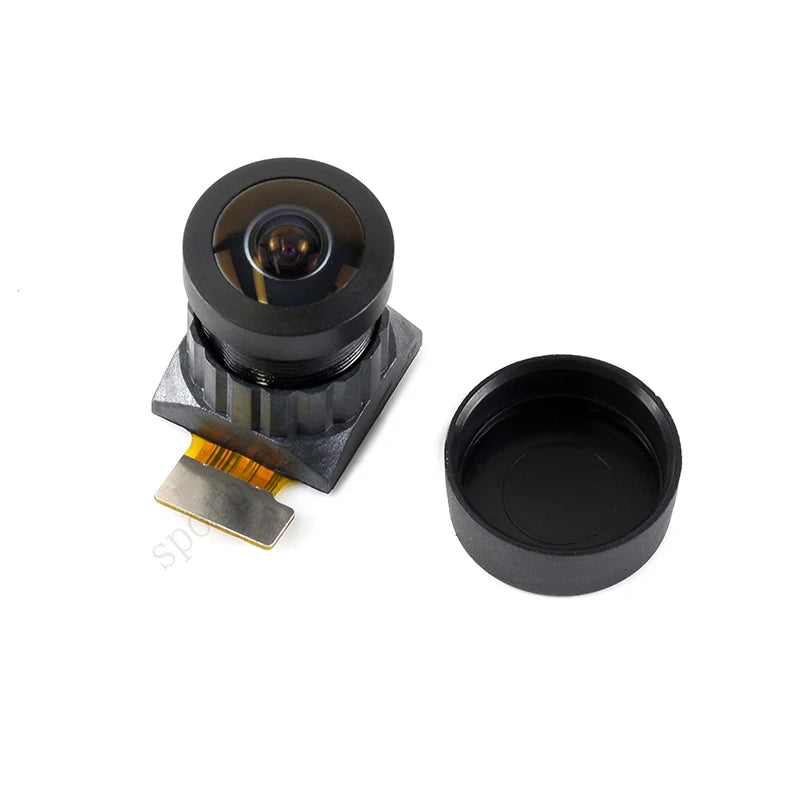

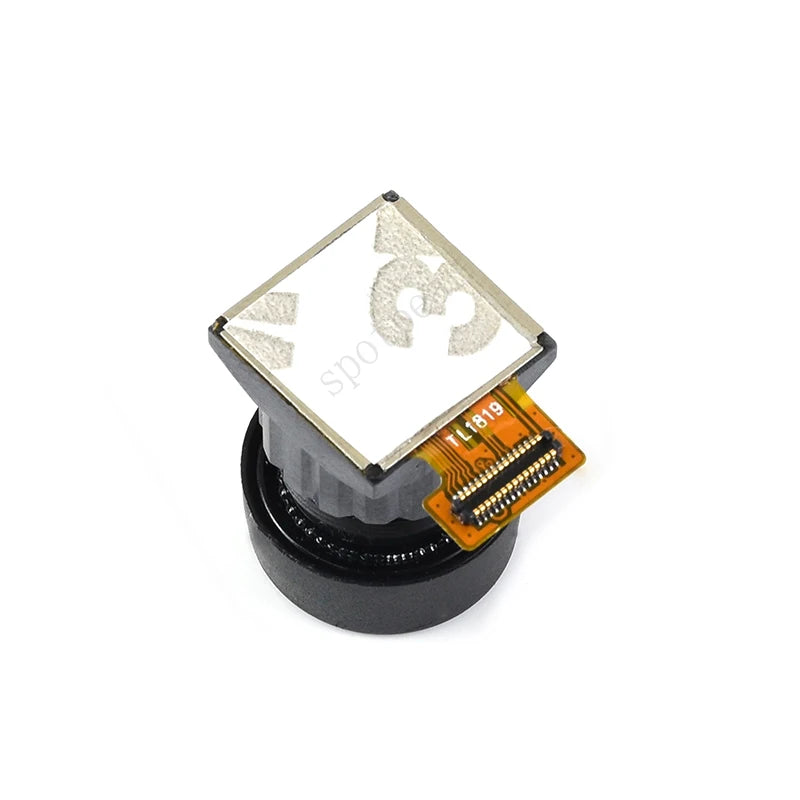

This is a camera module (without driver PCB) compatible with the official Raspberry Pi Camera Board V2, with 8-megapixel IMX219 sensor and features 160 degree field of view.

If you got a Raspberry Pi Camera Board V2 and just want to try something new, here it is.

Features

Sony IMX219 8-megapixel sensor
Camera specifications
- CMOS size : 1/4inch
- Aperture (F) : 2.35
- Focal Length : 3.15mm
- Angle of View (diagonal) : 160 degree (while the original V2 camera is only 62.2 degree)
- Distortion: < 14.3%
- Focusing Range: 20cm ~ infinity
3280 x2464 still picture resolution
Support 1080p30, 720p60 and 640x480p90 video record

Selection Guide

Camera Module	Pixels	Sensor	Infrared	Angle of View (diagonal) (degree)	Aperture (F)	Focal Length (mm)
RPi Camera V2 original camera module	8 Mega	IMX219	×	62.2	2.0	3.04
RPi NoIR Camera V2 original camera module	8 Mega	IMX219	√	62.2	2.0	3.04
IMX219-D160	8 Mega	IMX219	×	160	2.35	3.15
IMX219-D77	8 Mega	IMX219	×	77.6	2.0	2.96
