Product Description

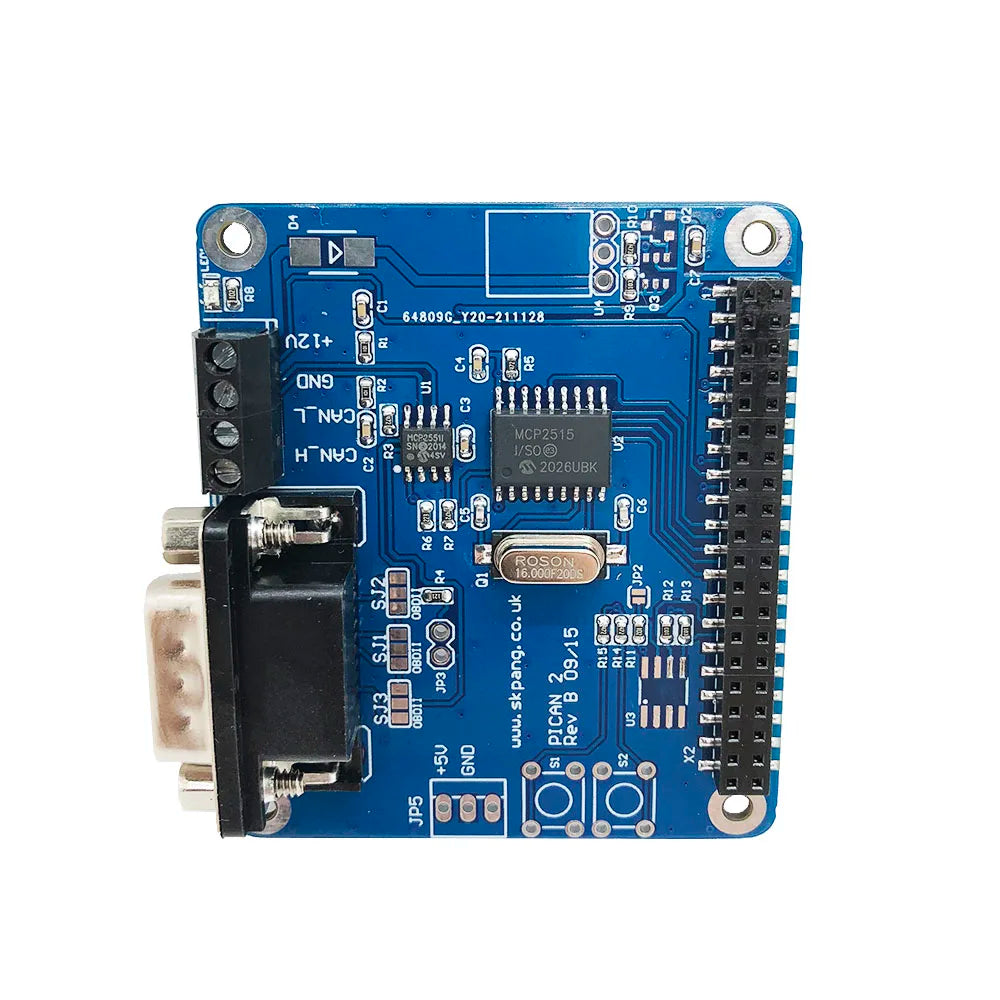

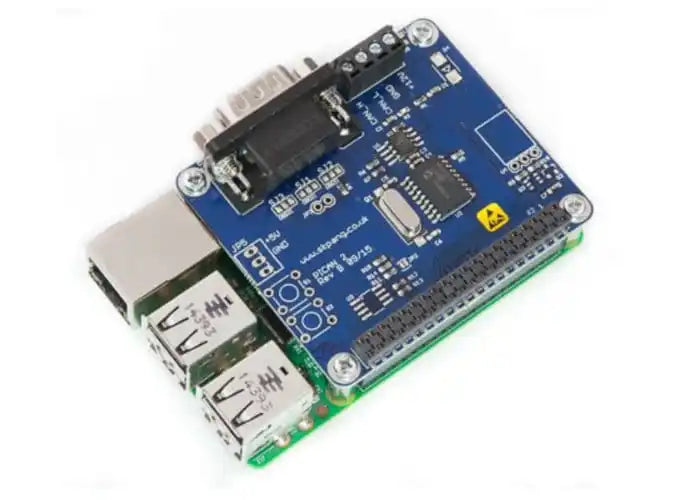

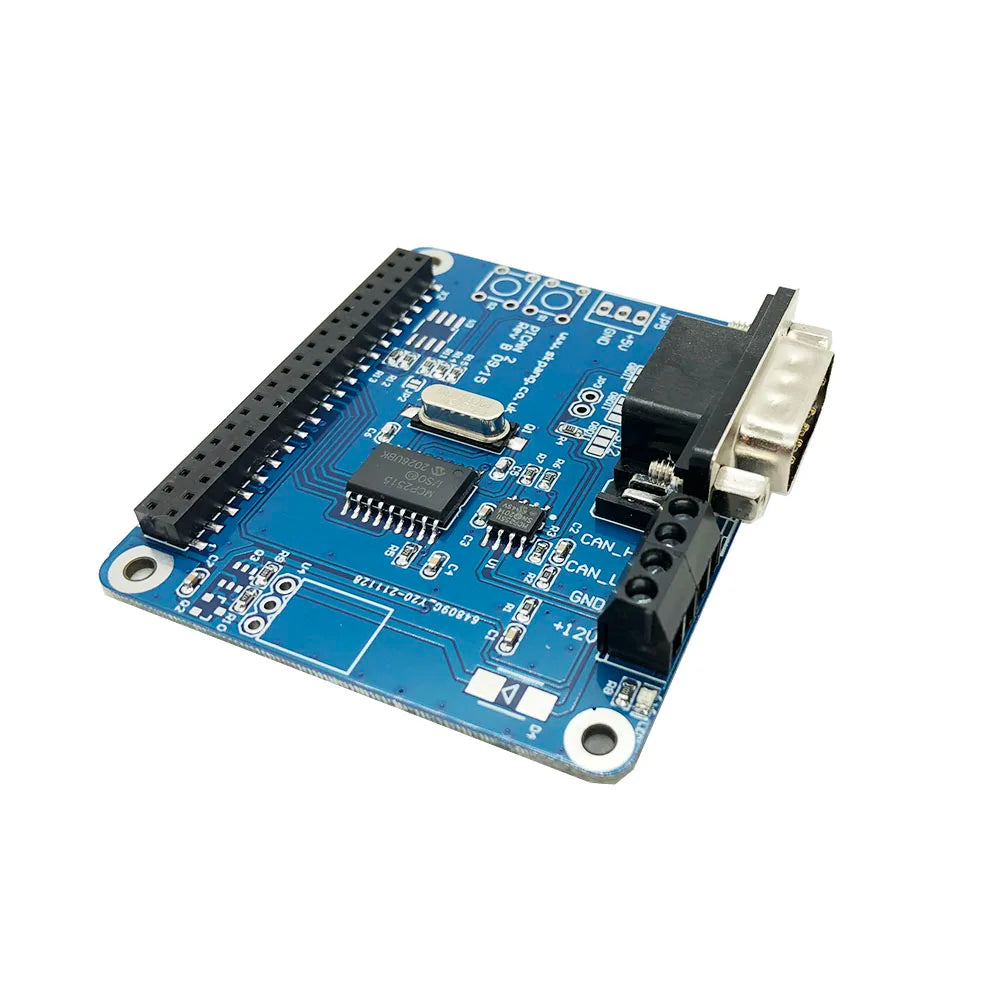

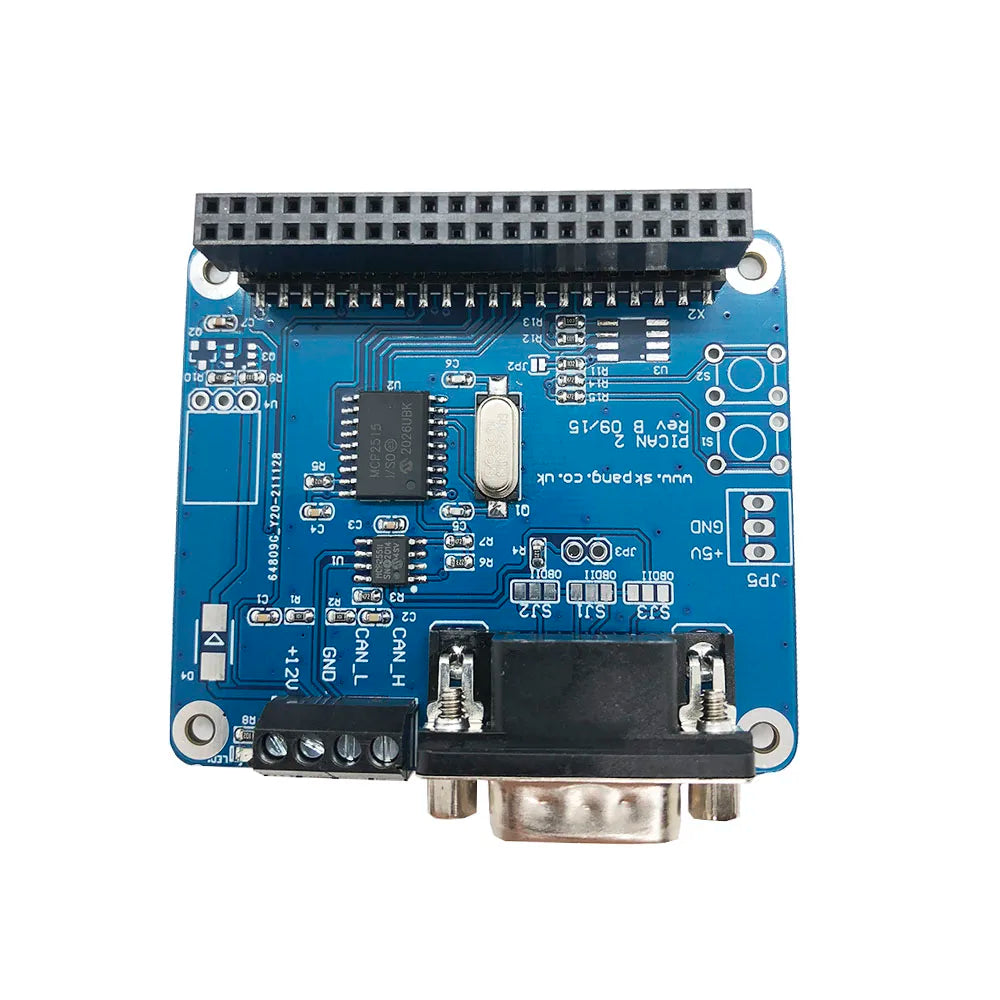

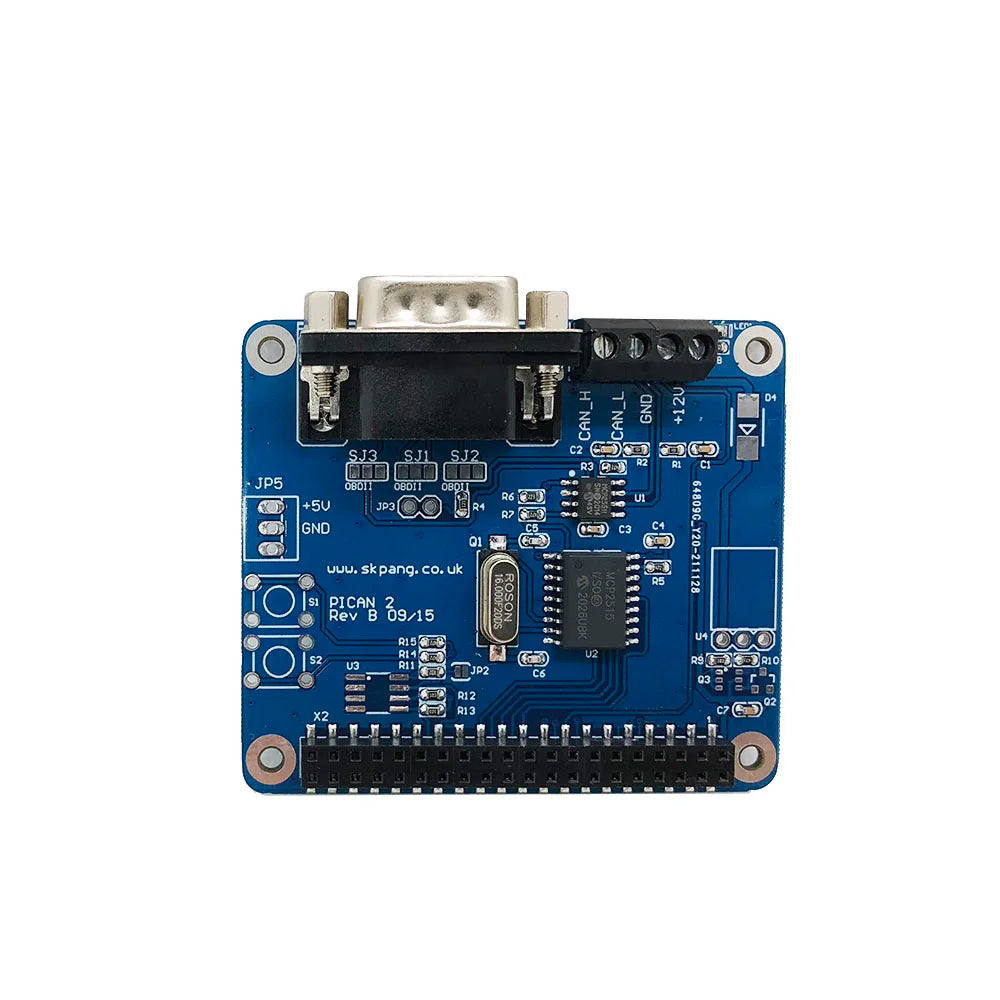

The PiCAN board provides CAN-Bus function for Raspberry Pi. It uses Microchip MCP2515 CAN controller with MCP2551 CAN transceiver. The connection is made through DB9 or 4-directional screw terminals. The board also provides 5v 1A SMPS which can be connected through screw terminals or The DB9 connector powers the Pi well. Easy to install the SocketCAN driver, programming can be done in C or Python

Features

•CANv2.0B running speed 1Mb/s
• High-speed SPI interface (10 MHz)
• Standard and extended data and remote frames
• CAN connection via standard 9-way Sub-D connector or screw terminal
• Compatible with OBDII cable
• Welding bridge sets different configurations for DB9 connectors
• 120Ω terminator ready
• Serial LCD ready
• LED indicator
• Footprints two mini buttons
•Four fixing holes, in line with Pi Hat standard
•SocketCAN driver, shown as can0 in the application
• Interrupt RX on GPIO25
