Custom Raspberry Pi 7.8inch E-Ink display HAT for 872*1404 resolution,IT8951 controller, USB/SPI/I80 interface Manufacturer

Overview

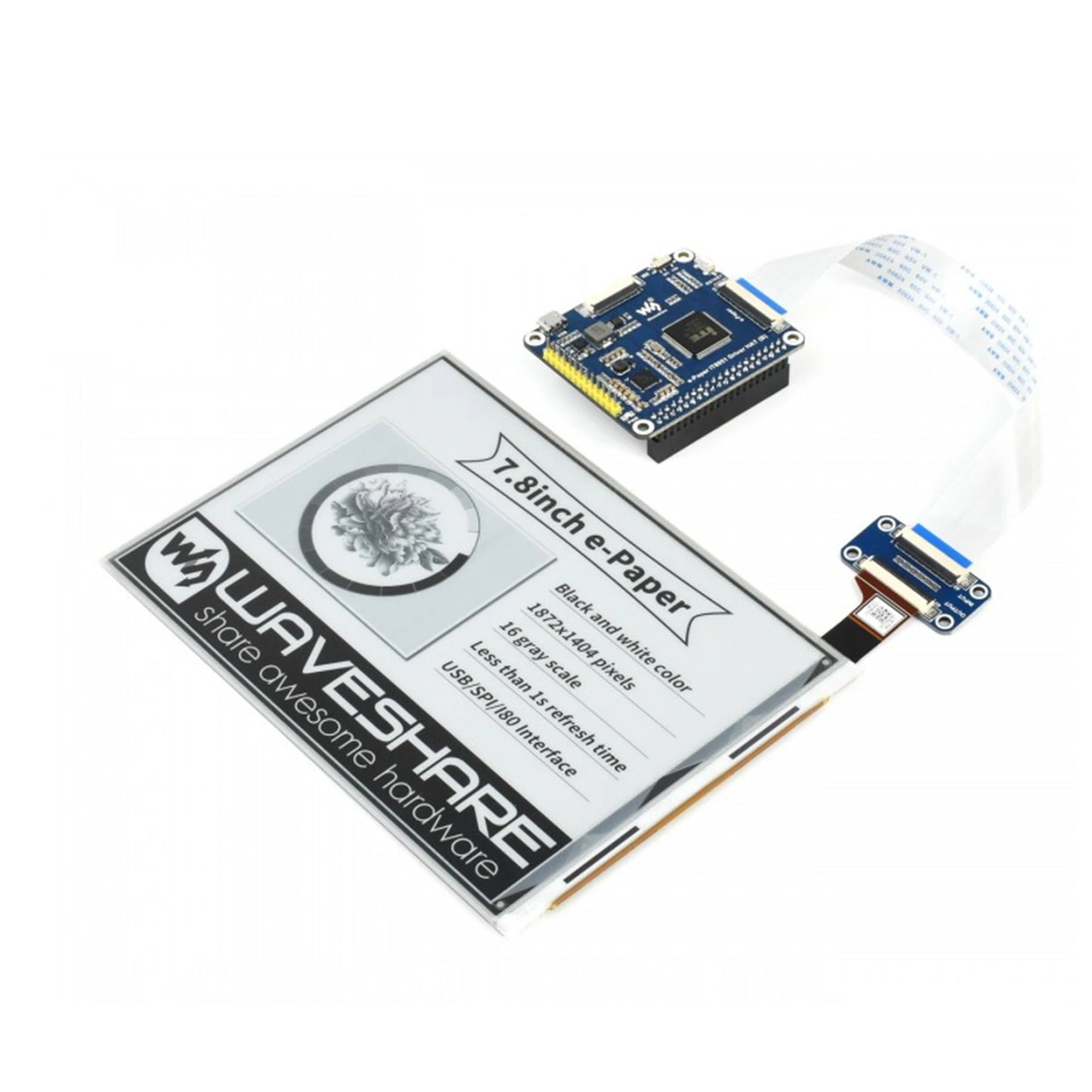

This is an E-Ink display HAT for Raspberry Pi, 7.8inch, 1872×1404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.

Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down

• Low power consumption, basically power is only required for refreshing

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

• USB/SPI/I80 interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.

• Comes with development resources and manual (examples for Raspberry Pi/STM32)

Specifications

• Operating voltage: 5V

• Interface: USB/SPI/I80

• Outline dimension: 173.8mm × 127.6mm × 0.78mm

• Display size: 158.184mm × 118.638mm

• Dot pitch: 0.0845mm × 0.0845mm

• Resolution: 1872 × 1404

• Display color: black, white

• Gray scale: 2-16 (1-4 bit)

• Full refresh time: 450ms

• Total refresh power: 1.2W(typ.)

• Total standby power: 0.1W(typ.)

• Viewing angle: >170°

SPI Pinouts

e-Paper IT8951 Driver HAT (B) Dimensions

Development Resources

PACKAGE CONTENT

Weight: 0.077 kg

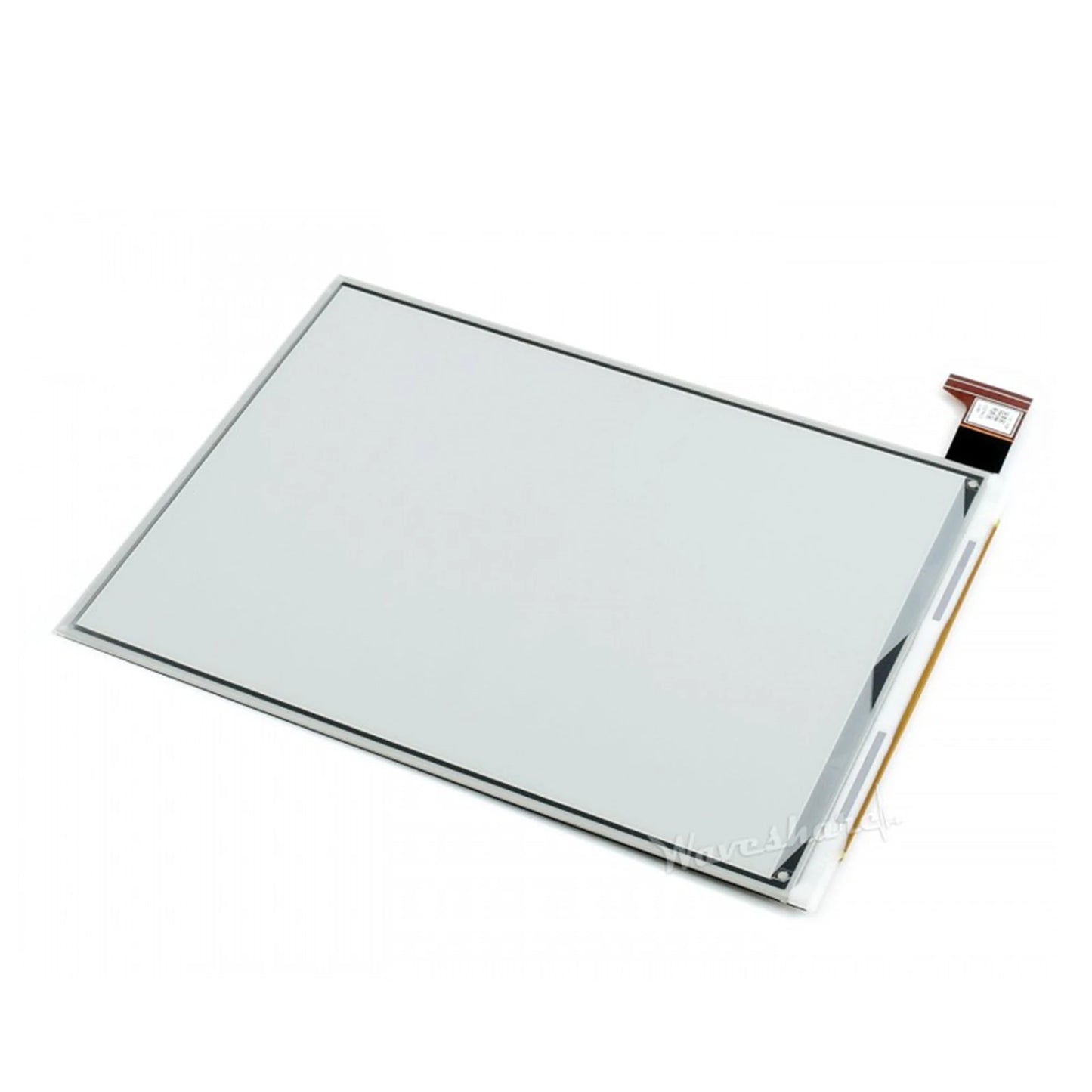

1. 7.8inch e-Paper x1

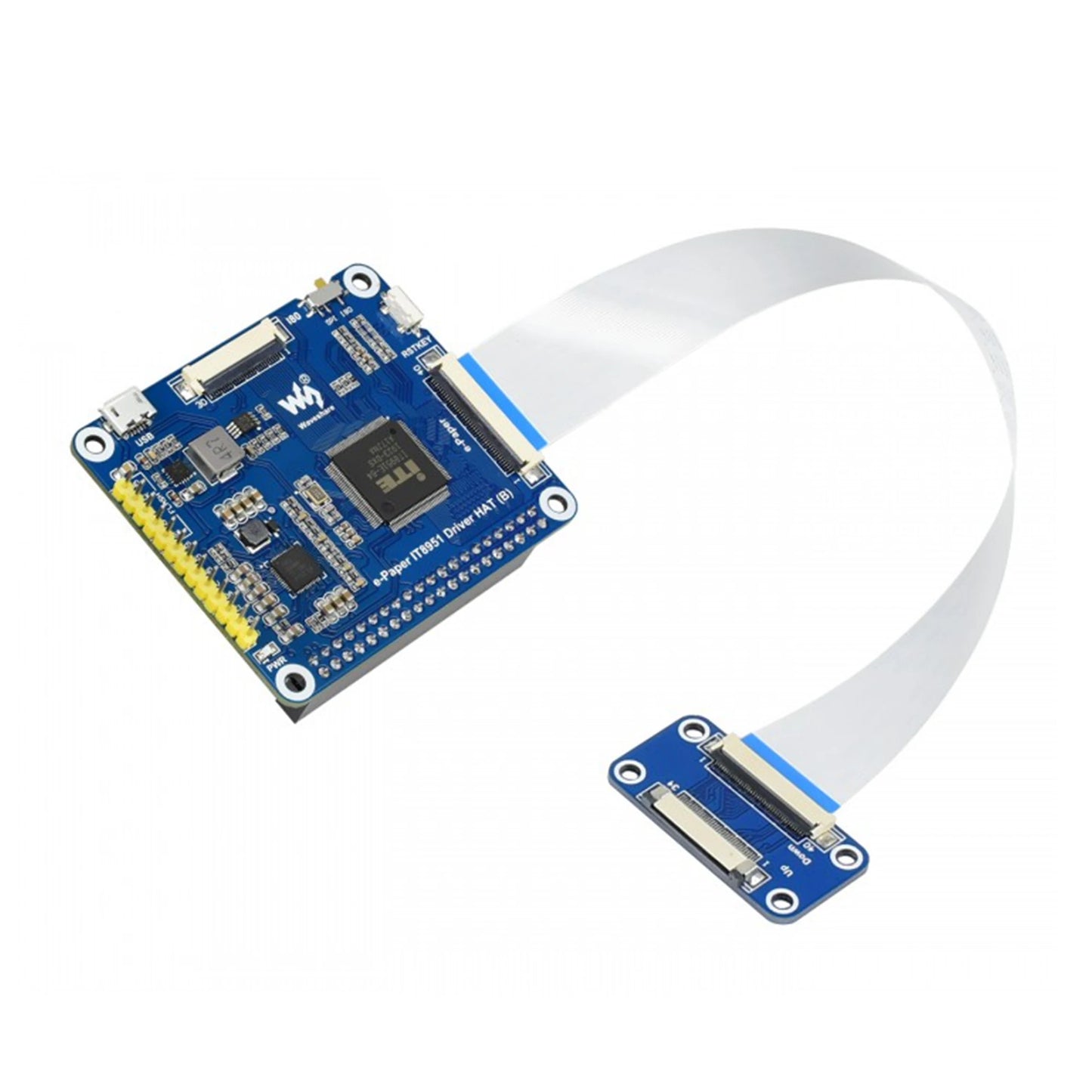

2. e-Paper IT8951 Driver HAT (B) x1

3. 7.8inch e-Paper Adapter x1

4. 40PIN FFC (same side contact) x1

5. USB type A plug to micro B plug cable x1

6. PH2.0 20cm 8Pin x1

7. RPi screws pack (2pcs) x1

1

2+3+4

5

6

7
