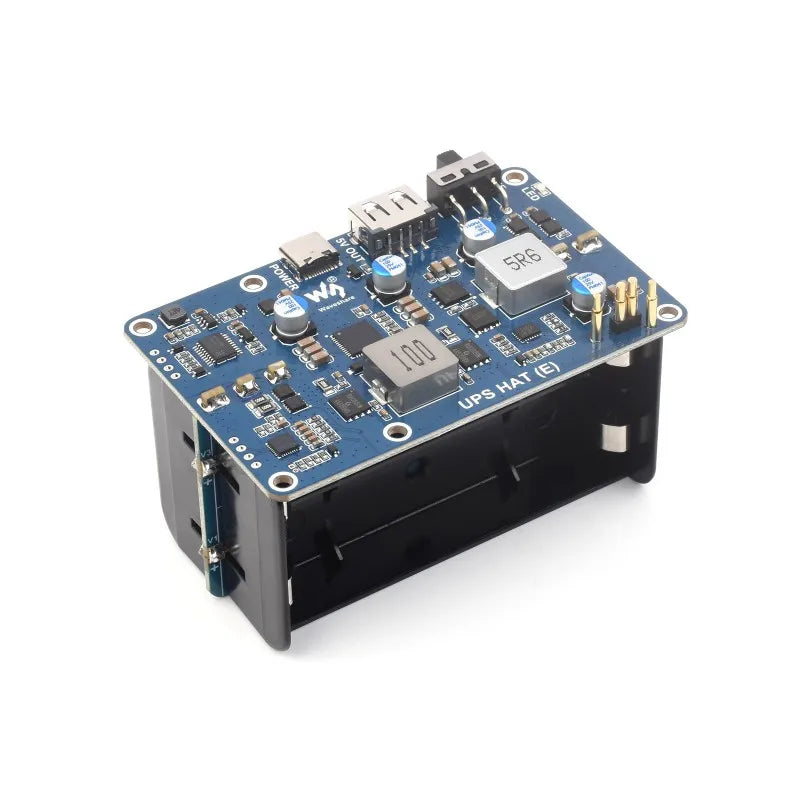

Custom Raspberry Pi 5 UPS HAT (E) Extension Board 5V 6A Output Uninterruptible Power Supply Supports 21700 Li Batteries

[Note]

[] Donotinclude 21700 Battery

[]Dangerous:Reverseconnect the battery. Willcause Fire

[] Before installing the battery, ensure that the direction of the battery is correct

[Overview]

[] UPS HAT (E) For Raspberry Pi, Supports 4× 21700 Li Batteries (NOT Included), Bi-Directional Fast Charging, 5V 6A Output, Pogo Pins Connector

[Features At A Glance]

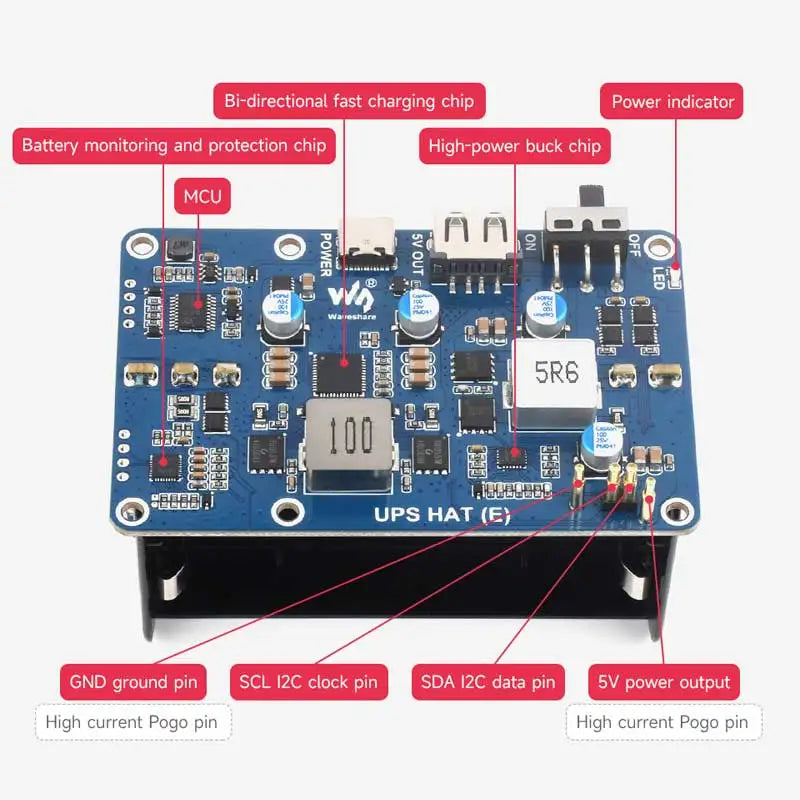

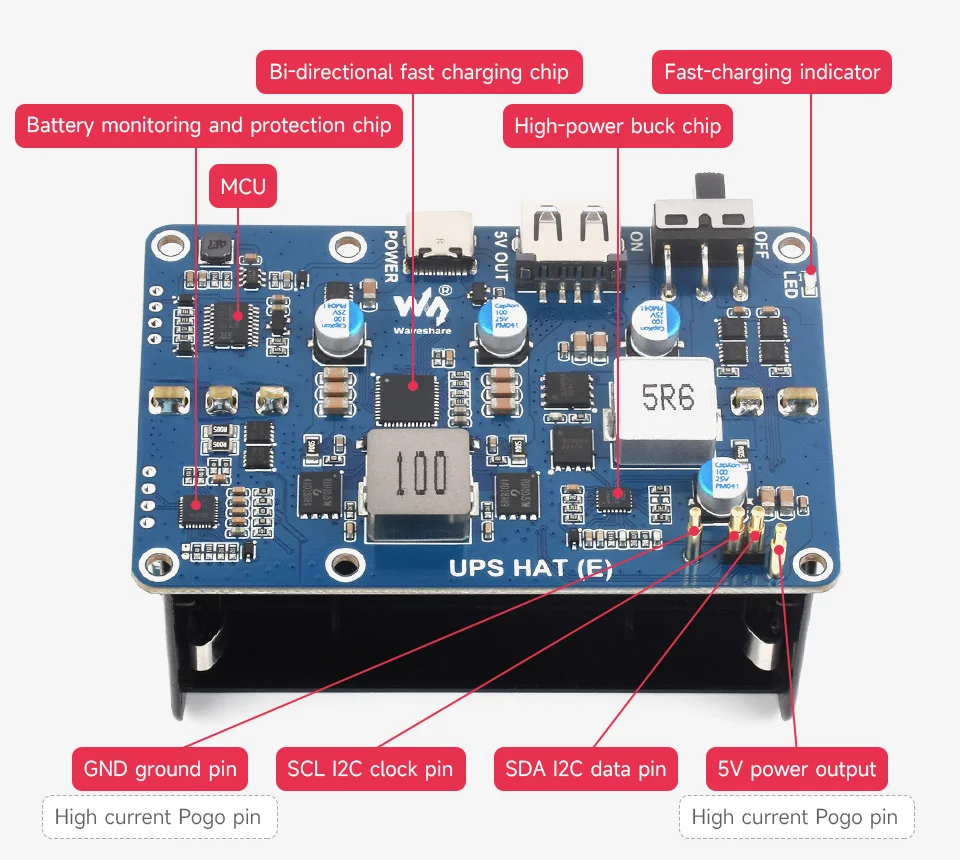

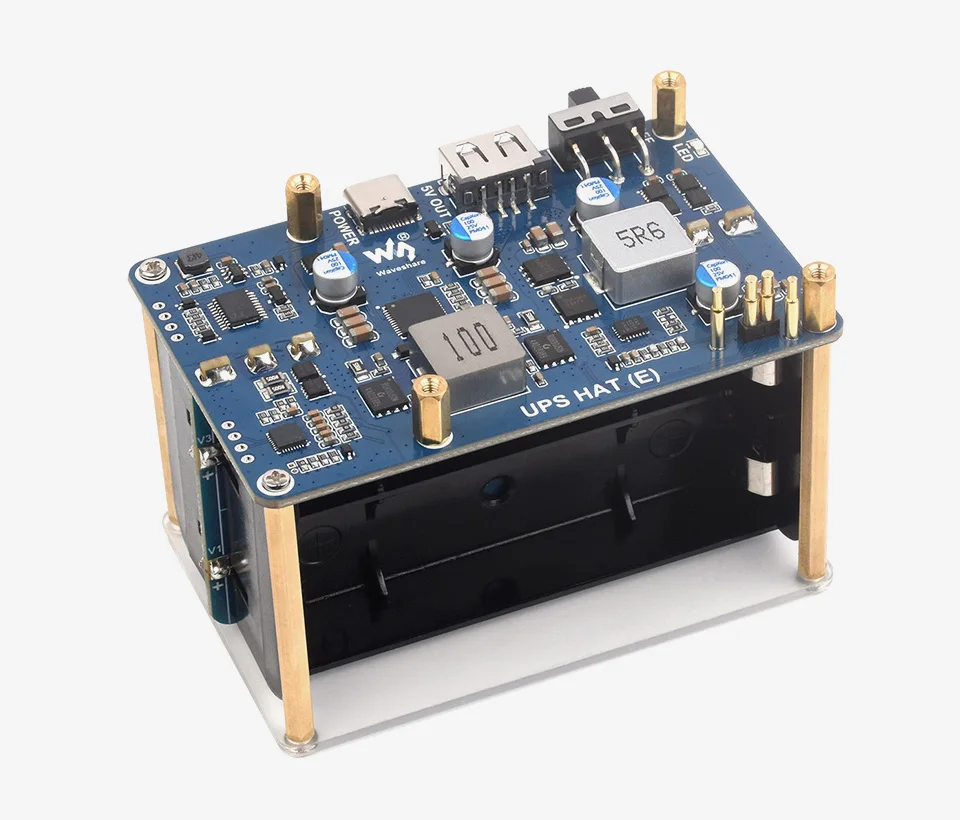

[] The UPS HAT (E) is an uninterruptible power supply (UPS) expansion board specially designed for the Raspberry Pi series. Onboard battery fuel gauge IC, fast charging chip and high-power buck chip to realize higher power input and output. Supports monitoring the operating state of the HAT via the I2C interface.

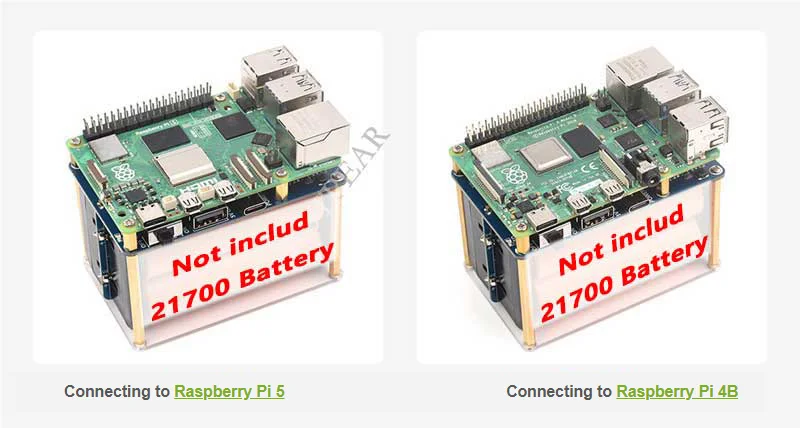

[] Adopts pogo pins connector design, compatible with Raspberry Pi 5 / 4B / 3B+

[] Onboard Type-C port with bi-directional fast charging, supports multiple charging input / output protocols such as PD3.0, up to 40W charging power

[] Onboard battery fuel gauge IC for reading battery voltage, current, power, remaining capacity and other parameters.

[] Supports I2C bus communication for monitoring the operating status of Type-C port and batteries in real time

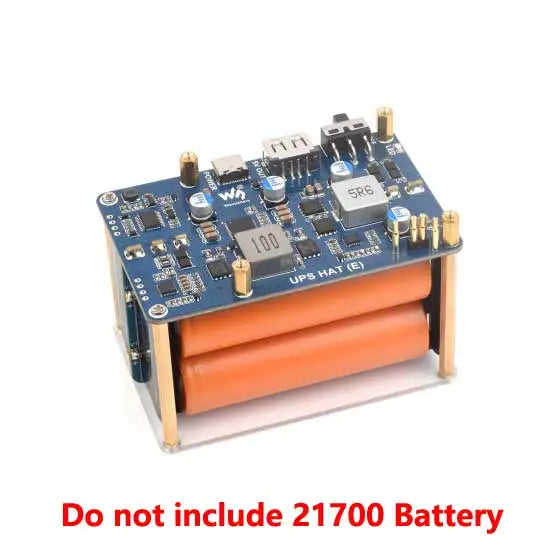

[] Supports 4× 21700 Li batteries (NOT included), larger capacity and longer battery life

[] Onboard high-power buck chip for stable 5V 6A power output

[] Onboard MCU management, supports detecting power connection and booting the Raspberry Pi

[] Supports displaying battery level on the system, easy to check the operating state of the HAT

[] Comes with online development resources and manual

[Specifications]

[] CONTROL BUS : I2C

[] BATTERY SUPPORT : 21700 Li battery × 4 (in series, NOT included)

[] TYOE-C POWER : Bi-directional input/output fast charging protocol, up to 40W charging power

[] OUTPUT POWER : 5V 6A

[] DIMENSIONS : 56 × 88mm

[] MOUNTING HOLE SIZE : 3.0mm

[Uninterruptible Power]

[] It is able to charge the batteries and provide power output at the same time from external power supply

[] Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

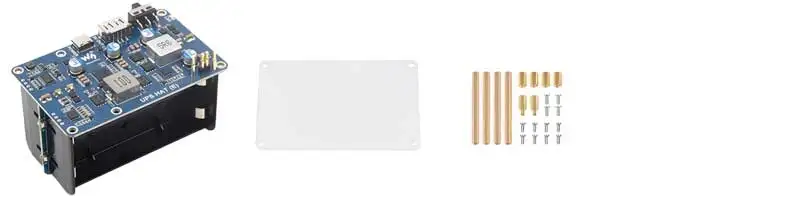

[]* for reference only, please refer to the Package Content for the detailed part list

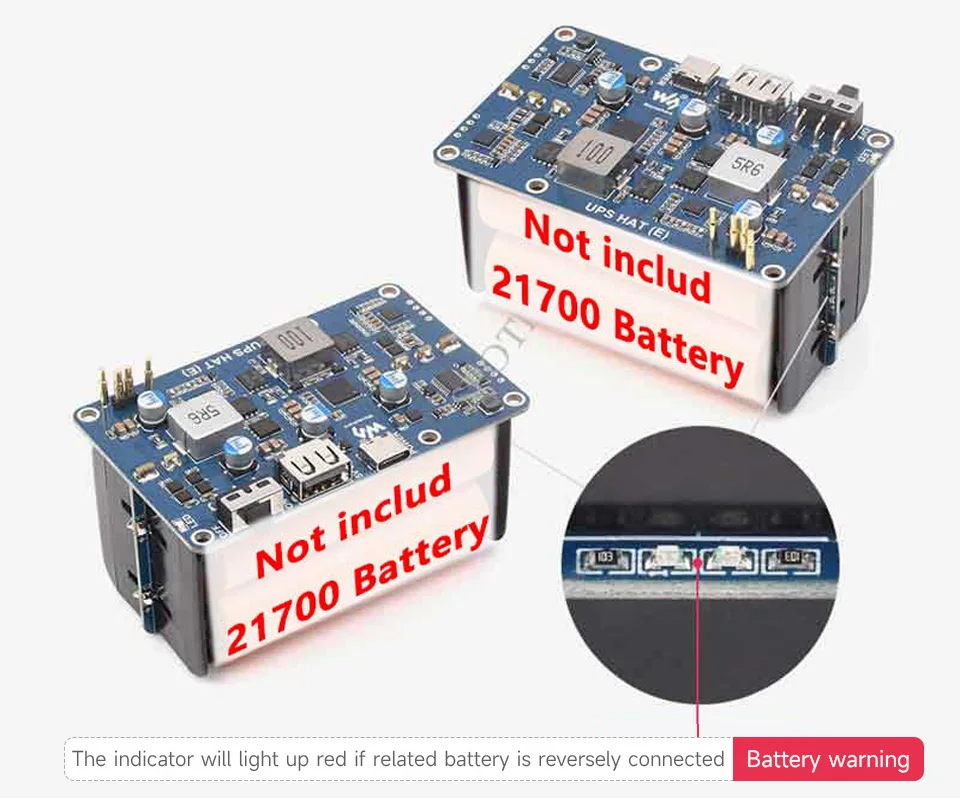

[] Onboard Warning Indicators, Easy To Check If The Battery Is Connected Correctly

[]* for reference only, the 21700 batteries are NOT included

[] Do not connect the recharger if the indicator lights up, otherwise the protection circuit will be broken down.

[Onbaord USB Interfaces]

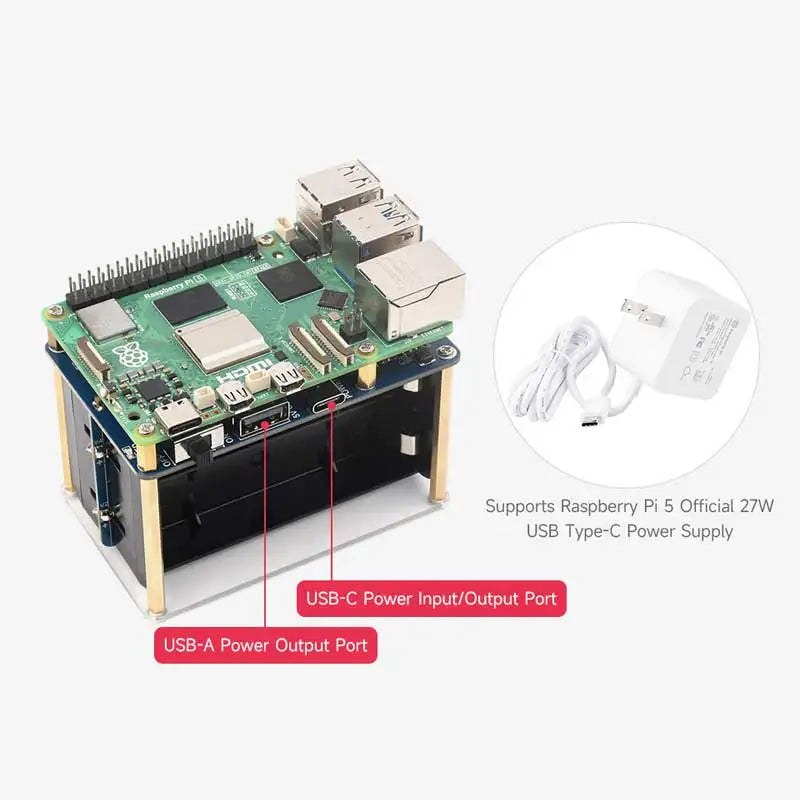

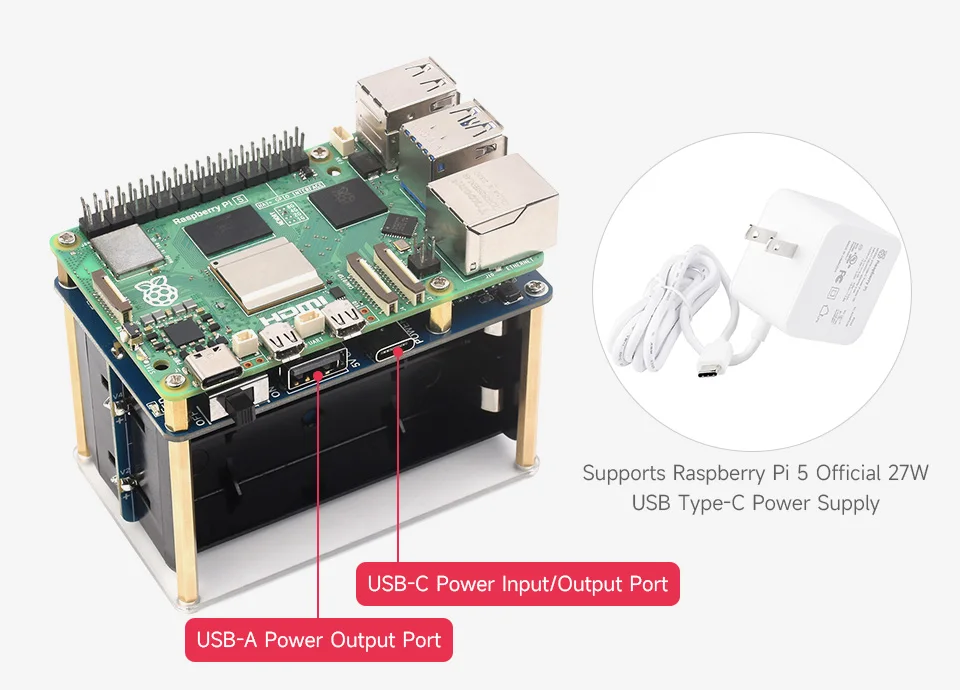

[] Adopts USB Type-C Interface, Supports Multiple Input/Output Protocols. Supports 5V, 9V, 12V, 15V, 20V Input Voltage, Up To 40W Charging Power. Onboard USB Type-A Interface For 5V Power Output, More Convenient For Powering Other Boards

[]* for reference only, the Raspberry Pi 5 Official 27W USB-C power supply is NOT included.

[Pogo Pins Connector]

[] Powering The Raspberry Pi Via Pogo Pins, Without Using Any GPIO Resource,

[] Compatible With Raspberry Pi 5 / 4B / 3B+, Etc.

[] * for reference only, the 21700 batteries are NOT included

[Real Time Monitoring]

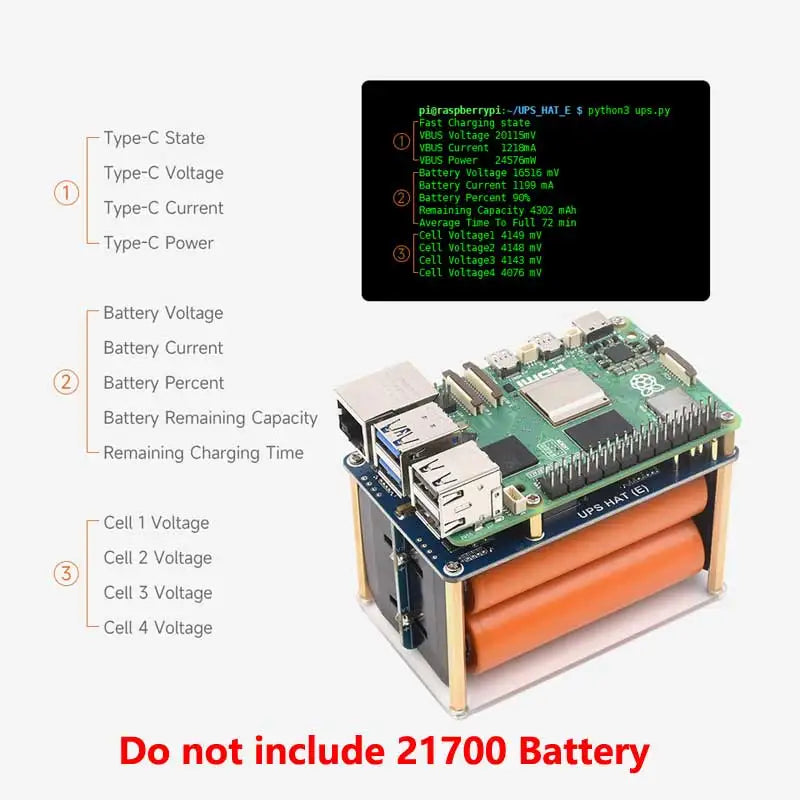

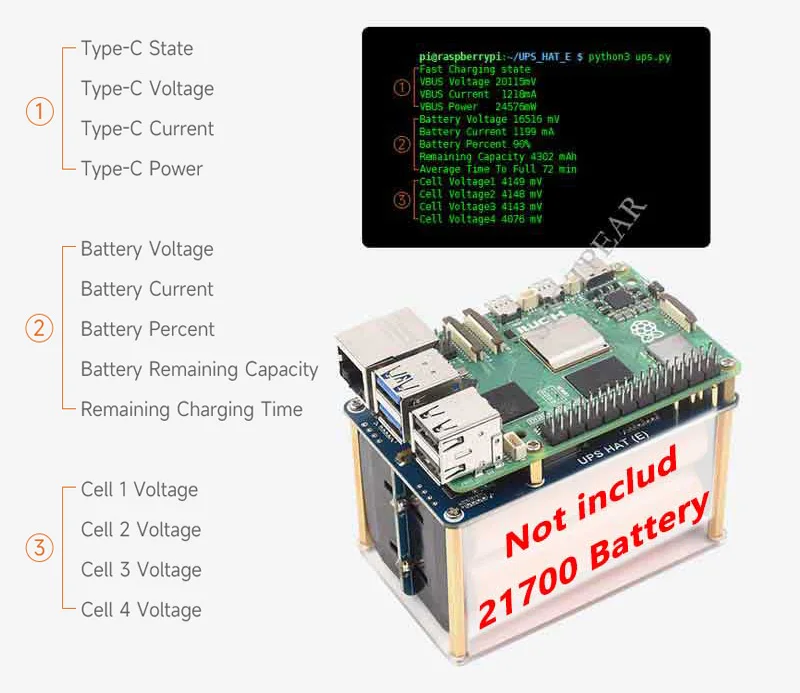

[] Monitoring The Type-C Port And Batteries Voltage, Current, Power, And Remaining Capacity Via I2C

[Supports Battery Level Display And Detecting Power Connection]

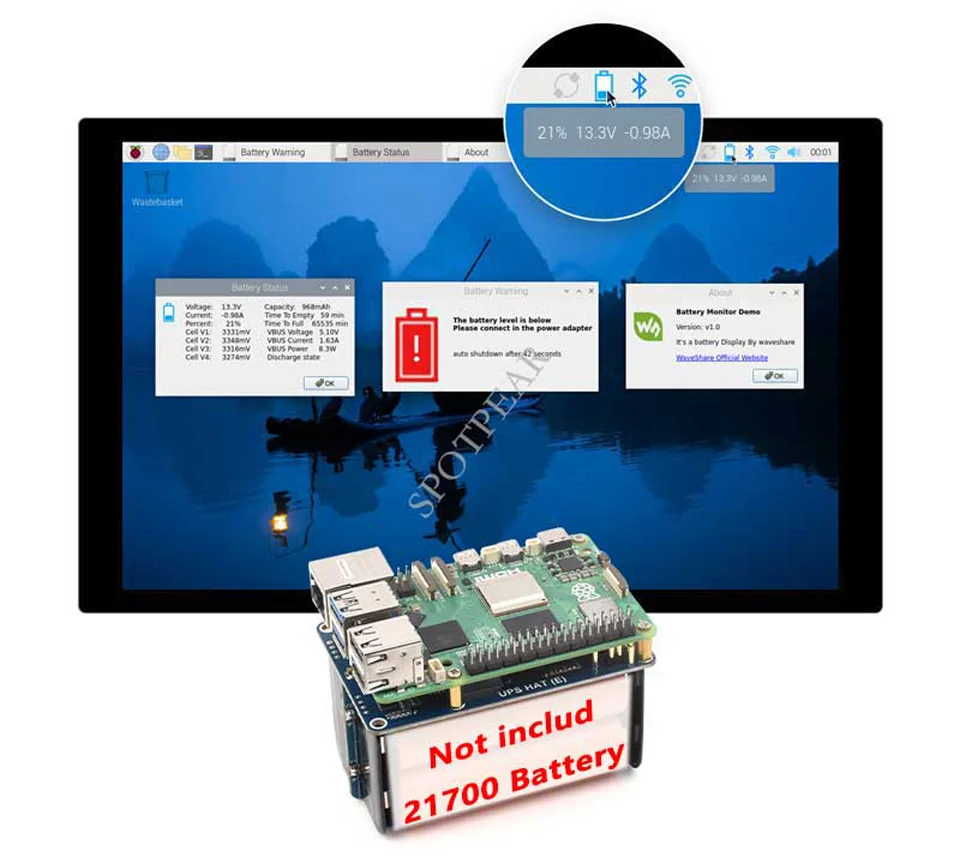

[] Easy To Check The Battery Status In Real-Time, And Automatically Shutdown When The Battery Level Is Low. Supports Detecting Power Connection And Automatically Rebooting The Raspberry Pi

[Outline Dimensions]

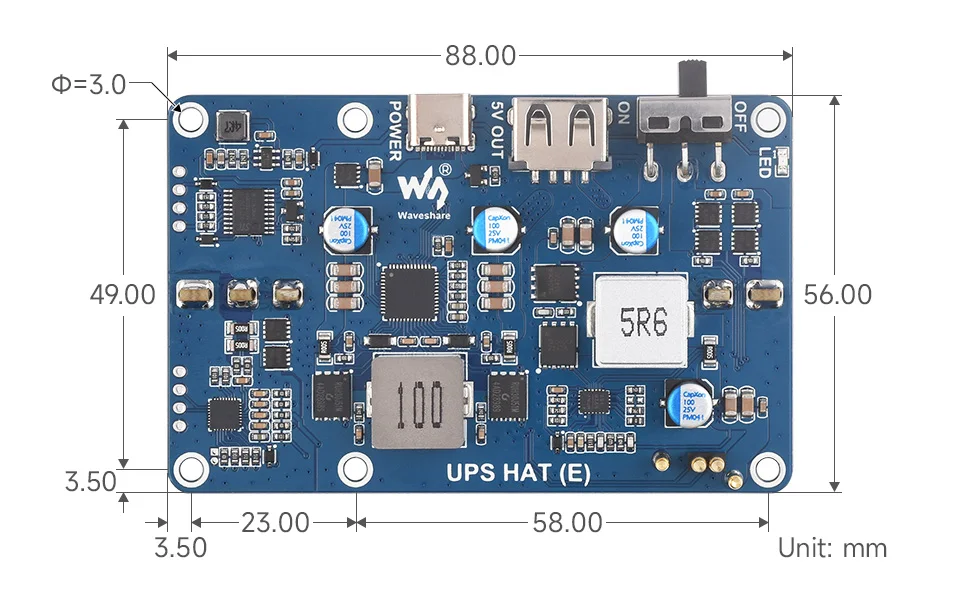

Not include Raspberry PI and 21700-Li-Battery.
