Custom Raspberry Pi 5 PCIe to M.2 NVMe SSD Supports Gen2/3 Fit Size 2230 2242 2280 PCIE SSD Expansion Board For Pi5 RPi 5

Raspberry Pi 5 PCIe to M.2 NVMe SSD Supports Gen2/3 Fit Size 2230 2242 2280 PCIE SSD Expansion Board For Pi5 RPi 5

Note: Raspberry Pi and SSD is not included

【PCIe Interface】

The Raspberry Pi 5 supports PCIe x1, and is compatible with Gen2 and Gen3 modes.

【M.2 M-key Interface, Supports NVMe Solid State Drives】

Supports 2280/2242/2230 size SSDs

【SSD Boot System】

Supports booting from an NVMe SSD and storage expansion

The SSD can also be used solely for storage expansion, with the system booting from a TF card

【M.2 Power System】

The expansion board's power circuit is designed with a 2A current, limited by the Raspberry Pi 5's PCIe interface current limit (5V1A), capable of providing more than 3.3V1.5A output to the solid state drive.

Typically, the rated current of solid state drives may be 2.5A, 2.7A, or even 3A, but these currents correspond to the limit of X4 mode, Since the Raspberry Pi 5 only supports X1 mode, the actual current used is much less than the rated current, and our design meets the needs of most hard drives.

【Dual LED Indicators】

Board-mounted power indicator (“PWR”) and M.2 SSD activity indicator (“ACT”)

【High-Quality Components】

Utilizes high-quality electronic components and immersion gold process, lead-free production

Four M2.5 fixed holes, with a recessed design above the board for easy operation of the 40Pin GPIO

Use for Raspberry Pi 5

Product Photo

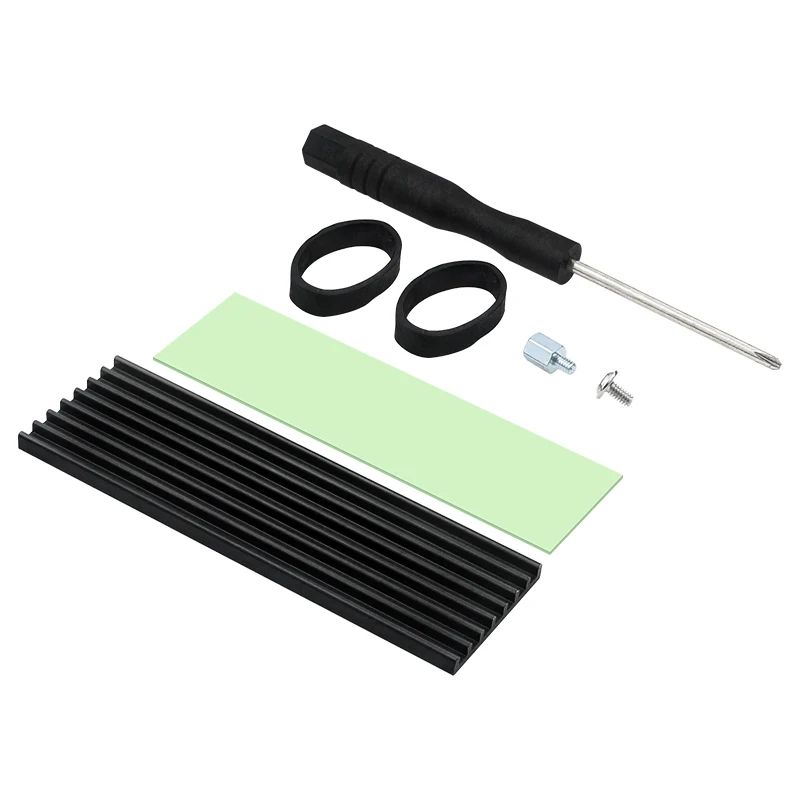

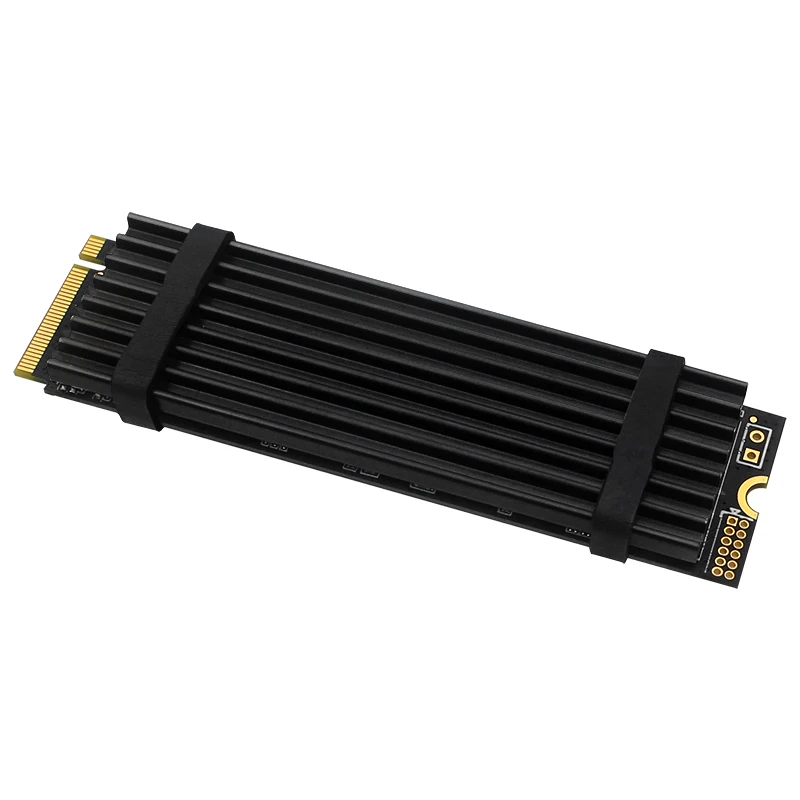

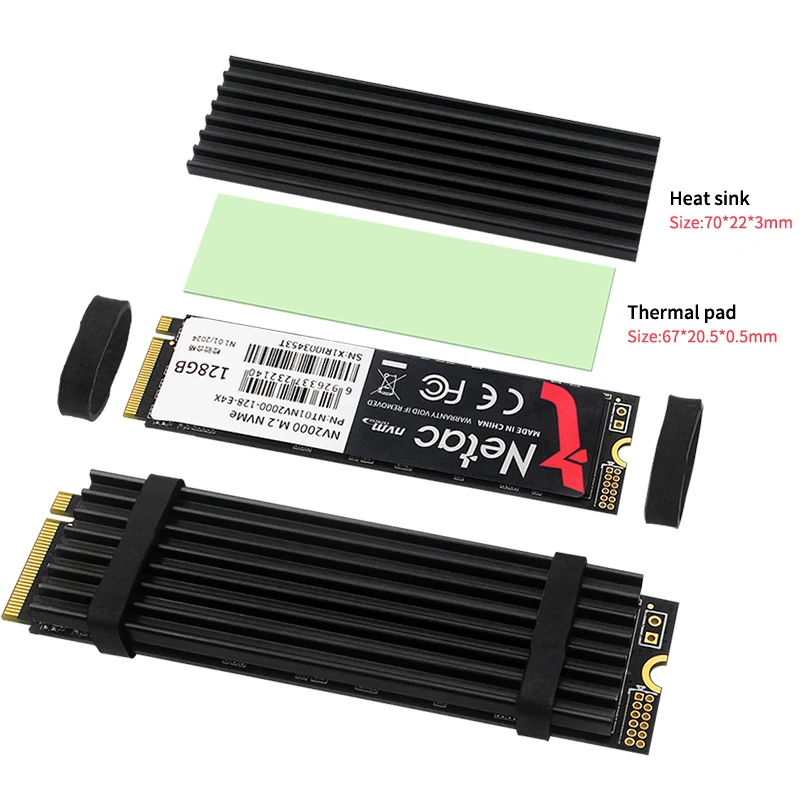

SSD Heatsink
