Custom Raspberry Pi 2.5 inch SATA HDD/SSD X825 V2.0 Board + X735 Board with Matching Metal Case for Raspberry Pi 4 Model B Manufacturer

$83.00 USD

~~$83.00 USD~~ $83.00 USD

Sale Sold out

Specification Bundle3 Bundle4 Bundle1 Bundle2

Quantity

Notes：

A microSD card is required for forceing the Raspbian OS to use the HDD/SSD for its "root" partition
For use with original power supply unit only
WARNING: Do not power your Raspberry Pi via the Pi's 40-pin header and type-C socket at the same time.
USB 3.0 devices might generate radio frequency interference that can cause Wi-Fi and other wireless devices operating in the 2.4GHz band to have issues communicating with your Raspberry Pi4. To avoid interference on the 2.4GHz band using Wi-Fi, try using the 5GHz band instead. If problem still exists, please turn off WiFi and use the wired network instead.

Install video：https://youtu.be/JxUNhIxXgj4

Some new features of X825 V2.0:

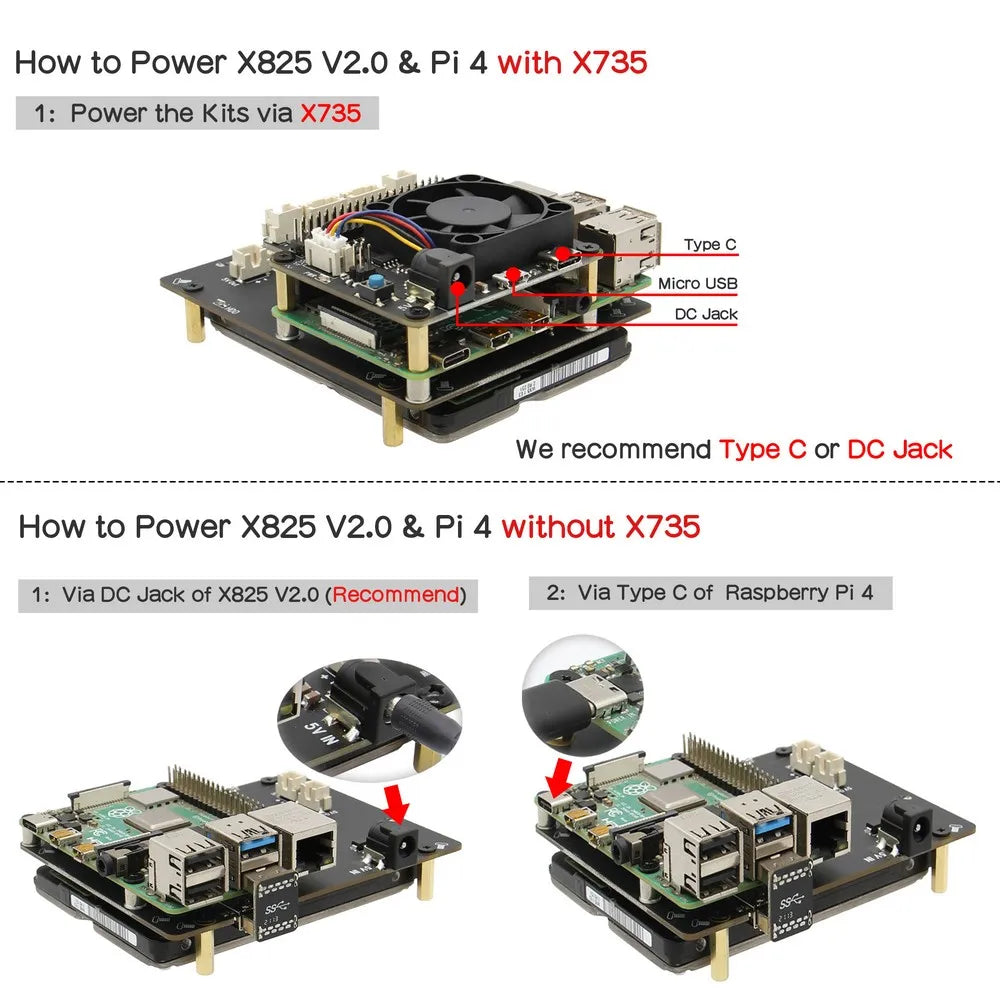

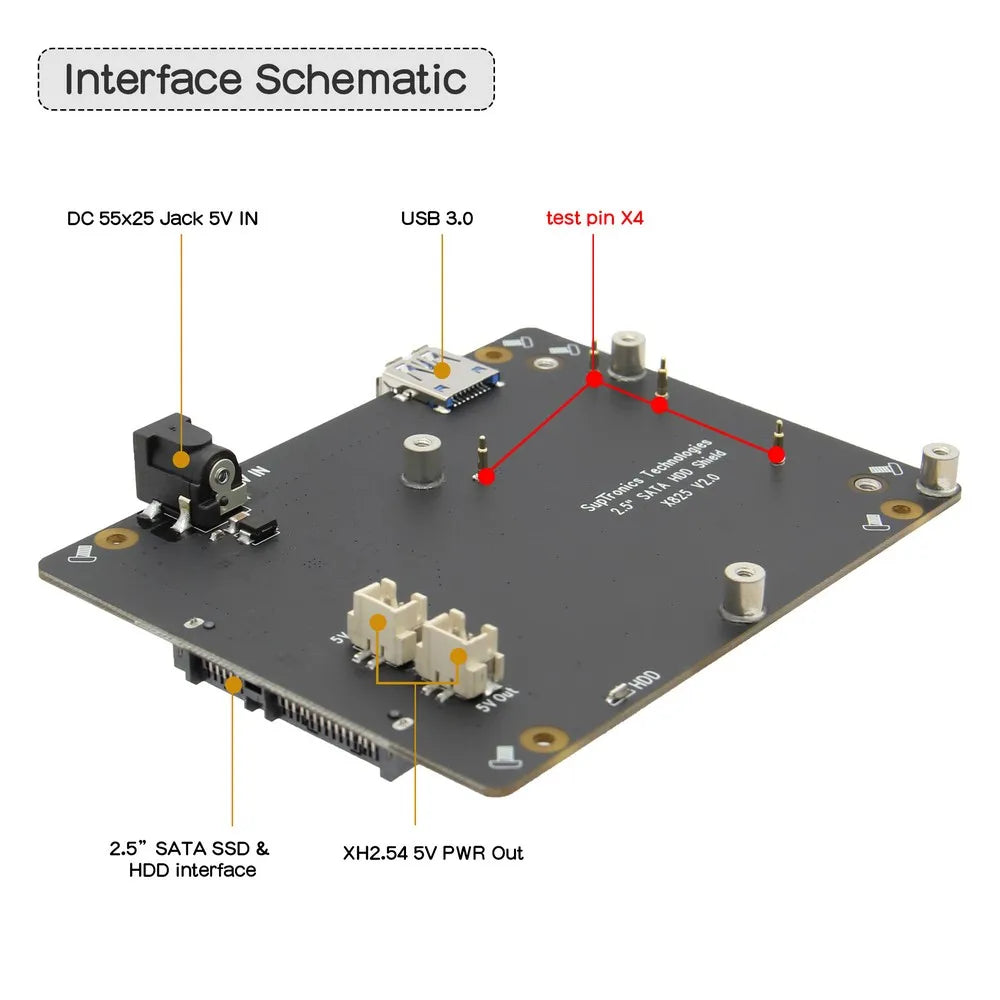

① Add 4 test pins to achieve powered between X825 V2.0 and Pi4 without additional cable. You can get power from the PI4's Type-C port or X825 V2.0 DC JACK power socket.
② Removed the on-board power button and 4-pin external switch interface. You can connect the X735 board for software safe shutdown & power management .
③ Use more shorter USB 3.0 jumper/connector, so the matching metal case is X825-C8 NOT X825-C6.

Some new features of X735 v2.5:

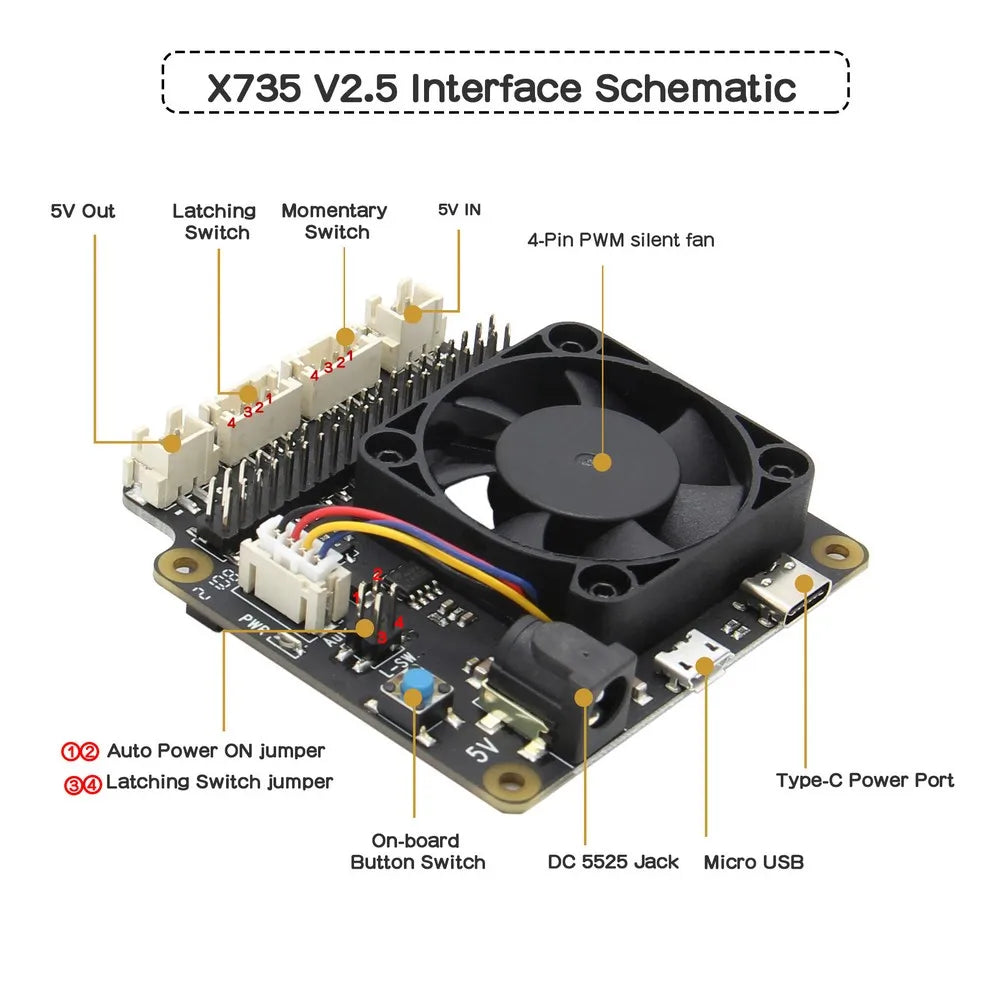

① Use the silent PWM cooling fan, and support fan speed is control by script, support read fan speed, and we provide sample python code.
② You must install shell script to enable the PWM fan work fine since it's a PWM fan, refer to X735 V2.5 Software
③ Support TRUE AUTO ON function (in the old version,the power management function is disabled if AUTO ON is enabled)
④ Considering that some customers use X735 together with other DAC shield, we adjusted the GPIO pins used.

Overview：

The X825 expansion board provides a complete storage solution for Raspberry Pi 4 Model B, it supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD). Only 2.5 inch SATA interface HDD/SDD hard disk is suitable for X825 Board;

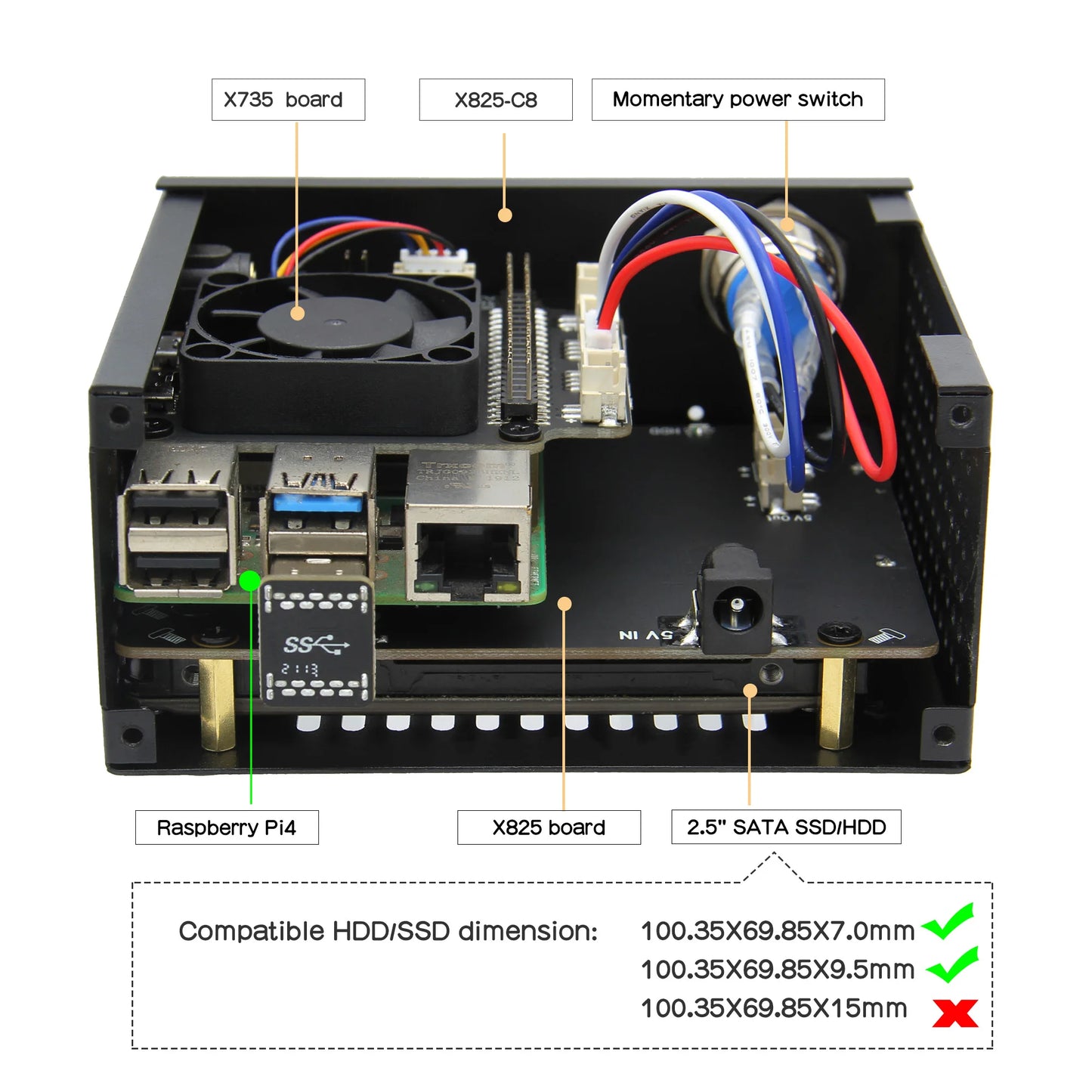

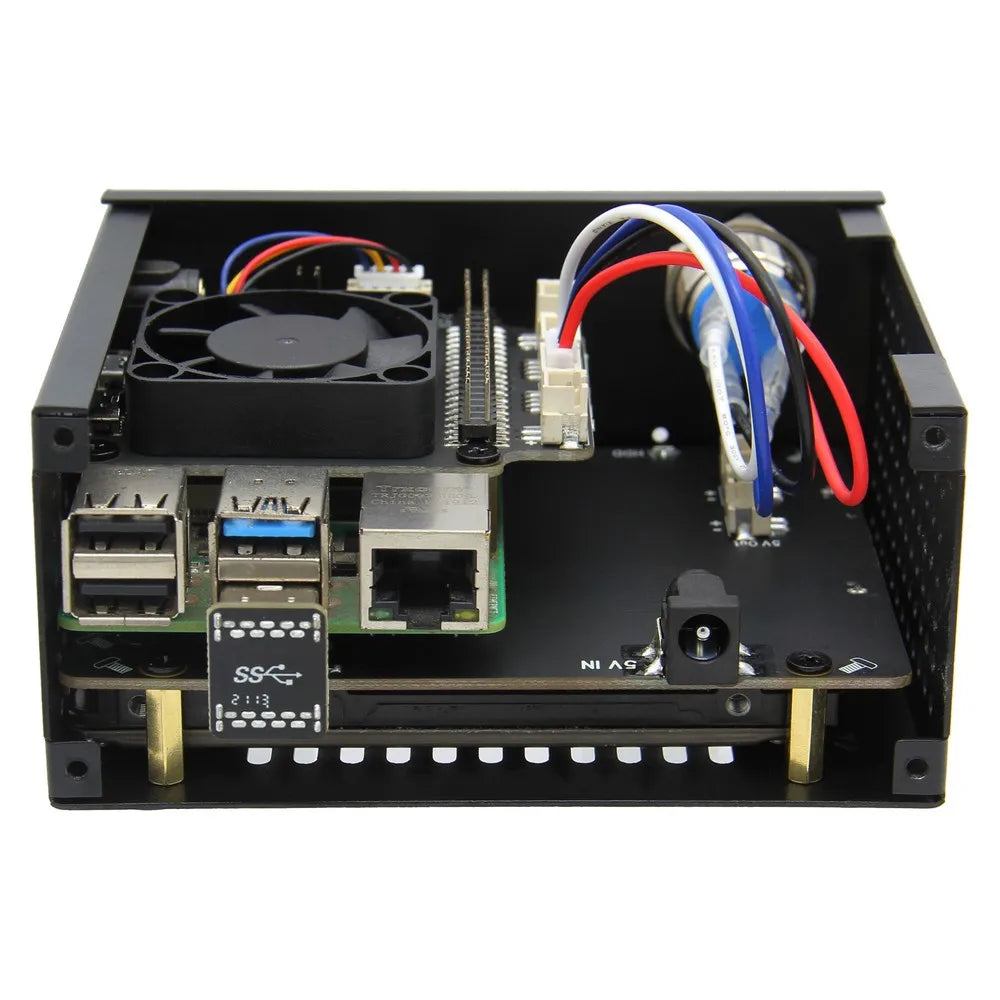

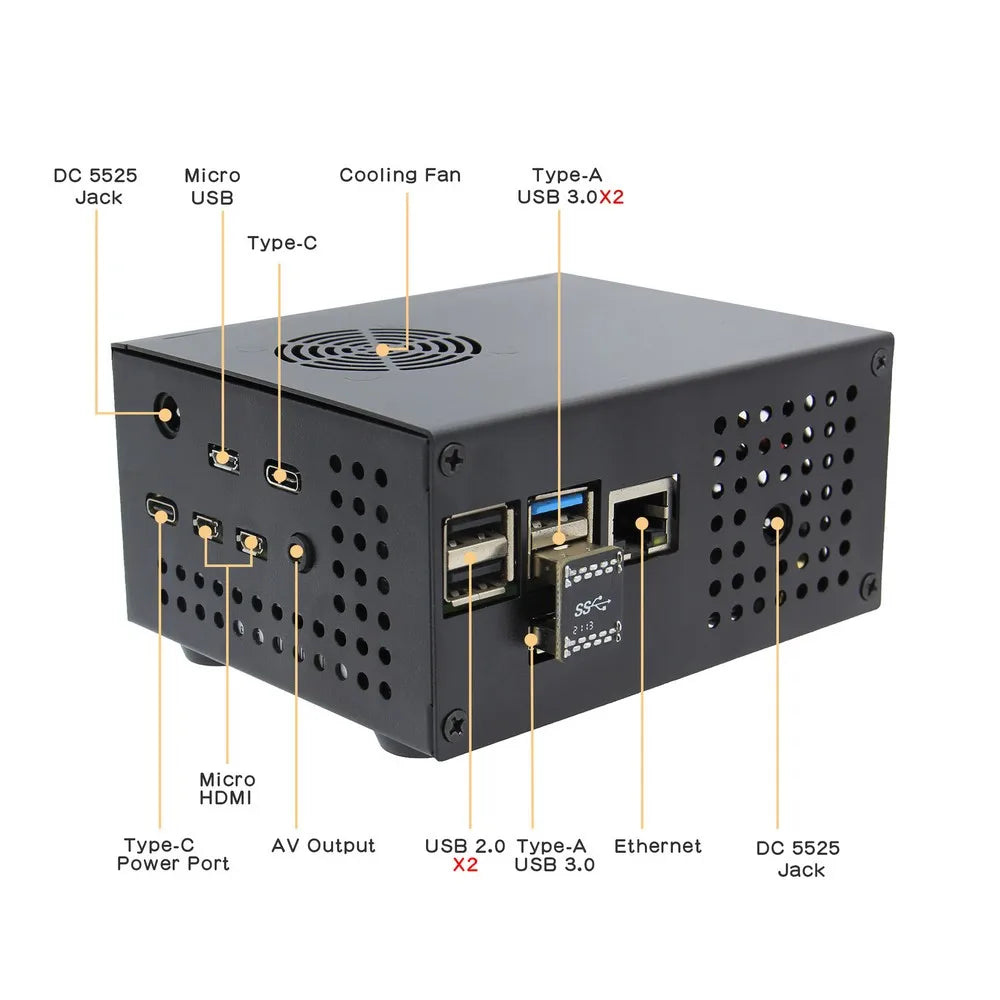

The X825-C8 metal case with power control switch and super mute cooling fan, it is a perfect choice for X825 V2.0 SSD/HDD storage board user. It also support to install the X735 Auto Cooling & safe shutdown board over Raspberry Pi 4.
The X735 is a multifunctional expansion board for all current models of the Raspberry Pi using a 40-pin header. It provides intelligent and safe power management, safe shutdown and full poweroff through software, an automatic temperature controlled fan which enables the use of the Raspberry Pi in extreme conditions including very high temperature environments.

Features：(X825 expansion board )

Supports upto 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD) 【not recommend to use Samsung SSD】(Theoretically it can work with 6TB or 8TB as well. But actually we do not test the X825 board with 6tb or 8tb HDD, you can have a try.)
Ideal storage solution for Raspberry Pi 4 Model B
LED red indicator indicates powered status and blue indicator indicates drive status
USB 3.1 Gen1 to SATA 6Gb/s Bridge Controller
Quick file transfer with high-speed USB 3.1 connectivity from a PC or a Mac

Features：（x735 power management board）

Intelligent and safe power management
Equipped with both momentary button and latching switch for easy power control
Press the momentary button or external momentary power switch to turn onPress the momentary button or external momentary power switch and hold for 1~2seconds to reboot
Press the momentary button or external momentary power switch and hold for 3~7seconds to implement safe shutdown
Press the momentary button or external momentary power switch and hold for more than 8 seconds to force shutdown
Supports safe shutdown and full poweroff through software
On-board switch convenient to select latching or momentary power control switches
Press the latching power switch once to turn on and again to implement safe shutdown
On-board LED shows the status of power on, reboot and shutdown
On-board PH2.0 connectors allows to use external latching switch or momentary button
Powers the Raspberry Pi via the 40-pin header - no additional cabling required
Allows power input via DC jack or Micro-USB / Type-C socket
NOTE：Full poweroff through software is not supported when using latching power switch
Do not apply power to your Raspbeery Pi via the Pi's Micro-USB socket

Power Supply Requirement

Important Note:

Please use high quality DC 5V 4A power supply, the best choice is to buy the DC 5V 4A power supply that Geekworm provided. If you get low quality power supply to use, it may probably will damage your 2.5 inch HDD/SSD.
You can also use the official power supply of raspberry pi4 to supply power via the type-C interface on the x735 board

Packing List：

Bundle 1：1 x X825 Metal Case + 1 x X825 V2.0 Board + 1 x X735 V2.5 Board
