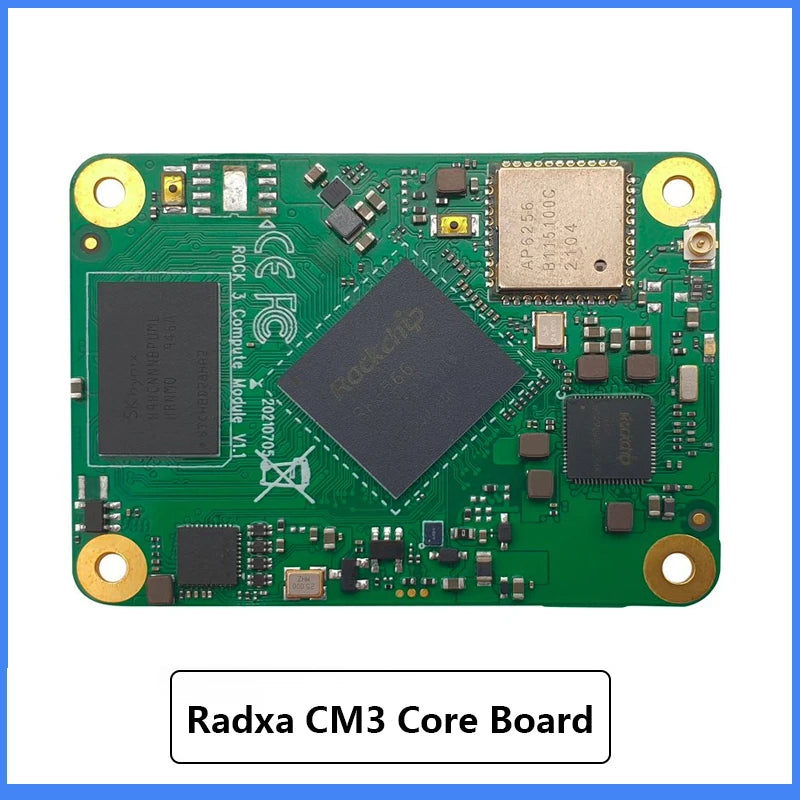

Custom Radxa CM3 Core Board Module With Rockchip Micro Rk3566 Chip wifi BT Manufacturer

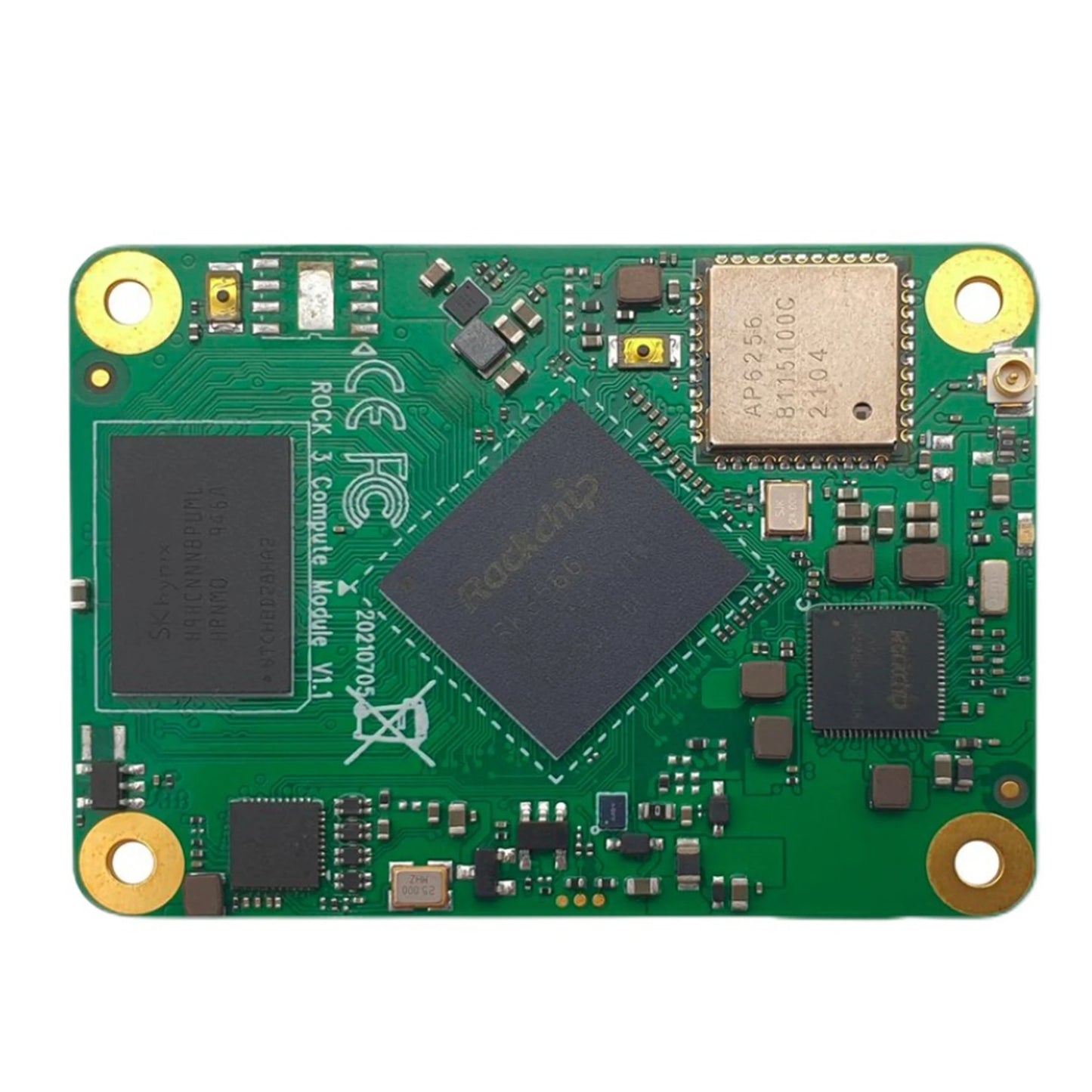

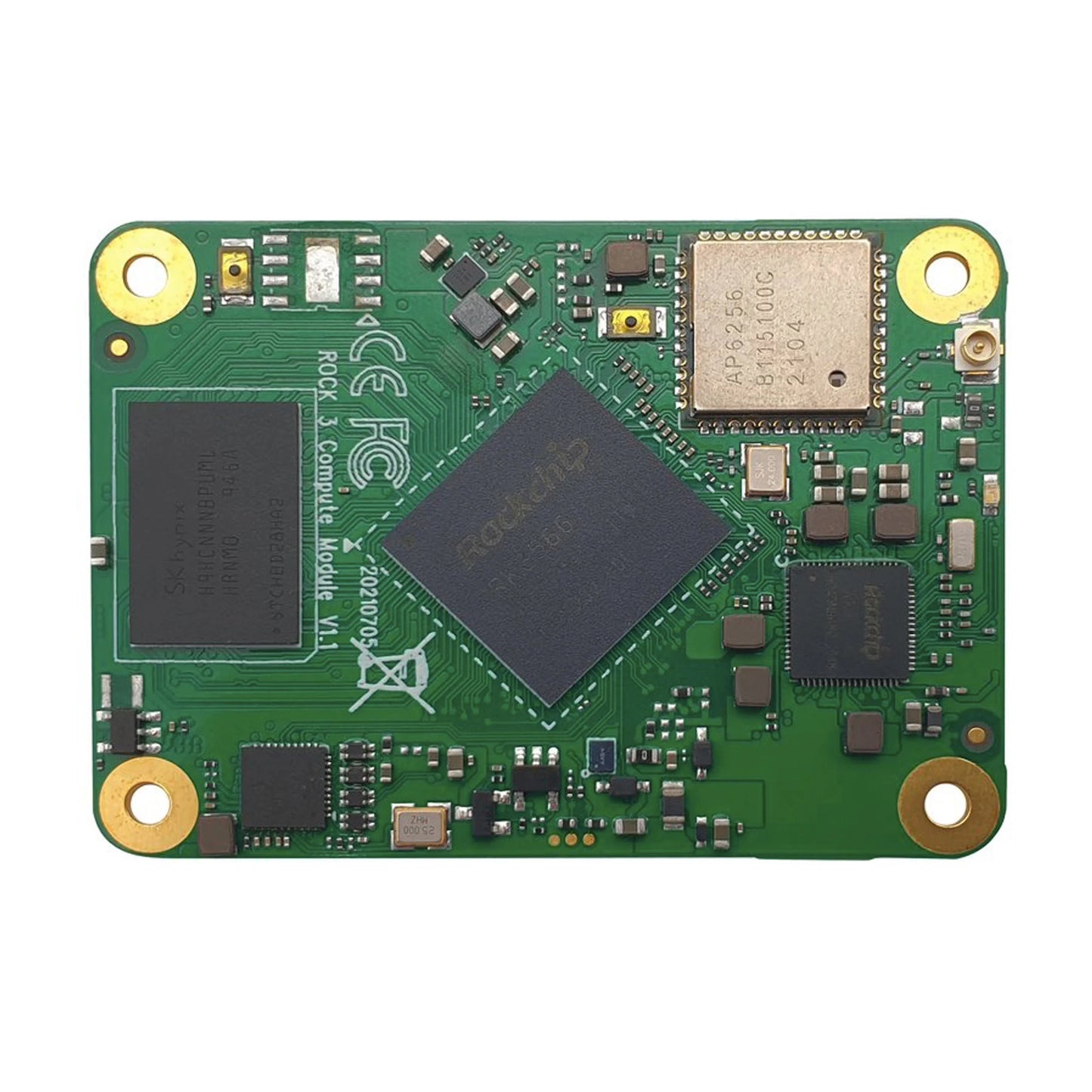

Based on the Rockchip RK3566 SoC in a small form factor of 55mm x 40mm, it integrates CPU/PMU/DRAM/STORAGE and Wireless.

Radxa´s CM3 offers an out of the box, cost-effective solution for countless applications. It as well simplifies and accelerates new product developments.

Overview of features:

Quad core 64 bit High Performance Solution

-Radxa CM3 is powered by the Rockchip RK3566 SoC, a 64bit Quad Cortex A55 low power core with up to 2.0Ghz. It comes with a maximum of 8GB RAM and up to 128GB eMMC storage.
-With a simple carrier board (a 2 layer base board is sufficient to provide access to all functions of the SoM), the engineers can quickly develop solutions and prepare the boards for production.

Rich interfaces
-I2C, SPI, UART, ADC, PWM, GPIO, Ethernet, CAN, PDM, USB2, USB3, I2S, MIPI,
-SATA, eDP interfaces are available as well as PCIe 2.0 high bandwidth buses.


Display Capability
-The Dual Video Out put Processor supports dual display output to any two of HDMI, eDP, MIPI, DP, with a resolution of up to 4K x 2K and one 2.5k


Powerful multimedia utility support
-4K VP9 and 4K 10bits H264/H265 video decoding, up to 60FPS
-multiple 1080P video formats decoding including VC-1, MPEG-1/2/4, VP8
-1080P encoding to H.264, VP8 formats

 Small size and low power
-55mm x 40mm form factor and industry compatible 3 x 100PIN board to board connectors save board space and provide standardized interfaces and save board space.

Multiple OS support
-Ubuntu 20.04 / Debian 10 / Buildroot / Android

Open documents and source code
-Source code, documents, tools & utilities are freely available, community and commercial support are available to help you put your prototype into production

Widely used in various applications
-Perfect SoM for Robotics, HMI, Vending Machines, Smart Home, IOT Gateway, Industrial Control, Medical Equipment etc.

Detailed technical specs:

Processor: Rockchip RK3566, Quad core Cortex-A55 (ARM v8) 64-bit SoC @2.0GHz

Memory:1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)

Connectivity:
- Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac
wireless, BTh 5.0, BLE with onboard and external antenna options
- Onboard Gigabit Ethernet PHY
- 1 × USB 2.0 port ( highspeed ), 1 x USB 3.0 port ( 5Gbps )
- 1 × PCIe 1-lane Host, Gen 2 ( 5Gbps )
- 2 x SATA ports, one shared with USB 3, one shared with PCIe
- 50 × GPIO support

Video:
- 1x HDMI up to 4K x 2K@60HZ
- 1x eDP four lanes, 2.7Gps per lane
- 2x MIPI DSI four lanes, 1.6Gbps per lane

Audio:
- LINEOUT
- I2S
- PDM, support mic array

Multimedia:
- VP9/H.264/H.265 decode 4K@60HZ
- H.264/H.265 encode 1080P@100HZ
- OpenGL ES 3.2/OpenCL 2.0/Vulkan 1.1 GPU

Input power: 5V DC

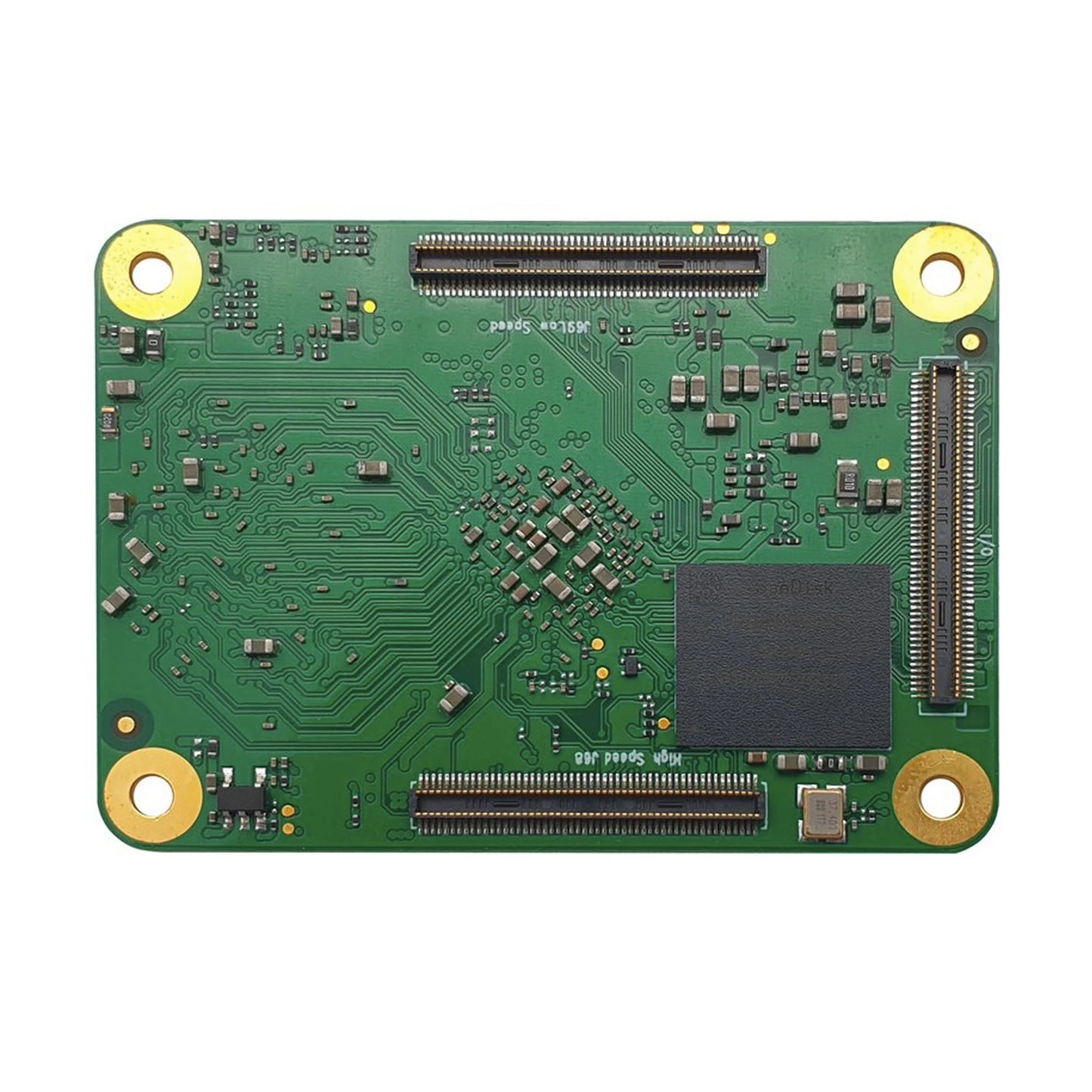

Connector: 3x 100P 0.5mm pitch B2B connector

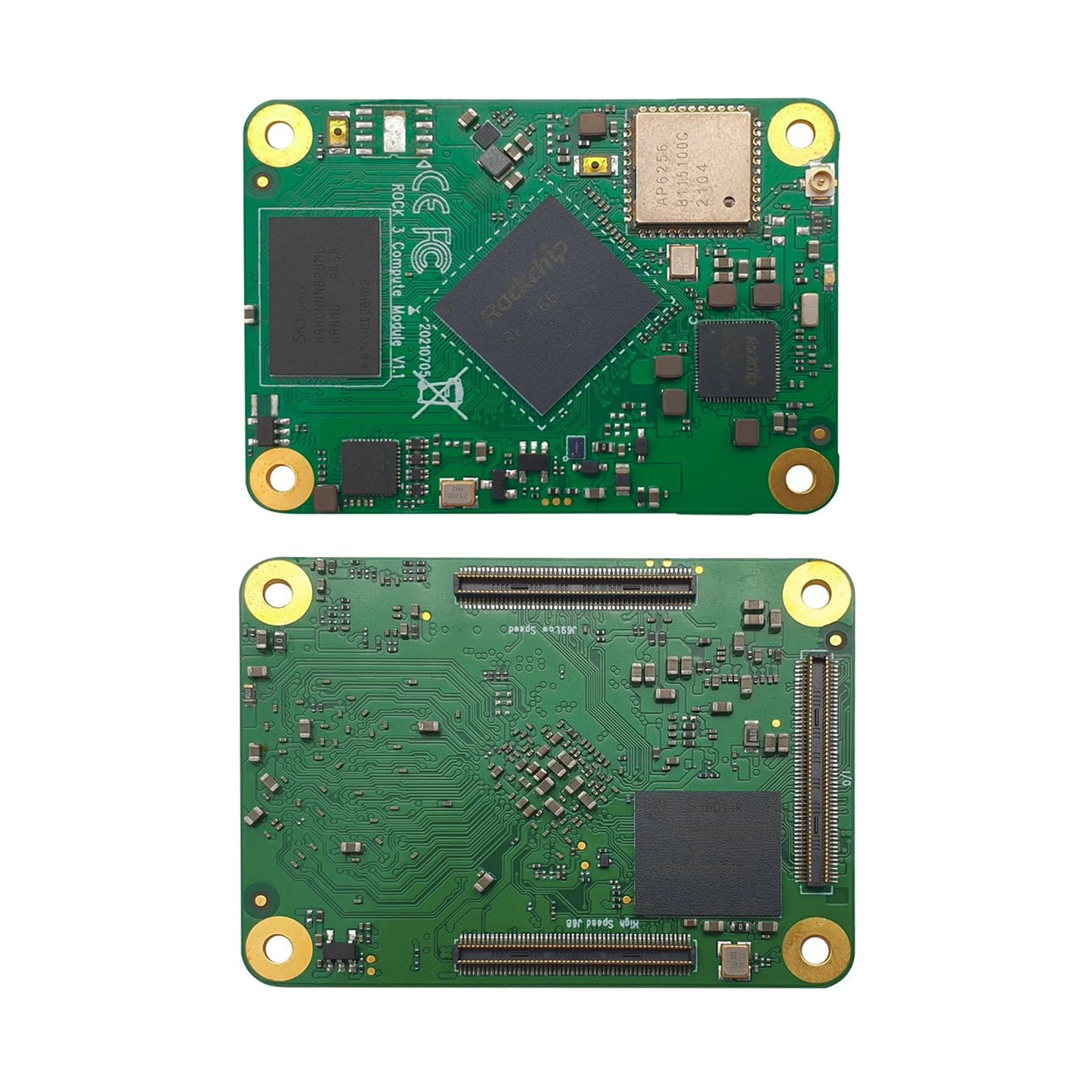

Dimension: 55 mm × 40 mm
