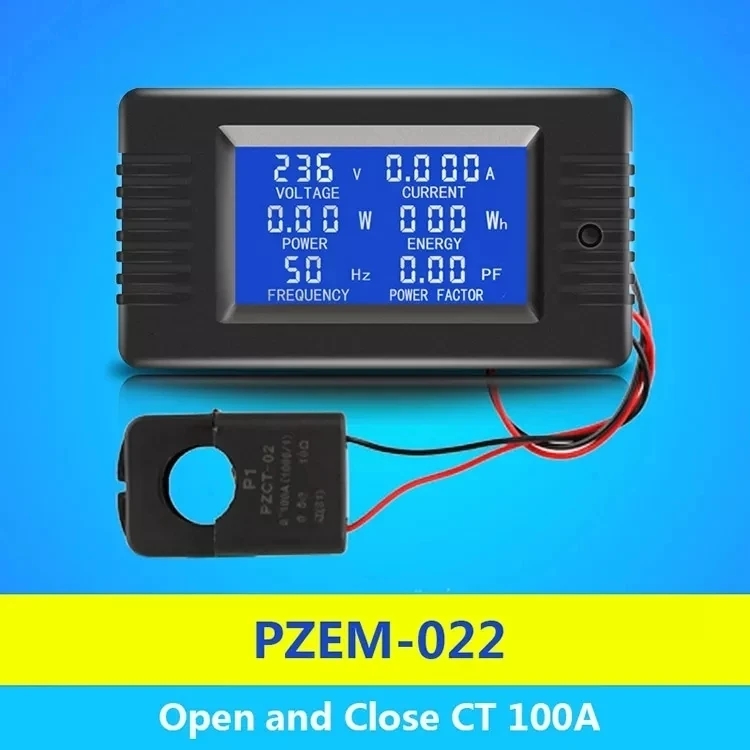

Custom PZEM-022 Open and Close CT 100A AC Digital Display Power Monitor Meter Voltmeter Ammeter Frequency Current Voltage Factor Meter Manufacturer
Custom PZEM-022 Open and Close CT 100A AC Digital Display Power Monitor Meter Voltmeter Ammeter Frequency Current Voltage Factor Meter Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability
Features: 1. Electrical parameter measurement function (voltage, current, active power, energy, frequency, power factor) 2.
Overload alarm function (over power alarm threshold, backlight and power flashing to alarm) 3. Power alarm threshold preset
function (can set power alarm threshold) 4. The energy can be reset use the key 5. Store data when power off 6. Large-screen LCD
7. Backlight function 8. Key Function ♦Backlight control Short press the key to turn on or off the backlight, the backlight has
memory function, it can store the on or off state when power off. ♦Reset energy Step1: Long press the key for 5 seconds until the
energy value flash, then release the key. Step2: Short press the key again, then the energy value is cleared and exit the reset
flashing state. Step3: If there is no operation on the key within 5 seconds, it means the energy value is not cleared and will
exit the reset state. ♦Set power alarm threshold Step1: Long press the key until the LCD screen display “SET CLr”, then release
the key to enter the setting state Step2: Power window display the current power alarm value and the last digit begin to flash,
then you can short press to plus 1, when there is no operating over 3 seconds, it will switch the digit position automatically,
the setting method is as same as the above. Step3: After finish the setting, long press the key over 5 seconds will store
automatically and exit, the range of active power threshold is 0.0~2.5kW. it can display six parameters at the same time.
Specifications: 1. Working voltage: 80 ~ 260VAC 2. Test voltage: 80 ~ 260VAC 3. Rated power: 100A/22000W 4. Operating frequency:
45-65Hz 5. Measurement accuracy: 1.0 grade Display format: 1.Power Test range: 0~22000W Starting measure power: 0.2W <10W display
format: 1.00~9.99W <100W display format: 10.0~99.9W <1000W display format: 100~999W <10000W display format: 1.00~9.90kW ≥10000W
display format: 10.0~22.0kW 2.Energy Test range: 0~999kWh <1kWh display format: 0~999Wh <10kWh display format: 1.00~9.99kWh ≥10kWh
display format: 10~999kWh 3.Voltage Test range: 80~260V Display format: 80~260V 4.Current Test range: 0~100A Starting measure
current: 0.001A <10A display format:0.000~9.000A ≥10A display format:10.00~99.99A 5.Frequency Test range: 45~65Hz Display format:
45~65Hz 6.Power factor Test range: 0~1PF Display format: 0.00~1.00PF Precautions: 1. This module is suitable for indoor, please do

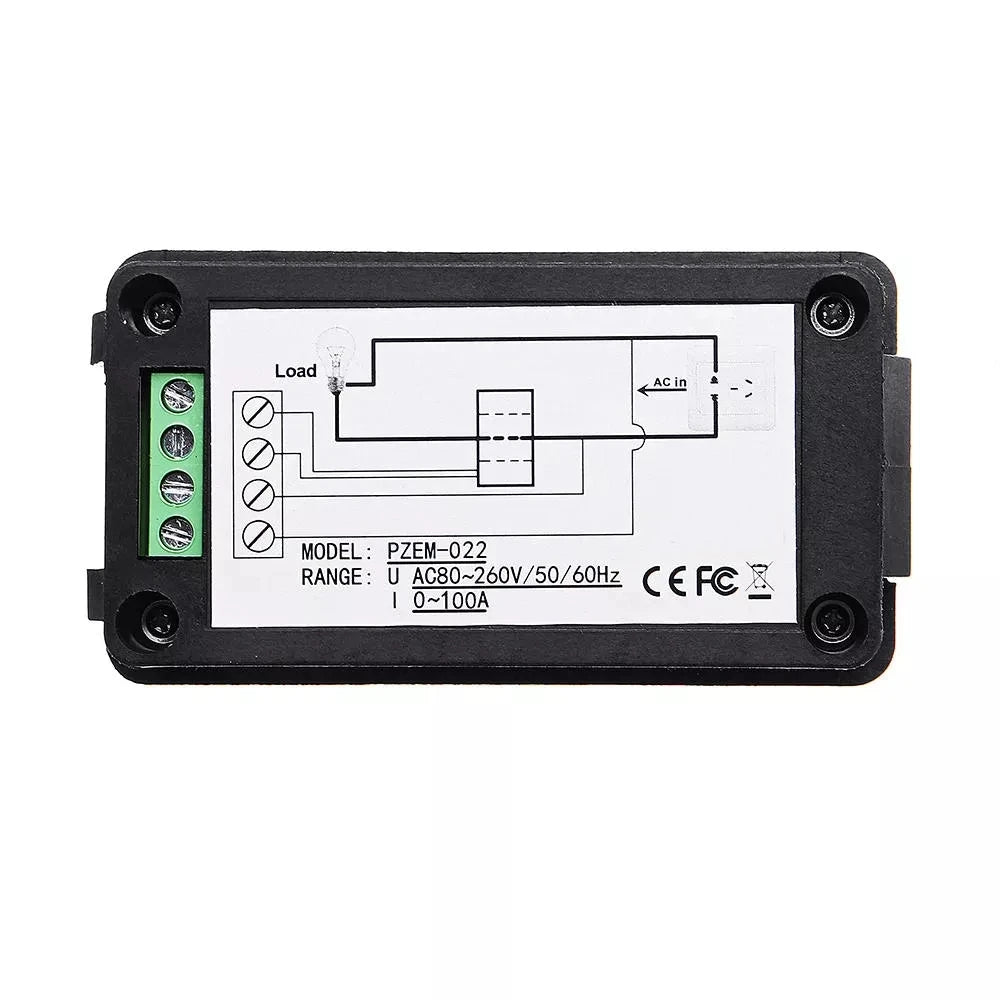

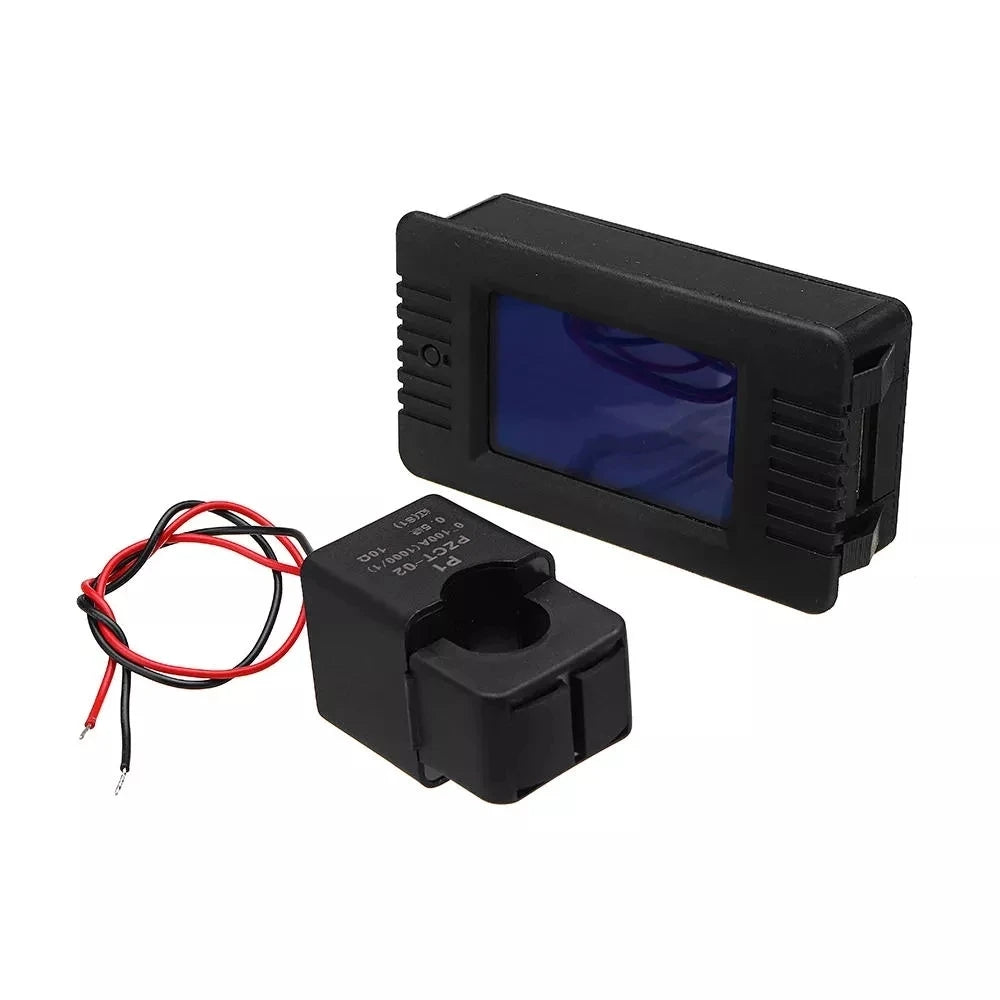

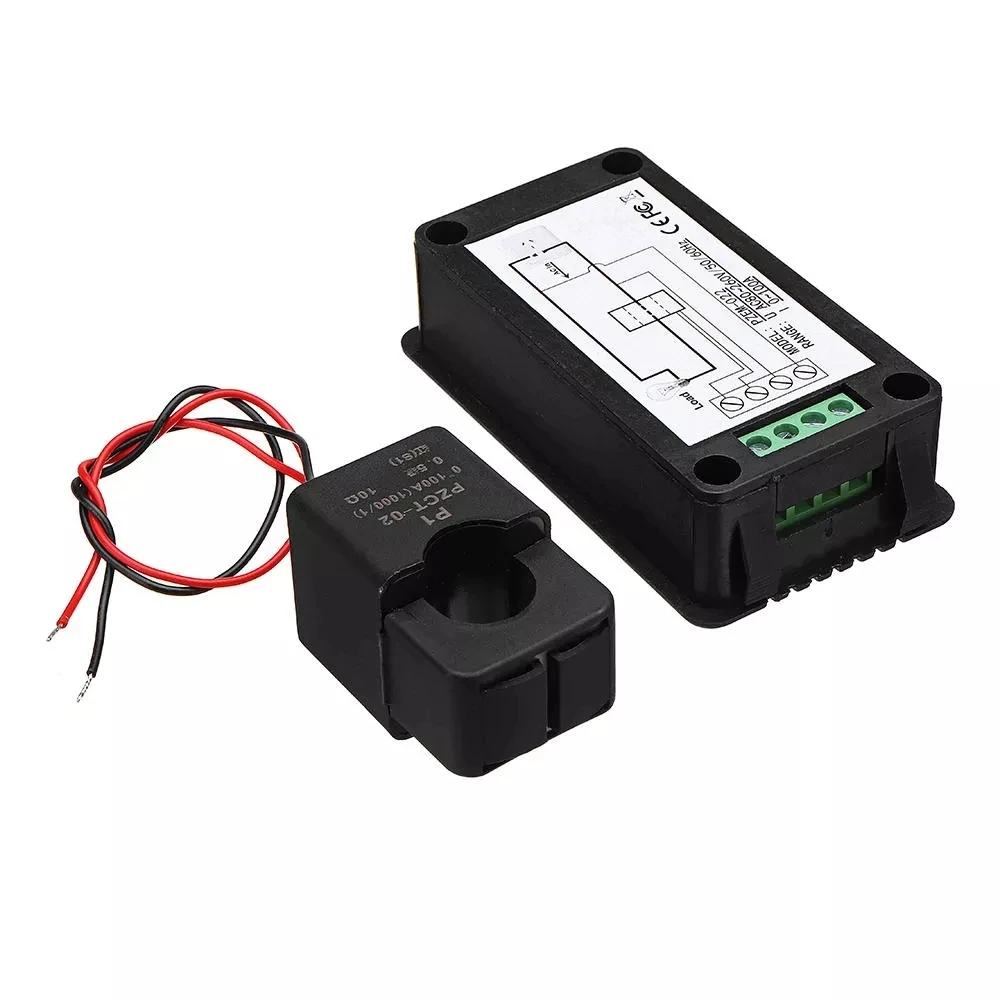

not use outdoor. 2. Applied load should not exceed the rated power. 3. Wiring order can’t be wrong. Package Included: 1 x Open and
Close CT Power Monitor
