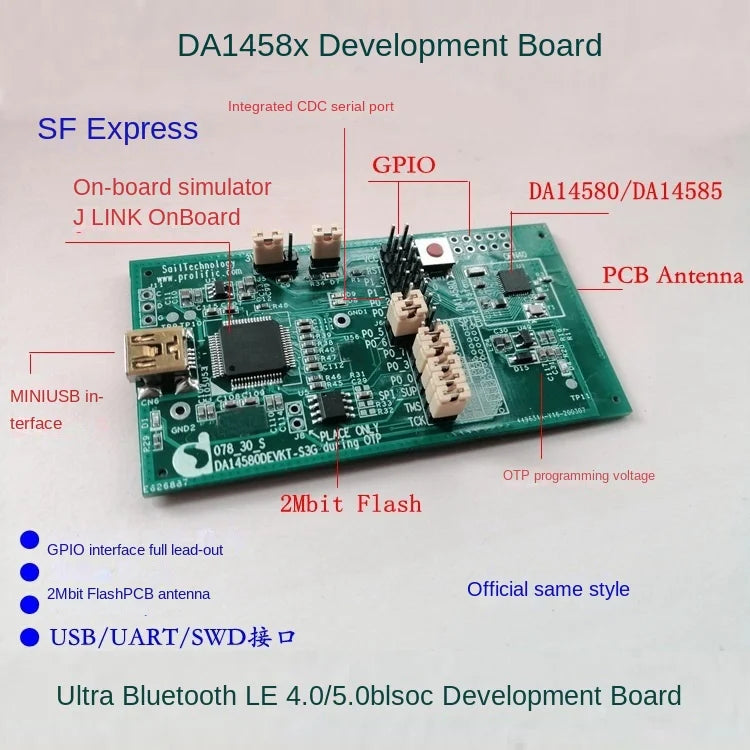

Custom programming DA14585 development board Manufacturer

Features:

● Onboard 6.8V boost circuit for OTP programming, this is very important (exclusive, of course the official board also has:)).
● Onboard W25X20CL 2Mbit flash memory chip, supports program operation and user data storage.
● Support USB to serial port, easy to view the output printing information of the serial port.
● On-board J_Link V9 (exclusive), provide development board user manual, get started quickly, send official information (full), include serial port transparent transmission routines, IBeacon routines, etc....
● Mini USB port power supply does not require a third-party power supply, plug and play, and the MINI USB interface Micro USB is more durable:), which is why many official development boards use MINI USB instead of Micro USB.

Shipping list:

● DA1458x development board - 1 piece
● Fully shielded, with magnetic ring, 1.5m MINI USB cable - 1
● Strict testing before delivery, quality assurance!
● Development tutorials and official development materials.

•

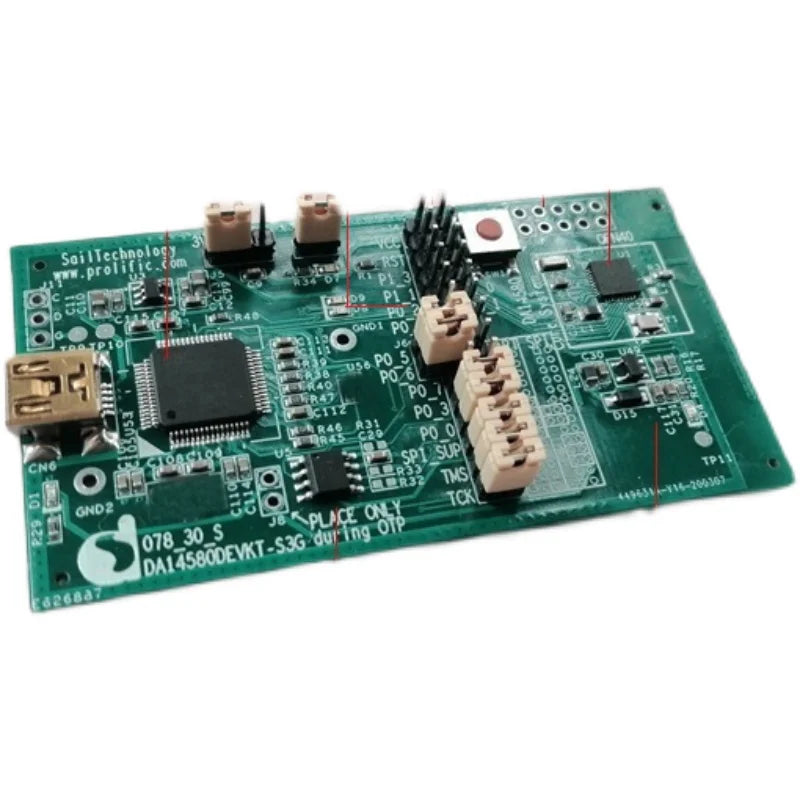

  ● The component layout, board size, PCB Layout and the official development board are exactly the same. The onboard JLINK emulator can be developed with just a USB cable connected to the computer, which is very convenient to use.

• ● Pure official development board, you can directly follow the official development board documentation to conduct related experiments. If you encounter any problems in development, you can find the answer directly in the official forum. At the same time, you can directly refer to the official examples and documents, complete development documents, and learning documents.

• ● About the difference between DA14580 and DA14585:

  The DA14580 and DA14585 packages are pin-to-pin compatible. DA14585, can be understood as the RAM of DA14580, OTP enhanced version, larger RAM/ROM, and supports BT 5.0, mainly to solve the problem of insufficient resources of DA14580, of course, this chip is also the first chip in dialog that supports BT 5.0 (DA14580 Only supports BT 4.0); It is recommended that you choose DA14585.

• ● The comparison with the official development board is as follows:
