Custom Printed Circuit Board Electronics PCB PCBA Assembly In China DC Step Down Step Up Adapter Module Adjustable Voltage Regulator Manufacturer

Product description
100% Brand new and high quality DC-DC Buck Boost Converter Step Down Step Up Charger Power Module
Input voltage : DC 9 - 35 V
Output Voltage : DC 1-35 V(Adjustable)
Output Current : 8.5A(MAX)
Input current : 12A (MAX) ( heatsink will be necessary for over 6A)
Output Power : natural cooling 80W (MAX)
Conversion efficiency : 90.5% Max (14V to 12V 2A)
Ripple and Noise : 200mVp-p
Working Temperature : industrial (- 40 ° c to +85 °c) ( environmental temperature, more than 40 degrees, please reduce power to
use, or - enhance cooling).
working temperature : 45 degrees
No-load current : 6mA typical
Voltage regulation : ± 0.5%
Load regulation : ± 0.5%
Dynamic response speed : 300uS
Size :Length * Width * Height = 65*47.7*26.8 mm
Applications :
Lithium battery charging
Battery cell charger
Car, laptop power supply.
for your electronic equipment
Solar Power panel system charging

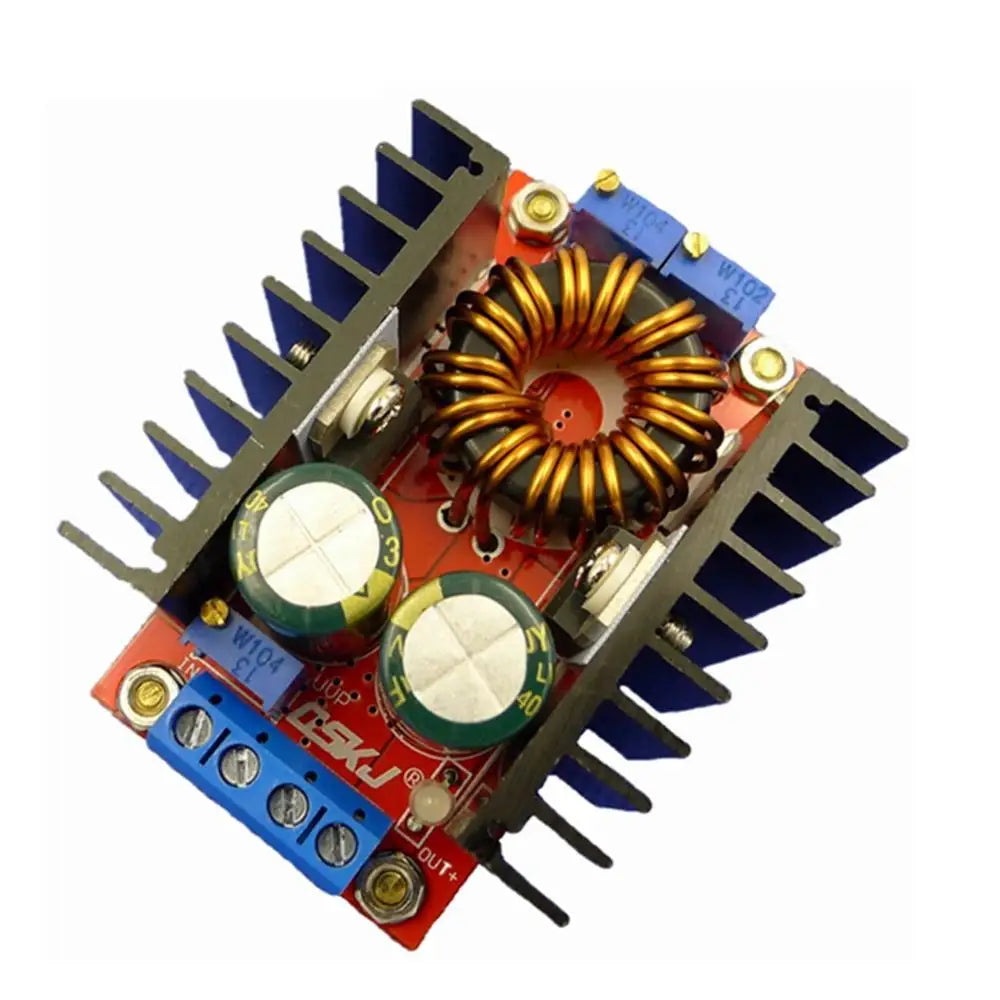

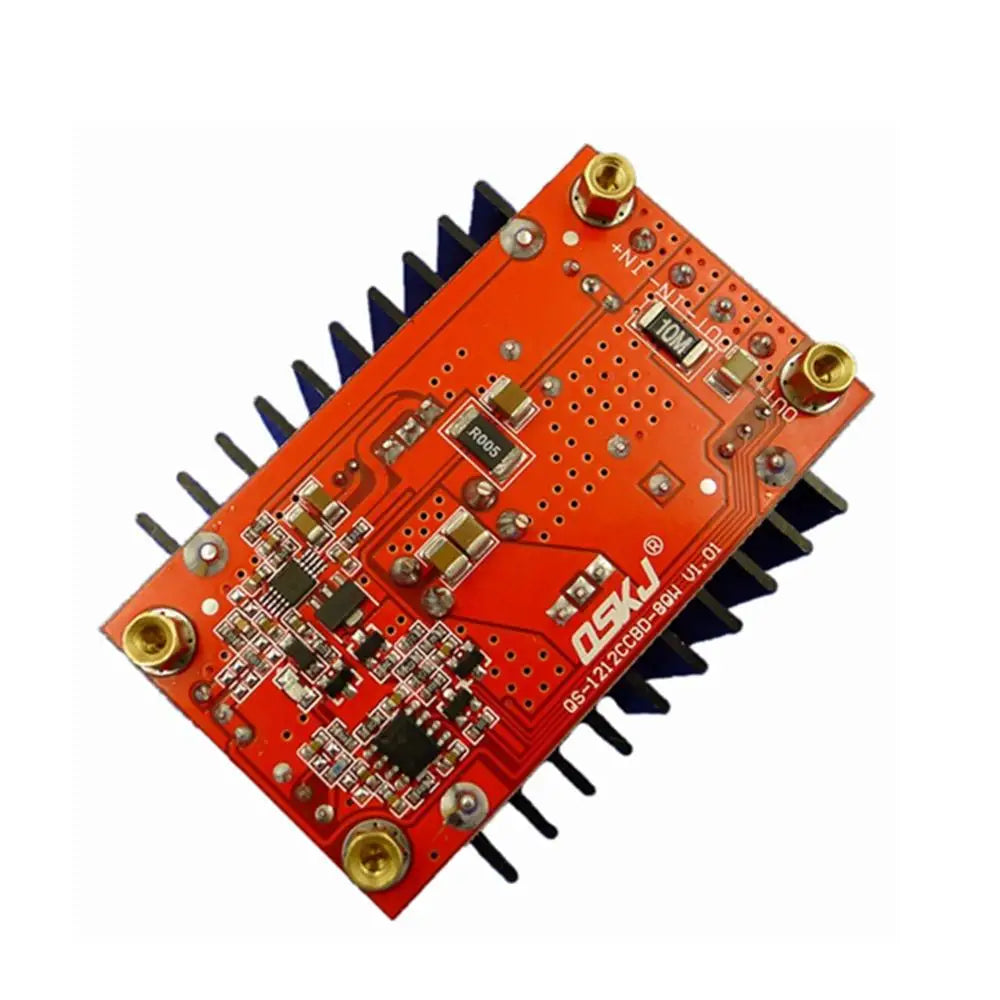

The image is for illustration
