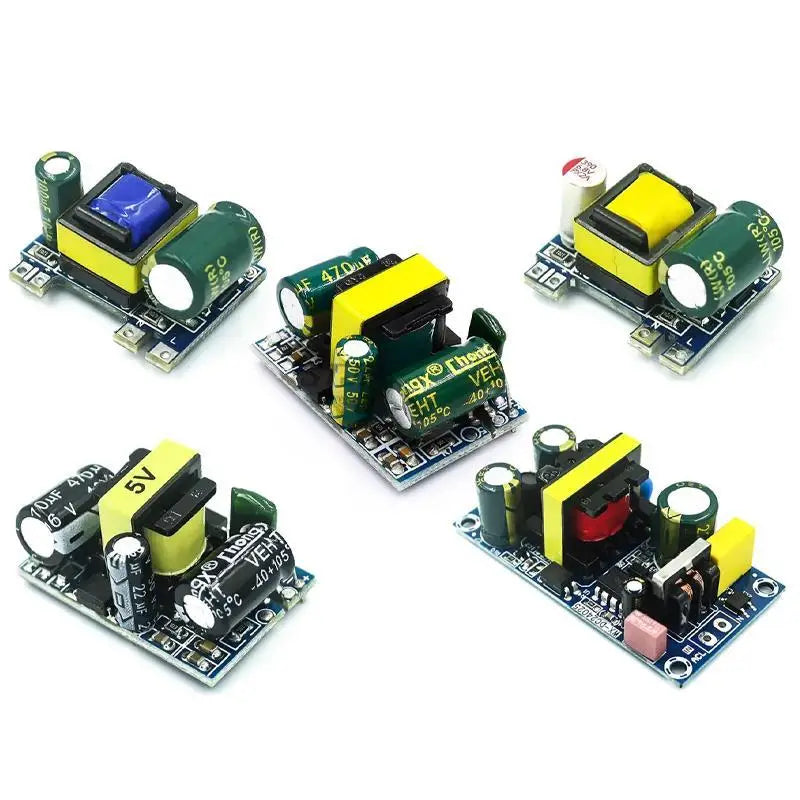

Input voltage: AC 85~265v 50/60HZ
Output voltage: DC5V (± 0.2V)
*Output characteristics: Multiple modules with the same voltage can be used in parallel to meet the demand for large current in small spaces
*Output voltage: 5V+-0 15V no-load and full load, reduced by 0 1V, rebound during heavy load, ripple 60mV at 50% load
*Output current: 5V0mA -700mA, entering constant current working mode at full load
*Output protection: overvoltage, overcurrent, over temperature, over power, short circuit protection, etc
*Input voltage range: AC50V-277V DC70V -390V
*No load power:<0 05W full load power:<4W
*Working temperature: -20 ° C to 70 ° C
*Output power: 3 5W efficiency is about 80%
*Output indicator light: green light
*Test resistance: 7 ohms (4 9V)

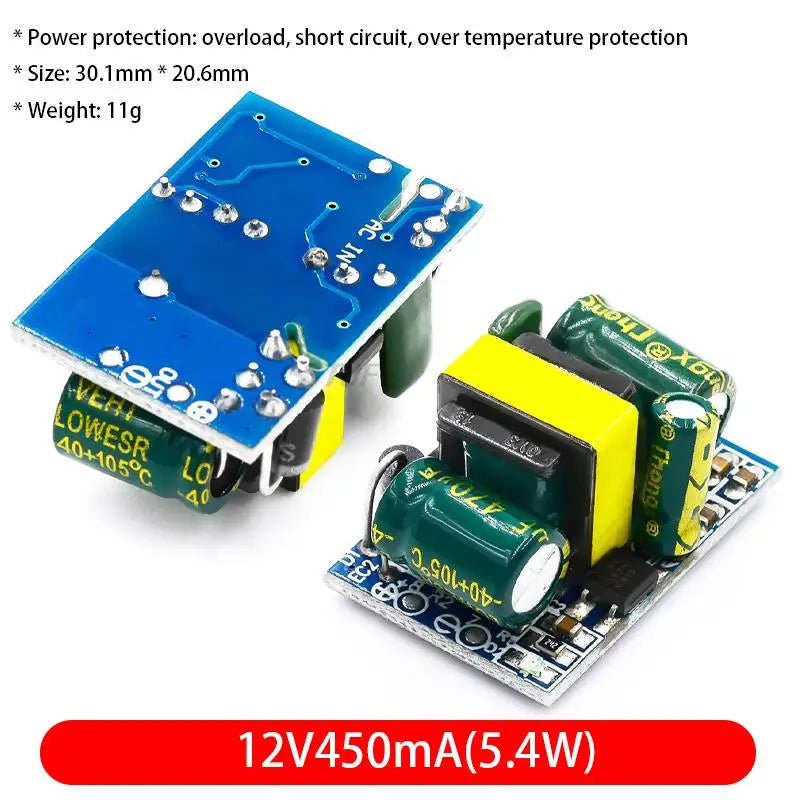

*Output voltage: 12V -0 05+0. 3V no-load and full load, reduced by 0 1V, rebound during heavy load, ripple of 100mV at 50% load
*Output characteristics: Multiple modules with the same voltage can be used in parallel to meet the demand for large current in small spaces
*Output protection: overvoltage, overcurrent, over temperature, over power, short circuit protection, etc
*Output current: 12V0mA -300mA, entering constant current working mode at full load
*Input voltage range: AC50V -277V DC70V -390V
*No load power:<0 05W Full load power:<4W * Output indicator light: green light
*Test resistance: 40 ohms (12V) for 12V
*Output power: 3 5W efficiency is about 80%

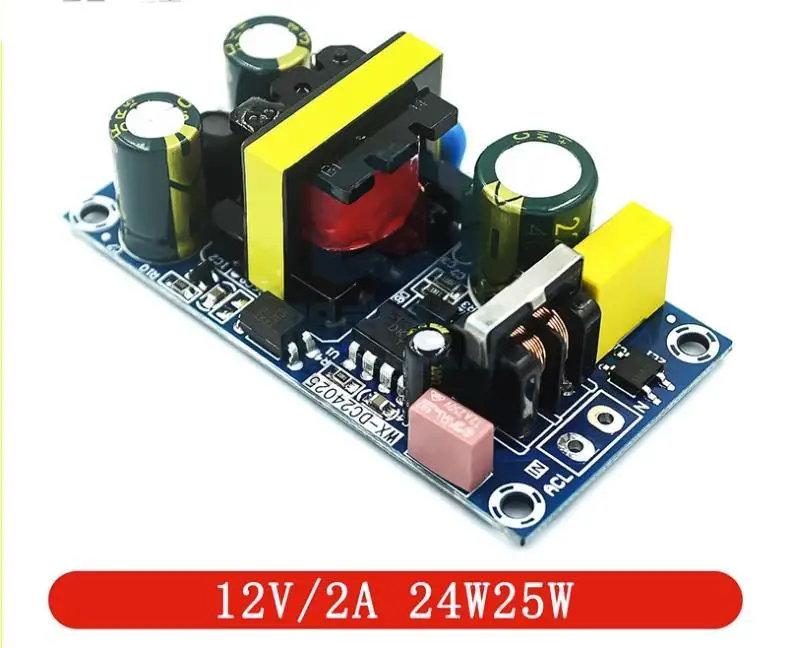

*Power protection: overload, short circuit, and over temperature protection are all available
*Voltage input: AC100V -265V
*Frequency input: 50HZ-60HZ
*Output current: rated 2A peak 4A protection

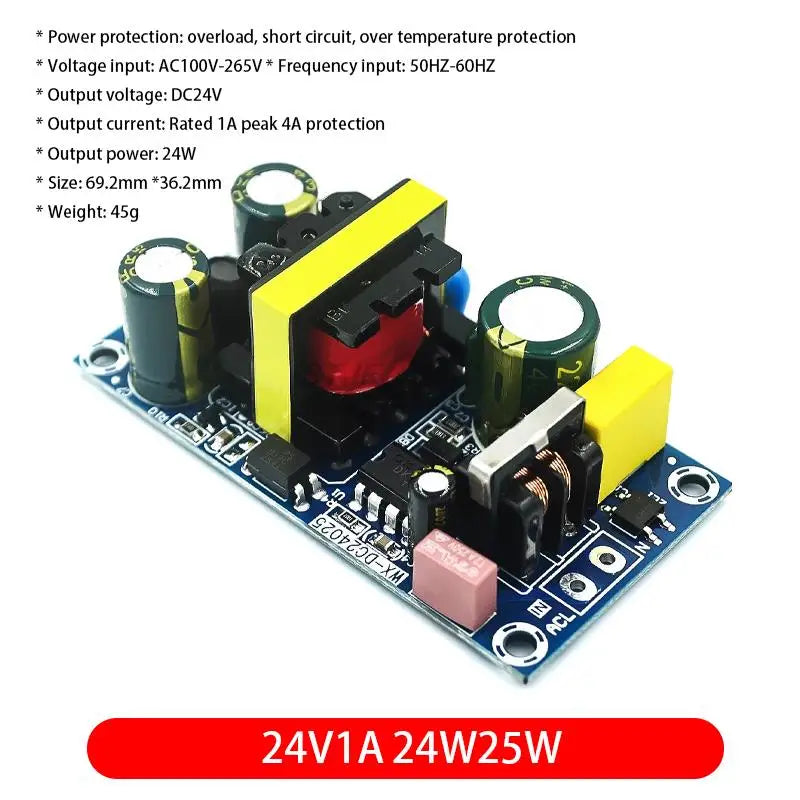

*Power protection: overload, short circuit, and over temperature protection are all available
*Voltage input: AC100V-265V
*Frequency input: 50HZ-60HZ
*Output current: rated 1A peak 4A protection
Features and parameter introduction
This power supply is an isolated industrial-grade module power supply, with temperature protection, over-current protection and short-circuit full protection, high and low voltage isolation, AC85~265V wide voltage input, 431 regulated DC5V output, small size, stable performance, and high cost performance

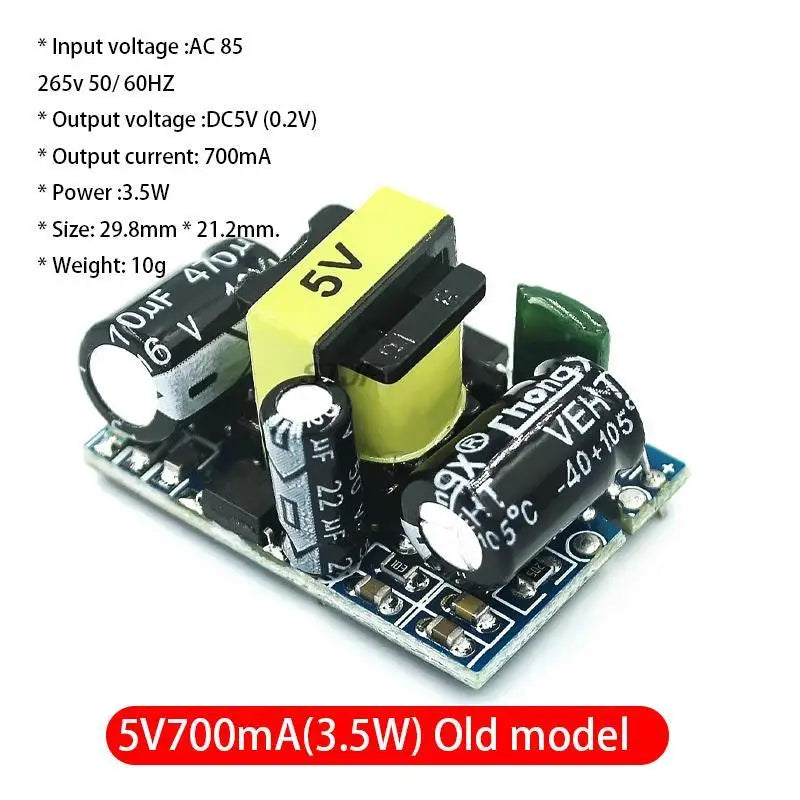

Input voltage AC 85 ~ 265v 50/60HZ
Output voltage DC5V ( ±0.2V )
2. Technical requirements

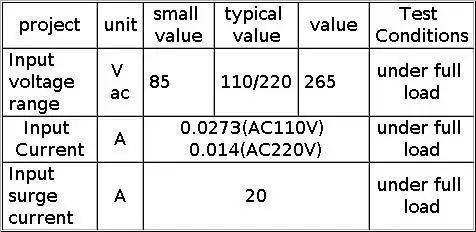

2.1 Input characteristics
2.2 Output characteristics

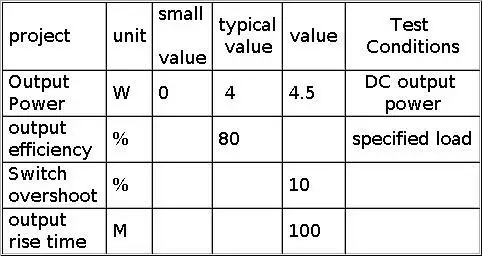

2.2.1 Output Regulation Characteristics

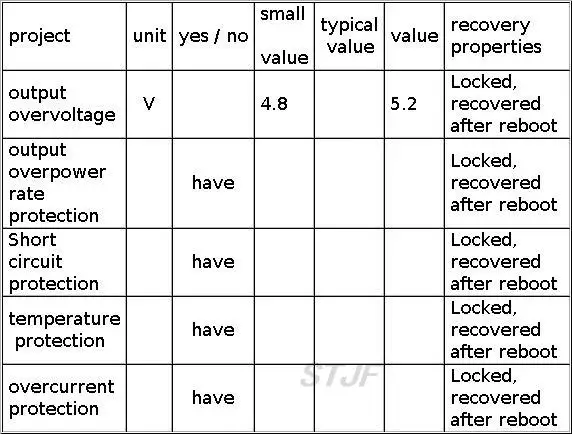

2.2.2 Other output characteristics
Volume: length, width and height 3*2*1.8 (cm)
A. Pins can be installed on the input and output terminals and directly soldered to the PCB
Environment 25 ℃ , MTBF greater than 16000 hours under 80% load

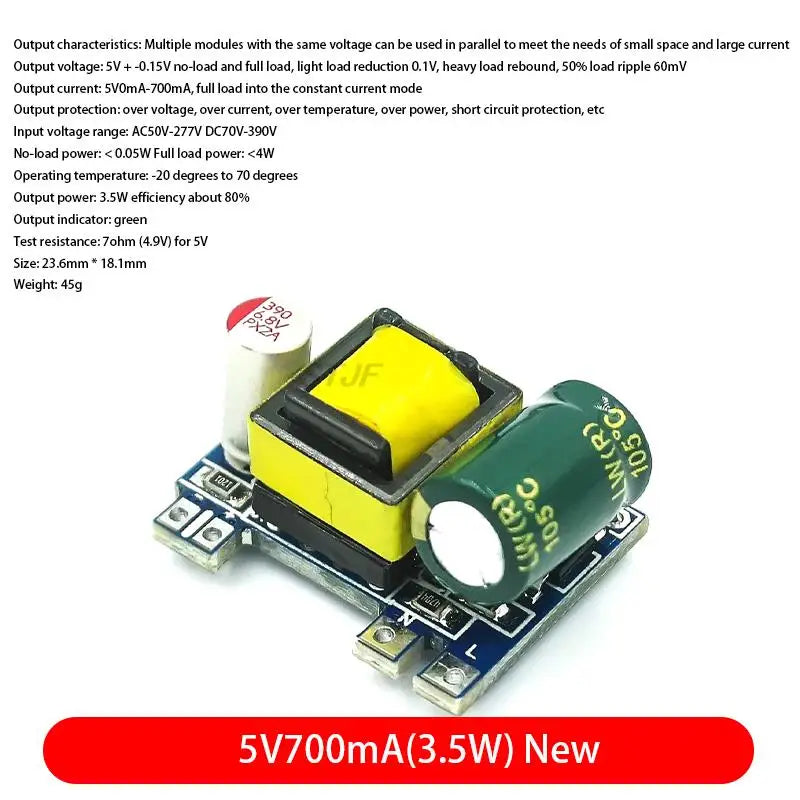

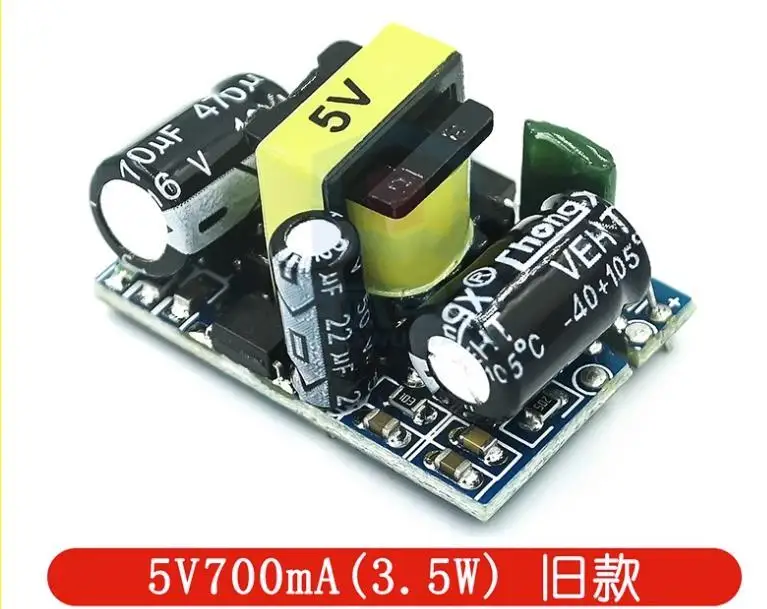

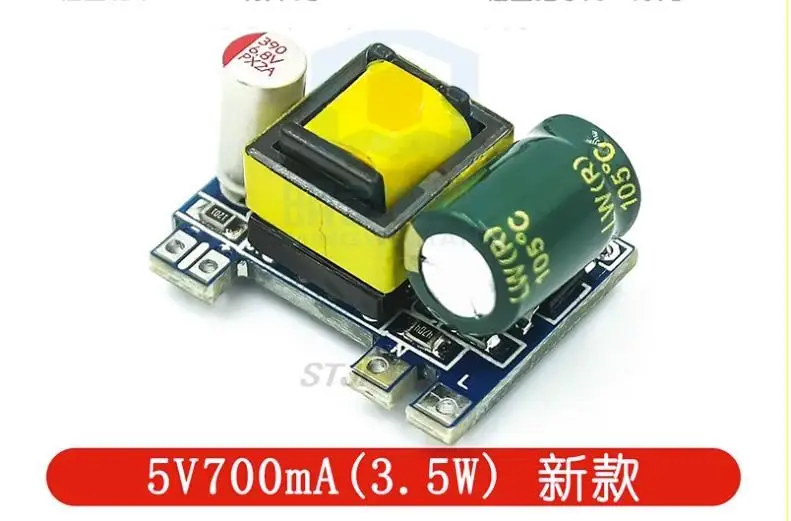

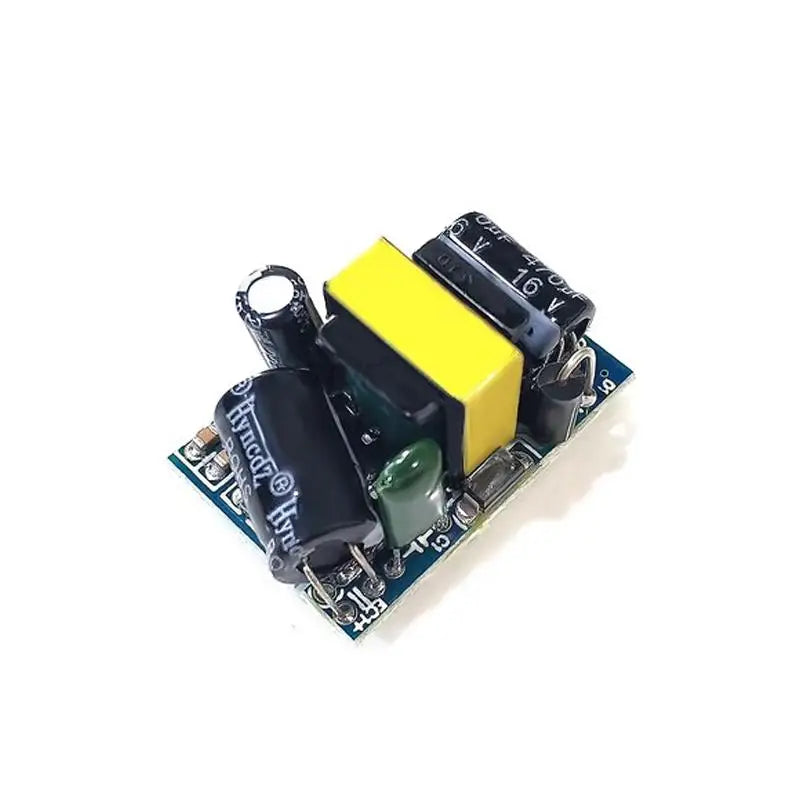

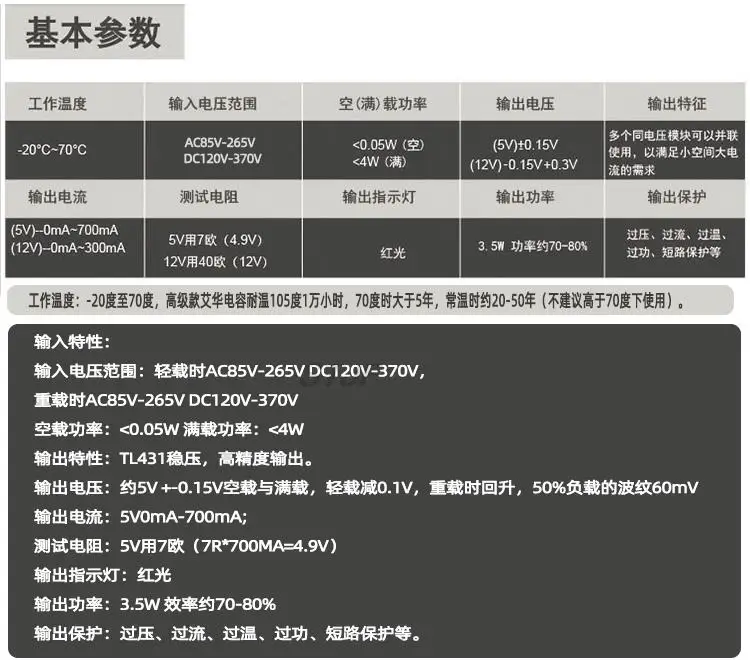

Precision 5V700mA 3.5W isolation switching power supply module 220 to 5V power supply
Working temperature: -20 degrees to 70 degrees, the green gold capacitor temperature resistance is 105 degrees for 10,000 hours, more than 5 years at 70 degrees, about 20-50 years at room temperature (not recommended for use above 70 degrees), high output filter Quality Solid Capacitors
Input voltage range: AC50V-277V DC70V-390V
No-load power: <0.05W Full-load power: <4W
Output characteristics: Multiple modules of the same voltage can be used in parallel to meet the demand for large current in a small space.
Output voltage: 5V +-0.15V no-load and full-load, light-load minus 0.1V, rebound when heavy-load, 50% load ripple 60mV
Output current: 5V0mA-700mA, enter constant current working mode at full load
Test resistance: 7 ohms for 5V (4.9V)
Output indicator: green light
Output power: 3.5W efficiency about 80%
Output protection: overvoltage, overcurrent, overtemperature, overpower, short circuit protection, etc.
Working temperature: -20 degrees to 70 degrees, the green gold capacitor temperature resistance is 105 degrees for 10,000 hours, more than 5 years at 70 degrees, about 20-50 years at room temperature (not recommended for use above 70 degrees), high output filter Quality Solid Capacitors
Input voltage range: AC50V-277V DC70V-390V
No-load power: <0.05W Full-load power: <4W
Output characteristics : Multiple modules of the same voltage can be used in parallel to meet the demand for large current in a small space.

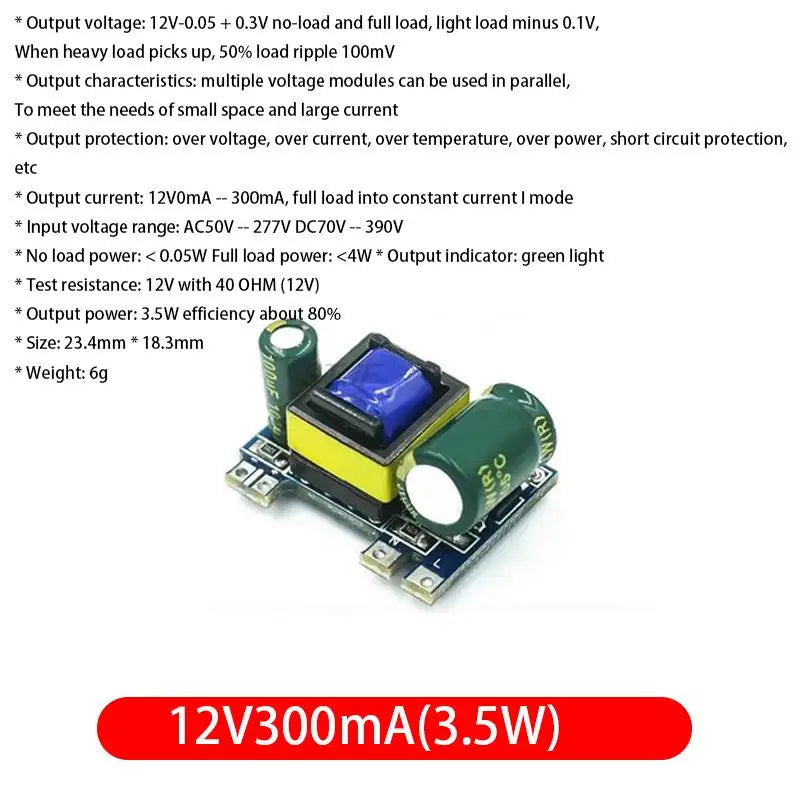

Output voltage: 12V -0.05+0.3V no-load and full-load, light-load minus 0.1V, rebound when heavy-load, 50% load ripple 100mV
Output current: 12V0 mA-300mA, enter constant current working mode at full load
Test resistance: 40 ohms for 12V (12V)
Output indicator: green light
Output power: 3.5W efficiency about 80%
Output protection: overvoltage, overcurrent, overtemperature, overpower, short circuit protection, etc.
The product is easy to install, and the input and output can be soldered to 5.08 terminals or pins.
There are mounting and fixing holes at the four corners, which can be fixed with screws to prevent movement or vibration. The diameter of the fixing holes is 3mm
Global universal input voltage AC100V-265V, strong versatility.
High efficiency, strong design density, small size, easy to install, and extremely low output ripple.
Input and output high isolation
Overload, short circuit, over temperature protection all have

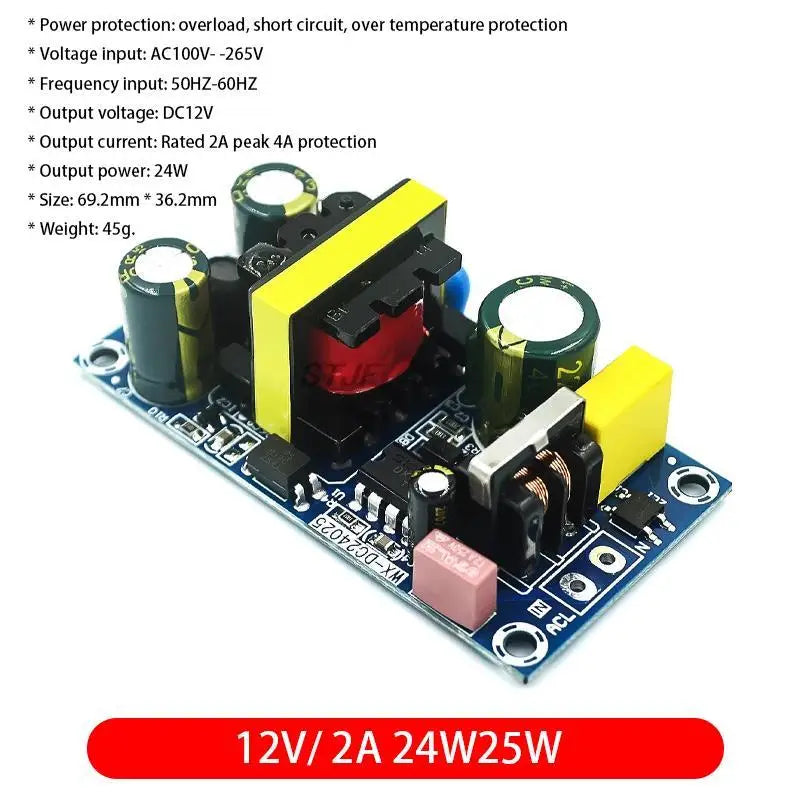

Power protection: overload, short circuit, over temperature protection all
Voltage input: AC100V-265V
Frequency input: 50HZ-60HZ
Output current: rated 2A peak 4A protection

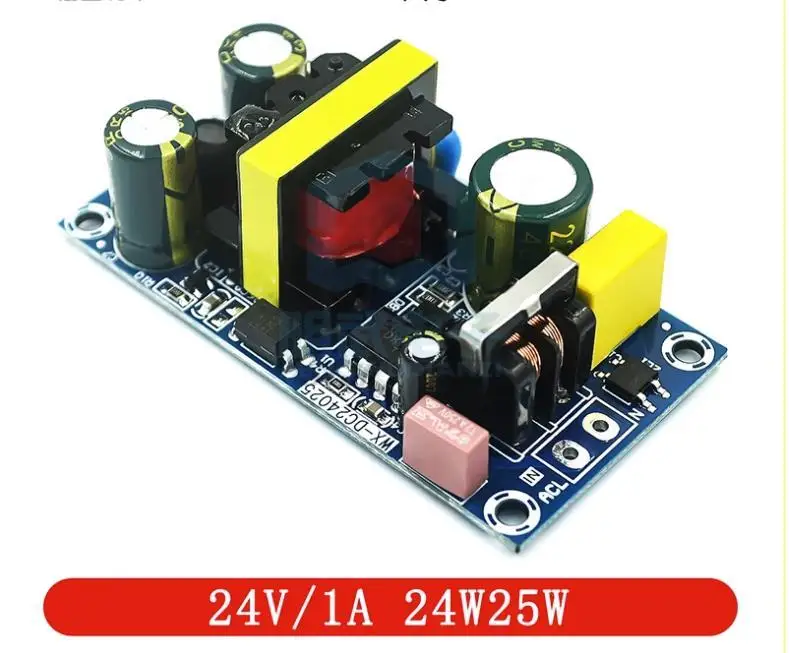

Overall size: length 6.9cm*width 3.6cm*height 2.5cm
