Custom Precious 22mm*33mm Coreless Mute Motor DC 12V-24V 4600RPM Low Speed Strong Magnetic Large Torque D-shaft Low Noise Manufacturer

Specification:

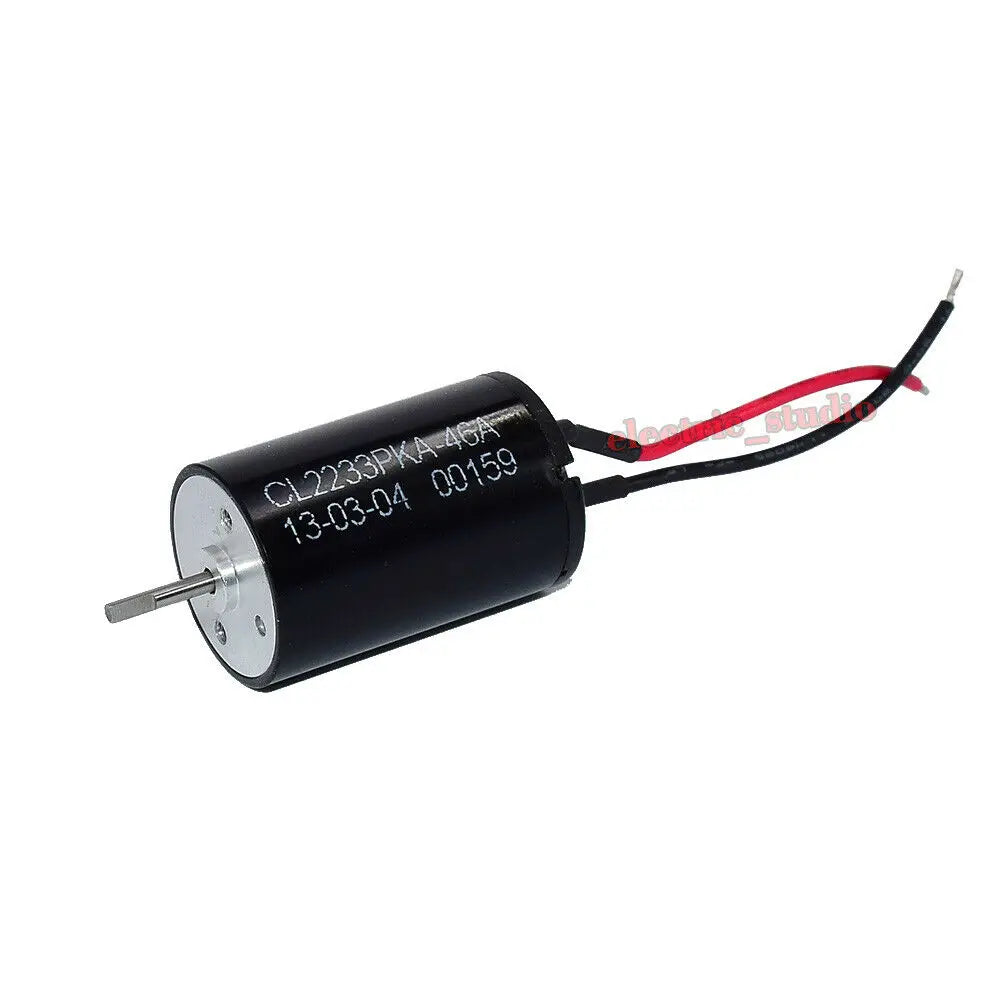

1.Motor model: CL2233 Coreless Motor

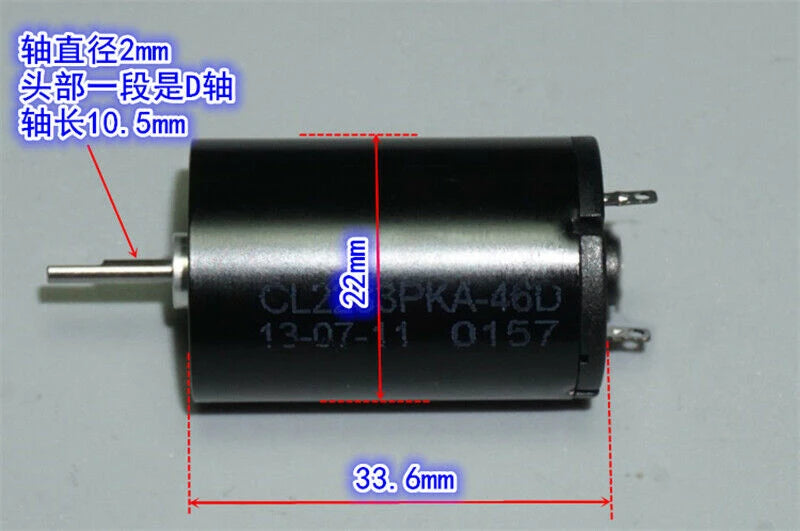

2.Motor diameter: 22mm

3.Motor height: 33.6mm

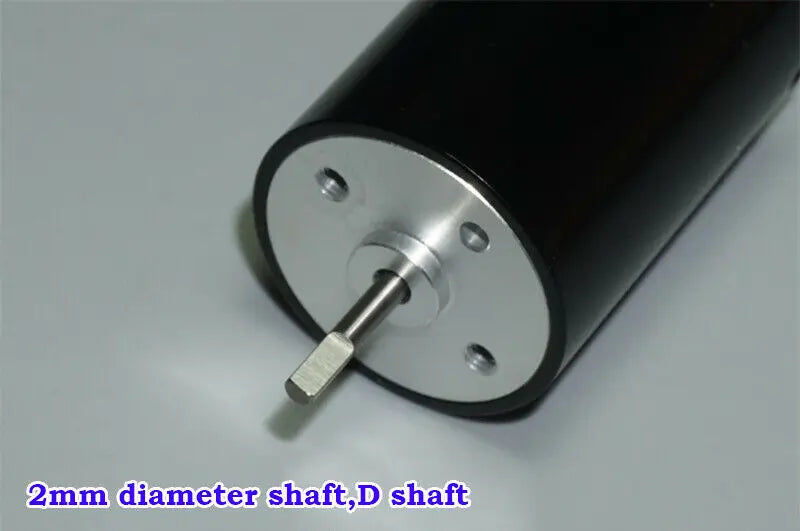

4.Output shaft diameter: 2mm(D shaft)

5.Output shaft length: 10.5mm

6.Weight: 60g

7.Voltage range: DC 12V-24V

8.Test data:

Voltage:12V No-load current:2mA No-load speed:2250RPM Stall current:0.35A

Voltage:24V No-load current:3mA No-load speed:4600RPM Stall current:0.65A

Package Include:

Motor x 1pc
