DESCRIPTION
Power Over Ethernet HAT For Raspberry Pi 3B+/4B, 802.3af-Compliant
(Any Backward-Compatible Future Versions Will Be Supported As Well)
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
- PoE (Power Over Ethernet) capability,802.3af-compliant

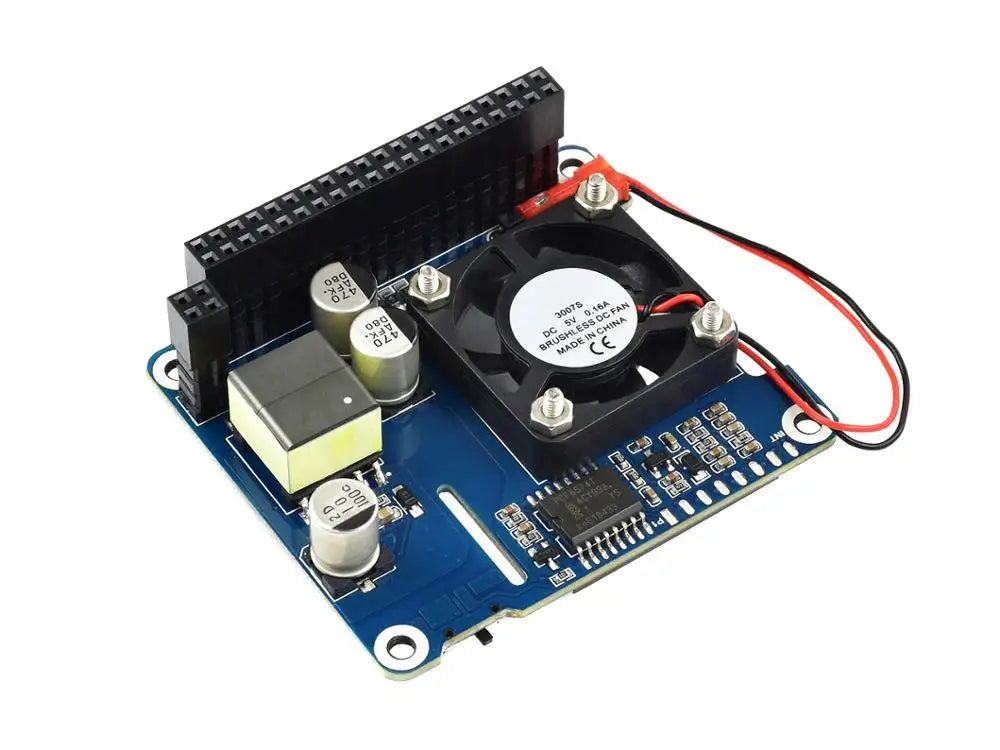

- Fully isolated switched-mode power supply (SMPS)

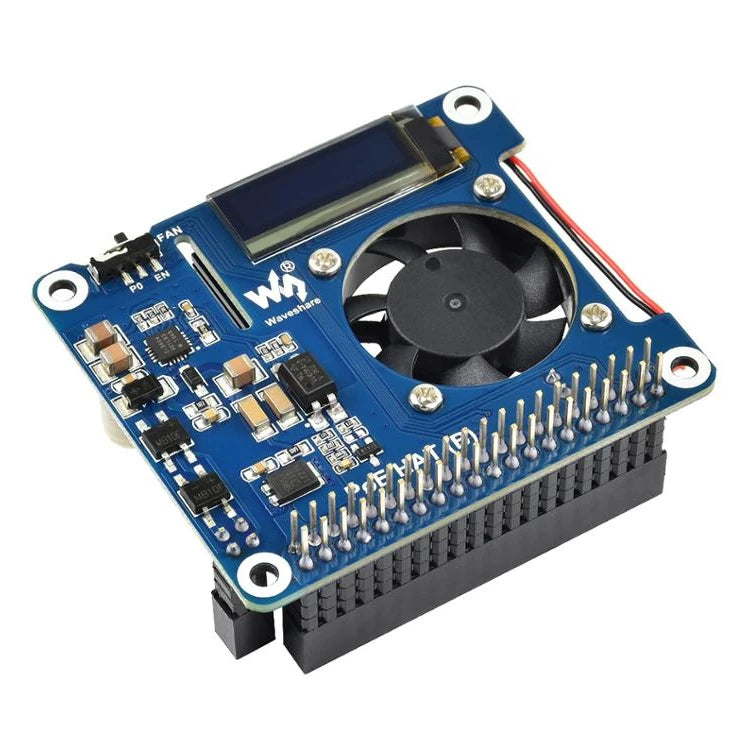

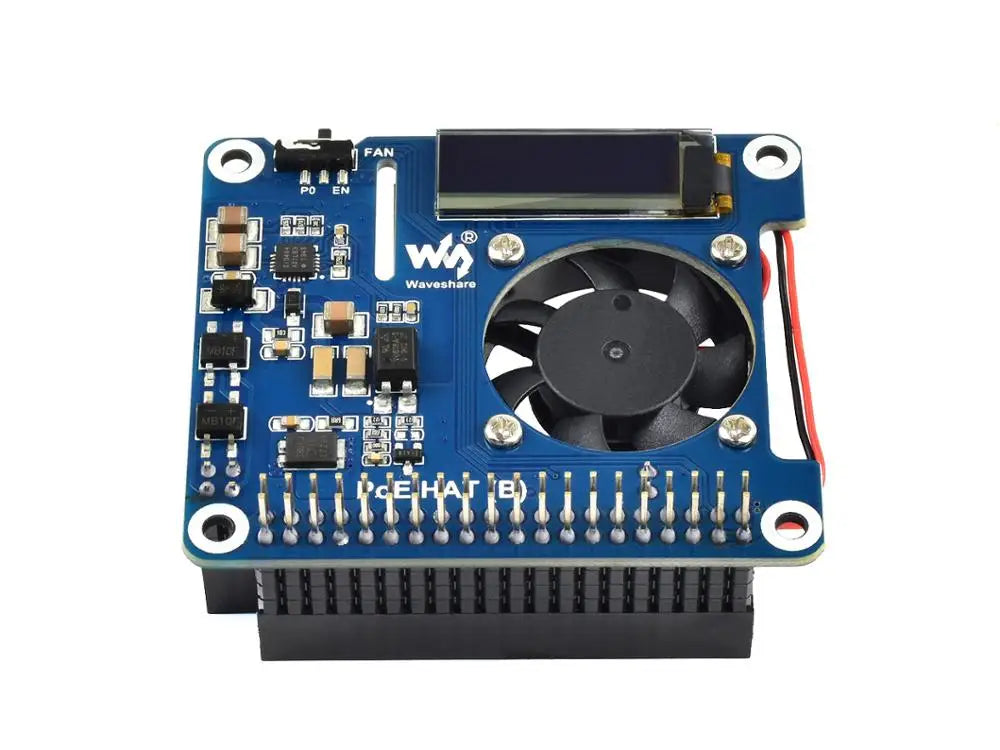

- 0.91" OLED, for monitoring processor temperature, IP address, and fan status in real-time

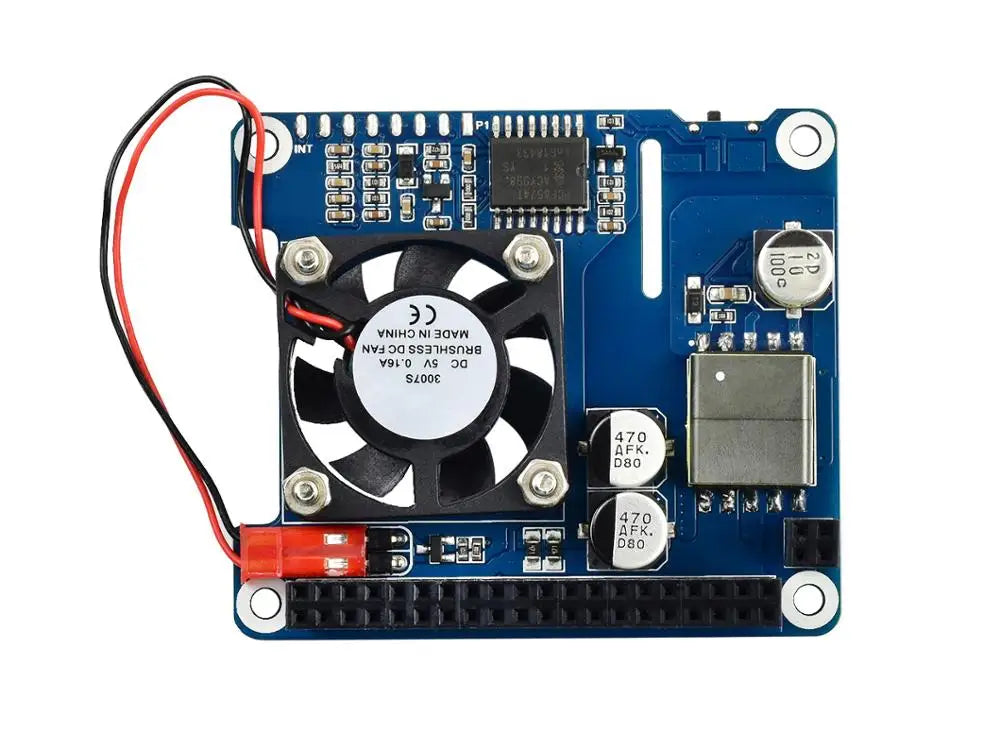

- Onboard cooling fan, allows auto running on powerup OR programmable control, configured by switch
- Integrates PCF8574 IO expander for I2C bus, providing pin P0 for directly fan control, and more spare IO pins
| POE POWER INPUT | 37V ~ 57V DC in | OLED SIZE | 0.91" |
|---|---|---|---|
| POE POWER OUTPUT | 5V 2.5A DC out | OLED PIXELS | 128×32 |
| NETWORK STANDARD | 802.3af PoE | OLED DRIVER | SSD1306 |
| DIMENSIONS | 56.5 × 65mm | OLED DISPLAY COLOR | white |

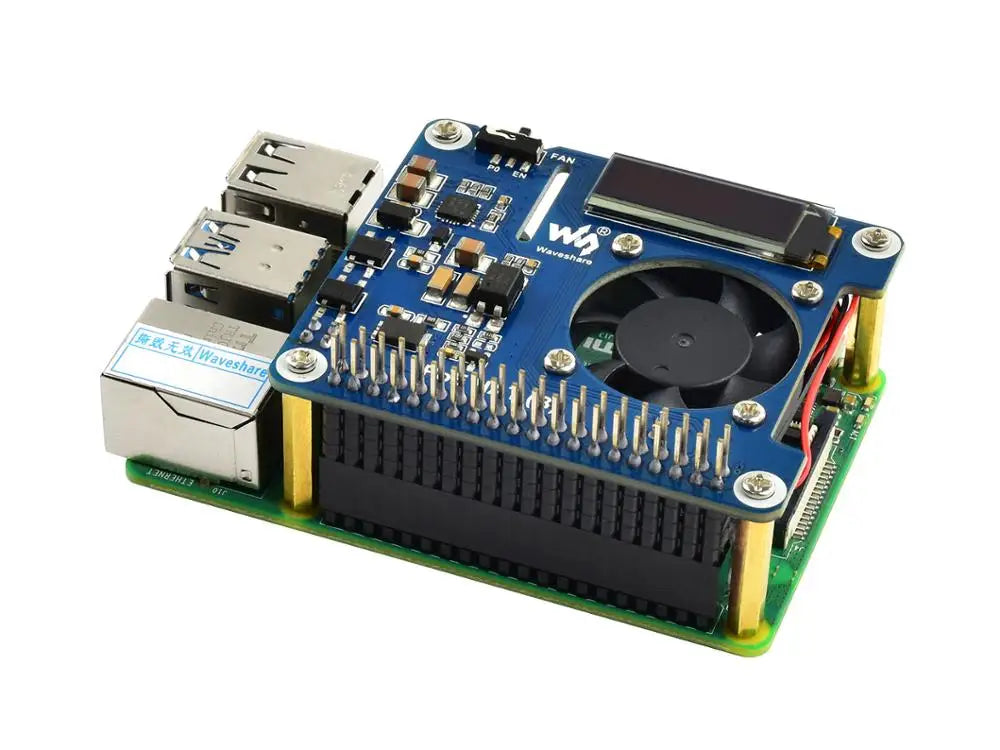

Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs
Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable
* proper 802.3af-compliant power sourcing equipment is required
128 × 32 Pixels, I2C-Bus Controlled

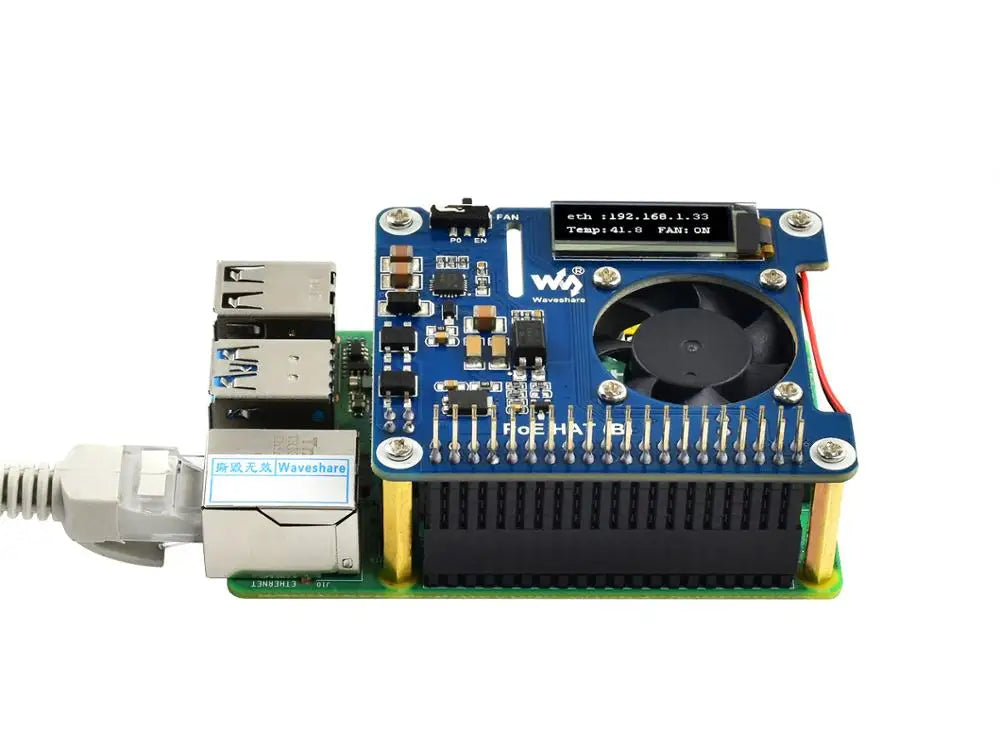

Monitoring Processor Temperature, IP Address, Fan Status In Real-Time
Allows Auto Running On Powerup OR Programmable Control, Configured By Switch
Automatically Turn On/Off Depending On The Raspberry Pi Processor Temperature
PCF8574 IO Expander For I2C Bus, Providing 8 IO Pins, Of Which P0 For Fan Control
And Extra Spare Pins On Solder Pads (P1-P7, INT)
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
PACKAGE CONTENT
Weight: 0.052 kg
- PoE HAT (B) x1
- Standoffs pack x1
